Wichard Marine

Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16" [01494]

Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16" [01494]

Regular price $55.99 USD
Regular price $87.80 USD Sale price $55.99 USD
Sale Sold out
Shipping calculated at checkout.

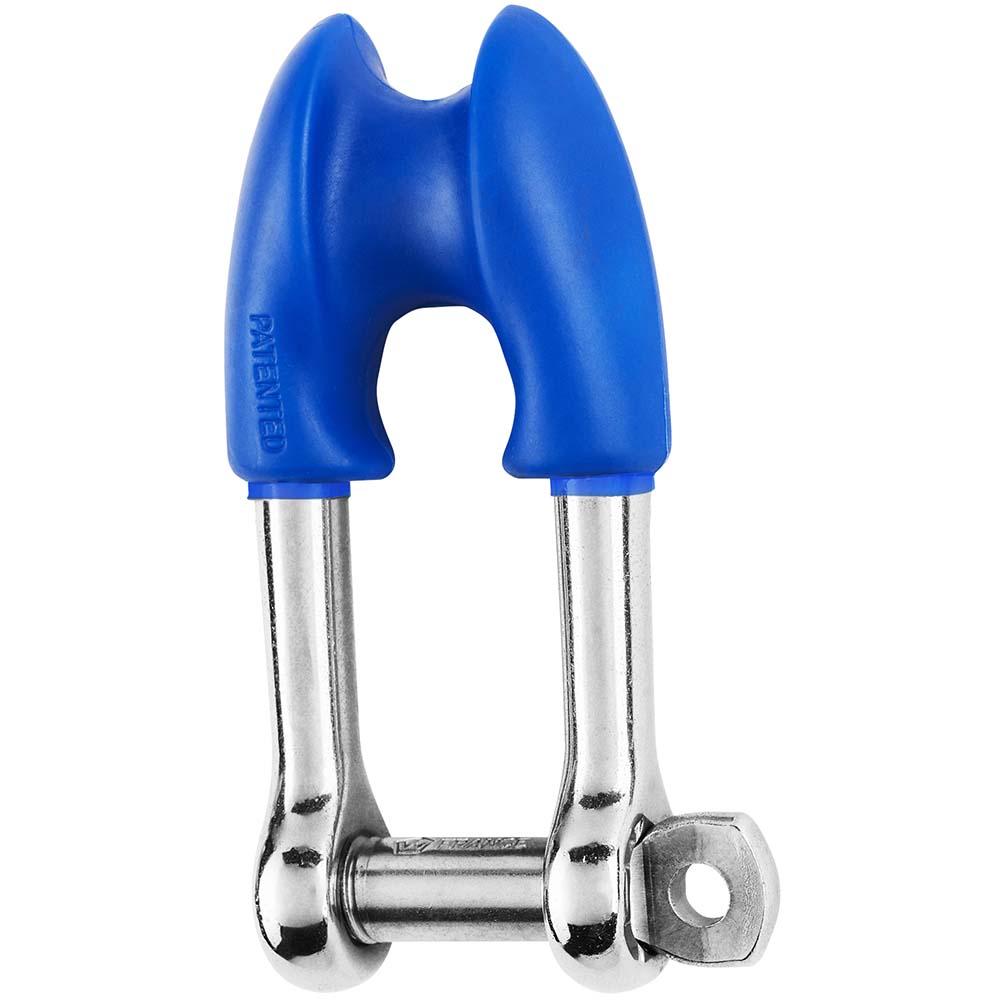

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"

Features:

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 12mm

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • Breaking load (lb) 6610
  • Weight (lb) 0.172

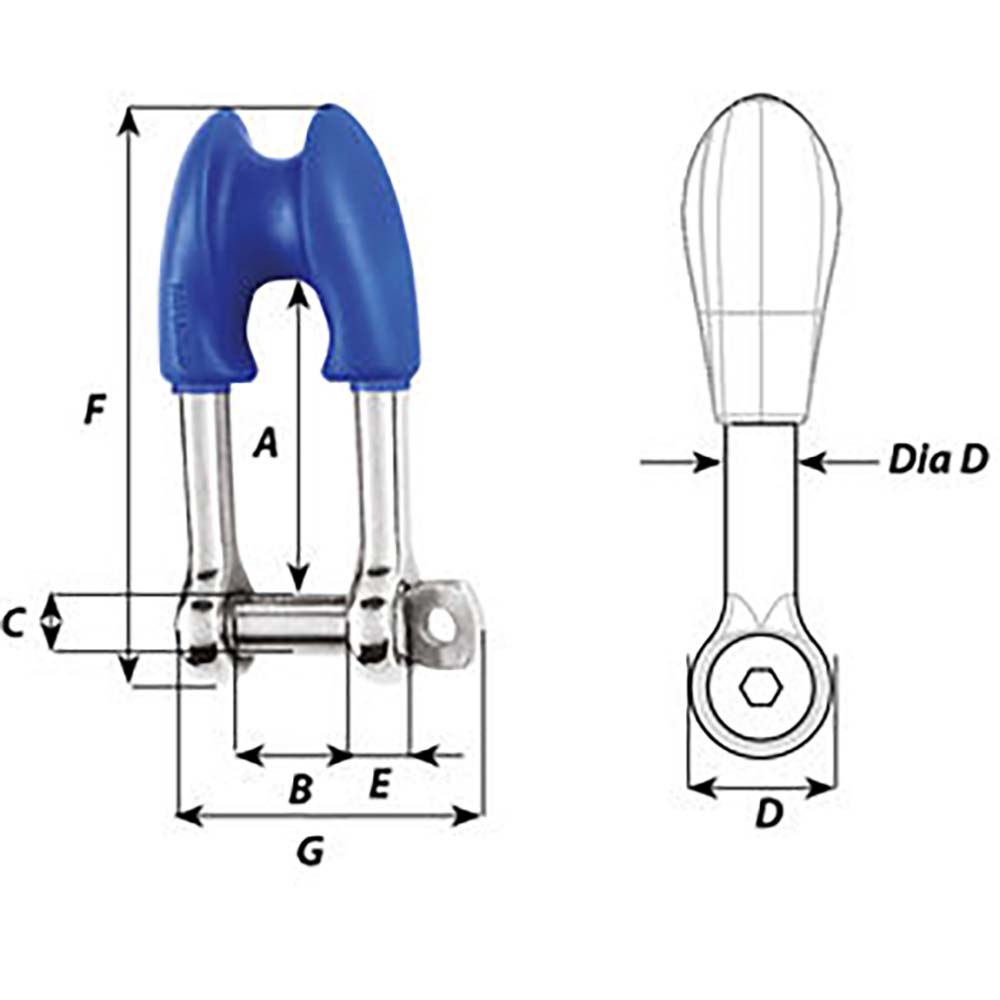

Dimensions (see 2nd image):

  • A (inch) 1-39/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 2-63/64"
  • G (inch) 1-21/32"
