Wichard U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64" [06523]

Description

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"

Features:

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 7.5 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 6610 / (kg) 3000
  • Weight: (lb) 0.148 / (g) 67

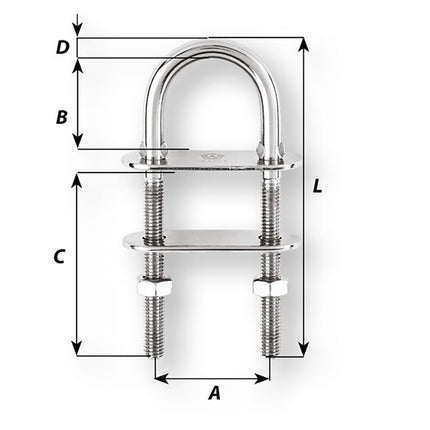

Dimensions:

  • A: (inch) 1 17/64" / (mm) 32
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 2 11/64" / (mm) 55
  • D diameter: (inch) 15/64" / (mm) 6
  • Length: (inch) 3 35/64" / (mm) 90

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

Wichard U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64" [06523]

Product form

$26.65 $16.99

    Description

    U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"

    Features:

    • Entirely drop forged product with high-quality stainless steel
    • Outstanding working and breaking loads
    • For any fastening applications (shrouds, lifelines, blocks...)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 7.5 Nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 2820 / (kg) 1280
    • Breaking load: (lb) 6610 / (kg) 3000
    • Weight: (lb) 0.148 / (g) 67

    Dimensions:

    • A: (inch) 1 17/64" / (mm) 32
    • B: (inch) 1 1/16" / (mm) 27
    • C: (inch) 2 11/64" / (mm) 55
    • D diameter: (inch) 15/64" / (mm) 6
    • Length: (inch) 3 35/64" / (mm) 90

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
