Description

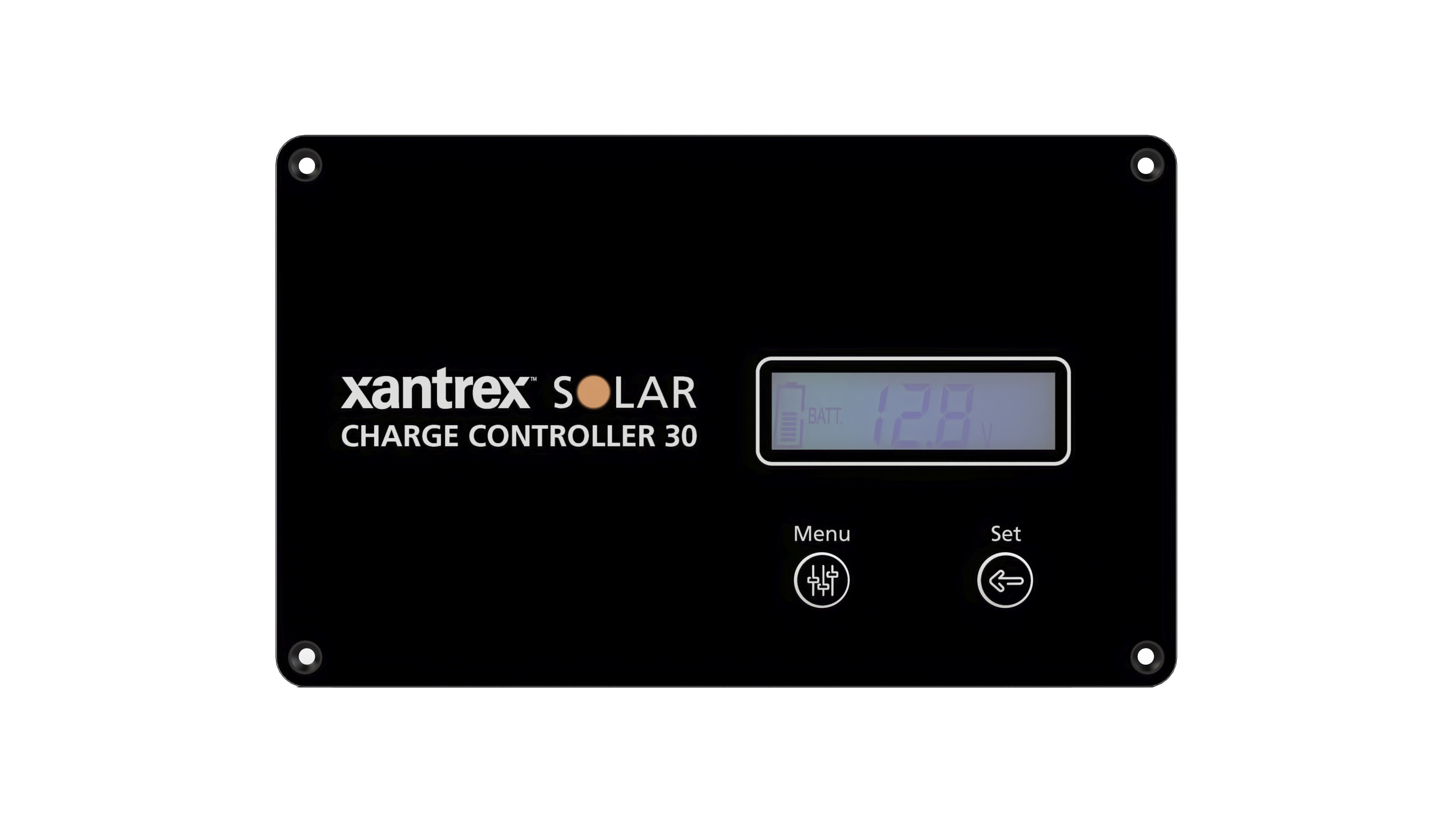

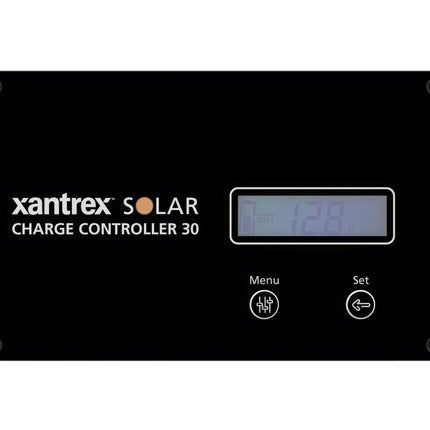

Xantrex PWM Charge Controller
Model: 709-3024-01
- Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
- Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
- Best-in-class PV array and battery protections
- Aesthetic flush-mount industrial design
Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.
The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.
Specifications
| Nominal System Voltag |
12/24V Auto-Detect |
| Battery Input Voltage Range |
8V to 32V |
| Rated Charge Current |
30A |
| Max. PV Short Circuit Current |
30A |
| Max. PV Open Circuit Voltage |
50A |
| Battery Types Supported |
Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO ) |
| elf-consumption |
12V: 4.2mA
24V: 2.6mA |
| Temperature Compensation Coefficient |
-3mV/°C/2V |
| Grounding |
Common negative |
| ENVIRONMENTAL DATA |
| Storage Temperature Range |
-30°C to 80°C |
| Operating Temperature Range |
-20°C to 55°C (fully rated output) |
| MECHANICAL DATA |
| Dimensions |
7.03" W x 4.31" H x 1.86" D (178.5mm W x 109.4mm H x 47.3mm D) |
| Max. Cable Size (PV Array and Battery |
0.63in (16mm ) / 6AWG |
| Recommended Cable Size |
0.24in (6mm2) / 10AWG or larger |
