Airmar SS175C-12-M 12d TiltHigh CHIRP with Navico 9-PinModel: SS175C-20-H Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 304 m (1000 feet) High Frequency: 130 kHz to 210 kHz 10 deg to 6 deg beamwidth 80 kHz of total bandwidth from one transducer High frequency provides superior shallow water performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36 feet) Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID(R) technology Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.SpecificationsWeight2.7 kg (6 lb) Hull Deadrise 16 deg to 24 deg hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8) One internal ceramic assembly "

Read more less

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Humminbird 9-Pin M&M Chirp Cable - 1m Model: B175-C-12-H-HB High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 80 kHz of total bandwidth from one transducer Hull Type: Fiberglass or wood Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector. SpecificationsHull Deadrise8 deg to 15 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 130-210 kHz What's in the Box: B175 High Frequency Transducer Humminbird 9-Pin M&M Chirp Cable - 1m

Read more less

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Garmin 8 pin M&M Chirp Cable - 1m Model: B175-C-12-H-8G High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 80 kHz of total bandwidth from one transducer Hull Type: Fiberglass or wood Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector. SpecificationsHull Deadrise8 deg to 15 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 130-210 kHz What's in the Box: B175 High Frequency Transducer Garmin 8 pin M&M Chirp Cable - 1m

Read more less

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Navico BL M&M Chirp Cable - 1m Model: B175-C-12-H-BL High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 80 kHz of total bandwidth from one transducer Hull Type: Fiberglass or wood Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector. SpecificationsHull Deadrise8 deg to 15 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 130-210 kHz What's in the Box: B175 High Frequency Transducer Navico BL M&M Chirp Cable - 1m

Read more less

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Navico 9 pin M&M Chirp Cable - 1m Model: B175-C-12-H-9N High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 80 kHz of total bandwidth from one transducer Hull Type: Fiberglass or wood Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector. SpecificationsHull Deadrise8 deg to 15 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 130-210 kHz What's in the Box: B175 High Frequency Transducer Navico 9 pin M&M Chirp Cable - 1m

Read more less

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Humminbird 14-Pin M&M Chirp Cable - 1m Model: B175-C-12-H-14HB High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 80 kHz of total bandwidth from one transducer Hull Type: Fiberglass or wood Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector. SpecificationsHull Deadrise8 deg to 15 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 130-210 kHz What's in the Box: B175 High Frequency Transducer Humminbird 14-Pin M&M Chirp Cable - 1m

Read more less

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Garmin 12 pin M&M Chirp Cable - 1m Model: B175-C-12-H-12G High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 80 kHz of total bandwidth from one transducer Hull Type: Fiberglass or wood Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector. SpecificationsHull Deadrise8 deg to 15 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 130-210 kHz What's in the Box: B175 High Frequency Transducer Garmin 12 pin M&M Chirp Cable - 1m

Read more less

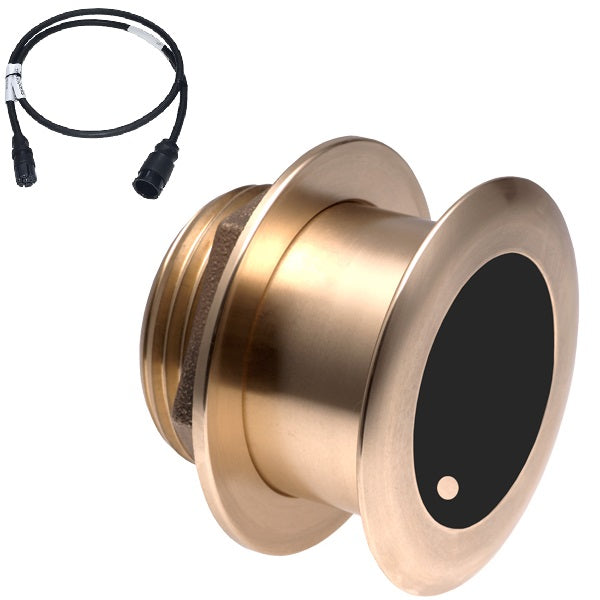

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element with Raymarine 11 pin M&M Chirp Cable - Low and Dual-Band Model: B175-C-12-H-11R High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 80 kHz of total bandwidth from one transducer Hull Type: Fiberglass or wood Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36 feet) Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector. SpecificationsHull Deadrise8 deg to 15 deg Acoustic window Urethane Boat size Up to 11 m (36 feet) Hull type Fiberglass or wood Frequency 130-210 kHz What's in the Box: B175 High Frequency Transducer Raymarine 11 pin M&M Chirp Cable - Low and Dual-Band

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Humminbird 9-Pin Mix-N-Match CableModel: B175C-0-H-HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-HB Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 20d Tilted Element With Mix-N-Match Cable EndsModel: B175C-20-H-MM Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box:B175C-20-H-MM Transducer

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Navico 7-Pin Mix-N-Match CableModel: B175C-0-H-BL Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-BL Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Navico 9-Pin Mix-N-Match CableModel: B175C-0-H-9N Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-9N Mix and Match Cable

Read more less

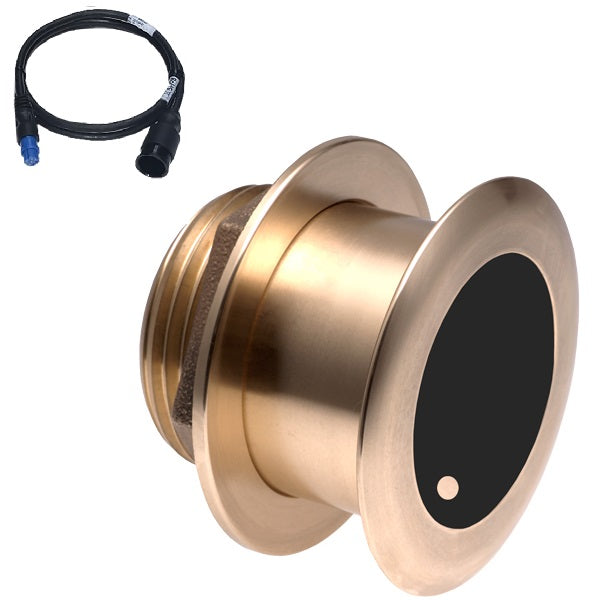

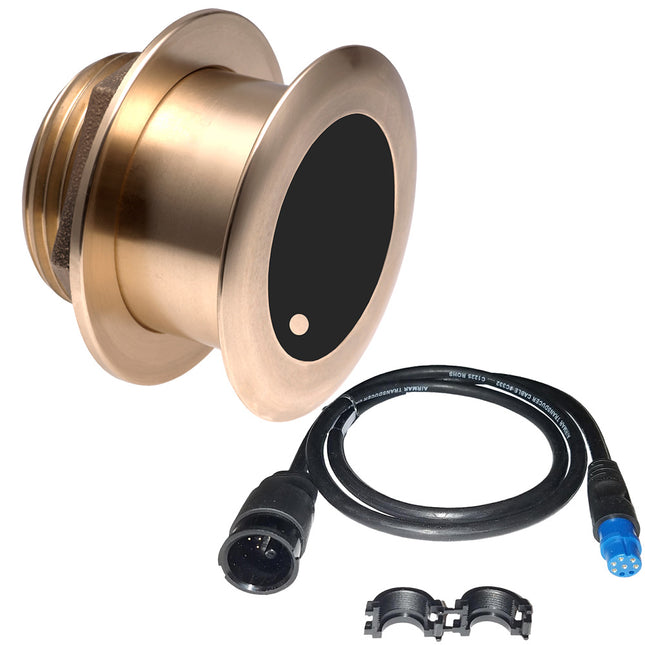

Airmar B175 CHIRP High Frequency 0d Tilted Element With Garmin 8-Pin Mix-N-Match CableModel: B175C-0-H-8G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-8G Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 20d Tilted Element With Humminbird 9-Pin Mix-N-Match CableModel: B175C-20-H-HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-HB Mix-N-Match Cable

Read more less

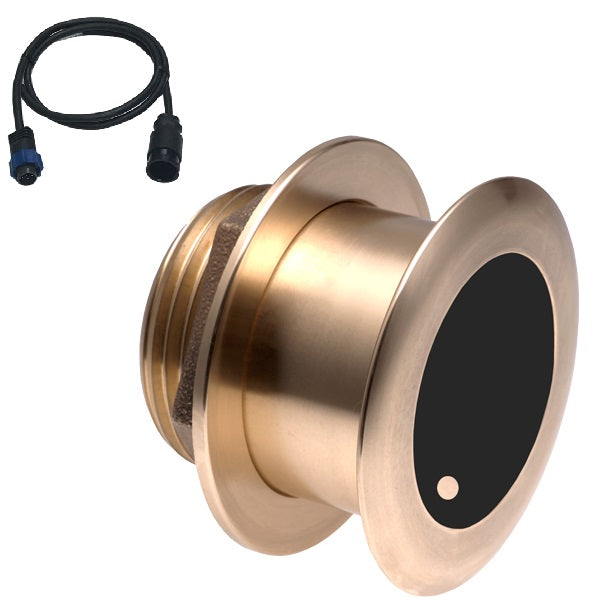

Airmar B175 CHIRP High Frequency 20d Tilted Element With Navico 7-Pin Mix-N-Match CableModel: B175C-20-H-BL Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-BL Mix-N-Match Cable

Read more less

Airmar B175 CHIRP High Frequency 20d Tilted Element With Navico 9-Pin Mix-N-Match CableModel: B175C-20-H-9N Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-9N Mix-N-Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Humminbird 14-Pin Mix-N-Match CableModel: B175C-0-H-14HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-14HB Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Garmin 12-Pin Mix-N-Match CableModel: B175C-0-H-12G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-12G Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Raymarine 11-Pin Mix-N-Match CableModel: B175C-0-H-11R Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetAdditional cable required, use A80328 in single transducer applications and A102146 when using a transducer pair.SpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-11R-HM Mix and Match Cable

Read more less

Airmar B175 CHIRP High Frequency 20d Tilted Element With Garmin 8-Pin Mix-N-Match CableModel: B175C-20-H-8G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-8G Mix-N-Match Cable

Read more less

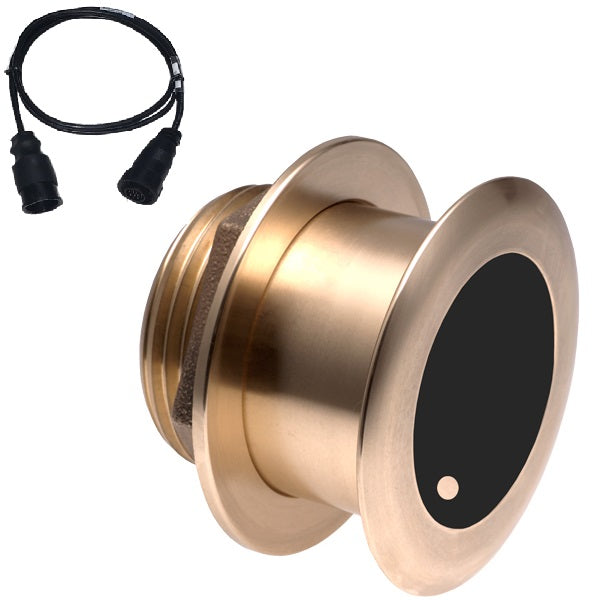

Airmar B175 CHIRP High Frequency 20d Tilted Element With Humminbird 14-Pin Mix-N-Match CableModel: B175C-20-H-14HB Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-14HB Mix-N-Match Cable

Read more less

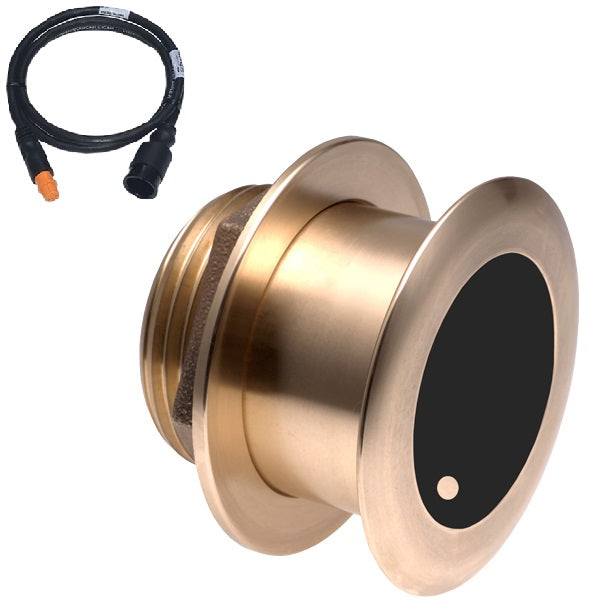

Airmar B175 CHIRP High Frequency 20d Tilted Element With Garmin 12-Pin Mix-N-Match CableModel: B175C-20-H-12G Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-12G Mix-N-Match Cable

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Bare Wire Mix-N-Match CableModel: B175C-0-H-0 Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-0-H-MM Transducer MMC-0 Mix and Match Cable

Read more less

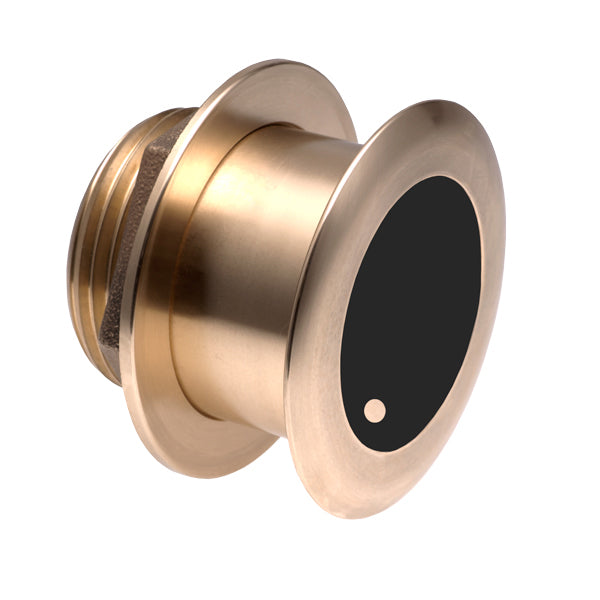

Airmar B175 CHIRP High Frequency 20d Tilted Element With Bare Wire Mix-N-Match CableModel: B175C-20-H-0 Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box: B175C-20-H-MM Transducer MMC-0 Mix-N-Match Cable

Read more less

B175H Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175H) for use in all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Airmar B175H  Bronze Thru Hull with 12° Tilt 8 Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features Fixed 12° tilted version for 8 to 15° hull deadrise angles Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Patented Xducer ID® technology Specifications Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 39' Chirp: High Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 1"H x 6"W x 9"L WT: 10.9 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

B175H Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableB175H Bronze Thru Hull 20 degree Tilt 1KWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 12° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.8 lbs UPC: 801769001914

Read more less

B175H Bronze Thru Hull 20° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 20° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs UPC: 801769001921

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Mix-N-Match Cable EndsModel: B175C-0-H-MM Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecificationsDeadrise0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box:B175C-0-H-MM Transducer

Read more less

Airmar TM185C TransducerMedium CHIRP With Mix-N-Match PlugModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box:TM185C-M-MM

Read more less

Airmar TM185C TransducerMedium CHIRP With Humminbird 9-PinModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-HB

Read more less

Airmar TM185C TransducerMedium CHIRP With Navico 7-Pin BlueModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-BL

Read more less

Airmar TM185C TransducerMedium CHIRP With Si-tex 8-PinModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-BB

Read more less

Airmar TM185C TransducerMedium CHIRP With Navico 9-PinModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-8G

Read more less

Airmar TM185C TransducerMedium CHIRP With Garmin 8-PinModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-8G

Read more less

Airmar TM185C TransducerMedium CHIRP With Humminbird 14-PinModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Urethane transom transducer with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-14HB

Read more less

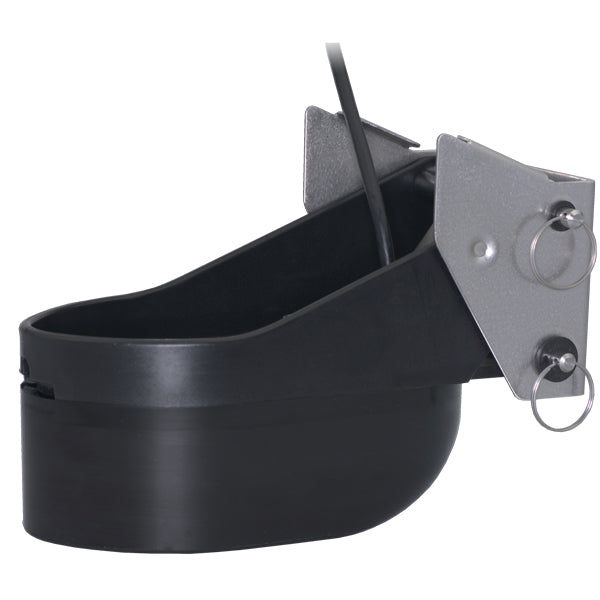

Airmar TM185C TransducerMedium CHIRP With Garmin 12-PinModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-12G

Read more less

Airmar TM185C TransducerMedium CHIRP With Raymarine 11-PinModel: TM185C-M-11R Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeight4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-11R-HM

Read more less

Airmar TM185C TransducerMedium CHIRP With Bare WiresModel: TM185-M-0 Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.SpecificationsWeightq4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-0

Read more less

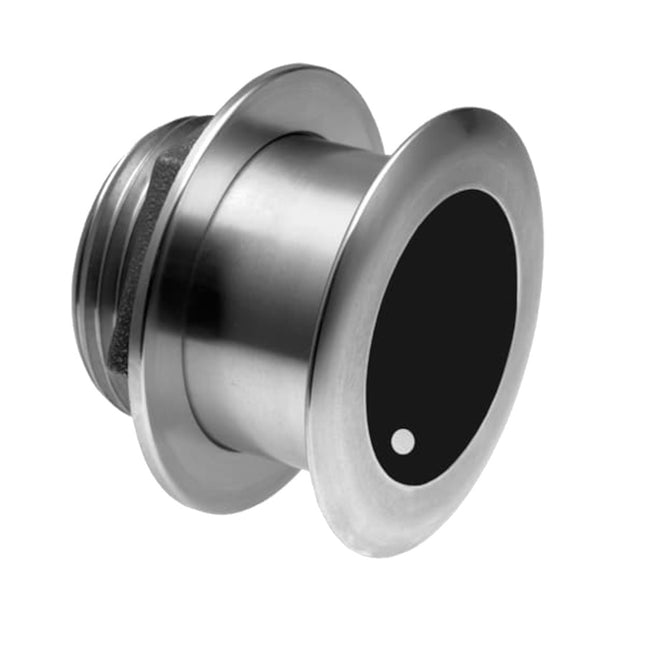

Airmar SS264 50kHz Wide Beam, 1kW, 20 deg Tilt, Furuno 10-Pin, Depth and tempModel: SS264-20-W5-10F Depth and fast-response water-temperature sensing SS264N operating at 50 kHz frequency delivers a wide 25 deg beam 1 kW of power Outstanding performance Low profile design so minimal protrusion below the hull Stainless steel housing for use with all hull materials Patented Xducer ID(R) technology Fixed 20 deg tilted version for 16 to 24 deg hull deadrise angles The legendary B260's 1 kW performance is now available for fast sport-fishing boats-no fairing required! Airmar has taken the proven B260 and split it apart into a pair of low-profile transducers. One transducer handles 50 kHz while the other operates at 200 kHz. And the ceramic element in each unit has been tilted to offset the deadrise angle of your boat's hull.Called the SS264N, these transducers are perfect for fast center-console and tailored sport-fishing boats, or any vessel that cannot have a thru-hull with a High-performance Fairing. The narrow-beam, broadband, 200 kHz transducer will give excellent resolution and crisp image detail needed for bottom fishing. This transducer's low ringing is perfect for finding fish holding tight to the bottom and other structure. The seven-element, 50 kHz transducer is best for deep-water sounding down to 914 m (3000 feet).

Read more less

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable20° tilted version for 16 to 24° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.Features: Depth and fast-response water-temperature sensing 1 kW of power Dual-frequency elements: 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800') 200 kHz with a 6° beamwidth for depth performance to 244 m (800') Interfaces to any 600 W or 1 kW echo sounder Engineered for center-console and trailered boats Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull No effect on the boat’s running performance Available in a stainless steel housing (SS164) for use in all hull materials Patented Xducer ID® technology Specifications: Acoustic Window: Urethane Cable-Length: 2 M (6.5') Common Use: Leisure/Yachting, Fishing Connector: Airmar 9-Pin (MM1) Conventional Beam: 22°x20°/6° Country of Origin: USA Deadrise Range: 16° to 24° Frequency Band: 50/200 kHz Material: Bronze Max Deadrise: Up to 24° Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800') Mix and Match Series: 9-Pin 1000 Watt Mounting Style: Tilted Element Thru-Hull Retractable housing: No Sensor Connector: MM1 Single or Dual Frequency: Conventional Dual Frequency Tilt Angle: 20° Tilted Element: Yes Weight: 2.7 kg (6 lbs) Power Rating: 1 kW Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Display Connector: Cable Required Specifications: Cable Length (Feet): 6.5' Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs UPC: 801769005110 Brochure (pdf)

Read more less
