Airmar TM185C TransducerMedium CHIRP With Garmin 12-PinModel: TM185C-M Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.Specifications Weight 4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-12G

Read more less

Airmar TM185C TransducerMedium CHIRP With Raymarine 11-PinModel: TM185C-M-11R Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.Specifications Weight 4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-11R-HM

Read more less

Airmar TM185C TransducerMedium CHIRP With Bare WiresModel: TM185-M-0 Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500 feet) Medium frequency: 85 to 135 kHz 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats Also available as thru-hull (B285M, B175M) and in-hull (M135M) models Exclusive Xducer ID(R) technology The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500 feet) and delivers ultra-clear target resolution.Specifications Weightq 4.16 kg (9.17 lb) Accommodates Transom Angles 3 deg to 21 deg Acoustic Window Urethane What's in the Box: TM185C-M-MM MMC-0

Read more less

Airmar SS264 50kHz Wide Beam, 1kW, 20 deg Tilt, Furuno 10-Pin, Depth and tempModel: SS264-20-W5-10F Depth and fast-response water-temperature sensing SS264N operating at 50 kHz frequency delivers a wide 25 deg beam 1 kW of power Outstanding performance Low profile design so minimal protrusion below the hull Stainless steel housing for use with all hull materials Patented Xducer ID(R) technology Fixed 20 deg tilted version for 16 to 24 deg hull deadrise angles The legendary B260's 1 kW performance is now available for fast sport-fishing boats-no fairing required! Airmar has taken the proven B260 and split it apart into a pair of low-profile transducers. One transducer handles 50 kHz while the other operates at 200 kHz. And the ceramic element in each unit has been tilted to offset the deadrise angle of your boat's hull.Called the SS264N, these transducers are perfect for fast center-console and tailored sport-fishing boats, or any vessel that cannot have a thru-hull with a High-performance Fairing. The narrow-beam, broadband, 200 kHz transducer will give excellent resolution and crisp image detail needed for bottom fishing. This transducer's low ringing is perfect for finding fish holding tight to the bottom and other structure. The seven-element, 50 kHz transducer is best for deep-water sounding down to 914 m (3000 feet).

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Navico 9-Pin Mix-N-Match CableModel: B175C-0-M-9N Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-9N

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Garmin 8-Pin Mix-N-Match CableModel: B175C-0-M-8G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-8G

Read more less

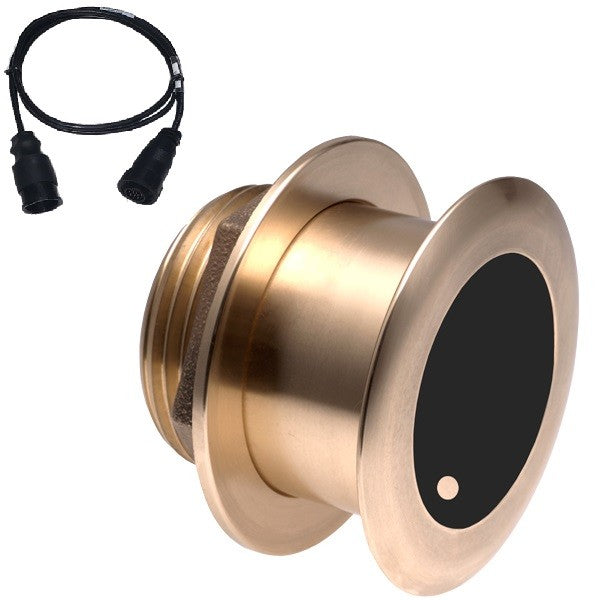

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Humminbird 14-Pin Mix-N-Match CableModel: B175C-0-M-14HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-14HB

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Garmin 12-Pin Mix-N-Match CableModel: B175C-0-M-12G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-12G

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Raymarine 11-Pin Mix-N-Match CableModel: B175C-0-M-11R Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Requires additional cable. A80328 - if used in single transducer application A102146 - when used in transducer pair application.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-11R-HM

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Bare Wire Mix-N-Match CableModel: B175C-0-M-0 Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-MM MMC-0

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Humminbird 9-Pin Mix-N-Match CableModel: B175C-20-M-HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-M-MM MMC-HB

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 7-Pin Mix-N-Match CableModel: B175C-20-M-BL Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-M-MM MMC-BL

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 9-Pin Mix-N-Match CableModel: B175C-20-M-9N Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-M-MM MMC-9N

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Humminbird 14-Pin Mix-N-Match CableModel: B175C-20-M-14HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-14HB

Read more less

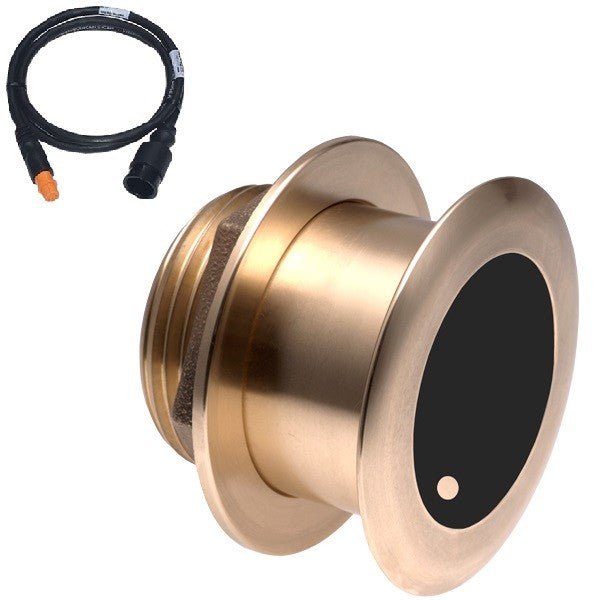

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Garmin 12-Pin Mix-N-Match CableModel: B175C-20-M-12G Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-12G

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Raymarine 11-Pin Mix-N-Match CableModel: B175C-20-M-11R Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Requires additional cable. A80328 - if used in single transducer application A102146 - when used in transducer pair application.Specifications Deadrise 16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-11R-HM

Read more less

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Bare Wire Mix-N-Match CableModel: B175C-20-M-0 Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 16 deg to 24 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-20-MM MMC-0

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Humminbird 9-Pin Mix-N-Match CableModel: B175C-0-M-HB Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-M-MM MMC-HB

Read more less

Airmar B175 Chirp Medium Frequency 0d Tilted Element with Navico 7-Pin Mix-N-Match CableModel: B175C-0-M-BL Depth & fast-response water-temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz 24 deg to 16 deg beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood Boat Size: 8 m (25 feet) and above Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.Specifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 85-135 kHz What's in the Box: B175C-0-M-MM MMC-BL

Read more less

B175M Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175M Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid- to deeper water. Medium frequency also provides excellent shallow-to-mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power Medium frequency: 85 to 135 kHz 16° to 11° beamwidth Maximum depth of 457 m (1500') 50 kHz of total bandwidth from one transducer Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 55 mm (2.18") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Max Deadrise: Up to 24° Max Depth: 457 m (1500') Medium Frequency: 85-135 kHz Medium Frequency Beamwidth: 16°-11° Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Airmar B765C Low High CHIRP with Mix-N-Match PlugModel: B765C-LH-MM Depth & fast-response water-temperature sensor Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth 115 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats Bronze transducer housing with High-Performance Fairing Boat Size: Up to 9 m (30 feet) and above Exclusive Xducer ID(R) technology Hull Type: Fiberglass or wood Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 115 kHz of total bandwidth in just one installation, saving customers time and money.A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/H Chirps across the following bandwidths:* Please Note: The low frequency operating band is 300 W. The medium and high frequency operating band is 600 W.Specifications Frequency Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth High-CHIRPS from 130 kHz to 210 kHz, 15 deg to 9 deg beamwidth Housing Bronze What's in the Box: B765C-LH-MM Fairing Block

Read more less

B765C-LH Bronze Chirp TransducerRequires Mix and Match CableThru-hull bronze model with fairing. Same physical size as a B744V, with 600W power rating. Need mix and match cable. Depth and fast-response water temperature sensor. LH model has Low (40-75kHz) and High (130-210kHz) frequency bands. Please note: Does not work with NavicoThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: Low/High Mounting Style: Thru-Hull Box Dimensions: 4"H x 12"W x 16"L WT: 7.6 lbs UPC: 801769001457

Read more less

Airmar SS175C-20-M 20d Tilt Medium ChirPModel: SS175C-20-M Medium-CHIRPS from 85 kHz to 135 kHz, 16 deg to 11 deg beamwidth Available in 0 deg, 12 deg, or 20 deg tilted versions 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Steel transducer housing Hull Type: Steel or aluminum Exclusive Xducer ID(R) technology Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Hull Deadrise 16 deg to 24 deg hull deadrise Acoustic Window Urethane Weight 2.7 kg (6 lb)

Read more less

Airmar B175 CHIRP High Frequency 20d Tilted Element With Mix-N-Match Cable EndsModel: B175C-20-H-MM Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 16-25 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box:B175C-20-H-MM Transducer

Read more less

Airmar SS175C-0-M 0d Tilt Medium CHIRPModel: 41-830-2-01 Medium-CHIRPS from 85 kHz to 135 kHz, 16 deg to 11 deg beamwidth Available in 0 deg, 12 deg, or 20 deg tilted versions 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Boat Size: 8 m (25 feet) and above Hull Type: Steel or aluminum Exclusive Xducer ID(R) technology Hull Type: Steel or aluminum Exclusive Xducer ID(R) technology Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.This transducer is designed for smaller boats up to 36 feet (11 m).Specifications Hull deadrise 0 deg to 7 deg hull deadrise Acoustic window Urethane Weight 2.7 kg (6 lb)

Read more less

B175H Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableB175H Bronze Thru Hull 20 degree Tilt 1KWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 12° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.8 lbs UPC: 801769001914

Read more less

B175H Bronze Thru Hull 20° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 20° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs UPC: 801769001921

Read more less

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 20° Tilted Element - Requires Mix & Match Cable20° tilted version for 16 to 24° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.Features: Depth and fast-response water-temperature sensing 1 kW of power Dual-frequency elements: 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800') 200 kHz with a 6° beamwidth for depth performance to 244 m (800') Interfaces to any 600 W or 1 kW echo sounder Engineered for center-console and trailered boats Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull No effect on the boat’s running performance Available in a stainless steel housing (SS164) for use in all hull materials Patented Xducer ID® technology Specifications: Acoustic Window: Urethane Cable-Length: 2 M (6.5') Common Use: Leisure/Yachting, Fishing Connector: Airmar 9-Pin (MM1) Conventional Beam: 22°x20°/6° Country of Origin: USA Deadrise Range: 16° to 24° Frequency Band: 50/200 kHz Material: Bronze Max Deadrise: Up to 24° Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800') Mix and Match Series: 9-Pin 1000 Watt Mounting Style: Tilted Element Thru-Hull Retractable housing: No Sensor Connector: MM1 Single or Dual Frequency: Conventional Dual Frequency Tilt Angle: 20° Tilted Element: Yes Weight: 2.7 kg (6 lbs) Power Rating: 1 kW Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Display Connector: Cable Required Specifications: Cable Length (Feet): 6.5' Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs UPC: 801769005110 Brochure (pdf)

Read more less

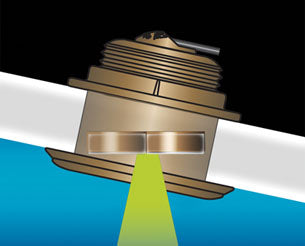

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.Features: Depth and fast-response water-temperature sensing 1 kW of power Dual-frequency elements: 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800') 200 kHz with a 6° beamwidth for depth performance to 244 m (800') Interfaces to any 600 W or 1 kW echo sounder Engineered for center-console and trailered boats Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull No effect on the boat’s running performance Available in a stainless steel housing (SS164) for use in all hull materials Patented Xducer ID® technology Specifications: Acoustic Window: Urethane Cable-Length: 2 M (6.5') Common Use: Leisure/Yachting, Fishing Connector: Airmar 9-Pin (MM1) Conventional Beam: 22°x20°/6° Country of Origin: USA Deadrise Range: 8° to 15° Frequency Band: 50/200 kHz Material: Bronze Max Deadrise: Up to 15° Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800') Mix and Match Series: 9-Pin 1000 Watt Mounting Style: Tilted Element Thru-Hull Retractable housing: No Sensor Connector: MM1 Single or Dual Frequency: Conventional Dual Frequency Tilt Angle: 12° Tilted Element: Yes Weight: 2.7 kg (6 lbs) Power Rating: 1 kW Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Display Connector: Cable Required Specifications: Cable Length (Feet): 6.5' Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs Brochure (pdf)

Read more less

Airmar B175 CHIRP High Frequency 0d Tilted Element With Mix-N-Match Cable EndsModel: B175C-0-H-MM Depth & fast-response water-temperature sensor High-CHIRPS from 150 kHz to 210 kHz Boat Size: 8 m (25 feet) and above 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Hull Type: Fiberglass or wood The transducer's ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairingFlush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer's active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feetSpecifications Deadrise 0 deg to 7 deg Acoustic Window Urethane Power rating 1 kW @ 1% duty cycle Frequency 130 to 210 kHz-A (Broadband) Beam 10 deg to 6 deg beam Max Depth 1000ft What's in the Box:B175C-0-H-MM Transducer

Read more less

Airmar M285 High Wide CHIRP In-Hull Transducer with Humminbird 9-Pin Mix-N-Match CableModel: M285C-HW-HB Depth only Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance Perfect for trailered or lifted boats 1 kW output 25 degree fixed beamwidth Urethane Housing- liquid filled Exclusive Xducer ID(R) As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core,fiberglass hulls.Specifications Beamwidth 25 deg Depth range to 700 feet (215 meters) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane CHIRP Frequency Range High frequency 150-250kHz What's in the Box: M285C-HW-MM MMC-HB

Read more less

Airmar M285 High Wide CHIRP In-Hull Transducer with Navico 7-Pin Mix-N-Match CableModel: M285C-HW-8G Depth only Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance Perfect for trailered or lifted boats 1 kW output 25 degree fixed beamwidth Urethane Housing- liquid filled Exclusive Xducer ID(R) As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core,fiberglass hulls.Specifications Beamwidth 25 deg Depth range to 700 feet (215 meters) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane CHIRP Frequency Range High frequency 150-250kHz What's in the Box: M285C-HW-MM MMC-BL

Read more less

Airmar M285 High Wide CHIRP In-Hull Transducer with Navico 9-Pin Mix-N-Match CableModel: M285C-HW-9N Depth only Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance Perfect for trailered or lifted boats 1 kW output 25 degree fixed beamwidth Urethane Housing- liquid filled Exclusive Xducer ID(R) As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core,fiberglass hulls.Specifications Beamwidth 25 deg Depth range to 700 feet (215 meters) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane CHIRP Frequency Range High frequency 150-250kHz What's in the Box: M285C-HW-MM MMC-9N

Read more less

Airmar M285 High Wide CHIRP In-Hull Transducer with Garmin 8-Pin Mix-N-Match CableModel: M285C-HW-8G Depth only Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance Perfect for trailered or lifted boats 1 kW output 25 degree fixed beamwidth Urethane Housing- liquid filled Exclusive Xducer ID(R) As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core,fiberglass hulls.Specifications Beamwidth 25 deg Depth range to 700 feet (215 meters) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane CHIRP Frequency Range High frequency 150-250kHz What's in the Box: M285C-HW-MM MMC-8G

Read more less

Airmar M285 High Wide CHIRP In-Hull Transducer with Humminbird 14-Pin Mix-N-Match CableModel: M285C-HW-14HB Depth only Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance Perfect for trailered or lifted boats 1 kW output 25 degree fixed beamwidth Urethane Housing- liquid filled Exclusive Xducer ID(R) As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25 feet with solid core,fiberglass hulls.Specifications Beamwidth 25 deg Depth range to 700 feet (215 meters) Hull Deadrise adjustable 2 deg to 20 deg Acoustic Window Urethane CHIRP Frequency Range High frequency 150-250kHz What's in the Box: M285C-HW-MM MMC-14HB

Read more less
