Blue Sea SystemsModel: 7615-BSS Timer Disconnect - 12V signal triggers relay to connect battery power to devices Timer Disconnect - When signal is removed the timer is activated and will disconnect devices after a preset time Timer Disconnect - Timer ranges from 15 minutes to 4 hours Low Voltage Disconnect -12V signal triggers relay to connect battery power to devices. After 12V signal is removed, device senses low battery voltage and automatically disconnects devices. Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power SpecificationsNominal Voltage12V DC Amperage Operating Current 175mA (closed) 4mA (open) Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 120A Intermittent Rating 210A (5 Min) Cable Size to Meet Ratings 1 AWG (50mm2) Charge Sense Connect 13.0V (3 sec) Charge Sense Disconnect 12.75V (10 sec) Disconnect Time 5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr Input Voltage Range 9.5-16V Low Voltage Disconnect 11.0V (10 sec) 11.5V (10 sec) 12.0V (10 sec) Maximum Cable Size 1/0 AWG (50mm2) Stud Material Tinned Copper Terminal Ring Diameter Clearance 1.12in (28.45 mm) Terminal Stud Size 3/8-16 (M10) Over Voltage Lockout 16.0V (5 sec) "

Read more less

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 6 PositionsModel: 4376-BSS Rated IP67-temporary immersion for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting allows switching and dimming Compatible with all Blue Sea Systems Digital Dimmers Each panel can be mounted in four different orientations Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position. SpecificationsWeatherproofWaterproof Positions 6 Nominal Voltage 12V DC 24V DC Circuit Protection Circuit Breaker Maximum Amperage 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) Panel Cumulative Rating 45A Backlit Label Green LED Backlighting Amperage 10mA /Illuminated Circuit Backlighting Voltage 12 or 24V DC Material Reinforced Polycarbonate Dimensions 6.00 H x 4.25 in W x 3.5"D "

Read more less

C-Series TogglePN: 7365Poles: 2Color: WhiteAmperage: 30AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips Trip Free design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 4"H x 5"W x 5"L WT: 0.7 lbs UPC: 632085073657

Read more less

C-Series TogglePN: 7256Poles: 2Color: WhiteAmperage: 80AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 4"H x 5"W x 5"L WT: 0.65 lbs UPC: 632085072568

Read more less

C-Series TogglePN: 7254Poles: 2Color: WhiteAmperage: 60AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 4"H x 4"W x 5"L WT: 0.7 lbs UPC: 632085072544

Read more less

C-Series TogglePN: 7251Poles: 2Color: WhiteAmperage: 50AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 4"H x 5"W x 6"L WT: 0.6 lbs UPC: 632085072513

Read more less

WeatherDeck™ Water Resistant Fuse PanelPN: 4306Color: GrayFeatures: Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 – protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label back lighting circuit for remote switching and dimming Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. Specifications: Weatherproof: Waterproof Positions: 6 Nominal Voltage: 12v DC Circuit Protection: Fuse Maximum Amperage: 15A @ 12v DC (per circuit) Panel Cumulative Rating: 90A Backlit Label: Bicolored LED Backlighting Amperage: 10mA/illuminated Circuit Backlighting Voltage: 12v DC Height: 6.0" Width: 3.88" Depth: 2.5" Included: (6) 4138 WeatherDeck® Toggle Switch Boot - Black (6) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 (6) 5242 ATO/ATC Fuse - 15 Amp WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof Voltage: 12v AC/DC: DC Max Breaker Quantity: 6 Box Dimensions: 5"H x 6"W x 9"L WT: 1.5 lbs UPC: 632085043063 Quick Guide (pdf)

Read more less

Blue Sea Systems SI-ACR Automatic Charging Relay - 12/24V DC 120AModel: 7610-BSS Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking Designed for 12 or 24 volt systems 12/24 volt auto ranging voltage input Hermetically sealed contacts/vaporproof Ignition protected-safe for installation aboard gasoline powered boats Supports high-output alternators up to 120 Amperes Dual sensing Automatically combines batteries during charging, isolates batteries when discharging and when starting engines SI-ACR automatically combines batteries during charging, isolates batteries when discharging and when starting engines. The Dual Circuit PlusTM Battery Switch simplifies the switching of two batteries to OFF or ON while still providing battery isolation between the engine and auxiliary battery. The Combine function can be used to parallel the batteries in the event of a low engine battery.SpecificationsNominal Voltage12V DC 24V DC Start Isolation Yes Amperage Operating Current 175mA (combined) 15mA (open) Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 120A Intermittent Rating 210A (5 min) Cable Size to Meet Ratings 1/0 AWG Stud Material Tinned Copper Terminal Ring Diameter Clearance 1.12in (28.45 mm) Terminal Stud Length 0.875in (22.23 mm) Terminal Stud Size 3/8 - 16 (M10) "

Read more less

187-Series Circuit Breaker - Surface Mount 200A Combines switching and circuit protection into a single device* Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accecpt heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 200a Box Dimensions: 2"H x 5"W x 9"L WT: 0.6 lbs UPC: 632085171490

Read more less

7049 200 Amp Panel Mount 187 Series Circuit BreakerFeatures: Combines switching and circuit protection into a single device* Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accecpt heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Specifications: Interrupt Rating - 5,000 A@12V DC, 3,000A@24V DC, 1,500A@42V DC Maximum Voltage Rating - 48 Volts DC Operating Temperature Range - -40xC to 85xC Circuit Breaker Type - Thermally responsive bi-metal blade Circuit Breaker Class - Type III - switchable/manual reset - trip free Terminal Stud Size - 5/16"-18 Terminal Stud Torque - 75 in-lb Mounting Holes - Accept #10 (M5) Screw Weight Lb (Kg) - 0.50 (0.23) Case Material - Thermoset Polyester WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 200a Box Dimensions: 3"H x 5"W x 8"L WT: 0.5 lbs UPC: 632085070496

Read more less

ST CLB Circuit Breaker Block - 12 Position w/Negative BusFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 12Maximum Amperage: 100A (per block) 32A (per circuit)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutNegative Bus: YesSource: Common SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 10.13"(257.3 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 1.50lb (0.68 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100/32a Box Dimensions: 3"H x 5"W x 15"L WT: 1.5 lbs UPC: 632085050542 Brochure (pdf)

Read more less

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 6 PositionsModel: 4306-BSS Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 - protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting circuit for remote switching and dimming Available in 2, 4, 6, and 8 circuit models Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. SpecificationsWeatherproofWaterproof Positions 6 Nominal Voltage 12vDC Circuit Protection Fuse Maximum Amperage 15A @ 12V DC (per circuit) Panel Cumulative Rating 90A Backlit Label Bicolored LED Backlighting Amperage 10mA /Illuminated Circuit Backlighting Voltage 12V DC Material Reinforced Polycarbonate Dimensions H x W x D 6.0in x 3.88in x 2.50in

Read more less

2104 PowerBar 600AMP Cable Connector 4 x 3/8 16 Stud TerminalSpecifications: Max Voltage: 300 V AC/48 V DC Number of Terminal Studs: 4 Terminal Type: 3/8" - 16 Stud WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 200AModel: 7149-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage200A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 135AModel: 7047-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.SpecificationsAmperage135A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

4368 Water Resistant USB Accessory Panel - 12V Socket, 2x 2.1A Dual USB Chargers, Mini VoltmeterEasy to install accessory panels include a 15A circuit breaker switch and pre-wired harness.  Panels offer customizable 12V charging and monitoring options.Features: Pre-wired harness included in all panels for easy installation Silicon breaker boots and gasket protects against water ingress Illuminated Carling Technologies 15A circuit breaker switch allows the ability to shut off panel preventing parasitic draw Polycarbonate/ABS panel face is UV-stabilized, flame retardant, and will not corrode 12V DC only Specifications: Positions: 1 Nominal Voltage: 12V DC

Read more less

1810Features: Accurate - used with the Vessel Systems Monitor VSM 422 PN 1800 - can be precisely calibrated for each tank* Reliable - SSI Technologies, Inc. Fluid-Trac® is non-contacting eliminating any mechanical moving parts that can wear and cause intermittent or complete signal loss Digital filtering - Eliminates errors due to liquids sloshing in mobile tanks * Calibrated for use with Blue Sea Systems Vessel Systems Monitor VSM 422 only WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Blue Sea Systems Water-Resistant Accessory Panel - 12V Socket, 2x 2.1A Dual USB Chargers, Mini VoltmeterModel: 4368-BSS Pre-wired harness included in all panels for easy installation Silicon breaker boots and gasket protects against water ingress Illuminated Carling Technologies 15A circuit breaker switch allows the ability to shut off panel preventing parasitic draw Polycarbonate/ABS panel face is UV-stabilized, flame retardant, and will not corrode 12V DC only SpecificationsPositions1 Nominal Voltage 12V DC Dimensions 2.25H x 8.29"W x 2.53"D "

Read more less

8015 DC Analog Voltmeter with PanelFeatures: 8003 DC Analog Voltmeter 8-16 V DC 3 Position switch for multiple battery banks Voltmeter mounted in 0.125" Aluminum 5052 Alloy WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

8077 AC Main Only Toggle Circuit Breaker PanelFeatures: Red reverse polarity indicating LED Safety ground screw on panel back Combines switching and circuit protection into a single device "Trip Free" design cannot be held "ON" during fault current condition Specifications: Nominal Voltage: 120v AC Maximum Voltage: 277v AC / 65v DC Height: 3.75" Width: 2.63" Included: (1) 8034 LED - 120v AC Green (1) 8066 LED - 120v AC Red (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: AC Max Breaker Quantity: 1 Voltage: 120v Box Dimensions: 3"H x 4"W x 7"L WT: 0.7 lbs UPC: 632085000004

Read more less

Blue Sea ST CLB Circuit Breaker Block - 12 Position with Negative BusModel: 5054-BSS Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Accepts square labels The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.The ST CLB Circuit Breaker Block offers flexible resettable circuit protection for 12 circuits in a surface mount block that is easy to mount in a dry and protected location. A natural companion for waterproof switching is the new WD Switch Only Panel, that will keep circuits protected from spray and offer integrated switch guards to reduce the risk of accidental switching.SpecificationsCircuits12 Maximum Amperage 32A (per circuit)40A (per jumped circuit group) Maximum Voltage 32V DC Source Common Source Mounting Centers 10.13in (257.3 mm)

Read more less

Blue Sea PowerBar 600A BusBar - Four 3/8-16 StudsModel: 2104-BSSSpecificationsMaximum Voltage300V AC

Read more less

3002 HD-Series Battery Switch SelectorFeatures: 500 Ampere Continuous Rating Accepts 4/0 battery cables Ignition protected - safe for installation aboard gasoline powered boats .870" (22.01mm) stud length to accept 4 or more cable terminals 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance Meets American Boat and Yacht Council (ABYC) requirements for battery switches Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Fits all Perko and Guest low amperage battery switch hole patterns WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

WeatherDeck™ Water Resistant Circuit Breaker PanelPN: 4374Color: GrayFeatures: Rated IP67-temporary immersion for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting allows switching and dimming Compatible with all Blue Sea Systems Digital Dimmers Each panel can be mounted in four different orientations Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position. Specifications: Weatherproof: Waterproof Positions: 4 Nominal Voltage: 12v / 24v DC Circuit Protection: Circuit Breaker Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit) Panel Cumulative Rating: 45A Backlit Label: Green LED Backlighting Amperage: 10mA/Illuminated Circuit Backlighting Voltage: 12 or 24v DC Height: 4.3" Width: 4.25" Depth: 3.5" Included: (4) 4135 Push Button Reset Only Circuit Breaker Boot - Clear (4) 4138 WeatherDeck® Toggle Switch Boot - Black (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof Voltage: 12v AC/DC: DC Max Breaker Quantity: 4 Box Dimensions: 6"H x 6"W x 8"L WT: 1 lbs UPC: 632085043742 Quick Guide (pdf)

Read more less

Ble Sea Vessel Systems Monitor Tank Sender - Diesel, Water, WasteModel: 1810-BSS Accurate - used with the Vessel Systems Monitor VSM 422 PN 1800-can be precisely calibrated for each tank* Reliable - SSI Technologies, Inc. Fluid-Trac(R) is non-contacting eliminating any mechanical moving parts that can wear and cause intermittent or complete signal loss Digital filtering - Eliminates errors due to liquids sloshing in mobile tanks Limitations and considerations for mounting the ultrasonic tank senders: Senders are calibrated to the VSM 422 and M2 Meters and will not function with other monitorsSenders must be mounted 4 or greater distance from a tank side or baffleTank floor must not be slopedTanks must not be deeper than 32 inSender must be mounted perpendicular to the surface of the liquidThe sender negative connection should be connected as directly as possible to the main negative bus.SpecificationsOperating Current40mA @ 12V45mA @ 24V Supply Voltage 10-32V DC Weight 0.25lb (0.11 kg) "

Read more less

8664 Contura 2 Bilge Pump Control PanelBlue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp Features: Designed for 12 or 24V DC systems   ON - OFF - AUTO Contura Switch Watertight mounting gasket Fuse holders accept commonly available AGC and MDL glass fuses "ON” LED embedded in switch indicates the pump is running Completely wired and ready to install Specifications: Weatherproof - Water Resistant No. of Bilge Pumps - two (2) Nominal Voltage - 12/24V Panel Cumulative Rating - 45A Switch Rating: 20A @ 12V DC / 15A @ 24V DC Dimensions (H x W x D) - 3.75" x 3.34" x 3" In the Box: Panel Mount AGC/MDL Fuse Holder (P/N 5021) x two (2) Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x two (2) Black 60 Label Set (P/N 8214) *Sold as an Individual  Specifications: Action: on - off - auto Color: Black/Grey Throw/Pole: SPDT Box Dimensions: 5"H x 7"W x 8"L WT: 0.5 lbs UPC: 632085086640 Owner's Manual (pdf)

Read more less

m-LVD Low Voltage DisconnectSenses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery lifeA dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery. Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required) Remote Control Switch Functions: Disconnect Voltage Adjustment - Sets desired disconnect voltage Override - Temporarily delays circuit disconnect for 10 minutes OFF - Temporarily disconnects circuits until voltage rises Override or OFF - Silences alarm (optional alarm required) Case design allows surface, front panel, or rear panel mounting Rear insulating cover protects rear contacts Waterproof - rated IP67 for temporary immersion WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Blue Sea 3000 500A Battery Selector 4 Position SwiitchModel: 3002-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 1/2 (M12) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface

Read more less

11003Features: Meets American Boat and Yacht Council (ABYC) requirements for battery switches Ignition protected safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Accepts two 4/0 AWG (95mm) battery cables M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Switch Ratings: 10 Sec: 2750A60 Sec: 1150A5 Min: 700AContinuous: 500AMax Voltage: 32V DCWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: Yes Positions: 3 Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs UPC: 632085110031 Brochure (pdf)

Read more less

3003 HD-Series Battery Switch Selector with Alternator Field Disconnect Features: 500 Ampere Continuous Rating Accepts 4/0 battery cables Ignition protected - safe for installation aboard gasoline powered boats .870" (22.01mm) stud length to accept 4 or more cable terminals 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance Meets American Boat and Yacht Council (ABYC) requirements for battery switches Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Fits all Perko and Guest low amperage battery switch hole patterns WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 4 AFD: Yes Continuous Amperage: 700a Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs UPC: 632085030032 Owner's Manual (pdf)

Read more less

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 4 PositionsModel: 4374-BSS Rated IP67-temporary immersion for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting allows switching and dimming Compatible with all Blue Sea Systems Digital Dimmers Each panel can be mounted in four different orientations Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position. SpecificationsWeatherproofWaterproof Positions 4 Nominal Voltage 12V DC 24V DC Circuit Protection Circuit Breaker Maximum Amperage 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) Panel Cumulative Rating 45A Backlit Label Green LED Backlighting Amperage 10mA /Illuminated Circuit Backlighting Voltage 12 or 24V DC Material Reinforced Polycarbonate Dimensions 4.3 H x 4.25 in W x 3.5"D "

Read more less

Blue Sea Systems BatteryLinkTM Automatic Charging Relay - 12V/24V DC 120AModel: 7611-BSS 120 Amp continuous rating 12/24V DC auto ranging voltage input Senses charging on two battery banks Side and bottom knockouts for cable connections Clip-on cover insulates terminal connections 7/8 (22 mm) stud length to accept multiple cable terminals Integrated LED indicates ACR status 1/4 in × .032 in male quick connect terminals for ground and optional features Largest battery bank cannot exceed Group 27 Automatically shares single source of charge with Auxiliary BatterySpecificationsNominal Voltage12V DC

Read more less

7312 COTS Military Grade A-Series 15 AmpMay be suitable for use when military specifications are required under CFR 46.Specifications: Amperage: 15A Actuator Style: Metal Toggle Poles: 2 Max Voltage: 277V AC, 65V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Interrupt Capacity: 1500 A AC, 7500A DC Min Operating Temp: -40°C Max Operating Temp: 85°C Mounting Boss: 1/2-32 Hex Nut SS Mounting Nut Torque: 30"-lb Screw Terminal Torque: 14"-lb Switching Cycles: 6000 Electrical/4000 Mechanical Terminal Screw: #10-32 SS Weight: 0.13lb (0.06 kg) UL 1077 Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 4"L WT: 0.35 lbs UPC: 632085173128

Read more less

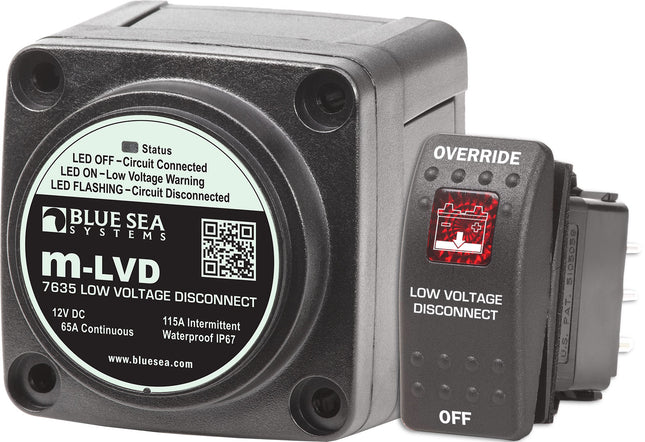

Blue Sea Systems m-LVD Low Voltage DisconnectModel: 7635-BSS Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required) Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery lifeA dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.SpecificationsNominal Voltage12V DC Amperage Operating Current 95mA (Connected) 4mA (Open) Terminal Stud Torque 60 in-lb (6.78 Nm) Continuous Rating 65A Intermittent Rating 115A (5 Min) Maximum Cable Size 1/0 AWG (50mm2) Stud Material Tinned Brass Terminal Stud Length 7/16 in (11.11 mm) 7/16 in (11.11 mm) 1/4 - 20 (M6) What's in the Box: M-LVD Low Voltage Disconnect m-LVD Switch"

Read more less

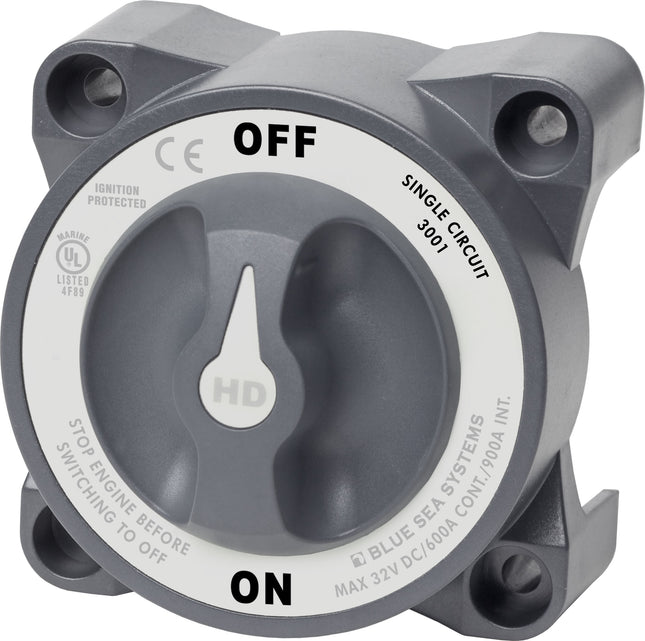

3001 HD-Series Battery Switch Single Circuit ON/OFF with AFDFeatures: 600 Ampere Continuous Rating Accepts two 4/0 battery cables per terminal Ignition protected - safe for installation aboard gasoline powered boats .870" (22.01mm) stud length to accept multiple cable terminals 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance Meets American Boat and Yacht Council (ABYC) requirements for battery switches Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Fits all Perko and Guest low amperage battery switch hole patterns WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 2 AFD: Yes Continuous Amperage: 900a Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs UPC: 632085030018 Owner's Manual (pdf)

Read more less

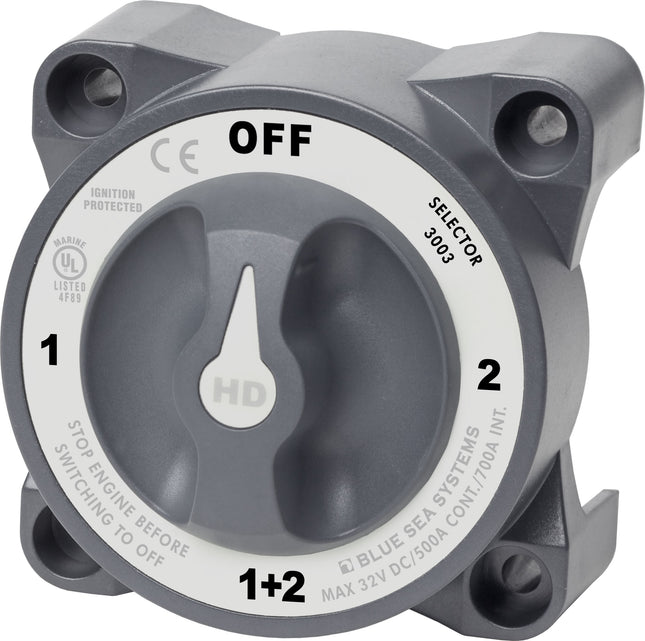

Blue Sea 3000 500A Battery Selector 4 Position Switch with Alternator Field DisconnectModel: 3003-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 1/2 (M12) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface

Read more less

4366 Water Resistant USB Accessory Panel - Circuit Breaker, 12V Socket, Dual USB Charger, Mini VoltmeterEasy to install accessory panels include a 15A circuit breaker switch and pre-wired harness. Panels offer customizable 12V charging and monitoring options.Features: Pre-wired harness included in all panels for easy installation Silicon breaker boots and gasket protects against water ingress Illuminated Carling Technologies 15A circuit breaker switch allows the ability to shut off panel preventing parasitic draw Polycarbonate/ABS panel face is UV-stabilized, flame retardant, and will not corrode 12V DC only Specifications: Positions: 1 Nominal Voltage: 12V DC

Read more less

DC Zero Center Analog AmmeterShunt Type: External Meters read both discharge and charge current Simple 2-wire connection from shunt - no other power required Meter senses and powers from shunt connection Includes appropriate DC shunt Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

4028 AC Isolation Cover - 7-1/2 x 10-1/2x3Features: Provides electrical insulation for exposed panel backs Provides mechanical protection for panel backs protruding into lockers Lightweight material is easily drilled for wire entrance and exit Meets ABYC requirements for panels with combined AC and DC WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Blue Sea 3000 600A Battery Selector Switch On-Off with Alternator Field DisconnectModel: 3001-BSS Tin-plated copper studs for maximum conductivity and corrosion resistance Accepts up to 4/0 AWG battery cables Studs accepts 1/2 (M12) ring terminals 7/8 in (22mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time Fits most Perko and Guest low amperage battery switch hole patterns Case design allows surface

Read more less

Mini OLED AmmeterMonitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen Compact size enables mounting in any convenient location Reverse polarity protected Mounts in a common 1-1/8" hole Convenient amperage monitoring Monitors -100A to 100A DC Positive or negative side wiring Specifications: Meter: Ammeter Nominal Voltage: 12V DC / 24V DC Resolution: 0.1A Intermittent Rating: 110A Cranking Rating 30 sec: 175A Accuracy: ± 2% Input Voltage Range: 8-36V DC Operating Current: 15mA WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount150 Amp Circuit BreakerPN:  7148Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 150a Box Dimensions: 2"H x 5"W x 8"L WT: 0.55 lbs UPC: 632085171483

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount120 Amp Circuit BreakerPN:  7146Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 120a Box Dimensions: 2"H x 4"W x 5"L WT: 0.5 lbs UPC: 632085071462

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount100 Amp Circuit BreakerPN:  7144Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 2"H x 3"W x 8"L WT: 0.2 lbs UPC: 632085171445

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount80 Amp Circuit BreakerPN:  7142Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 2"H x 3"W x 5"L WT: 0.7 lbs UPC: 632085171421

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount70 Amp Circuit BreakerPN:  7141Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 70a Box Dimensions: 3"H x 5"W x 8"L WT: 0.6 lbs UPC: 632085071417

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount60 Amp Circuit BreakerPN:  7140Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 2"H x 5"W x 8"L WT: 0.6 lbs UPC: 632085171407

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount50 Amp Circuit BreakerPN:  7139Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 5"W x 8"L WT: 0.6 lbs UPC: 632085171391
