187 - Series Thermal Circuit Breakers - Panel Mount70 Amp Circuit BreakerPN:  7041Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Self-trimming case eliminates the need for mounting panels or trim bezels Round case permits easy installation with standard sized hole saw Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 70a Box Dimensions: 3"H x 5"W x 8"L WT: 0.47 lbs UPC: 632085070410

Read more less

187 - Series Thermal Circuit Breakers - Panel Mount60 Amp Circuit BreakerPN:  7040Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Self-trimming case eliminates the need for mounting panels or trim bezels Round case permits easy installation with standard sized hole saw Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 2"H x 5"W x 8"L WT: 0.5 lbs UPC: 632085070403

Read more less

187 - Series Thermal Circuit Breakers - Panel Mount50 Amp Circuit BreakerPN:  7039Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Self-trimming case eliminates the need for mounting panels or trim bezels Round case permits easy installation with standard sized hole saw Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 4"W x 8"L WT: 0.5 lbs UPC: 632085170394

Read more less

187 - Series Thermal Circuit Breakers - Panel Mount30 Amp Circuit BreakerPN:  7036Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Self-trimming case eliminates the need for mounting panels or trim bezels Round case permits easy installation with standard sized hole saw Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 5"W x 8"L WT: 0.45 lbs UPC: 632085070366

Read more less

187 - Series Thermal Circuit Breakers - Panel Mount25 Amp Circuit BreakerPN:  7035Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Self-trimming case eliminates the need for mounting panels or trim bezels Round case permits easy installation with standard sized hole saw Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 25a Box Dimensions: 4"H x 5"W x 7"L WT: 0.5 lbs UPC: 632085070359

Read more less

4366 Water Resistant USB Accessory Panel - Circuit Breaker, 12V Socket, Dual USB Charger, Mini VoltmeterEasy to install accessory panels include a 15A circuit breaker switch and pre-wired harness. Panels offer customizable 12V charging and monitoring options.Features: Pre-wired harness included in all panels for easy installation Silicon breaker boots and gasket protects against water ingress Illuminated Carling Technologies 15A circuit breaker switch allows the ability to shut off panel preventing parasitic draw Polycarbonate/ABS panel face is UV-stabilized, flame retardant, and will not corrode 12V DC only Specifications: Positions: 1 Nominal Voltage: 12V DC

Read more less

Class T Fuse Block with Insulating Cover - 225 to 400AAllows the use of Class T fuses for fast acting circuit protection of inverters and other electronics Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse Insulating cover satisfies ABYC/USCG insulation requirements Cover breakouts allow wire access in any direction Stud design ensures secure fuse mounting even with high heat Stainless steel studs provide resistance to corrosion and high torque One-piece stainless flange nuts ensure safe and secure connections UL 94-V0 base resists high heat Technical Specifications: Cable Size: Up to 4/0 AWG Ignition Protected: Yes Maximum Amperage: 320A Maximum Voltage: 160V DC Fuse Mounting Blocks: Tin-Plated Copper Terminal Stud Size: 5/16"-18 (M8) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 8"W x 8"L WT: 1.8 lbs UPC: 632085550219

Read more less

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 4 PositionsModel: 4374-BSS Rated IP67-temporary immersion for 30 minutes Designed for flybridge and open cockpit applications Independent label backlighting allows switching and dimming Compatible with all Blue Sea Systems Digital Dimmers Each panel can be mounted in four different orientations Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position. Specifications Weatherproof Waterproof Positions 4 Nominal Voltage 12V DC 24V DC Circuit Protection Circuit Breaker Maximum Amperage 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) Panel Cumulative Rating 45A Backlit Label Green LED Backlighting Amperage 10mA /Illuminated Circuit Backlighting Voltage 12 or 24V DC Material Reinforced Polycarbonate Dimensions 4.3 H x 4.25 in W x 3.5"D "

Read more less

HD-Series Battery Switch Single Circuit ON/OFFFeatures: 600 Ampere Continuous Rating Accepts two 4/0 battery cables per terminal Ignition protected - safe for installation aboard gasoline-powered boats .870" (22.01mm) stud length to accept multiple cable terminals 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance Meets American Boat and Yacht Council (ABYC) requirements for battery switches Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Fits all Perko and Guest low amperage battery switch hole patterns WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 2 AFD: No Continuous Amperage: 900a Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs UPC: 632085030001 Owner's Manual (pdf)

Read more less

Blue Sea Systems BatteryLinkTM Automatic Charging Relay - 12V/24V DC 120AModel: 7611-BSS 120 Amp continuous rating 12/24V DC auto ranging voltage input Senses charging on two battery banks Side and bottom knockouts for cable connections Clip-on cover insulates terminal connections 7/8 (22 mm) stud length to accept multiple cable terminals Integrated LED indicates ACR status 1/4 in × .032 in male quick connect terminals for ground and optional features Largest battery bank cannot exceed Group 27 Automatically shares single source of charge with Auxiliary BatterySpecifications Nominal Voltage 12V DC

Read more less

Blue Sea Systems WeatherDeck(R) 12V DC Waterproof Switch Panel - 8 PositionModel: 4309-BSS Integrated switch guards reduce the risk of accidental switching Panels can be mounted in four different orientations Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 - protected against immersion up to 1 meter for 30 minutes UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck(R) Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck(R) Switch Panel has all the rugged features of the proven WeatherDeck(R) Panel family however does not have the added cost of backlighting and circuit protection.Specifications Weatherproof Waterproof Positions 68 Nominal Voltage 12V DC 24V DC Circuit Protection None Maximum Amperage 15A @ 12V DC (per circuit) Panel Cumulative Rating 45A Height 7.70in (195.58 mm) Width 3.88in (98.55 mm) Depth 2.50in (63.5 mm) Material Reinforced Polycarbonate What's in the Box: Panel 4138 - Boot x 8 4150 - Toggle Switch x 8 Label kit

Read more less

ST CLB Circuit Breaker Block - 12 PositionFeatures Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Specifications:Circuits: 12Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)Maximum Voltage: 32V DCMounting: #8 Screw (M4) or #8 NutSource: Independent SourceMinimum Operating Temperature: -10° CMaximum Operating Temperature: 60° CMounting Centers: 10.13"(257.3 mm)Screw Terminal Type: #8-32 Screws with Captive Star Lock WasherHeight: 6.69"(169.93 mm)Weight: 1.50lb (0.68 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 32/40a Box Dimensions: 3"H x 5"W x 18"L WT: 1.3 lbs UPC: 632085050511 Brochure (pdf)

Read more less

DC Zero Center Analog AmmeterShunt Type: External Meters read both discharge and charge current Simple 2-wire connection from shunt - no other power required Meter senses and powers from shunt connection Includes appropriate DC shunt Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Blue Sea Systems m-LVD Low Voltage DisconnectModel: 7635-BSS Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required) Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery lifeA dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.Specifications Nominal Voltage 12V DC Amperage Operating Current 95mA (Connected) 4mA (Open) Terminal Stud Torque 60 in-lb (6.78 Nm) Continuous Rating 65A Intermittent Rating 115A (5 Min) Maximum Cable Size 1/0 AWG (50mm2) Stud Material Tinned Brass Terminal Stud Length 7/16 in (11.11 mm) 7/16 in (11.11 mm) 1/4 - 20 (M6) What's in the Box: M-LVD Low Voltage Disconnect m-LVD Switch"

Read more less

7312 COTS Military Grade A-Series 15 AmpMay be suitable for use when military specifications are required under CFR 46.Specifications: Amperage: 15A Actuator Style: Metal Toggle Poles: 2 Max Voltage: 277V AC, 65V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Interrupt Capacity: 1500 A AC, 7500A DC Min Operating Temp: -40°C Max Operating Temp: 85°C Mounting Boss: 1/2-32 Hex Nut SS Mounting Nut Torque: 30"-lb Screw Terminal Torque: 14"-lb Switching Cycles: 6000 Electrical/4000 Mechanical Terminal Screw: #10-32 SS Weight: 0.13lb (0.06 kg) UL 1077 Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 5"L WT: 0.39 lbs UPC: 632085173128

Read more less

1520 Remote Control Switch - 360 Panel - 3 BlankThe 360 Panel System Blank switch panel accepts three Carling Contura switches that are sold separately. The blank switch panel accepts 3 switches. Features: 360 Panel System Blank switch panel accepts 3 Carling Contura switches Backlit labels Lockout slides Switches sold separately Specifications: Mounting Type: Panel Mount Material: Plastic Terminal: Screw Voltage: 12V DC Connector Type: Quick Connect Operation Mode: ON-OFF Product Dimensions: 7.87 x 3.94 x 1.97 inches WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

7601 DC Mini ACR Automatic Charging Relay - 65 AmpFeatures: 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines Compact case design allows surface and panel mounting Senses charging on two battery banks Snap-on cover insulates terminal connections LED indicates ACR status 1/4" x .032" male quick connect terminal for ground 5/8" (16 mm) stud length to accept multiple cable terminals 12V DC voltage input Specifications: Intermittent Rating: 5 min.: 115A Terminal Stud Size: 1/4"-20 Relay Contact Position: Open (30 sec.): 12.75V DC Continuous Rating: 65A Maximum Torque: 75 in-lb (8.5 Nm) Relay Contact Position - Open High: 16.0V DC Amperage Operating Current: 175mA (Combine) Relay Contact Position: Combine (30 sec.): 13.0V DC Under Voltage Lockout: 9.5V DC Amperage Operating Current: 15mA (Open) Relay Contact Position: Combine (2 min.): 13.6V DC Maximum Cable Size: 1/0 AWG Relay Contact Position: Open (10 sec.): 12.35V DC WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Continuous Amperage: 65a Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs UPC: 632085076016 Owner's Manual (pdf)

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 120AModel: 7046-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 120A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 90AModel: 7043-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 90A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 80AModel: 7042-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 80A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 100AModel: 7044-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 100A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 70AModel: 7041-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 70A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 60AModel: 7040-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 60A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 50AModel: 7039-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 50A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 40AModel: 7038-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 40A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 30AModel: 7036-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 30A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 25AModel: 7035-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 25A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 150AModel: 7148-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 150A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

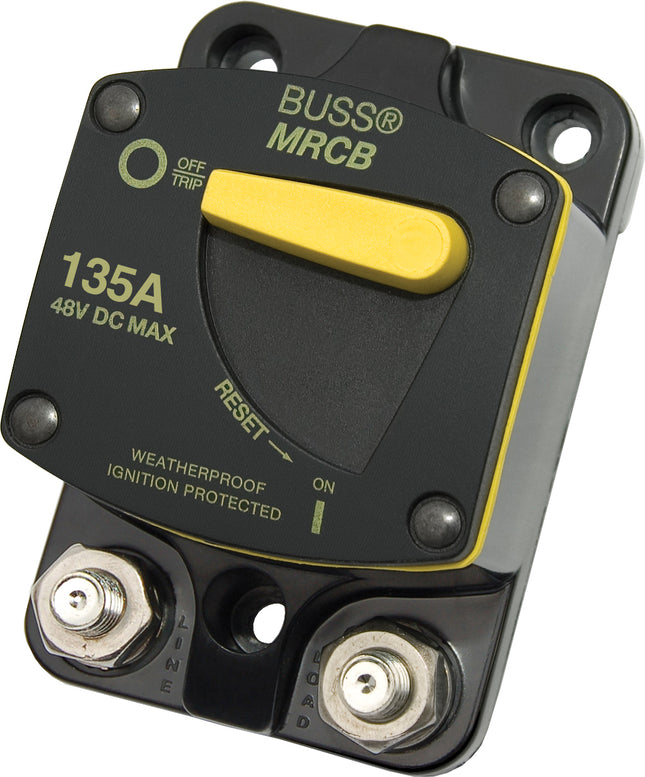

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 135AModel: 7147-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 135A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 100AModel: 7144-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 100A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 120AModel: 7146-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 120A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 90AModel: 7143-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 90A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 80AModel: 7142-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 80A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

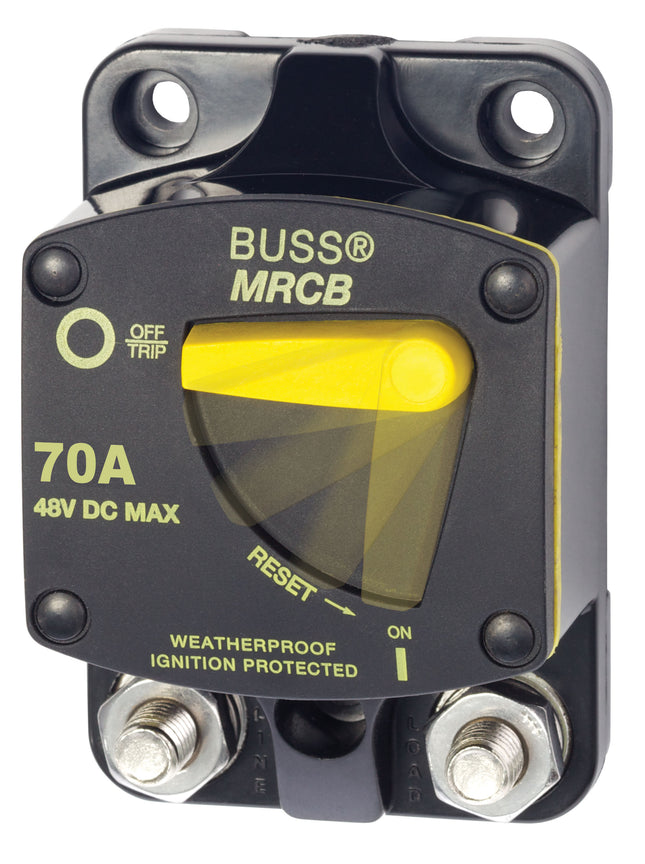

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 70AModel: 7141-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 70A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 60AModel: 7140-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 60A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 50AModel: 7139-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 50A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 40AModel: 7138-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 40A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 30AModel: 7136-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements * Do not use as a switch where high inrush currents are expected.Specifications Amperage 30A Maximum Voltage 48vDC Mounting Surface Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 135AModel: 7047-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 135A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 135AModel: 7047-BSS Combines switching and circuit protection into a single device* Clear, single lever operation Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large Clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - Safe for installation aboard gasoline powered boats * Do not use as a switch where high inrush currents are expected.Specifications Amperage 135A Maximum Voltage 48vDC Mounting Panel Mount Circuit Breaker Type Thermally responsive Bi-metal blade Terminal Stud Torque 75 in-lb (8.47 Nm) Interrupt Capacity 5000A @ 12V

Read more less

WeatherDeck™ Water Resistant Fuse PanelPN: 4304Color: GrayFeatures: Panel front rated IP67 when properly mounted with watertight mounting gasket IP67 – protected against immersion up to 1 meter for 30 minutes Designed for flybridge and open cockpit applications Independent label back lighting circuit for remote switching and dimming Each panel can be mounted in four different orientations Integrated ATO/ATC fuse based circuit protection Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel. Specifications: Weatherproof: Waterproof Positions: 4 Nominal Voltage: 12v DC Circuit Protection: Fuse Maximum Amperage: 15A @ 12v DC (per circuit) Panel Cumulative Rating: 60A Backlit Label: Bicolored LED Backlighting Amperage: 10mA/illuminated Circuit Backlighting Voltage: 12v DC Height: 4.3" Width: 3.88" Depth: 2.5" Included: (4) 4138 WeatherDeck® Toggle Switch Boot - Black (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 (4) 5242 ATO/ATC Fuse - 15 Amp WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waterproof: Waterproof Max Breaker Quantity: 4 AC/DC: DC Voltage: 12v Box Dimensions: 4"H x 6"W x 7"L WT: 0.9 lbs UPC: 632085043049 Quick Guide (pdf)

Read more less

Blue Sea Systems Water-Resistant Accessory Panel - Circuit Breaker, 12V Socket, Dual USB Charger, Mini VoltmeterModel: 4366-BSS Pre-wired harness included in all panels for easy installation Silicon breaker boots and gasket protects against water ingress Illuminated Carling Technologies 15A circuit breaker switch allows the ability to shut off panel preventing parasitic draw Polycarbonate/ABS panel face is UV-stabilized, flame retardant, and will not corrode 12V DC only Specifications Positions 1 Nominal Voltage 12V DC Dimensions 2.25H x 6.61"W x 2.53"D "

Read more less

4321 Circuit Breaker Switch Panel 4 Position - Gray with 12V Socket & Dual USB Designed for exposed mounting applications.Features: Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode Silicon breaker boots and gasket protects against water ingress Low profle makes it easy to install in tight spaces Fast-on circuit breaker connectors make it quick to wire Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems Specifications: Color: Gray Positions: 4 Nominal Voltage: 12 VDC Maximum Amperage: 45A Terminal Type: 1/4" Male Quick Connect Hardware: Stainless Steel #6 x 5/8" mounting screws  Ring Terminal Size: M5 (#10) Specifications: Voltage: 12v AC/DC: DC Max Breaker Quantity: 4 Waterproof: Resistant Box Dimensions: 3"H x 6"W x 10"L WT: 0.7 lbs UPC: 632085043216

Read more less

DeckHand Dimmer - 25 Amp/12V Works with all incandescent and non-regulated LED lamps Memory for last setting Illuminated exit with adjustable time delay Provides continuous voltage control from 0 to 100% of input voltage Offset mounting tabs allow dimmers to be mounted close together Retail package includes momentary (ON)-OFF-(ON) switch WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Box Dimensions: 2"H x 4"W x 8"L WT: 0.66 lbs UPC: 632085075088 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Blue Sea ST CLB Circuit Breaker Block - 12 Independent CircuitsModel: 5051-BSS Quick connect clips allow circuit breakers to snap easily into place Tin-plated copper busses and screw terminals Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements Easy to open clip on cover Breakouts allow wire access in two directions Accepts ring terminals Optional push button waterproof boots or dress nuts can be installed over cover Accepts square labels The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.The ST CLB Circuit Breaker Block offers flexible resettable circuit protection for 12 circuits in a surface mount block that is easy to mount in a dry and protected location. A natural companion for waterproof switching is the new WD Switch Only Panel, that will keep circuits protected from spray and offer integrated switch guards to reduce the risk of accidental switching.Specifications Circuits 12 Maximum Amperage 32A (per circuit)40A (per jumped circuit group) Maximum Voltage 32V DC Source Independent Source Mounting Centers 10.13in (257.3 mm)

Read more less

Mini OLED AmmeterMonitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen Compact size enables mounting in any convenient location Reverse polarity protected Mounts in a common 1-1/8" hole Convenient amperage monitoring Monitors -100A to 100A DC Positive or negative side wiring Specifications: Meter: Ammeter Nominal Voltage: 12V DC / 24V DC Resolution: 0.1A Intermittent Rating: 110A Cranking Rating 30 sec: 175A Accuracy: ± 2% Input Voltage Range: 8-36V DC Operating Current: 15mA WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

DC M-Series Black Panel SquareSuitable for mounting M-Series Battery SwitchesWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

DC Analog AmmeterShunt Type: External Simple 2-wire connection Meter Senses Powers from same connection Includes DC Shunt Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
