A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 30AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 30a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.35 lbs UPC: 850067590910 Brochure (pdf)

Read more less

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 15AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 15a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850074331025 Brochure (pdf)

Read more less

TDR Series Dual Output Time Delay Relay 12V (2 x 80A)This 12V dual-time relay can prevent dead batteries due to added equipment loads on after-engine stops or from multiple systems connected to a battery with an independent keep-alive power draw, maximizing operational readiness.Applications: Supports on-board video systems when vehicles are not in use, allowing lengthy downloading while shutting down less time-sensitive equipment. sooner. Protects sensitive onboard electronics via optional under/over voltage shutdown and start event isolation. Features: Eliminates vehicle downtime due to dead batteries; the lowest off-state current draw (1.3 mA) is available Simple and robust Installation - Sealed plug with optional long wire leads; Single device replaces multiple control units and high-amp replays reduce installation time, costs, and points of potential failure Additional low-amp output can be used to maintain 24-hour memory circuits or to direct other equipment to shut down Bullet-proof construction - Sealed unit and high-temperature materials allow mounting anywhere on the vehicle; Integrated thermal overload protection as well Meets stringent OEM standards for electrical transient self-protection Adjustable OFF Time Delay - 0 seconds to 4 hours Kill Switch control input option for ensuring loads are not inadvertently on, maintenance/servicing of vehicles, and emergency OFF Flexible control options via ignition key, alternator voltage sense, or both 4 Year Industry Leading Warranty Specifications: Maximum Current: Continuous: 80 Amps DC per Output (160 A Total); Intermittent: 120 Amps DC (5 Minutes) per Output Off-State Current Draw: 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by) Operating Specifications: Voltage: 12 Vdc Nominal (8 - 18 Vdc); Temperature: -40 to 85 degrees C Time Delay Options: 5 Sec through 4 hours via Dip Switches Environment Protection Standards: Waterproof to IP66. IP6K9K; Ignition Protected to ISO 8846 Optional Features: Input stud voltage sense trigger for relay OFF; Under-voltage and over-voltage load protection Focal Features:Top Side Dip SwitchesAccessible after installation, for programming time delay and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware 100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O Connector Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.Standard and Optional Harnesses The mating plugs with 2 feet of the ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths are availableEasy Integration with CT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with CT series Fuse Blocks.Easy Integration with RT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with RT series Fuse Blocks.LED DiagnosticsIndicates a pending relay OFF event due to under/over voltage or external off trigger. Output on/off status is also provided.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 5AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 5a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs UPC: 850074331087 Brochure (pdf)

Read more less

Triple Battery Advanced Automatic Charging Relay (ACR) - 12VTwo Independent ACRs in One Device reduce installation space and time. Significantly lowers the out-of-state current draw.Features: Eliminates Dead Start Batteries by sharing charge sources with all batteries and isolating batteries when no charge sources are present Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes DT04 harness. A single device reduces installation time, space, cost, and points of potential failure An additional low-amp output can be used to report device status remotely. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection Ultra Low Off-State Current: Compare two typical ACRs (20 mA) vs Dual ACR @ 1.3 mA Adjustable Off-Voltage for Auxiliary Battery Priority provides the ability to share start battery energy for auxiliary without risking engine starting ability. Start/Engine Isolation input option for ensuring sensitive electronics do not experience voltage sags and spikes from the cranking event. Start Assist input option to ensure maximum cranking amps available when necessary. 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.85 lbs UPC: 304841518077 Brochure (pdf)

Read more less

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 5AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 5a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.1 lbs UPC: 850067590996 Brochure (pdf)

Read more less

Terminal Block 20A - 4 CircuitFeatures: Marine Grade Materials Ensure Long Lasting Reliability In Harsh Environment Applications. Screw Terminal Connection Pairs Provide One Input And One Output. Screw Connected To Separate Copper Alloy Bus Bars For Each Matching Connecting Pair. 125V AC or DC Rated Easily Supports 12, 24, 36, 48 Vdc Systems, As Well As 120/240 VAC Applications. Specifications: Type: Electric Box Dimensions: 2"H x 3"W x 10"L WT: 0.15 lbs UPC: 850074331360

Read more less

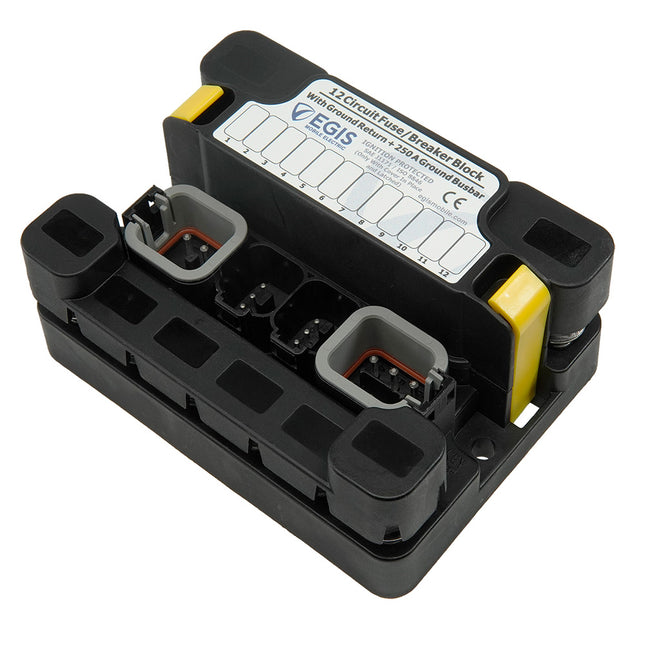

MT Series 9+3 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 9+3 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

MT Series 6+6 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 6+6 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

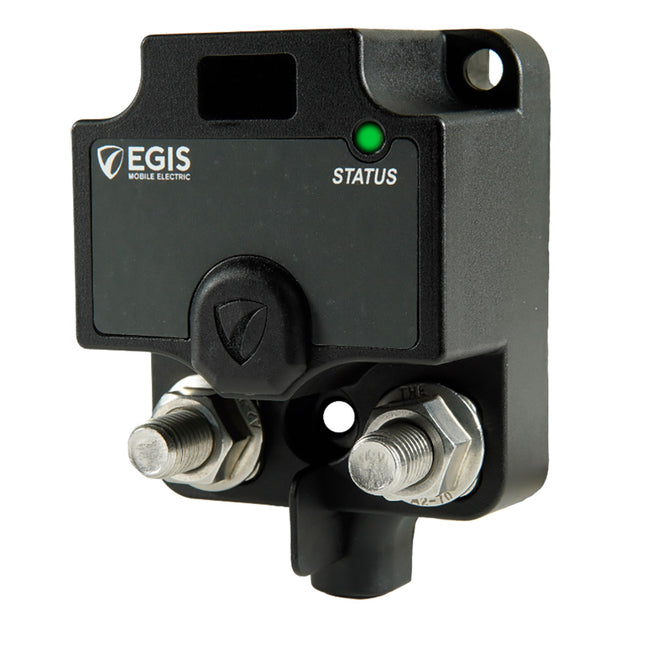

XD Single Low Voltage Disconnect without Knob - Tinned WiresFeatures: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay ON or OFF for Servicing Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing LED Indicator Provides Helpful Diagnostics Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850067590149

Read more less

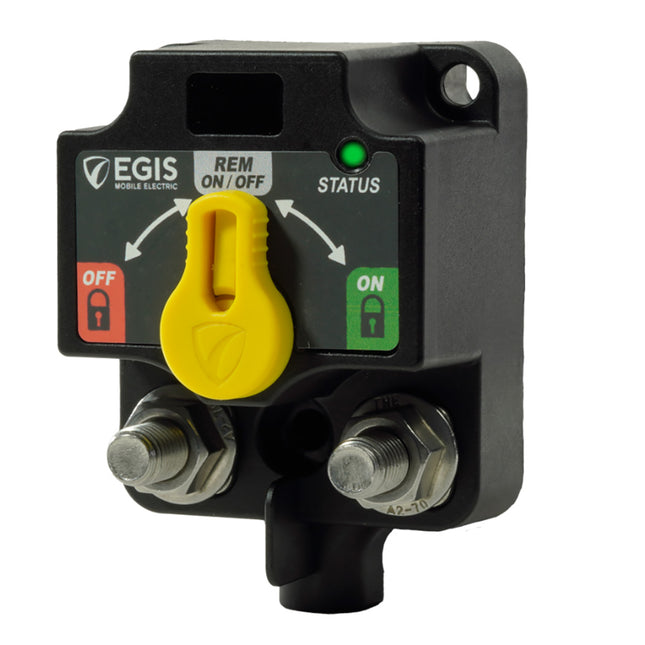

XD Single Low Voltage Disconnect with Knob - Tinned WiresFeatures: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay On or OFF for Servicing Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing LED Indicator Provides Helpful Diagnostics Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850067590132

Read more less

MT Series 3+9 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 3+9 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

Liquid Electrical Tape  - Clear - 4 oz Creates an airtight, waterproof, and UV-resistant seal on electrical connections and wires. Designed for bilge pumps, outdoor wiring, marine applications, and small electronics repairs. The flexible coating withstands temperatures from -50°F to +275°F and provides superior dielectric protection.Directions:Wires or terminals to be sealed must be clean and dry. Squeeze Star brite® Liquid Electrical Tape onto the electrical connection area. Allow to dry for 5 minutes and apply a second coat if a greater thickness of seal is needed. Additional coats may be applied at 5-minute intervals to build up extremely thick protection. The product fully cures in 24 hours.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

36V Standard Trolling Motor SystemToday’s high-output trolling motors require good power sources. This easy-to-use system is designed for those who take their fishing seriously.Easy battery removal and replacement from tight boating compartments now only takes seconds and no tools are needed.Created for the sportsman who wants to easily connect, replace, or just disconnect their 36-volt marine battery systems from tight boat compartments in seconds. This connection kit keeps trolling motor connections intact, whether the batteries are connected or out of the boat.Connect-Ease's patented system takes the hassle and frustration out of remembering how to connect 36-volt trolling motors with the proper 36-volt series for battery hookups. The product features corrosion-free connections and provides the voltage vital for marine equipment performance and longevity.Once Connect-Ease's products are installed, no tools are needed for the removal, replacement, or storage of expensive marine batteries. Using the Connect-Ease series of products allows connecting any 12V marine battery with any equipment or device at any time, any place, easily and quickly by simply snapping the connectors together.Features: Plug & play connections 8-gauge marine-grade wire with heat-shrinkable butt splices Integrate an onboard charger through pre-wired connections Makes rigging and battery removal foolproof Lithium compatible Specifications: UL1426 tinned marine-grade wire One-year warranty Saltwater approved Made in the USA

Read more less

Rainbow Display Digital Voltmeter - Injection Molded Nylon - 5V-15VDCThe Rainbow Display Digital Voltmeter gives the user quick, visual, color-coded voltage information. Red/orange means the voltage is too low. Green means the voltage is normal. The same compact round size as a standard 12VDC receptacle, this voltmeter supports many installation options. Constructed of injection-molded nylon. Rainbow LED display. For use with 12VDC systems. IP65 rating.Specifications:Volts: 5-15

Read more less

36" SAE Power Cable Polarized Electrical ConnectorThis SAE-type polarized electrical connector is a two-prong plug and socket connector set. Features:14-gauge duplex wireSpecifications: Length: 36 in. Volts: 12-24 Max Amps: 20A @ 12V Wire Gauge: 14 AWM Weight: 0.17 lb. Specifications: Type: Cables Box Dimensions: 1"H x 5"W x 9"L WT: 0.15 lbs UPC: 035514432757 Brochure (pdf)

Read more less

USB A / USB C Square Surface Mount Power SocketThis square surface-mount USB 3.0 & USB-C power socket charges two devices simultaneously. When split, the total 6A output is 3A per side. Features: USB 3.0 features Quick Charging (QC) for supported devices gives enough power to charge phones, pads, and tablets quickly and efficiently USB-C features Power Delivery (PD) for faster and more flexible charging A protective dust cap covers ports when not in use Constructed of injection-molded nylon Easy installation requires drilling a 3/16-in. hole for the wire connection, securing it to the surface with two #6 screws (not included), and snapping the concealed fastener cover in place Blue LED illumination IP65 rating CE & RoHS compliant Specifications: Output DC: 5V/6A Input: 8-32VDC USB-C Watts: 60W@24V USB 3.0 Watts: 36W@12V Dimensions (inch): 1-15/16” – 1-15/16” Depth: 3/4 in. Volts: 8-32 Weight: 0.07 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Dual Volt Meter Rock Switch 10V-48VDCThis digital dual-voltage meter monitors and displays the voltage for the main and auxiliary batteries simultaneously. Rocker switch styling means this voltmeter fits any standard 13/16 in. x 1-7/16 in. rocker switch panel slot. Constructed of injection-molded nylon. Red LED display. Input 10-48VDC. IP65 rating.Features: Rocker switch styling means this voltmeter fits any standard 13/16 in. x 1-7/16 in. rocker switch panel slot Constructed of injection-molded nylon Red LED display Input 10-48VDC IP65 rating Specifications: Width: 13/16 in. Height: 1-7/16 in. Volts: 10-48 Weight: 0.04 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Lanocote Rust & Corrosion Solution - 16 oz. LanoCote works on these five basic principles: displaces water, absorbs corrosion, forms moisture barrier, penetrates and high lubricity. LanoCote is extremely effective in preventing and stopping corrosion on all types of metals under all environmental conditions. Formulated to withstand salt water marine conditions, LanoCote is particularly useful in preventing thread seizure due to all types of corrosion on boats and machinery.Applied during assembly, LanoCote will greatly assist in easy dismantling years later. An example would be anchor shackles which are regularly immersed in salt water. LanoCote also combats galvanization where dissimilar metals are fastened together, such as stainless steel fittings on alloy masts etc. Features: Prevents Thread Freeze-up Combats Galvanic Reaction of Dissimilar Metals Seals Porous Surfaces Neutralizes Acids, Alkalies, & Salts Prevents Corrosion on Electronic Contacts Specifications: Type: Corrosion Protection Box Dimensions: 4"H x 4"W x 4"L WT: 0.95 lbs UPC: 028026136268

Read more less

Yellow 18 AWG Wire Ferrule - 6mm Length - 25 PackWire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How? By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.How are wire ferrules properly used? The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose. Features: Prevent strand separation while minimizing strand breakage Insulated ferrules provide additional electrical insulation Increase connection reliability when terminating stranded wire in terminal blocks Specifications: Package Size: 25 Wire Size (AWG): 18 Insulation Color: Yellow Ferrule Length: 6mm (0.24 in.) Stripping Length: 8mm (0.31 in.) Quick Guide (pdf)

Read more less

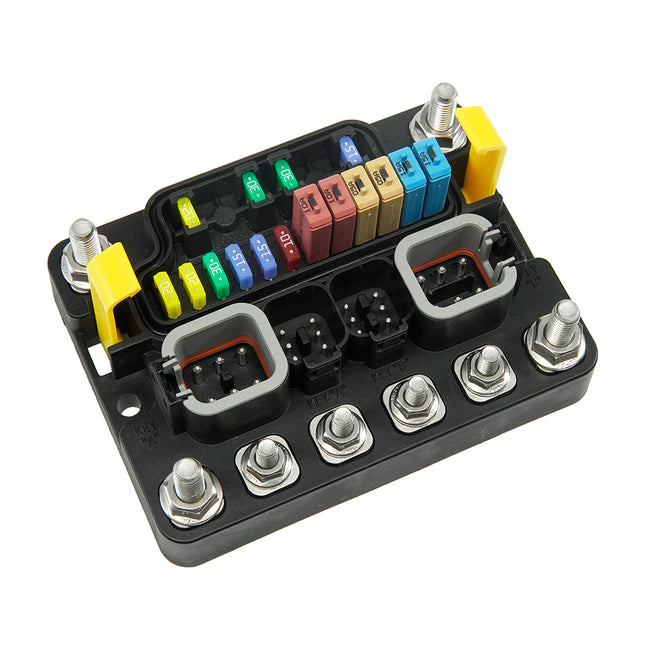

MT Series 12-Position Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors 250A Total Output Current Integral 250A Ground Return Bus Sealed to IP66 & IP6K9K Supports ATM/MINI Fuses and Type 1 or Type 3 Circuit Breakers 5 Year Warranty *Fuses and Circuit Breakers Sold Separately Specifications: Amperage: 250 Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 1.45 lbs UPC: 850067590057 Brochure (pdf)

Read more less

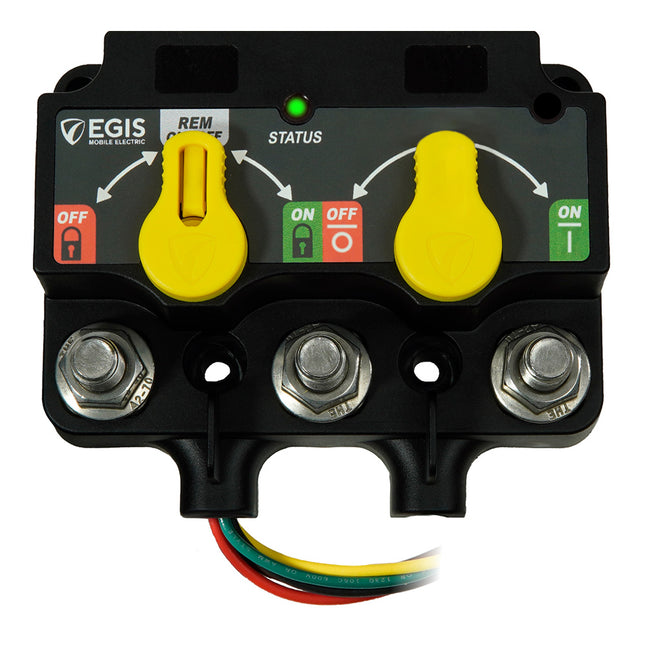

XD Flex 2 Dual VSR/Mech with Knob - 6-Pin DTM ConnectorHighly compact, 500 AMP dual relay and Automatic Charging Relay (ACR). It is designed to save space by consolidating multiple heavy-duty relays and charge management systems into a single sealed, programmable module. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 6"L WT: 1.75 lbs UPC: 850053879517

Read more less

XD Flex 2 Dual VSR/Relay with Knob - 6-Pin DT ConnectorHigh-performance Dual XD Series Flex 2 Relay/ACR (Automatic Charging Relay/Voltage Sensing Relay) with front manual override knobs and a 6-pin Deutsch (DTM) connector. It combines two high-amp relays into a single, compact module. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.89 lbs UPC: 850074331803

Read more less

XD Dual Flex 2 Relay/Relay with Knobs - Tinned WiresFeatures: Compact 35-75% smaller installation footprint than competitive solutions Flexible functionality via dip switches: utilize each as a relay/battery disconnect or automatic charging relay. Supports single/multiple engine installations with dual start/enging isolation inputs. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.9 lbs UPC: 850074331902 Brochure (pdf)

Read more less

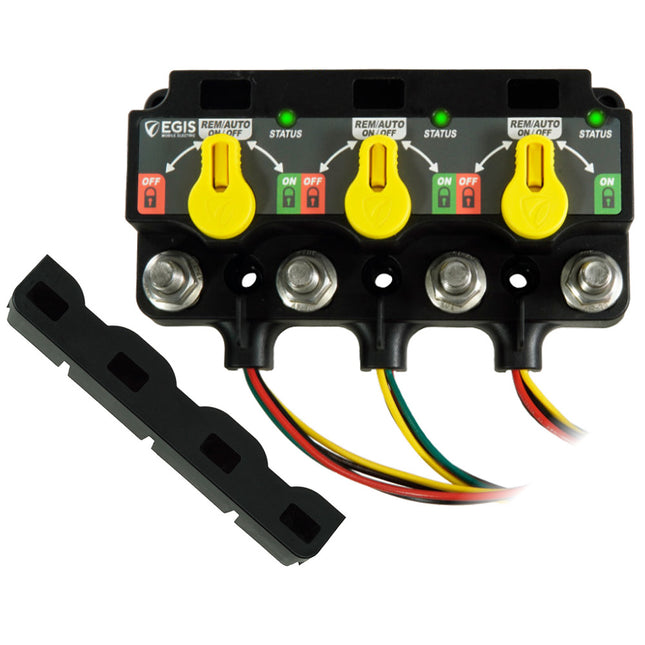

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTMDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined. Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available. Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense. Diagnostic Feedback:  Via optional external LEDs control lines and on-board LEDs for each relay Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection. Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits. Meets Stringent OEM Standards for electrical transient self-protection 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.71 lbs UPC: 850074331698 Brochure (pdf)

Read more less

XD Dual Flex L VSR/Relay with Knob - 6-Pin DT ConnectorDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable With or Without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options are available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 1.9 lbs UPC: 850067590163 Brochure (pdf)

Read more less

Circuit Breaker Cover, Short Stop - BlackFeatures: Compatible with Egis Mobile Electric's Shorts Stop Circuit Breakers Protects terminal studs from inadvertent contact shorts to ground or other positive terminals. Specifications: Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.1 lbs UPC: 850053879944

Read more less

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 8AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 8a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850074331001 Brochure (pdf)

Read more less

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 25AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 25a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850067590965 Brochure (pdf)

Read more less

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 30AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 30a Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331056 Brochure (pdf)

Read more less

XD Flex 1 Triple Relay/VSR/LVD with Knob - 6-Pin DTM ConnectorFeatures: 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing Local and Remote LED Indicators for Each Relay Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.7 lbs UPC: 850035199862

Read more less

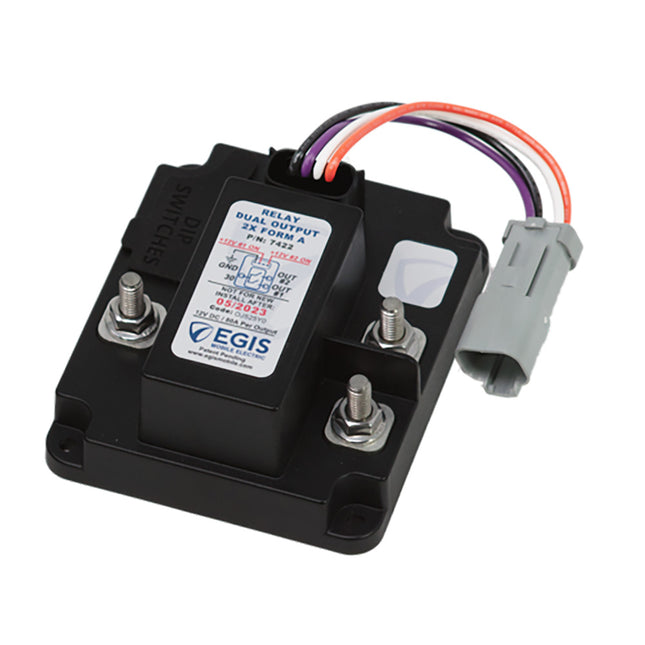

TH3 Dual Relay 2 x 80A - 12VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection. Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware Single or Dual Split Output Options provide flexibility for different electrical system requirements Integral Diode Suppression reduces voltage spikes on control lines during switching Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 6"L WT: 0.8 lbs UPC: 850035199909 Brochure (pdf)

Read more less

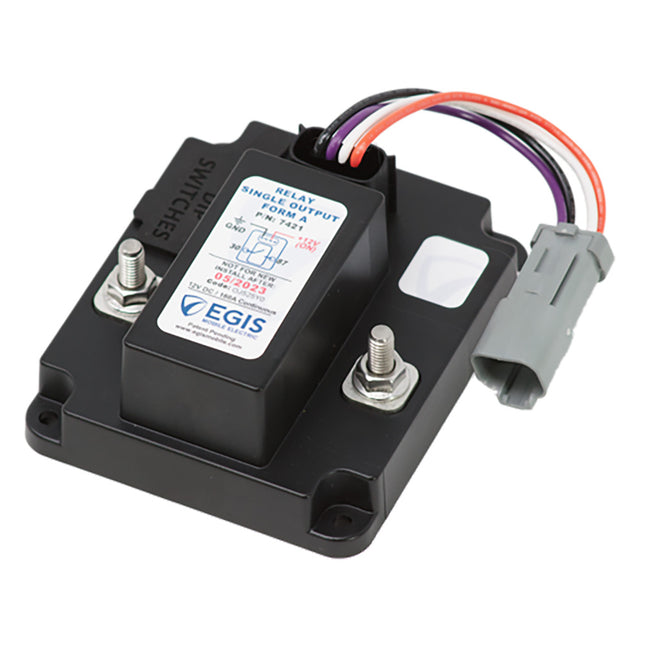

TH3 Relay 160A - 12VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection. Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware Single or Dual Split Output Options provide flexibility for different electrical system requirements Integral Diode Suppression reduces voltage spikes on control lines during switching Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.75 lbs UPC: 850035199893 Brochure (pdf)

Read more less

XD Single - Flex Relay/ACR No Knobs - Tinned WiresFeatures: 500 Amp Continuous Capability / Extremely Compact Footprint Available with or without Intuitive Front Facing Manual Override Knob, with the ability to lock the device on or OFF for Servicing Flexible Functionality via Dip Switches, utilize as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Input Allows Forced Close or open, or allows automatic operation based on Voltage Local and Remote LED Indicators Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850035199244

Read more less

XD Triple Flex L (Relay) - (ACR) - (Relay) with Knobs - Tinned WiresDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 2.7 lbs UPC: 850053879432 Brochure (pdf)

Read more less

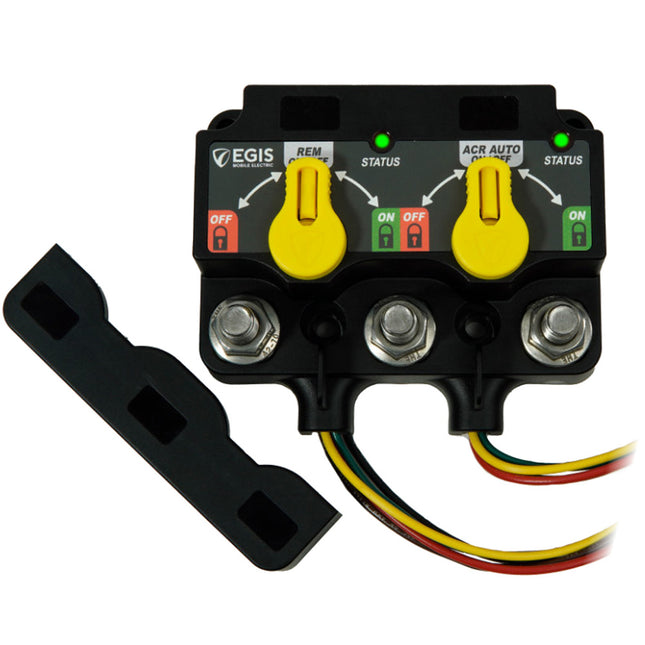

XD Dual Flex L (ACR) - (Relay) with Knobs - Tinned WiresDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable With or Without Intuitive Front Facing Manual Override Knobs with Ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 6"L WT: 1.9 lbs UPC: 850053879425 Brochure (pdf)

Read more less

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 50AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 50a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850074331070 Brochure (pdf)

Read more less

Contactor 500A 12/24V with Aux ContactsFeatures: Sealed Enclosure - Hermetically sealed against dust and moisture penetration. High-temperature rated for all installation locations. 18-8 stainless Self-Locking Hardware - Resists corrosion and ensures long-term connection reliability with premium hardware. Easy Mounting - Reinforced mounting holes provide secure installation and easy attachment for the installer.  Remote Status Support - Optional auxiliary contacts that support remote status indication. Specifications: Type: Electric Box Dimensions: 4"H x 5"W x 7"L WT: 1.1 lbs UPC: 850035199770

Read more less

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 10AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 10a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850074331018 Brochure (pdf)

Read more less

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 50AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 50a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850067590989 Brochure (pdf)

Read more less

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 40AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 40a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs UPC: 850074331063 Brochure (pdf)

Read more less

Single Flex L VSR/Relay with Knob - Tinned WiresDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850053879418 Brochure (pdf)

Read more less

XD Single Flex L VSR with Knobs - 6-Pin DT ConnectorDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.15 lbs UPC: 850053879999 Brochure (pdf)

Read more less

Cable Cap Stud Insulator - 2/0 - 2 AWG - RedFeatures: Protects Wiring Terminations against accidental shorts or incidental contact. Commonly Used On starters, solenoids, alternators, generators, windlasses, or battery terminals. Specifications: Type: Electric Box Dimensions: 4"H x 5"W x 7"L WT: 0.2 lbs UPC: 850074331445

Read more less

Cover MaxibusTransparent Cover for 6250-208 / 6250-404 and Powerbar 6600-404 / 6600-804. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 10"L WT: 0.2 lbs UPC: 850074331483

Read more less

Transparent BusBar CoverTransparent BusBar Cover for 6100-205 and 6100-400. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.2 lbs UPC: 850067590293

Read more less

Cable Cap Lug Insulator 2/0 AWG - RedFeatures: Protects Wiring Terminations against accidental shorts or incidental contact. Commonly Used On starters, solenoids, alternators, generators, windlasses, or battery terminals. Specifications: Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.1 lbs UPC: 850074331391

Read more less

Cover for Dual Bus 10 CircuitsFeatures: Integrated protective transparent cover that snaps on & off. Breakaway tabs that allow terminal entry. Specifications: Type: Electric Box Dimensions: 4"H x 5"W x 7"L WT: 0.1 lbs UPC: 850074331292

Read more less
