20A Euro Style Terminal Block - 12 Gang - 5 PackPacer's European terminal blocks are constructed from 6/6 nylon and incorporate tin-plated brass inserts for corrosion resistance. They also carry wire protectors to prevent stranded wire from being damaged during the installation process. This 20A Pacer European terminal block has 12 AWG max.Features: 20 AMP, 300V, 12 AWG max 12 positions Each European terminal block is built to handle the harshest marine conditions Recessed screws and terminals to avoid shock hazards Closed-back design to prevent moisture intrusion Easily cut Compliances: UL Recognized CSA Certified Characteristics: Constructed from 6/6 nylon Tin-plated brass inserts Applications: Distributing voltage and power to smaller circuits Combining grounds in an electrical system Specifications: Package Qty: 5 Box Dimensions: 1"H x 1"W x 6"L WT: 0.4 lbs UPC: 840248215947 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 4/0 Gauge Wire - 3/8" Post - 2-PackCable Gauge: 4/0Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 2 Heat Shrink: No Gauge: 4/0 AWG Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887259049 Quick Guide (pdf)

Read more less

Tinned Lug 8 AWG - #10 Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 8 Stud Size: #10 Length: 1.187” Width: 0.438” Clearance: 0.344” Package Size: 10 Specifications: Gauge: 8 AWG Heat Shrink: No Package Qty: 10 Post Size: #10 Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.15 lbs UPC: 840248209861 Brochure (pdf)

Read more less

Nylon Fully Insulated Disconnect - Male - 16-14 - 25-PieceAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: 0.250 (6.4 mm) tab size Nylon insulated with insulation grip Double crimp, funnel entry UL 310 Specifications: Gauge: 16-14 AWG Heat Shrink: No Package Qty: 25 Type: Disconnects Box Dimensions: 1"H x 4"W x 6"L WT: 0.09 lbs UPC: 091887214192

Read more less

12-10 Female Heatshrink Disconnects - 25-PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Type: Disconnects Package Qty: 25 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 5"L WT: 0.11 lbs UPC: 091887986280

Read more less

Heavy Duty Lugs - 3/0 Gauge Wire - 5/16" Post - 2-PackCable Gauge: 3/0Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 2 Heat Shrink: No Type: Lugs Post Size: 5/16" Gauge: 3/0 AWG Box Dimensions: 1"H x 2"W x 4"L WT: 0.14 lbs UPC: 091887258028 Quick Guide (pdf)

Read more less

22-18 AWG - #10 Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #10 Heat Shrink: No Package Qty: 100 Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887221725 Brochure (pdf)

Read more less

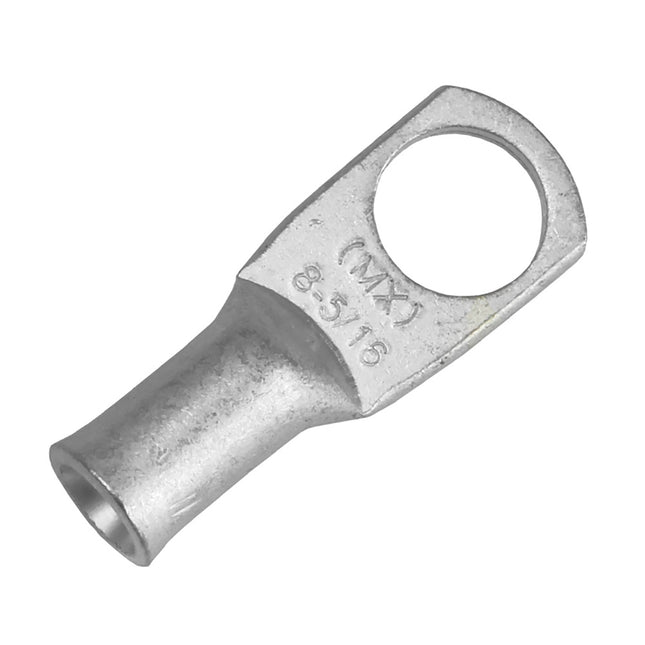

Tinned Lug 8 AWG - 5/16" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed-end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy-lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 8 Stud Size: 5/16” Length: 1.187" Width: 0.438" Clearance: 0.344" Package Size: 10 Specifications: Gauge: 8 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.1 lbs UPC: 840248205979 Brochure (pdf)

Read more less

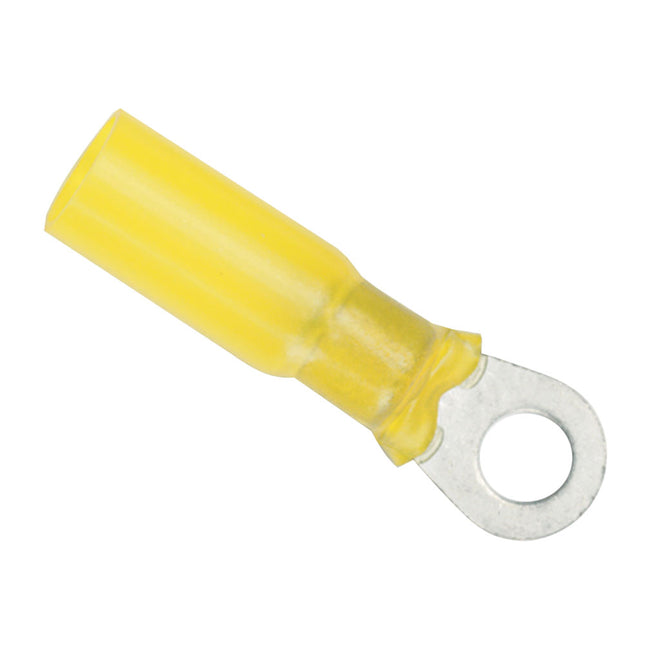

12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 100-PackGauge Size: 12-10Screw Size: 1/4"Quantity: 100Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 1/4" Package Qty: 100 Heat Shrink: Yes Gauge: 12-10 AWG Box Dimensions: 2"H x 3"W x 8"L WT: 0.61 lbs UPC: 091887316131 Quick Guide (pdf)

Read more less

120 Piece Premium Connector KitFeatures: Assorted butt connectors Ring, spade and male Female disconnects (18-10 AWG) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Kits Package Qty: 120 Box Dimensions: 1"H x 5"W x 7"L WT: 0.55 lbs UPC: 091887228472 Brochure (pdf)

Read more less

12-10 AWG - #8 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Post Size: #8 Package Qty: 25 Heat Shrink: No Type: Ring Terminals Gauge: 12-10 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.15 lbs UPC: 091887212228 Brochure (pdf)

Read more less

Heavy Duty Lug 8GA Wire #10 Post *2-PackAncor Marine Grade lugs are manufactured from 100 percent heavy-duty annealed tinned copper, providing maximum current flow while resisting corrosion from salt and moisture. The seamless barrel design allows for maximum strength when crimped. Closed-end design seals out moisture so cables stay dry and corrosion free.Specifications: 100% Tinned Copper UL 486A Specifications: Gauge: 8 AWG Heat Shrink: No Package Qty: 2 Post Size: #10 Type: Lugs Box Dimensions: 1"H x 2"W x 4"L WT: 0.04 lbs UPC: 091887251029

Read more less

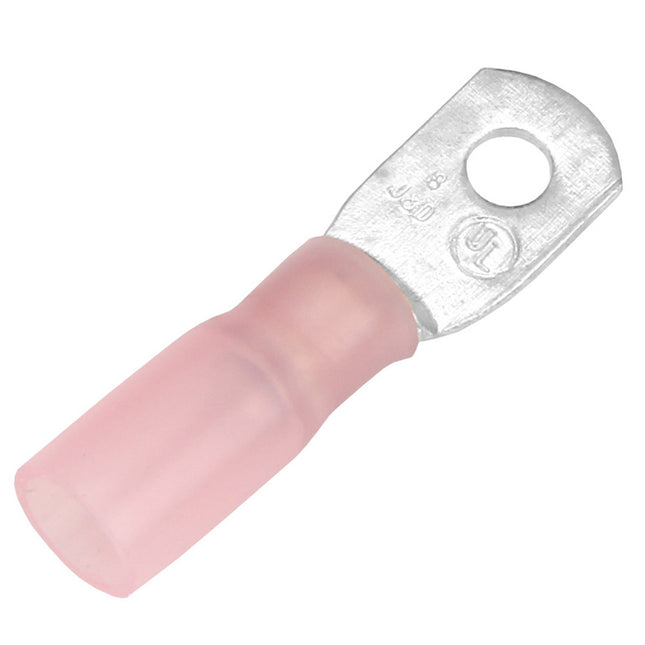

8 AWG Heat Shrink Ring Terminal - #10 Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Pink Wire AWG: 8 AWG Stud Size: #10 Terminal Pad Width (inch): 0.39” Package Size: Twenty-five included Specifications: Gauge: 8 AWG Heat Shrink: Yes Package Qty: 25 Post Size: #10 Type: Ring Terminals Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 840248208314 Quick Guide (pdf)

Read more less

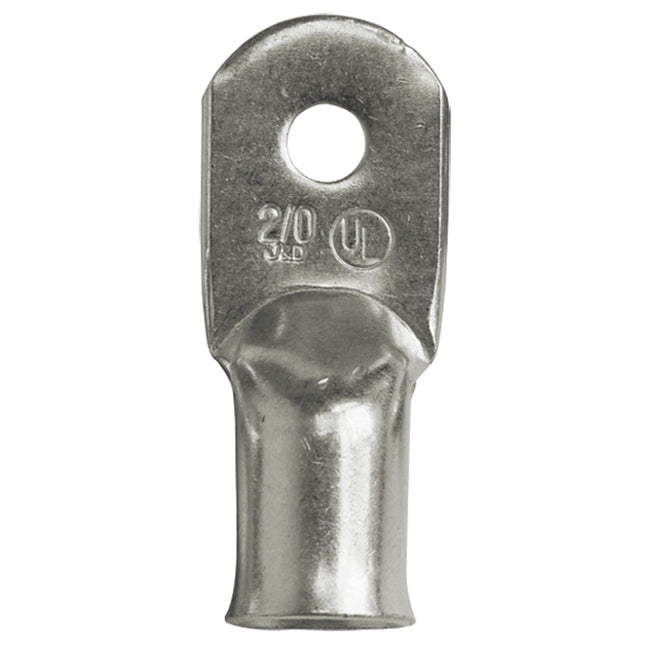

Heavy Duty 2/0 AWG 1/4" Tinned Lug - 25-PackAncor Marine Grade lugs are manufactured from 100% heavy-duty annealed tinned copper, providing for maximum current flow while resisting corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. 100% Tinned Copper UL 486A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 2/0 AWG Type: Lugs Post Size: 1/4" Package Qty: 25 Heat Shrink: No Box Dimensions: 2"H x 3"W x 8"L WT: 1.38 lbs UPC: 091887247022

Read more less

16-14 AWG - #10 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Post Size: #10 Package Qty: 25 Heat Shrink: No Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.09 lbs UPC: 091887212136 Brochure (pdf)

Read more less

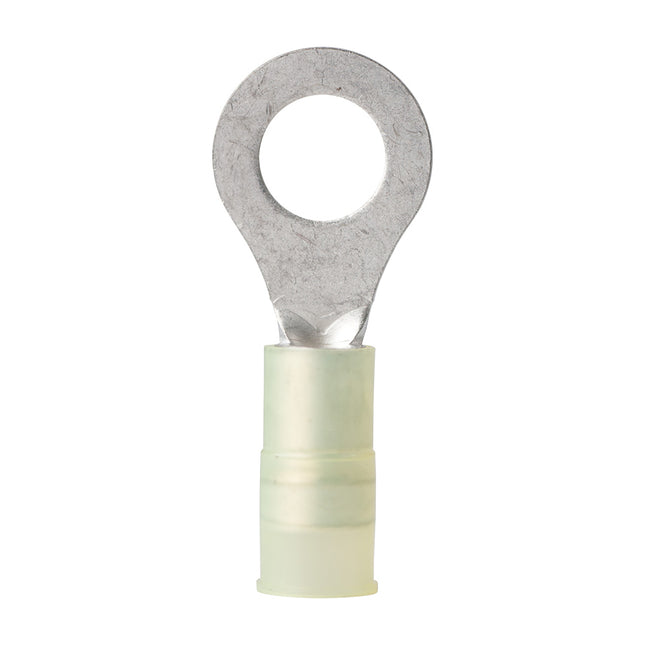

12-10 AWG - 5/16" Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 5/16" Package Qty: 25 Heat Shrink: No Gauge: 12-10 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.19 lbs UPC: 091887212259 Brochure (pdf)

Read more less

Heavy Duty Lugs - 2 Gauge Wire - 3/8" Post - 25-PackCable Gauge: 2Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 25 Heat Shrink: No Gauge: 2 AWG Box Dimensions: 2"H x 3"W x 4"L WT: 0.65 lbs UPC: 091887244069 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 4 Gauge Wire - 1/4" Post - 100-PackCable Gauge: 4Screw Size: 1/4" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 4 AWG Package Qty: 100 Heat Shrink: No Type: Lugs Post Size: 1/4" Box Dimensions: 1"H x 5"W x 6"L WT: 1.85 lbs UPC: 091887249231 Quick Guide (pdf)

Read more less

Deutsch Stamped & Formed Contacts for 14-18 AWG Wire - Socket Cavity Style - 100 PackDeutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability which are just a few of the reasons that the professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is the fact that they are simple to use and require little time for installation.Deutsch stamped and formed contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their durability as well as their longevity. These are just a few of the reasons that professionals turn to these contacts for repeatable and reliable results. Features: Easy to install Field serviceable Applications: Cable to cable applications Enclosed connectors offer field proven reliability and rugged quality Characteristics: Cable to cable applications Enclosed connectors offer field proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized Specifications: Package Size: 100 Wire Size: 16-14 AWG Operating Temperature: -55°C to 125°C Current Rating: 13A Brochure (pdf)

Read more less

Deutsch DT Receptacle & Wedge Lock Kit - 12 Position - 5 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 12 Cavity Style: Receptacle (Pin) Package Size: 5 Housing: Rectangular Receptacle, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

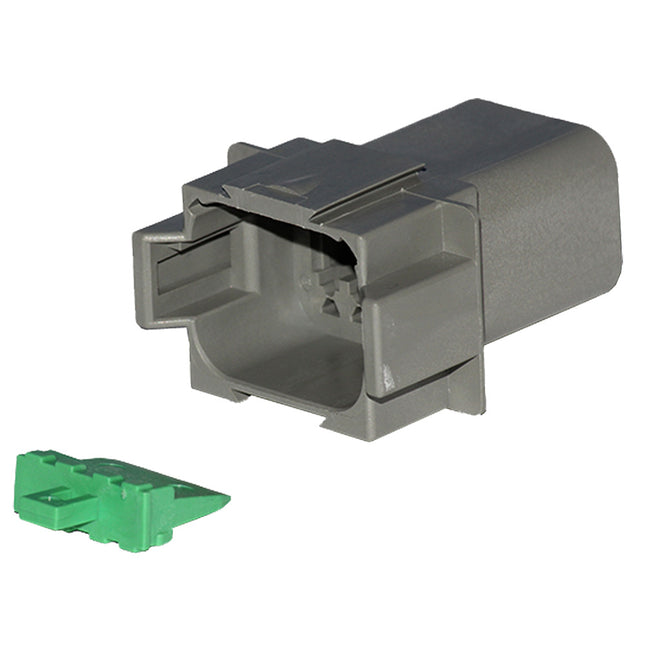

Deutsch DT Receptacle & Wedge Lock Kit - 8 Position - 5 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 8 Cavity Style: Receptacle (Pin) Package Size: 5 Housing: Rectangular Receptacle, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

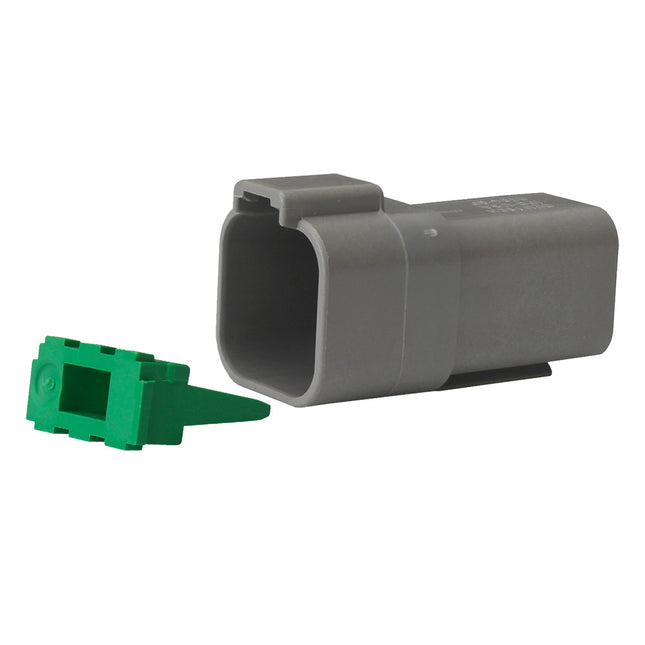

Deutsch DT Receptacle & Wedge Lock Kit - 6 Position - 5 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 6 Cavity Style: Receptacle (Pin) Package Size: 5 Housing: Rectangular Receptacle, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

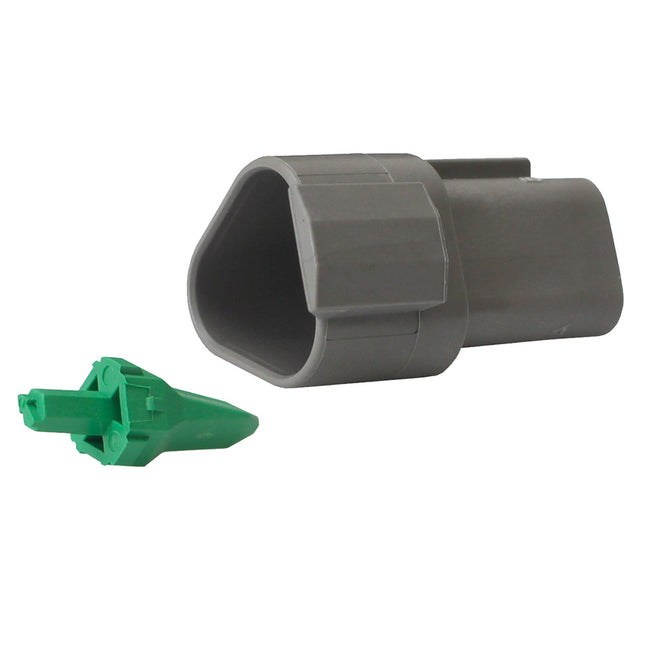

Deutsch DT Receptacle & Wedge Lock Kit  - 3 Position - 10 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 3 Cavity Style: Receptacle (Pin) Package Size: 10 Housing: Rectangular Receptacle, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

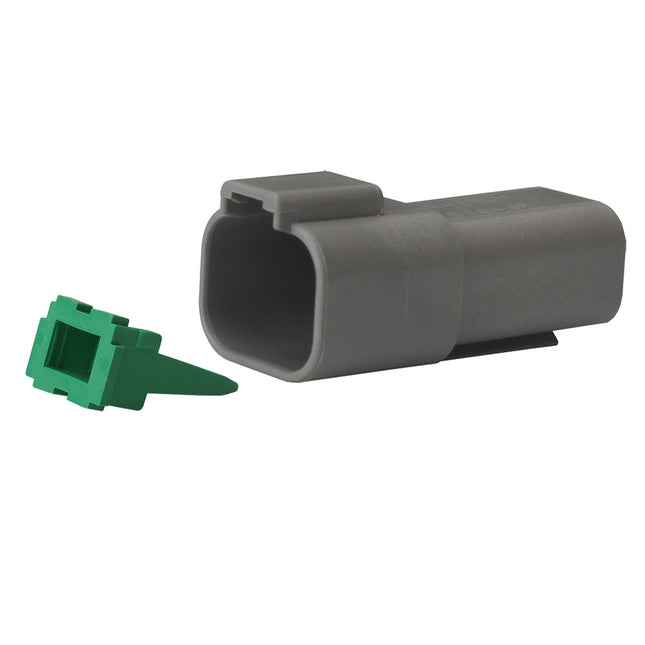

Deutsch DT Receptacle & Wedge Lock Kit - 4 Position - 10 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 4 Cavity Style: Receptacle (Pin) Package Size: 10 Housing: Rectangular Receptacle, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

Deutsch DT Plug & Wedge Lock Kit - 12 Position - 5 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 12 Cavity Style: Plug (socket) Package Size: 5 Housing: Rectangular Plug, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

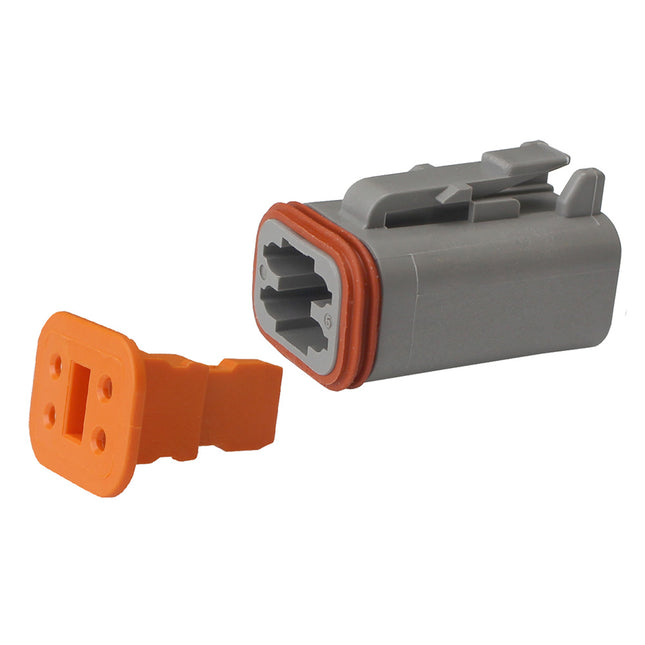

Deutsch DT Plug & Wedge Lock Kit - 4 Position - 10 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 4 Cavity Style: Plug (socket) Package Size: 10 Housing: Rectangular Plug, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

Deutsch DT Plug & Wedge Lock Kit - 8 Position - 5 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 8 Cavity Style: Plug (socket) Package Size: 5 Housing: Rectangular Plug, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

DTP Deutsch Pin for 10 AWG Wire - Size 12 Contact (10 Pack)Deutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability which are just a few of the reasons that the professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is the fact that they are simple to use and require little time for installation.Features: Easy to install Field serviceable  Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics:Hand-insertable contactsCompliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized Specifications: Cavity Style: Receptacle (pin) Connector Type: DTP Wire Size: 10 AWG Current Rating: 25 Package Size: 10 Contact Size: 12 Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

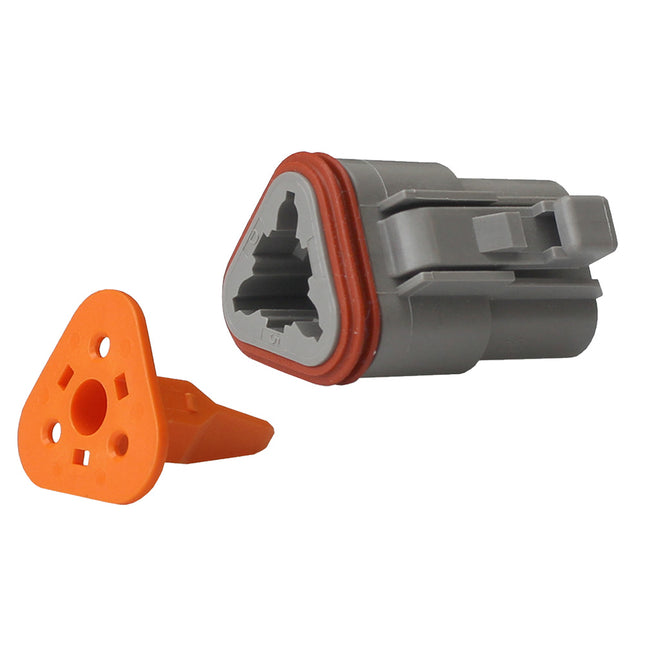

Deutsch DT Plug & Wedge Lock Kit - 3 Position - 10 PackProtecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors? Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacer's DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.Features:Kits with cavities (2, 3, or 4) include housing (10 pieces) and wedge lock (10 pieces)Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Wedgelocks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Standard UL-94 Recognized Specifications: Number of Cavities: 3 Cavity Style: Plug (socket) Package Size: 10 Housing: Rectangular Plug, Plastic reinforced with glass fiber Contact Size: 16 (13 Amp) Wire Size: 20-14 AWG Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

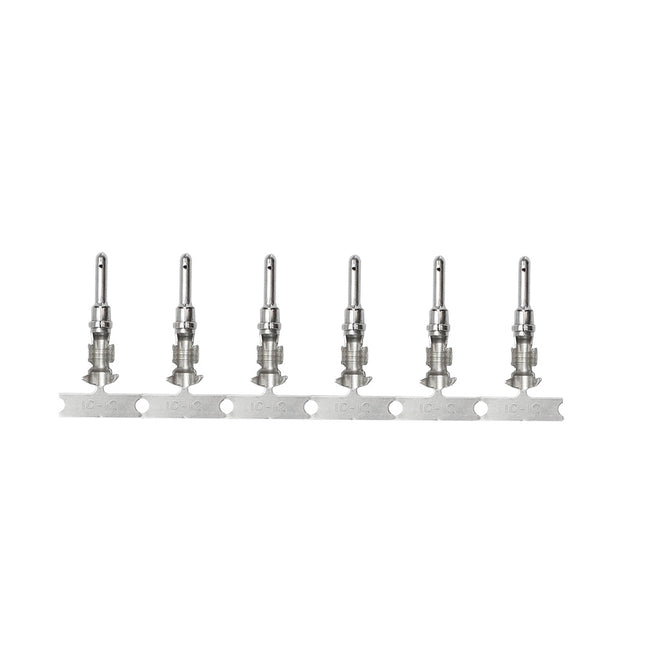

DTP Deutsch Pin for 10 AWG Wire - Size 12 Contact (25 Pack)Deutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability which are just a few of the reasons that the professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is the fact that they are simple to use and require little time for installation.Features: Easy to install Field serviceable Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics:Hand-insertable contactsCompliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized Specifications: Cavity Style: Receptacle (pin) Connector Type: DTP Wire Size: 10 AWG Current Rating: 25 Package Size: 25 Contact Size: 12 Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

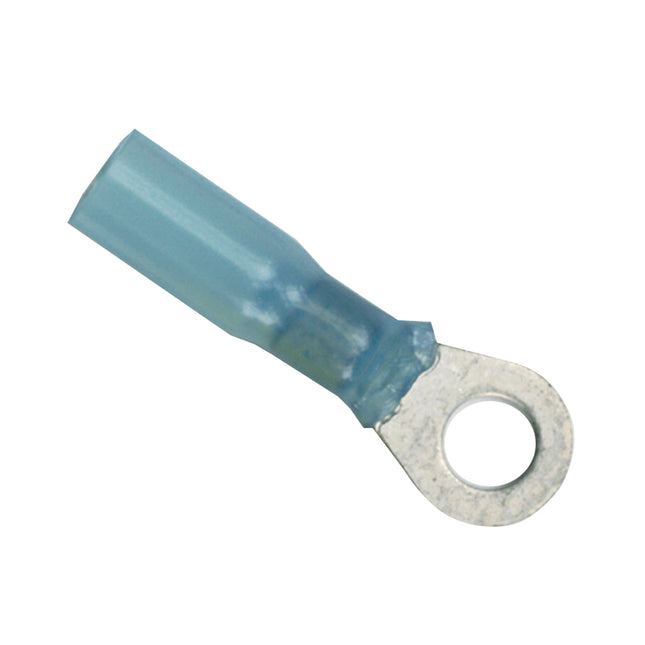

16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 100-PackWire Range:16-14Screw Size:5/16"Quantity: 100Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Type: Ring Terminals Package Qty: 100 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 8"L WT: 0.33 lbs UPC: 091887313185 Quick Guide (pdf)Brochure (pdf)

Read more less

22-18 Heatshrink Butt Connetors - 3-PackGuage Size: 22-18Quantity: 3Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 22-18 mm: 0.3 - 0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 3 Heat Shrink: Yes Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887307863 Quick Guide (pdf)

Read more less

DTP Deutsch Socket for 10 AWG Wire - Size 12 Contact (25 Pack)Deutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability which are just a few of the reasons that the professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is the fact that they are simple to use and require little time for installation.Features: Easy to install Field serviceable Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics:Hand-insertable contactsCompliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized Specifications: Cavity Style: Plug (socket) Connector Type: DTP Wire Size: 10 AWG Current Rating: 25 Package Size: 25 Contact Size: 12 Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

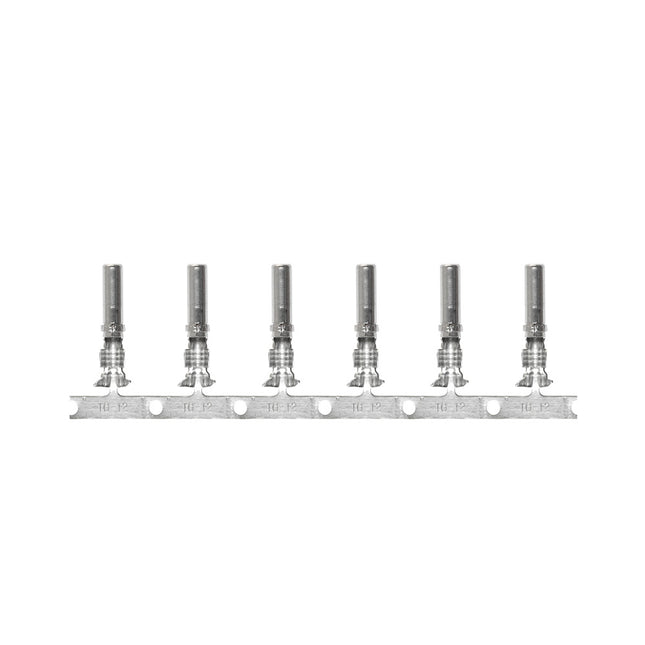

DTP Deutsch Socket for 10 AWG Wire - Size 12 Contact (10 Pack)Deutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability which are just a few of the reasons that the professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is the fact that they are simple to use and require little time for installation.Features: Easy to install Field serviceable Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics:Hand-insertable contactsCompliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized Specifications: Cavity Style: Plug (socket) Connector Type: DTP Wire Size: 10 AWG Current Rating: 25 Package Size: 10 Contact Size: 12 Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

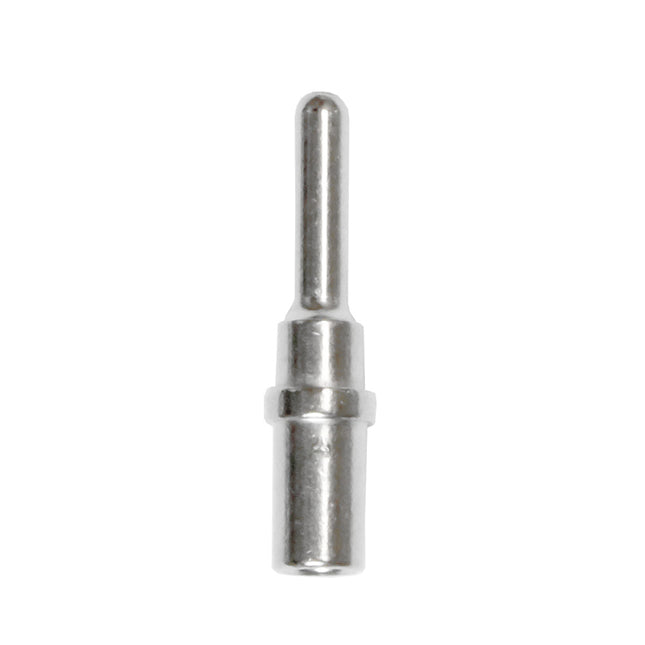

DTP Deutsch Pin for 14-12 AWG Wire - Size 12 Contact (10 Pack)Deutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability which are just a few of the reasons that the professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is the fact that they are simple to use and require little time for installation.Features: Easy to install Field serviceable Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics:Hand-insertable contactsCompliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized  Specifications: Cavity Style: Receptacle (pin) Connector Type: DTP Wire Size: 14-12 AWG Current Rating: 25 Package Size: 10 Contact Size: 12 Operating Temperature: -55°C to 125°C Brochure (pdf)

Read more less

Deutsch Stamped & Formed Contacts for 14-18 AWG Wire – Pin Cavity Style - 100 PackDeutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability which are just a few of the reasons that the professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is the fact that they are simple to use and require little time for installation.Deutsch stamped and formed contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their durability as well as their longevity. These are just a few of the reasons that professionals turn to these contacts for repeatable and reliable results. Features: Easy to install Field serviceable Applications: Cable to cable applications Enclosed connectors offer field proven reliability and rugged quality Characteristics: Cable to cable applications Enclosed connectors offer field proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized Specifications: Package Size: 100 Wire Size: 16-14 AWG Operating Temperature: -55°C to 125°C Current Rating: 13A

Read more less

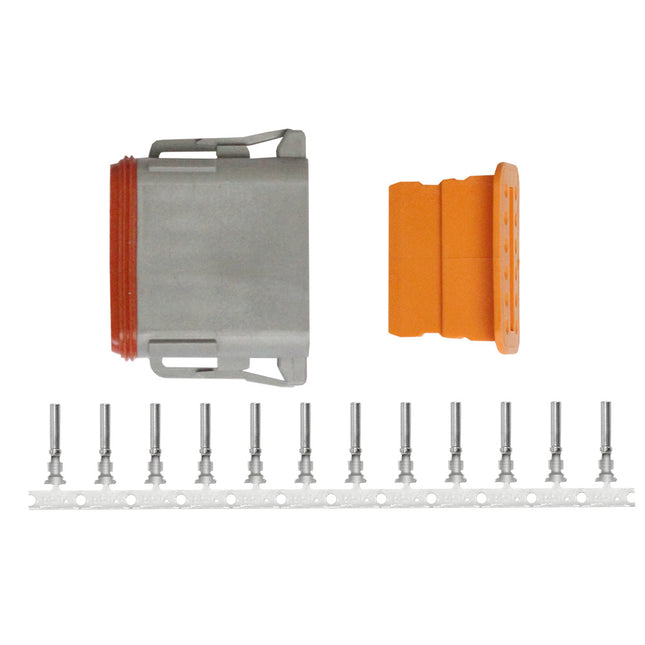

DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 12 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Sockets Operating Temperature: -55°C to 125°C Contents:  (1) 12 pos. plug (1) 12 pos. wedge lock (14) sockets (6) cavity plugs Quick Guide (pdf)

Read more less

DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 8 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Sockets Operating Temperature: -55°C to 125°C Contents:  (1) 8 pos. plug (1) 8 pos. wedge lock (10) sockets (4) cavity plugs Quick Guide (pdf)

Read more less

DT Deutsch Plug Repair Kit - 14-18 AWG (6 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 6 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Sockets Operating Temperature: -55°C to 125°C Contents:  (1) 6 pos. plug (1) 6 pos. wedge lock (8) sockets (3) cavity plugs Quick Guide (pdf)

Read more less

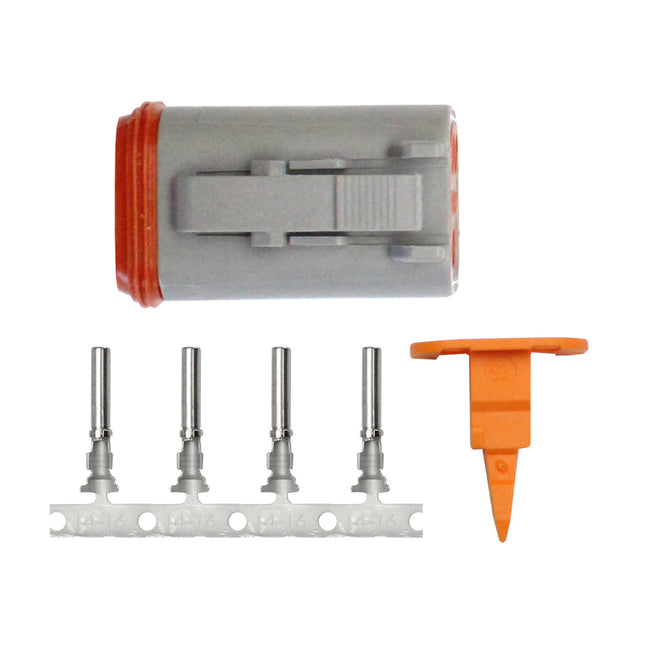

DT Deutsch Plug Repair Kit - 14-18 AWG (4 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 4 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Sockets Operating Temperature: -55°C to 125°C Contents:  (1) 4 pos. plug (1) 4 pos. wedge lock (5) sockets  (2) cavity plugs Quick Guide (pdf)

Read more less

DT Deutsch Plug Repair Kit - 14-18 AWG (3 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 3 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Sockets Operating Temperature: -55°C to 125°C Contents:  (1) 3 pos. plug (1) 3 pos. wedge lock (4) sockets (1) cavity plug Quick Guide (pdf)

Read more less

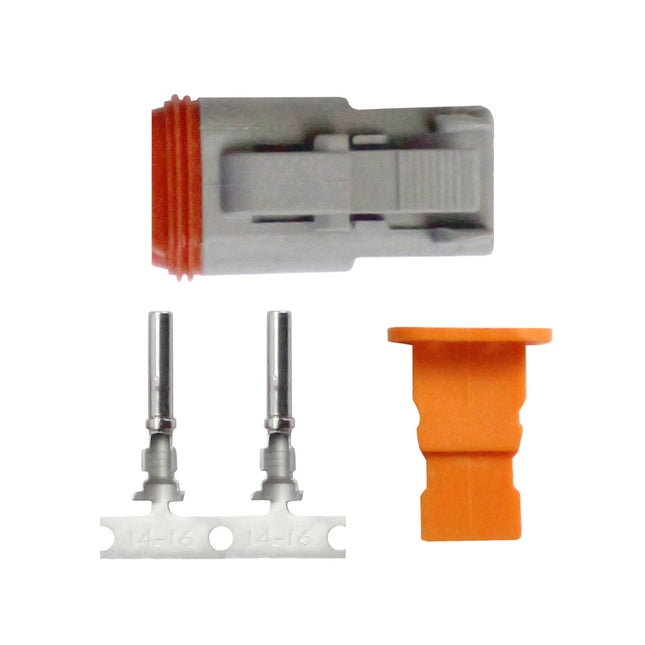

DT Deutsch Plug Repair Kit - 14-18 AWG (2 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 2 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Sockets Operating Temperature: -55°C to 125°C Contents:  (1) 2 pos. plug (1) 2 pos. wedge lock (3) sockets

Read more less

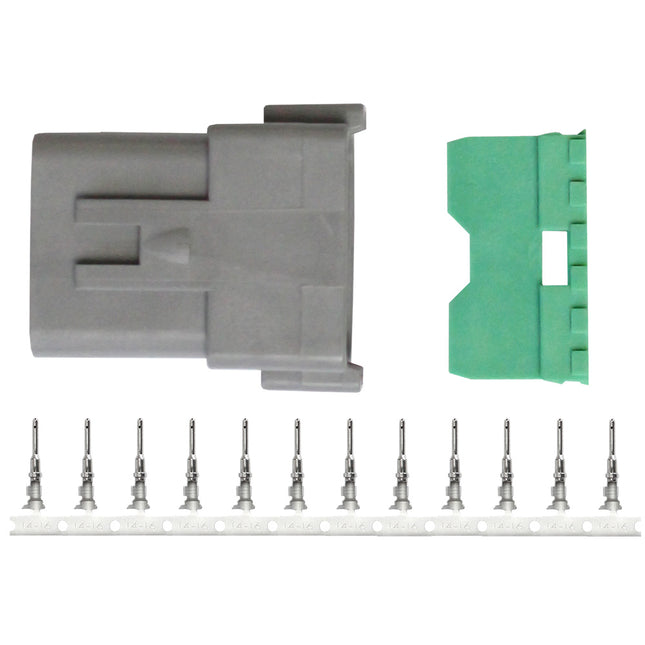

DT Deutsch Receptacle Repair Kit - 14-18 AWG (12 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 12 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C Contents:  (1) 12 pos. receptacle (1) 12 pos. wedge lock (14) pins (6) cavity plugs Quick Guide (pdf)

Read more less

DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 8 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C Contents:  (1) 8 pos. receptacle (1) 8 pos. wedge lock (10) pins (4) cavity plugs Quick Guide (pdf)

Read more less

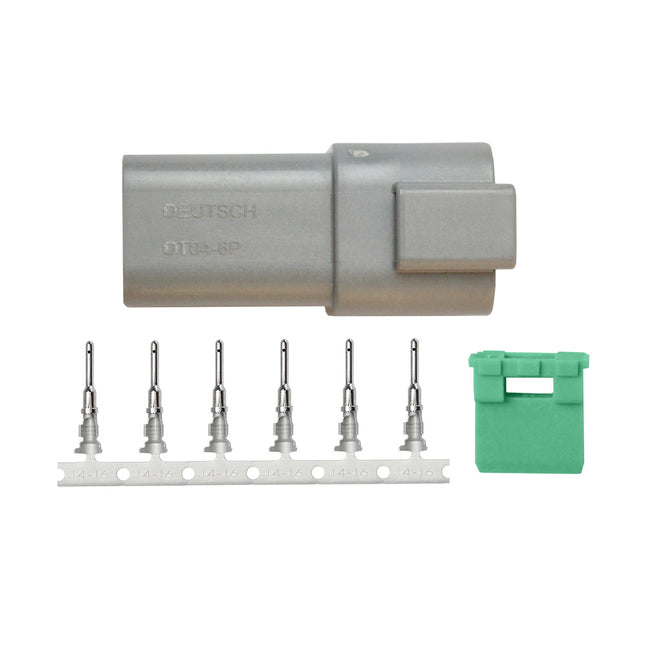

DT Deutsch Receptacle Repair Kit - 14-18 AWG (6 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 6 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C Contents:  (1) 6 pos. receptacle (1) 6 pos. wedge lock (8) pins (3) cavity plugs Quick Guide (pdf)

Read more less

DT Deutsch Receptacle Repair Kit - 14-18 AWG (4 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 4 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C Contents:  (1) 4 pos. receptacle (1) 4 pos. wedge lock (5) pins (2) cavity plugs Quick Guide (pdf)

Read more less

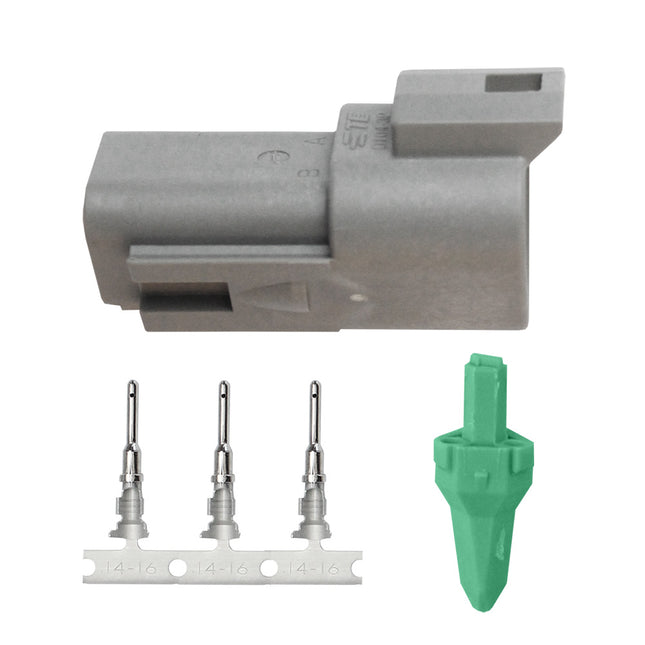

DT Deutsch Receptacle Repair Kit - 14-18 AWG (3 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 3 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C Contents:  (1) 3 pos. receptacle (1) 3 pos. wedge lock (4) pins (1) cavity plug Quick Guide (pdf)

Read more less

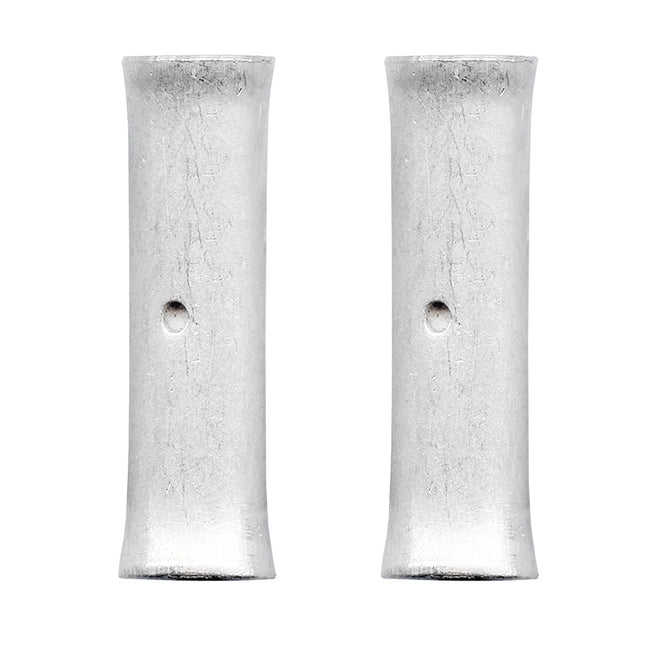

Seamless Butt Splice - 1 AWG - Non-Insulated - 2 PackButt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices? The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and you're done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires don't pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just don't offer the same level of protection.Features: Tin Plated Seamless Specifications: Package Size: 2 Wire AWG: 1 Length: ” I.D. (in.): ” O.D. (in.): ” Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant

Read more less
