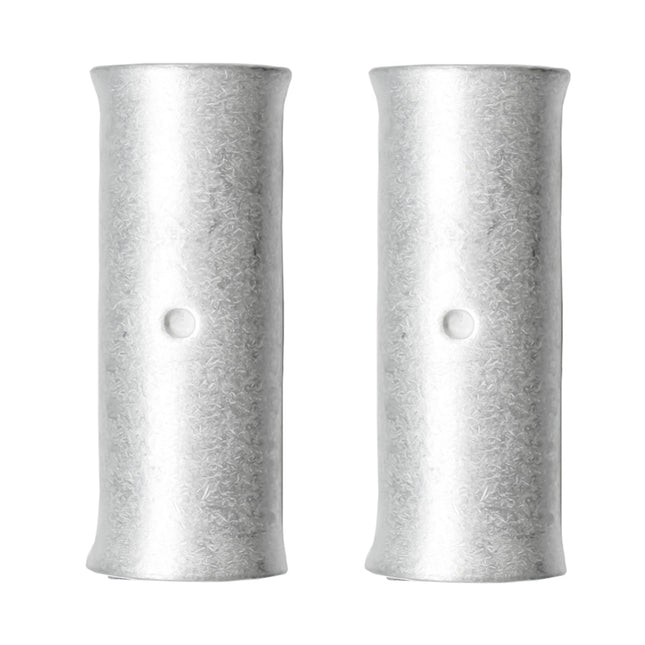

Seamless Butt Splice - 2/0 AWG - Non-Insulated - 2 PackButt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices? The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and you're done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires don't pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just don't offer the same level of protection.Features: Tin Plated Seamless Specifications: Package Size: 2 Wire AWG: 2/0 Length: 1.440” I.D. (in.): 0.496” O.D. (in.): 0.697” Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Specifications: Gauge: 2/0 AWG Heat Shrink: No Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 840248207546 Brochure (pdf)

Read more less

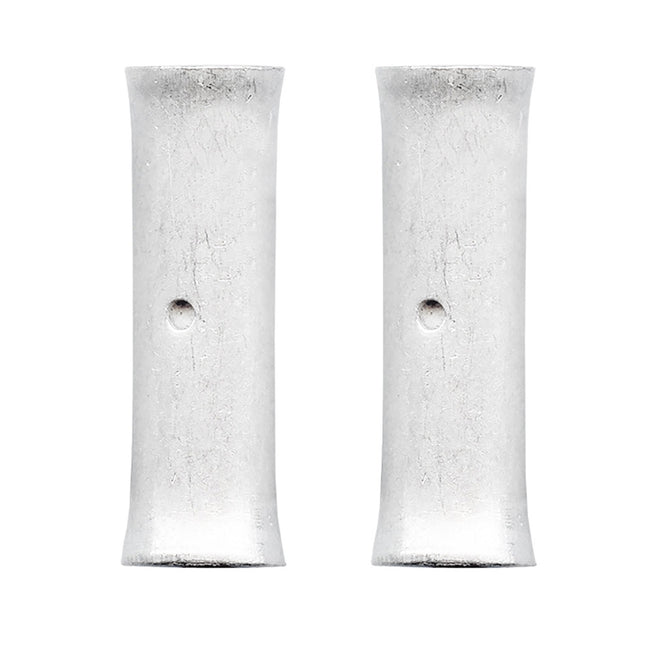

Seamless Butt Splice - 6 AWG - Non-Insulated - 10 PackButt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices? The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and you're done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires don't pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just don't offer the same level of protection.Features: Tin Plated Seamless Specifications: Package Size: 10 Wire AWG: 6 Length: 1.045” I.D. (in.): 0.230” O.D. (in.): 0.374” Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Specifications: Gauge: 6 AWG Heat Shrink: No Box Dimensions: 0"H x 5"W x 9"L WT: 0.15 lbs UPC: 840248205993 Brochure (pdf)

Read more less

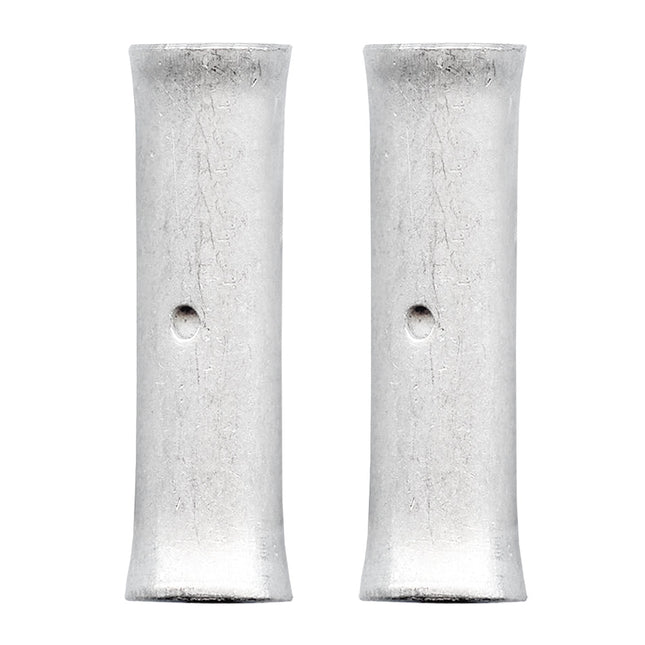

Seamless Butt Splice - 1/0 AWG - Non-Insulated - 2 PackButt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices? The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and you're done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires don't pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just don't offer the same level of protection.Features: Tin Plated Seamless Specifications: Package Size: 2 Wire AWG: 1/0 Length: 1.440” I.D. (in.): 0.439” O.D. (in.): 0.620” Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Specifications: Gauge: 1/0 AWG Heat Shrink: No Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 840248207539 Brochure (pdf)

Read more less

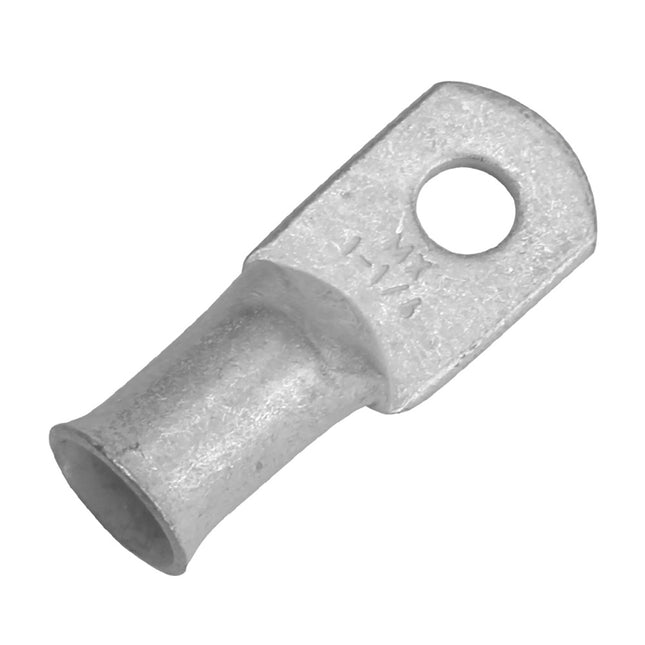

Tinned Lug 1 AWG - 1/4" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 1 Stud Size: 1/4” Length: 1.719” Width: 0.692” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 1 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/4" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.45 lbs UPC: 840248205436 Brochure (pdf)

Read more less

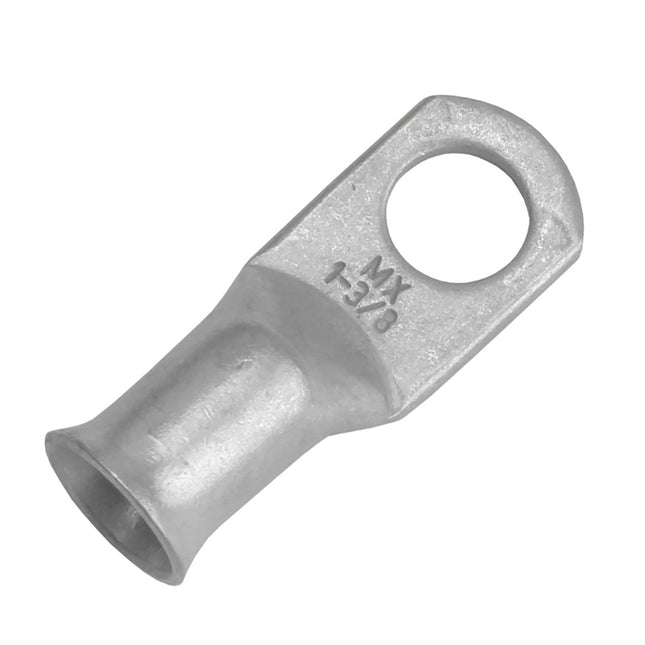

Tinned Lug 1 AWG - 3/8" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 1 Stud Size: 3/8” Length: 1.719” Width: 0.692” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 1 AWG Heat Shrink: No Package Qty: 10 Post Size: 3/8" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.3 lbs UPC: 840248209724 Brochure (pdf)

Read more less

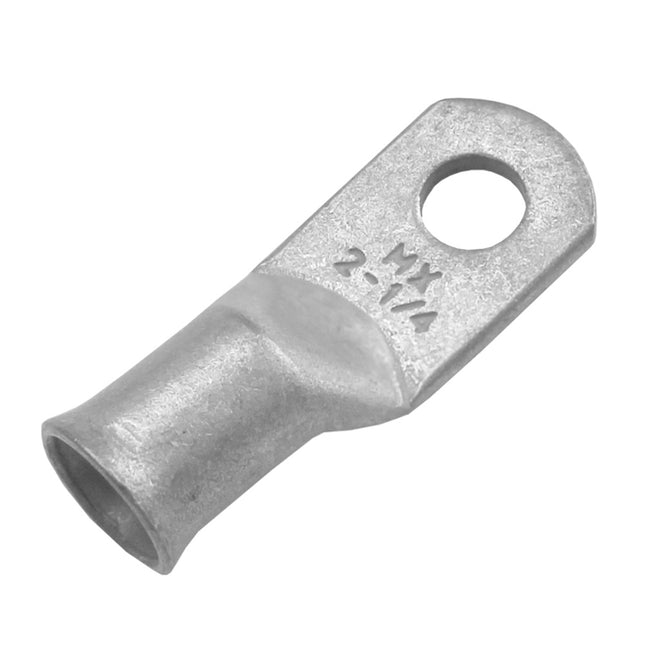

Tinned Lug 2 AWG - 1/4" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 2 Stud Size: 1/4” Length: 1.625” Width: 0.609” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 2 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/4" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.25 lbs UPC: 840248205597 Brochure (pdf)

Read more less

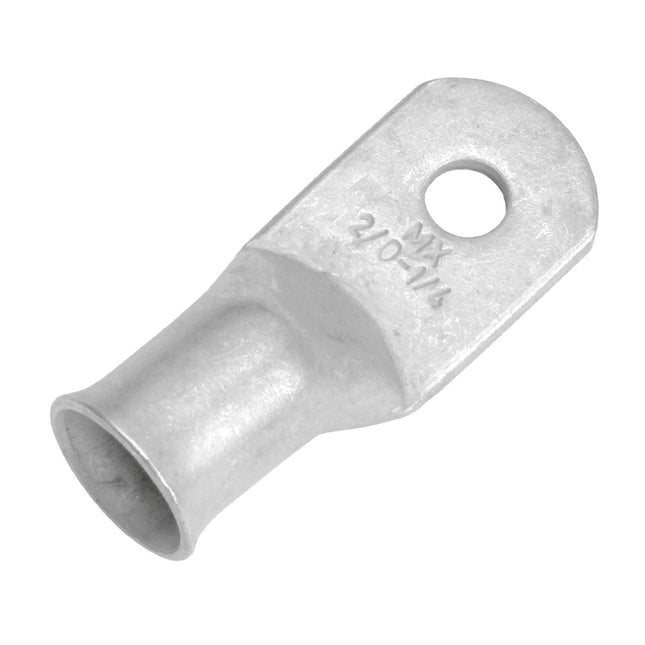

Tinned Lug 2/0 AWG - 1/4" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 2/0 Stud Size: 1/4” Length: 2.063” Width: 0.813” Clearance: 0.500” Package Size: 10 Specifications: Gauge: 2 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/4" Type: Lugs Box Dimensions: 1"H x 5"W x 8"L WT: 0.5 lbs UPC: 840248209748 Brochure (pdf)

Read more less

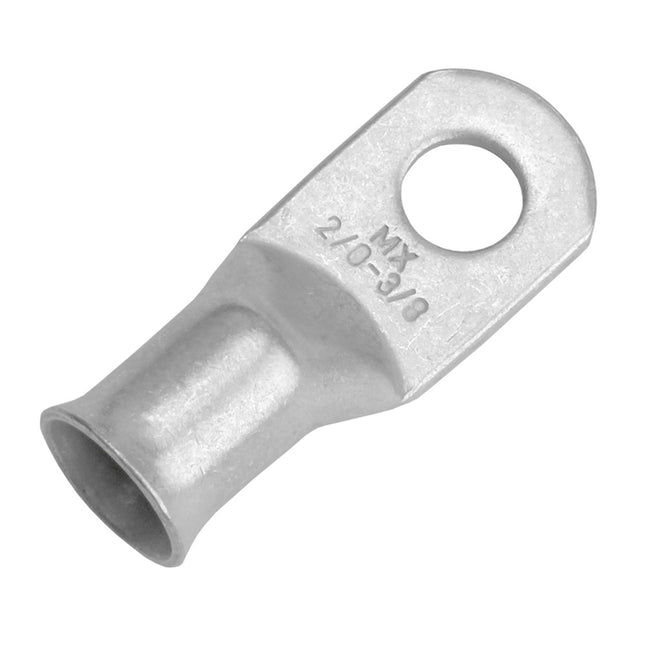

Tinned Lug 2/0 AWG - 3/8" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 2/0 Stud Size: 3/8” Length: 2.063” Width: 0.813” Clearance: 0.500” Package Size: 10 Specifications: Gauge: 2/0 AWG Heat Shrink: No Package Qty: 10 Post Size: 3/8" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.5 lbs UPC: 840248205535 Brochure (pdf)

Read more less

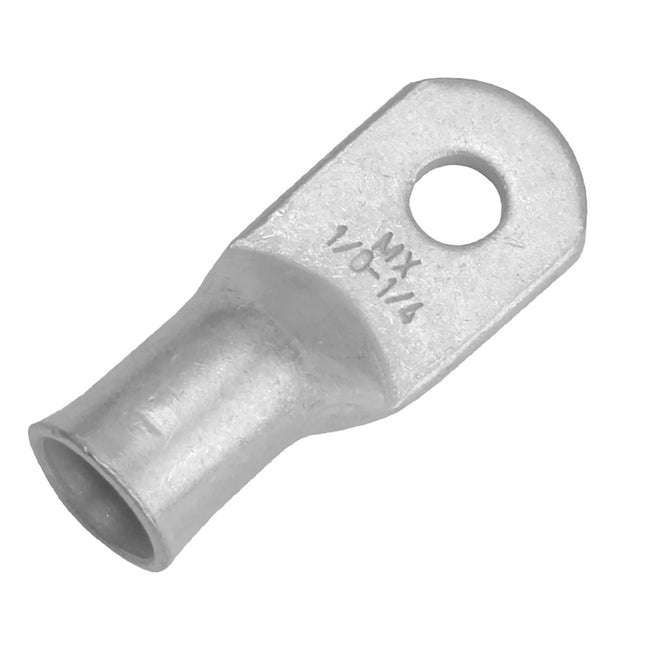

Tinned Lug 1/0 AWG - 1/4" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 1/0 Stud Size: 1/4” Length: 1.844” Width: 0.734” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 1/0 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/4" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.3 lbs UPC: 840248209687 Brochure (pdf)

Read more less

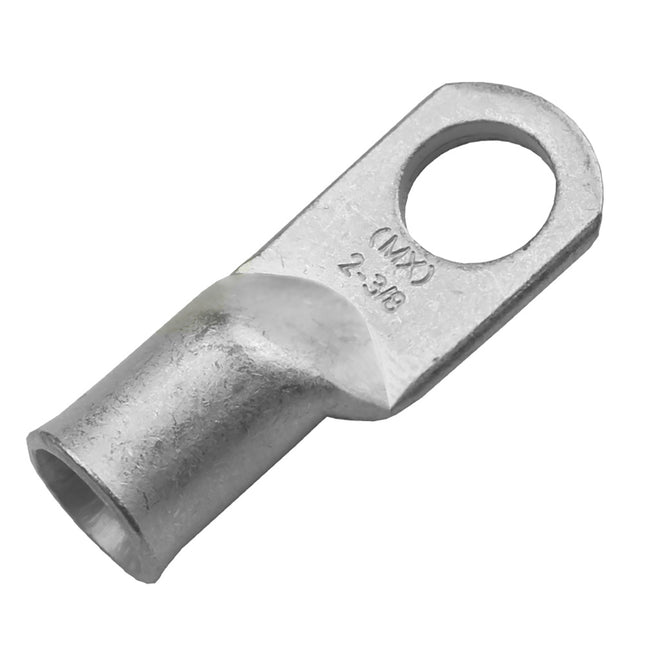

Tinned Lug 2 AWG - 3/8" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 2 Stud Size: 3/8” Length: 1.625” Width: 0.609” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 2 AWG Heat Shrink: No Package Qty: 10 Post Size: 3/8" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.25 lbs UPC: 840248205610 Brochure (pdf)

Read more less

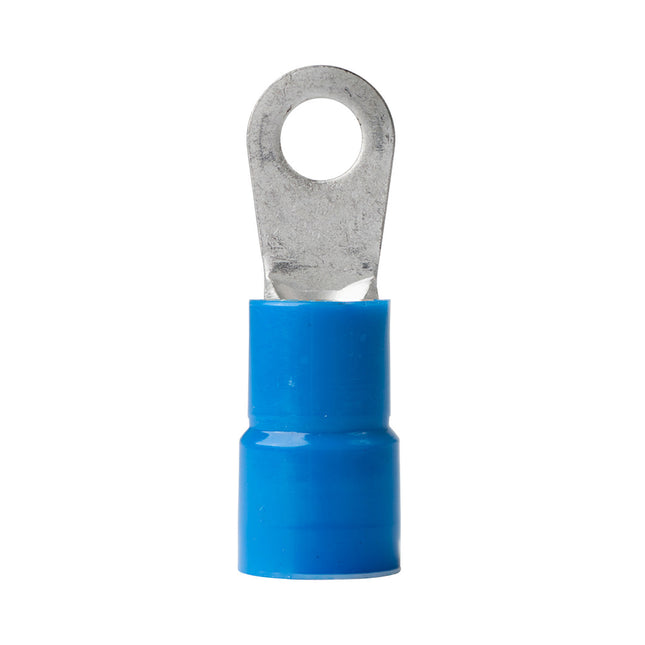

6 AWG - 1/4" Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 1/4" Package Qty: 25 Heat Shrink: No Gauge: 6 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.4 lbs UPC: 091887212440 Brochure (pdf)

Read more less

12-10 AWG - #6 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Post Size: #6 Package Qty: 25 Heat Shrink: No Type: Ring Terminals Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 091887212211 Brochure (pdf)

Read more less

16-14 Nylon Multi-Stack Disconnects - 3-PackThese multi-stack disconnects are constructed from nylon and insulated for extra protection against sunlight, gasoline, oil and chemicals. Double crimp, funnel entry design guides wire into position and prevents strand turnback. Crimp ridge positions the crimp tool to prevent miscrimps. Brass sleeve crimps on wire insulation provide fatigue and strain relief.Features: .250 (6.4 mm) tab size Fits wire gauges 16-14 Nylon insulated with insulation grip Double crimp, funnel entry UL 310 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Package Qty: 3 Heat Shrink: No Type: Disconnects Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 091887236682

Read more less

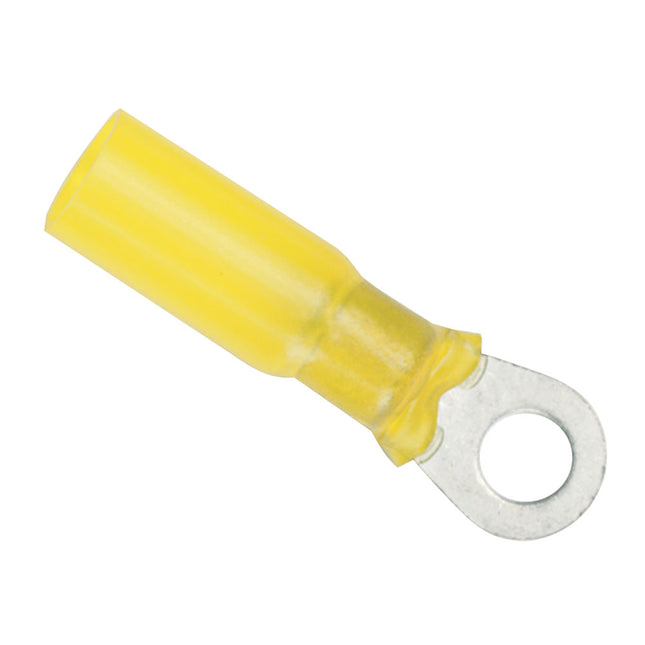

12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 100-PackGauge Size: 12-10Screw Size: 5/16"Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 5/16" Package Qty: 100 Heat Shrink: Yes Gauge: 12-10 AWG Box Dimensions: 2"H x 3"W x 8"L WT: 0.55 lbs UPC: 091887316186 Quick Guide (pdf)Brochure (pdf)

Read more less

Heavy Duty Lugs - 8 Gauge Wire - 1/4" Post - 25-PackCable Gauge: 8Screw Size: 1/4" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 8 AWG Post Size: 1/4" Package Qty: 25 Heat Shrink: No Type: Lugs Box Dimensions: 1"H x 1"W x 3"L WT: 0.4 lbs UPC: 091887241020 Quick Guide (pdf)

Read more less

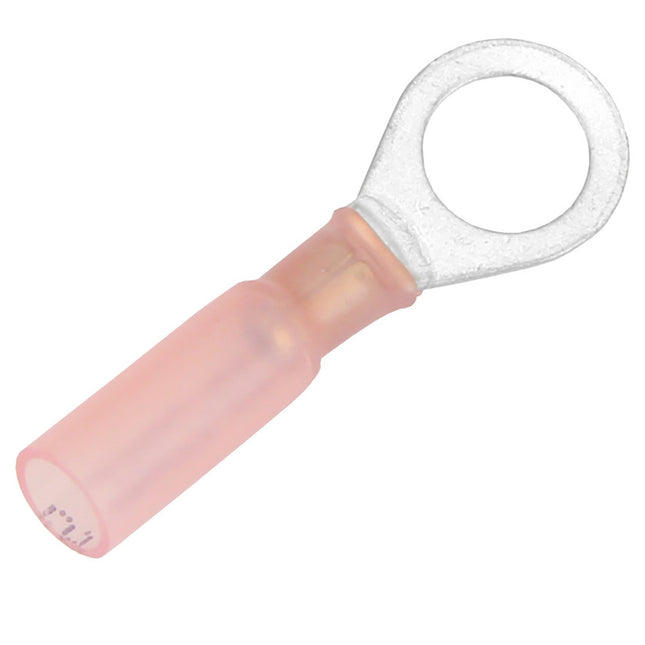

22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 PackRing terminals are a trusted way to create an electrical connection. By using ring terminals, users don't need to worry about the connector coming off. The ring fits over a stud or screw and doesn't pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isn't always an easy task. Contact a Pacer expert with any questions that you may have.Features: Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Provides strain relief Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion Conforms to automotive manufacturers’ specifications for wiring repairs Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job Compliances: UL CSA RoHS Characteristics: Shrink Ratio: Approx. 3:1 at 135 °C Operating Temp: -55 °C - 125 °C Vol. Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Wire: 22-18 AWG Stud Size: 5/16” Terminal Pad Width: 0.47” Package Size: 25 Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 5/16" Type: Heat Shrink Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs UPC: 840248206464 Brochure (pdf)

Read more less

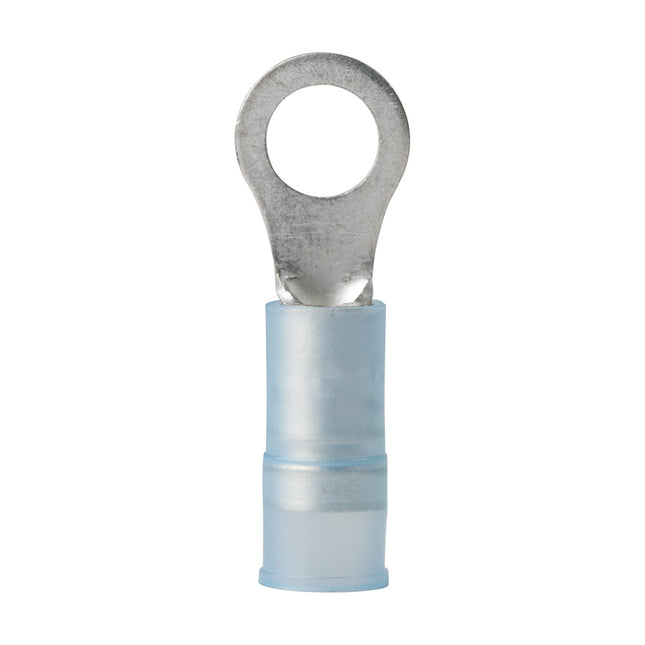

16-14 AWG - #10 Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Type: Ring Terminals Post Size: #10 Package Qty: 100 Heat Shrink: No Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887221848 Brochure (pdf)

Read more less

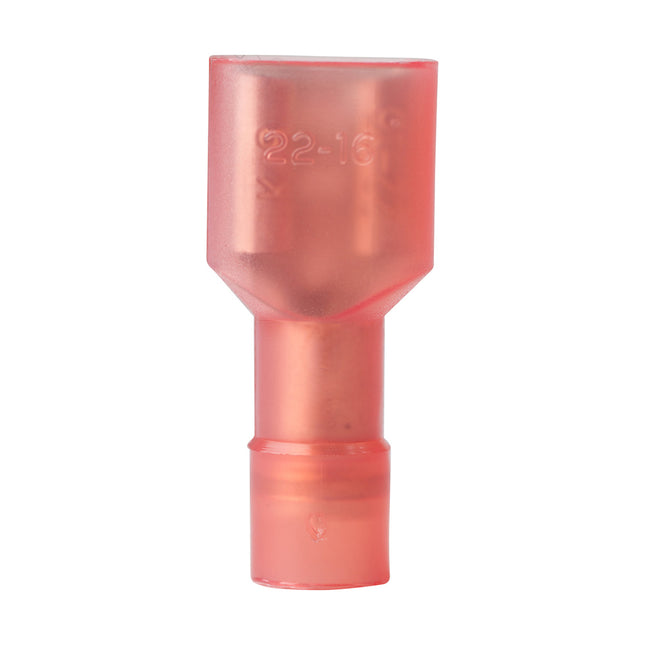

Nylon Fully Insulated Disconnect - Female - 22-18 - 100-PieceAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: 0.250 (6.4 mm) tab size Nylon insulated with insulation grip Double crimp, funnel entry UL 310 Specifications: Gauge: 22-18 AWG Type: Disconnects Package Qty: 100 Heat Shrink: No Box Dimensions: 1"H x 3"W x 5"L WT: 0.25 lbs UPC: 091887228359

Read more less

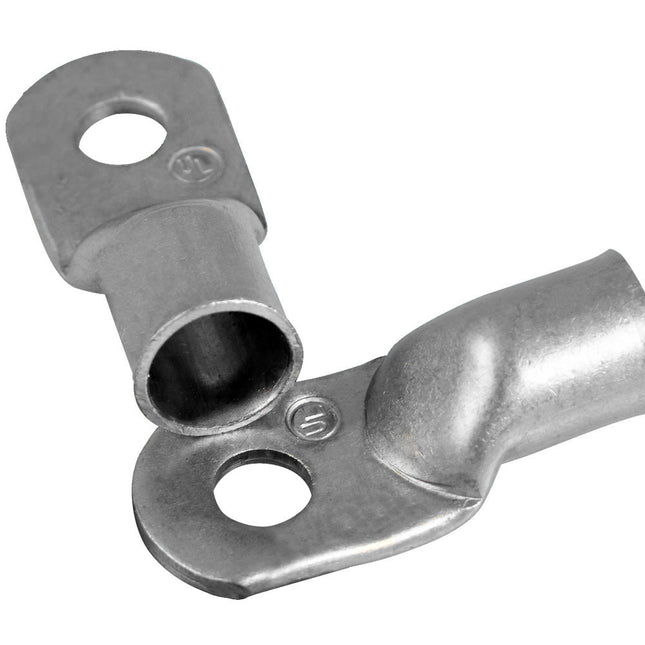

Heavy Duty Lug 2GA Wire 1/2" Post *10-PackAncor Marine Grade lugs are manufactured from 100 percent heavy-duty annealed tinned copper, providing maximum current flow while resisting corrosion from salt and moisture. The seamless barrel design allows for maximum strength when crimped. Closed-end design seals out moisture so cables stay dry and corrosion free.Specifications: 100% Tinned Copper UL 486A Specifications: Gauge: 2 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/2" Type: Lugs Box Dimensions: 1"H x 3"W x 5"L WT: 0.3 lbs UPC: 091887244083

Read more less

90° Tinned Copper Lug #1 - 5/16" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Post Size: 5/16" Package Qty: 2 Heat Shrink: No Gauge: 1 AWG Box Dimensions: 1"H x 1"W x 3"L WT: 0.2 lbs UPC: 091887991697

Read more less

12-10 Heatshrink Butt Connectors - 3-PackGuage Size: 12-10Quantity: 3Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 12-10 mm: 3-5 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Package Qty: 3 Heat Shrink: Yes Type: Butt Connectors Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887307986 Quick Guide (pdf)

Read more less

22-18 Gauge - 3/8" Heat Shrink Ring Terminal - 25-PackWire Range:22-18Screw Size: 3/8"Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Package Qty: 25 Heat Shrink: Yes Type: Ring Terminals Post Size: 3/8" Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887311150 Quick Guide (pdf)

Read more less

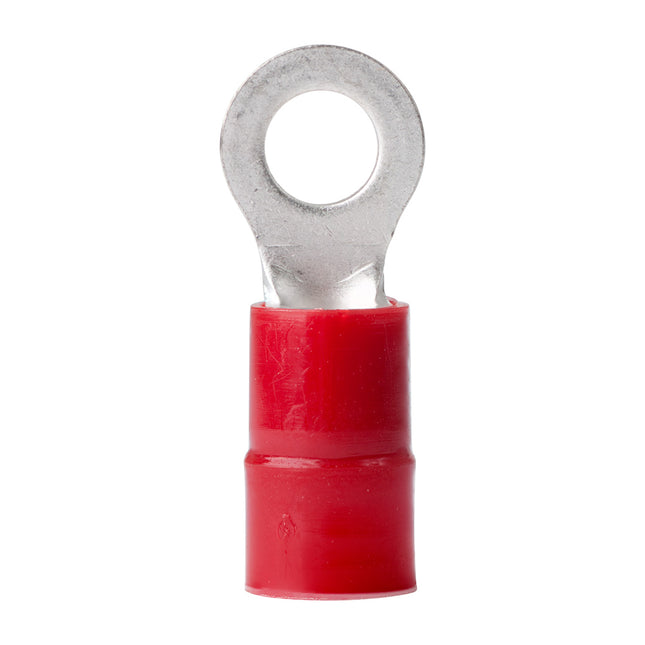

8 AWG - 1/4" Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 1/4" Package Qty: 100 Heat Shrink: No Gauge: 8 AWG Box Dimensions: 1"H x 5"W x 6"L WT: 0.7 lbs UPC: 091887228816 Brochure (pdf)

Read more less

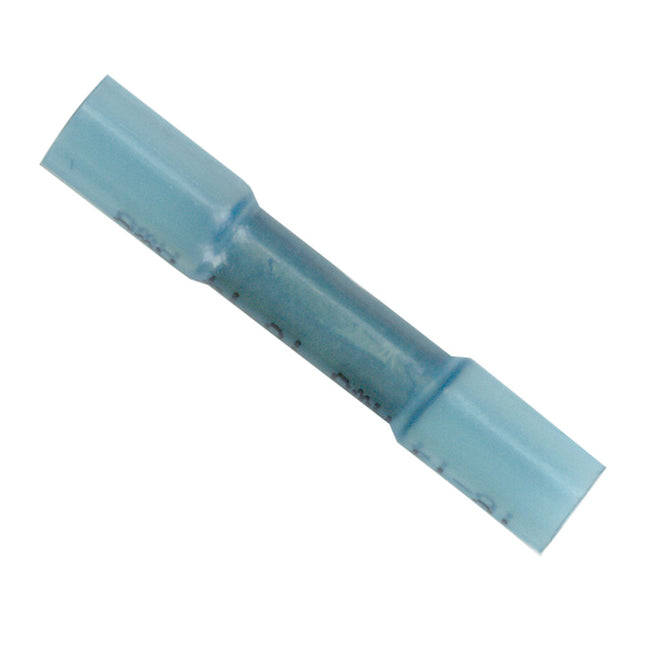

16-14 Heatshrink Butt Connectors - 25-PackGuage Size: 16-14Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 16-14 mm: 1-2 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Butt Connectors Package Qty: 25 Heat Shrink: Yes Gauge: 16-14 AWG Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887305685 Quick Guide (pdf)

Read more less

12-10 AWG - #10 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Post Size: #10 Package Qty: 25 Heat Shrink: No Type: Ring Terminals Gauge: 12-10 AWG Box Dimensions: 1"H x 3"W x 5"L WT: 0.15 lbs UPC: 091887212235 Brochure (pdf)

Read more less

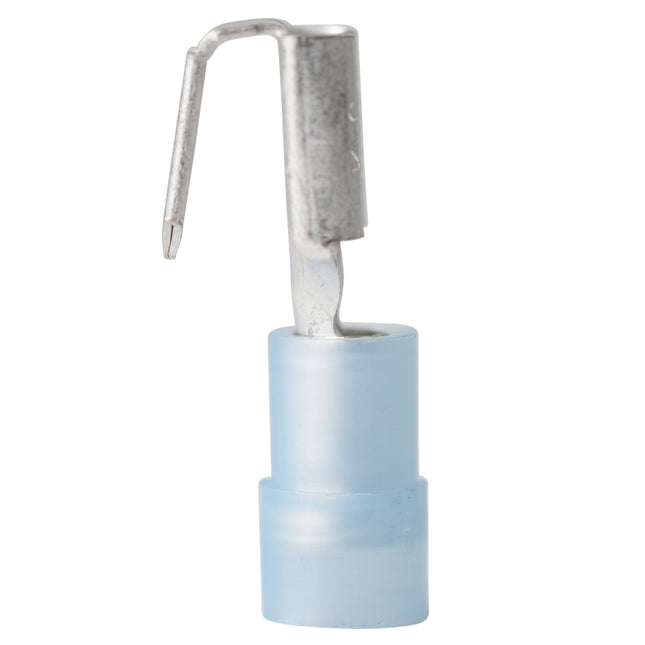

16-14 Nylon Multi-Stack Disconnects - 25-PackThese multi-stack disconnects are constructed from nylon and insulated for extra protection against sunlight, gasoline, oil and chemicals. Double crimp, funnel entry design guides wire into position and prevents strand turnback. Crimp ridge positions the crimp tool to prevent miscrimps. Brass sleeve crimps on wire insulation provide fatigue and strain relief.Features: .250 (6.4 mm) tab size Fits wire gauges 16-14 Nylon insulated with insulation grip Double crimp, funnel entry UL 310 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Type: Disconnects Package Qty: 25 Heat Shrink: No Box Dimensions: 1"H x 3"W x 4"L WT: 0.3 lbs UPC: 091887216127

Read more less

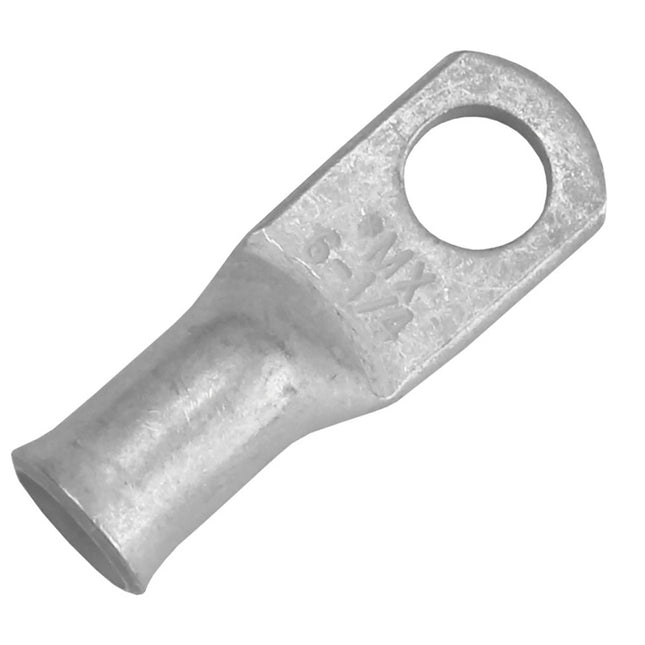

Tinned Lug 6 AWG - 1/4" Stud Size - 2 PackLugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.Features: Tin-plated copper with no exposed seams offering 100% long-term conductivity Tinned copper Highly durable Multitude of sizes Easily terminated Infield applications Long-lasting Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 Copper RoHS Compliant CSA Approved UL Approved Specifications: Wire AWG: 6 AWG Stud Size (inch): 1/4" Length (inch): 1.266" Width (inch): 0.438" Clearance (inch): 0.344" Package Size: Two included Specifications: Gauge: 6 AWG Heat Shrink: No Package Qty: 2 Post Size: 1/4" Type: Lugs Box Dimensions: 1"H x 2"W x 3"L WT: 0.1 lbs UPC: 840248205863 Quick Guide (pdf)

Read more less

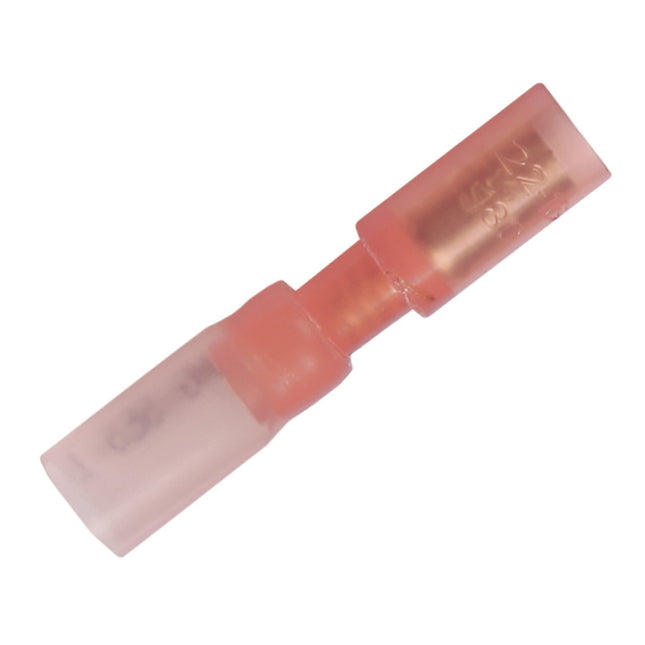

22-18 AWG Heat Shrink Female Bullet Terminal - 100 PackDisconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.Features: Female bullet terminal Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Disconnect & reconnectable Creates solid connections Meets multiple compliances Benefits: Environmentally sealed  Built for durability Tinned Copper  Long Lasting Easy to install Characteristics: Insulation Color: Red Wire AWG: 22-18 AWG Package Size: One-hundred included Bullet Terminal Size (inch): 0.156" Shrink Ratio: Approximately 3:1 at 135 °C Operating Temperature: -55 °C - 125 °C Volume Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Package Qty: 100 Type: Disconnects Box Dimensions: 1"H x 3"W x 7"L WT: 0.35 lbs UPC: 840248207263 Quick Guide (pdf)

Read more less

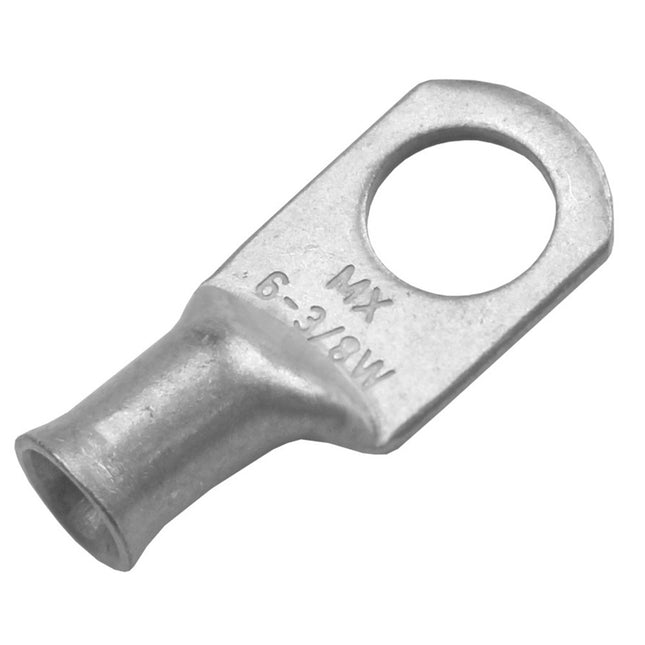

Tinned Lug 6 AWG - 3/8" Stud Size - 2 PackLugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.Features: Tin-plated copper with no exposed seams offering 100% long-term conductivity Tinned copper Highly durable Multitude of sizes Easily terminated Infield applications Long-lasting Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 Copper RoHS Compliant CSA Approved UL Approved Specifications: Wire AWG: 6 AWG Stud Size (inch): 3/8" Length (inch): 1.406" Width (inch): 0.609" Clearance (inch): 0.406" Package Size: Two included Specifications: Gauge: 6 AWG Heat Shrink: No Package Qty: 2 Post Size: 3/8" Type: Lugs Box Dimensions: 1"H x 1"W x 4"L WT: 0.1 lbs UPC: 840248205887 Quick Guide (pdf)

Read more less

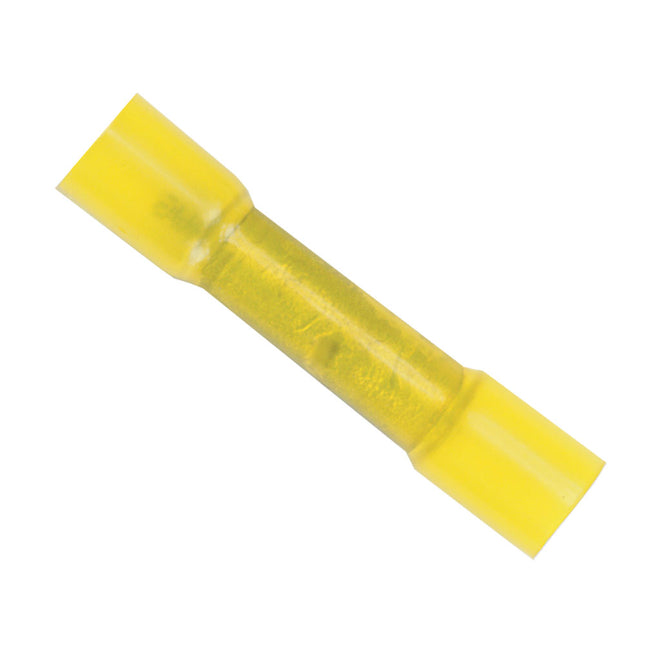

12-10 Heatshrink Butt Connectors - 100-PackGuage Size: 12-10Quantity: 100Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 12-10 mm: 3-5 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Type: Butt Connectors Package Qty: 100 Heat Shrink: Yes Box Dimensions: 2"H x 5"W x 8"L WT: 0.8 lbs UPC: 091887308020 Quick Guide (pdf)

Read more less

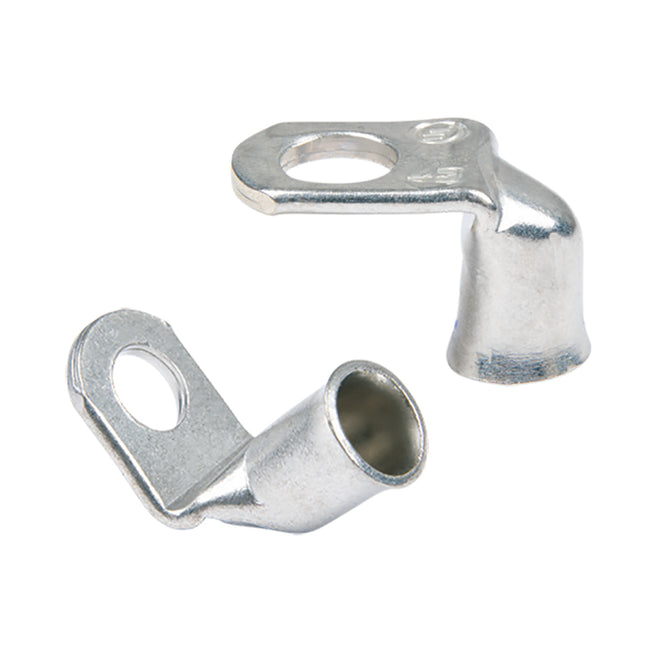

90° Tinned Copper Lug #4/0 - 5/16" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Post Size: 5/16" Package Qty: 2 Heat Shrink: No Gauge: 4/0 AWG Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887991734

Read more less

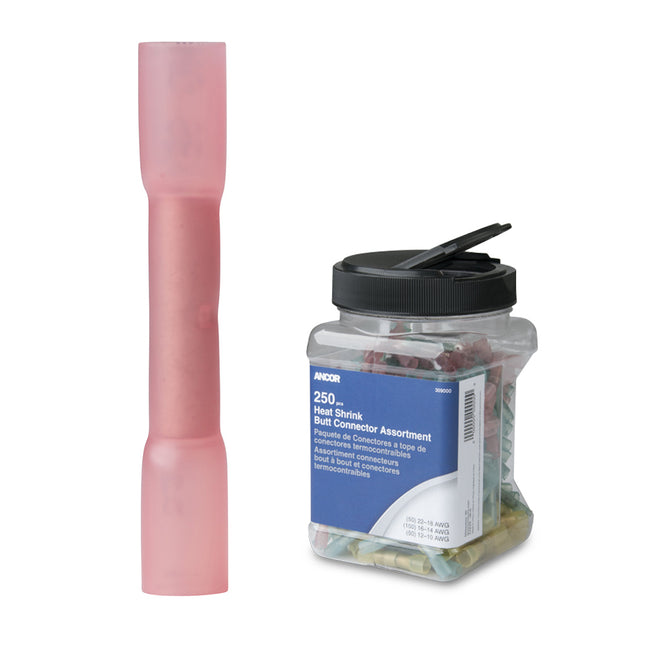

22-18 AWG Heat Shrink Butt Connector - 250-Pieces - JarReusable jar is clear for easy identification of the terminals and has a flip lid for ease of use.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 250 Heat Shrink: Yes Box Dimensions: 4"H x 4"W x 6"L WT: 0.9 lbs UPC: 091887988321

Read more less

Heavy Duty Lugs - 1/0 Gauge Wire - 5/16" Post - 100-PackCable Gauge: 1/0Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Post Size: 5/16" Package Qty: 100 Heat Shrink: No Type: Lugs Gauge: 1/0 AWG Box Dimensions: 2"H x 6"W x 9"L WT: 3.95 lbs UPC: 091887249361 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 4 Gauge Wire - 1/2" Post - 10-PackCable Gauge: 4Screw Size: 1/2" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 10 Heat Shrink: No Gauge: 4 AWG Type: Lugs Post Size: 1/2" Box Dimensions: 1"H x 3"W x 4"L WT: 0.15 lbs UPC: 091887243109 Quick Guide (pdf)

Read more less

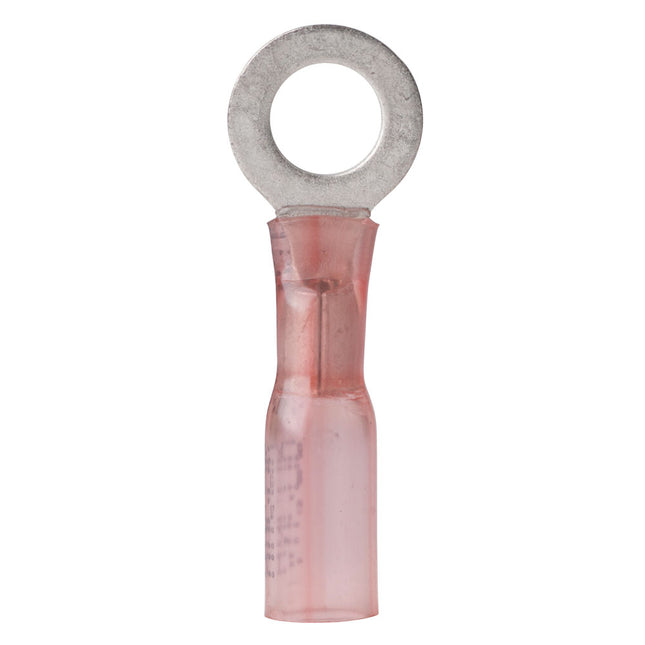

22-18 Gauge - 1/4" Heat Shrink Ring Terminal - 100-PackWire Range:22-18Screw Size: 1/4"Quantity: 100Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Post Size: 1/4" Type: Ring Terminals Package Qty: 100 Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs UPC: 091887311082 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 8 Gauge Wire - 5/16" Post - 2-PackCable Gauge: 8Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 8 AWG Package Qty: 2 Heat Shrink: No Type: Lugs Post Size: 5/16" Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887251067 Quick Guide (pdf)

Read more less

12-10 AWG Heat Shrink Ring Terminal - #8 Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size: #8 Terminal Pad Width (inch): 0.39” Package Size: Twenty-five included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 25 Post Size: #8 Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206044 Quick Guide (pdf)

Read more less

22-18 Gauge - #10 Heat Shrink Ring Terminal - 100-PackWire Range:22-18Screw Size:#10Quantity: 100Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #10 Package Qty: 100 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs UPC: 091887311044 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 6 Gauge Wire - 3/8" Post - 25-PackCable Gauge: 6Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 6 AWG Package Qty: 25 Heat Shrink: No Type: Lugs Post Size: 3/8" Box Dimensions: 1"H x 1"W x 3"L WT: 0.5 lbs UPC: 091887242089 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 1 Gauge Wire - 3/8" Post - 2-PackCable Gauge: 1Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 2 Heat Shrink: No Gauge: 1 AWG Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887255065 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 2/0 Gauge Wire - 5/16" Post - 100-PackCable Gauge: 2/0Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 5/16" Package Qty: 100 Heat Shrink: No Gauge: 2/0 AWG Box Dimensions: 3"H x 6"W x 9"L WT: 4.85 lbs UPC: 091887249408 Quick Guide (pdf)

Read more less

12-10 AWG Nylon Single Crimp Butt Connector - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Butt Connectors Package Qty: 100 Heat Shrink: No Gauge: 12-10 AWG Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 091887220063 Brochure (pdf)

Read more less

Heavy Duty Lug 1/0 Wire 1/2" Post *10-PackAncor Marine Grade lugs are manufactured from 100 percent heavy-duty annealed tinned copper, providing maximum current flow while resisting corrosion from salt and moisture. The seamless barrel design allows for maximum strength when crimped. Closed-end design seals out moisture so cables stay dry and corrosion free.Specifications: 100% Tinned Copper UL 486A Specifications: Gauge: 1/0 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/2" Type: Lugs Box Dimensions: 1"H x 4"W x 5"L WT: 0.4 lbs UPC: 091887246087

Read more less

Tinned Lug 4 AWG - 1/2" Stud Size - 10 PackLugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.Features: Tin-plated copper with no exposed seams offering 100% long-term conductivity Tinned copper Highly durable Multitude of sizes Easily terminated Infield applications Long-lasting Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 Copper RoHS Compliant CSA Approved UL Approved Specifications: Wire AWG: 4 AWG Stud Size: 1/2" Length (inch): 1.625" Width (inch): 0.766" Clearance (inch): 0.469" Package Size: Ten included Specifications: Gauge: 4 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/2" Type: Lugs Box Dimensions: 1"H x 4"W x 4"L WT: 0.25 lbs UPC: 840248205771 Quick Guide (pdf)

Read more less

Tinned Lug 8 AWG - 1/2" Stud Size - 10 PackLugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.Features: Tin-plated copper with no exposed seams offering 100% long-term conductivity Tinned copper Highly durable Multitude of sizes Easily terminated Infield applications Long-lasting Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 Copper RoHS Compliant CSA Approved UL Approved Specifications: Wire AWG: 8 AWG Stud Size (inch): 1/2" Length (inch): 1.484" Width (inch): 0.766" Clearance (inch): 0.469" Package Size: Ten included Specifications: Gauge: 8 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/2" Type: Lugs Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 840248222723 Quick Guide (pdf)

Read more less

Tinned Lug 3/0 AWG - 1/2" Stud Size - 10 PackLugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.Features: Tin-plated copper with no exposed seams offering 100% long-term conductivity Tinned copper Highly durable Multitude of sizes Easily terminated Infield applications Long-lasting Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 Copper RoHS Compliant CSA Approved UL Approved Specifications: Wire AWG: 3/0 AWG Stud Size: 1/2" Length (inch): 2.172" Width (inch): 0.906" Clearance (inch): 0.500" Package Size: Ten included Specifications: Gauge: 3/0 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/2" Type: Lugs Box Dimensions: 1"H x 4"W x 4"L WT: 0.6 lbs UPC: 840248205658 Quick Guide (pdf)

Read more less

Tinned Lug 6 AWG - 1/2" Stud Size - 10 PackLugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.Features: Tin-plated copper with no exposed seams offering 100% long-term conductivity Tinned copper Highly durable Multitude of sizes Easily terminated Infield applications Long-lasting Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 Copper RoHS Compliant CSA Approved UL Approved Specifications: Wire AWG: 6 AWG Stud Size (inch): 1/2" Length (inch): 1.688" Width (inch): 0.766" Clearance (inch): 0.469" Package Size: Ten included Specifications: Gauge: 6 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/2" Type: Lugs Box Dimensions: 1"H x 4"W x 4"L WT: 0.25 lbs UPC: 840248222853 Quick Guide (pdf)

Read more less

Tinned Lug 3/0 AWG - 5/16" Stud Size - 10 PackLugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.Features: Tin-plated copper with no exposed seams offering 100% long-term conductivity Tinned copper Highly durable Multitude of sizes Easily terminated Infield applications Long-lasting Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 Copper RoHS Compliant CSA Approved UL Approved Specifications: Wire AWG: 3/0 AWG Stud Size: 5/16" Length (inch): 2.172" Width (inch): 0.906" Clearance (inch): 0.500" Package Size: Ten included Specifications: Gauge: 3/0 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 1"H x 4"W x 7"L WT: 0.5 lbs UPC: 840248205696 Quick Guide (pdf)

Read more less
