16-14 Gauge - #10 Heat Shrink Spade Terminals - 100-PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Type: Spade connectors Post Size: #10 Package Qty: 100 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs UPC: 091887318494

Read more less

Black 8 AWG Battery Cable - Sold By The Foot ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion. Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Length (Feet): Sold By The Foot Gauge: 8 AWG Box Dimensions: 1"H x 1"W x 12"L WT: 0.1 lbs Owner's Manual (pdf)

Read more less

PROLITE Series Dolphin Battery Charger - 12V, 15A, 110VAC - 2 OutputsDolphin Chargers are known as a yacht-quality product that is professionally designed and manufactured in Europe with the latest components to be more efficient and reliable than the competition. In 2019, Dolphin set out to create this line of small, water-resistant chargers with the same philosophy for the outboard and gasoline boat markets. The PROLITE chargers are smaller, lighter, and more efficient than the competition and boast the latest in connectivity with a standard Bluetooth interface. Features: The Dolphin Connect App (iOS and Android) will allow you to monitor and control your charger from your mobile device Automatically senses and distributes 100% of available charging amps to any one bank or combination of all banks 40% smaller and 50% lighter than most competitors Includes 6 ft. AC and DC cables and fusing 15 amp has 2 outputs IP 65 water resistant ISO-certified 8846 for use in gasoline boats Works with any battery technology on the market Will charge from 0 VDC Bluetooth interface Simple installation 92% Super efficient 12V - 15A Specifications: Charger Input - Voltage: 110v Charger Output - Amps: 15a Charger Output Voltage: 12v Charging Banks: 2 Portable: No Box Dimensions: 4"H x 6"W x 16"L WT: 3.9 lbs UPC: 786142992150 Owner's Manual (pdf)

Read more less

Orion-TR 24/12-30A (360W) Isolated DC-DC ConverterIsolated Model - separate in and out (-) leads Remote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage: 45 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 88 % No Load Input Current (2): < 100 mA  Current Consumption: < 200uA when disabled via its remote port Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.3 kg (3 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 30a Charger Output Voltage: 12v Box Dimensions: 4"H x 6"W x 8"L WT: 4.1 lbs UPC: 8719076038849 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

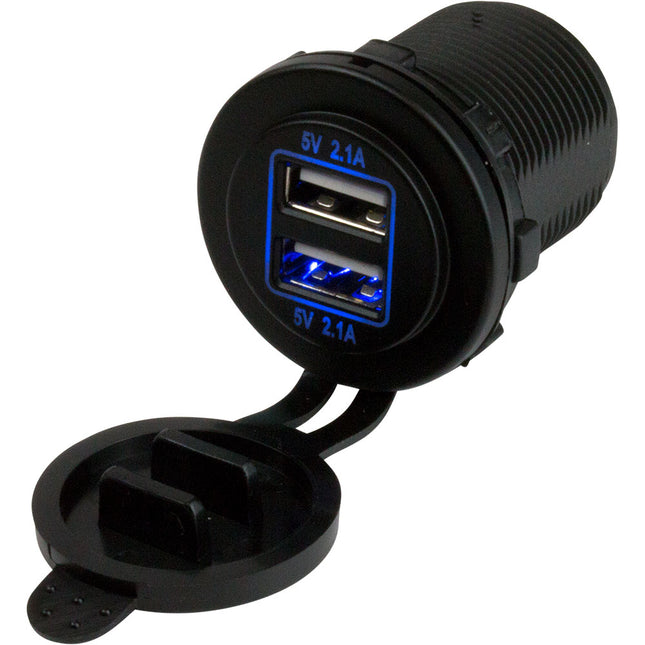

Dual USB Power Socket This USB power socket charges two devices simultaneously. Input 12V–24V. Total output DC 5V/4.8A with the load being split between the two sides as needed. Enough power to charge iPhones, iPads and most other devices. Blue LED illumination. Protective dust cap extends the life of the charger. Fits Sea-Dog® Line standard 1-1/8” Power Socket Shell 426100. IP65 rating. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

Cruiser Series Battery Selector Switch with AFDPart No. 2100DescriptionContinuous Amps: 230Momentary Amps: 345Cable Lug Size: 3/8"Color: OrangeDimensions: 5-1/2"W x 2-5/8" Product FeaturesAlternator field disconnect (AFD) allows selection of any position, including "off" without damage to alternator or electrical systemPolycarbonate caseFor 6, 12, 24 or 36 volt systemsOne year WarrantyWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Grey 10 AWG Primary Wire - 25'Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 10 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 10 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Grey Gauge: 10 AWG Length (Feet): 25' Box Dimensions: 4"H x 4"W x 4"L WT: 0.6 lbs Brochure (pdf)

Read more less

Green 14 AWG Primary Wire - 25'Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 14 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 14 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Green Gauge: 14 AWG Length (Feet): 25' Box Dimensions: 4"H x 4"W x 4"L WT: 0.6 lbs Brochure (pdf)

Read more less

Black 8 AWG Tinned Copper Wire - 50'Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.Wire Gauge: 8 AWGWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Length (Feet): 50' Gauge: 8 AWG Color: Black Box Dimensions: 5"H x 7"W x 7"L WT: 3.8 lbs UPC: 091887119015

Read more less

EEL Pigtail AdaptersThese adapters are equipped with sealing collars and are for use in wet locations.Boat SideFemale Connector: Attaches to boat inlet or cordset50A-125V Locking w/ Sealing Collar SystemDock SideMale Plug: Attaches to dockside receptacle or cordset50A-125/250V LockingWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Pigtail Adapter Box Dimensions: 3"H x 9"W x 11"L WT: 3.7 lbs UPC: 093344051821 Owner's Manual (pdf)

Read more less

90° Tinned Copper Lug #4 - 3/8" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 2 Heat Shrink: No Gauge: 4 AWG Box Dimensions: 1"H x 2"W x 3"L WT: 0.1 lbs UPC: 091887991758

Read more less

MultiPlus 24/2000 - 50-50 - 120V - VE.Bus UL Approved The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, and multiple system integration features.Two AC OutputsThe main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output (a second output is available on models rated at 3 kVA and more).Virtually Unlimited Power Thanks to Parallel OperationUp to six Multis can operate in parallel to achieve higher power output. Six 24/3000/70 units, for example, provide 15kW / 18kVA output power with 420 Amps of charging capacity.Three Phase CapabilityIn addition to parallel connections, three units can be configured for three-phase output. But that’s not all: with three strings of six parallel units, a 45 kW / 54 kVA three-phase inverter and 1260 A charger can be built.Split Phase OptionsTwo units can be stacked to provide 120-0-120 V, and additional units can be paralleled up to a total of 6 units per phase, to supply up to 30 kW / 36 kVA of split phase power.Alternatively, a split-phase AC source can be obtained by connecting Victron's autotransformer (see data sheet onwww.victronenergy.com) to a ‘European’ inverter programmed to supply 240 V / 60 Hz.Power Control - Dealing with Limited Generator, Shore Side or Grid PowerThe MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (nearly 20 A per 3 kVA MultiPlus at 120 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.Powerassist - Boosting the Capacity of Shore or Generator PowerThis feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.Four-Stage Adaptive Charger and Dual Bank Battery ChargingThe main output provides a powerful charge to the battery system by means of advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stagefor long periods of float charging. The adaptive charge process is described in more detail on the Phoenix Charger datasheet and on Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.System Configuring Has Never Been EasierAfter installation, the MultiPlus is ready to go. If settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Even parallel and 3-phase operations can be programmed with DIP switches: no computer is needed!Alternatively, VE.Net can be used instead of the DIP switches. And sophisticated software (VE.Bus Quick Configure and VE.Bus System Configurator) is available to configure several new, advanced features.Specifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 50 Parallel and 3-phase Operation: Yes Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V 19 – 33 V Output: Output voltage: 120 VAC, ± 2% / Frequency 60 Hz ± 0,1% Continuous Output Power at 25°C (VA): 2000 Continuous Output Power at 25°C (W): 1600 Continuous Output Power at 40°C (W): 1450 Continuous Output Power at 65°C (W): 1100 Peak Power (W): 4000 Maximum Efficiency (%): 92 / 94 Zero Load Power (W): 9 / 11 Zero Load Power in AES Mode (W): 7 / 8 Zero Load Power in Search Mode (W): 3 /4 Charger Specifications: AC Input: Input voltage range: 95-140 VAC / Input frequency: 45 – 65 Hz / Power factor: 1 Charge Voltage Absorption (V DC): 14,4 / 28,8 Charge Voltage Float (V DC): 13,8 / 27,6 Storage Mode (V DC): 13,2 / 26,4 Charge Current House Battery (A): 80 /50 Charge Current Starter Battery (A): 4 Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: N.A. Programmable Relay: Yes (1x) Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration General purpose com. Port: N.A. Remote On-Off: Yes Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: M8 bolts  120 V AC-Connection: Screw-terminal 6 AWG (13 mm2) Weight: 13 kg / 25 lbs. Dimensions (hxwxd in mm): 520 x 255 x 125 mm / 20.5 x 10.0 x 5.0 in. Standards Safety: UL 458, EN-IEC 60335-1, EN-IEC 60335-2-29 Emission, Immunity: EN-IEC 61000-3-2/3-3/, EN-IEC 61000-6-1/6-2/6-3 Can be adjusted to 50 HZ Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 150 VAC on the inverter output, input voltage ripple is too high Non-linear load, crest factor 3:1 Up to 75°F ambient Switches off when no external AC source is available Programmable Relay That Can, Among Other Things, Be Set for General Alarm Including DC Undervoltage or genset start/stop function / AC rating: 120 V/4A / DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC / A.o. to communicate with a lithium-ion battery BMS Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

GlobalLink 520 4G LTE-M Remote Monitoring Device with 5-Year Pre-Paid SIM Card Uses AT & T & T-MobileWe believe that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so we have created the GlobalLink 520. This device will bring 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years. Global Connectivity with 4G LTE-MLTE-M is the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology is designed to connect Internet of Things devices to existing 4G towers while using low energy. LTE-M does support handovers and roaming so it is possible to use this device in a moving vehicle like a campervan. Check the list in our GlobalLink 520 manual to see if LTE-M is officially confirmed to be available in your area. Coverage is increasing every week as local providers roll out support. Your purchase includes 5 years of connectivity, so there is no need to worry about purchasing a separate data bundle and SIM-card.System Monitoring & ControlThe GlobalLink 520 comes with two communication ports, which allows connecting up to two VE.Direct devices such as a BMV Battery Monitor and/or a MPPT Solar Charge Controller directly to VRM.Antenna Built-InThe GlobalLink 520 comes with a built-in antenna that is designed to work all around the globe. However if you require better reception or want to install your module in a utility van for example, it is also possible to mount an external antenna.Victron Remote ManagementThe online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere, at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analytical reports, and even configure automatic alarms in case something goes wrong.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

RJ45 Splitter 1X Male - 2X Female - 15cm CableFeatures: 1X Male 2X Female Cable Length: 15cm Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

11" UV Black Standard Cable Zip Ties - 25 PackMarinco offers a wide variety of materials, styles, and sizing options. A DoubleLock design offers increased tensile strength that is 33% stronger than the industry standard cable tie. With a unique design and high-quality construction, Marinco cable ties provide a great solution for bundling wire, cable, hoses, cords and countless other applications.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Cable Ties Box Dimensions: 2"H x 2"W x 12"L WT: 0.1 lbs UPC: 093344501470

Read more less

Heavy Duty Lugs - 6 Gauge Wire - 3/8" & 5/16" Post - Combo PackCable Gauge: 6Screw Size: 3/8" & 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 6 AWG Heat Shrink: No Package Qty: 1 Post Size: 5/16" & 3/8" Type: Lugs Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887802306 Quick Guide (pdf)

Read more less

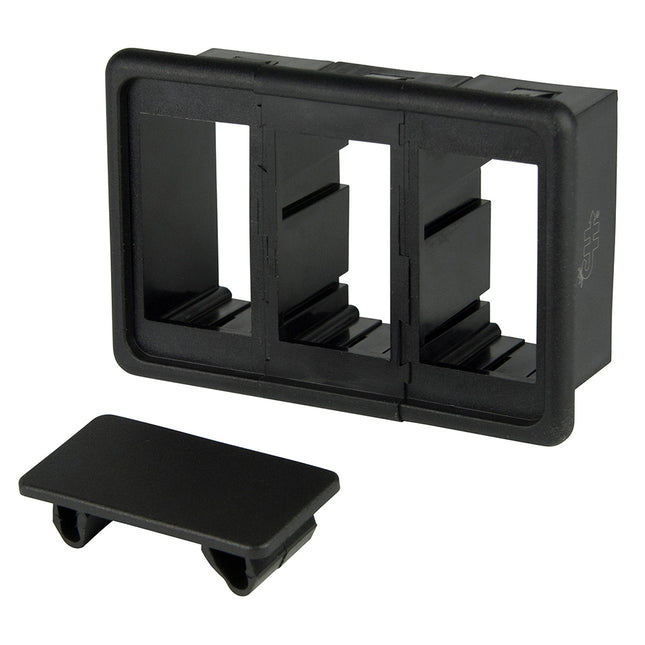

Contura Triple Switch Mounting BracketTwo end sections, one center section, and one hole plug.Features: Modular design permits assembly in groups - can be used with part number 1001702 Used with Rocker Switches and Contoura Switches Same as Cole Hersee part number 82159-02 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

16-14 Male Heatshrink Disconnect - 100-PackFeatures: ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 16-14/.250 Size: 3.5mm/6.4mm Gender: Male Qty/Pkg: 100WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Type: Disconnects Package Qty: 100 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs UPC: 091887318678 Brochure (pdf)

Read more less

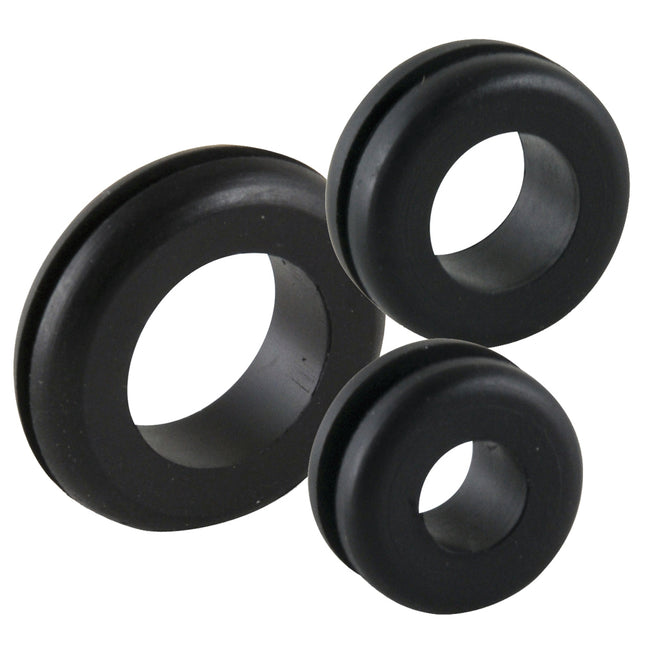

Marine Grade Electrical Wire Grommets - 45 Assorted Combo Pack, 1/4" to 3/4"Ancor's Marine Grade Electrical Wire Grommets Combo Pack.Features: 45-Pack Assorted from 1/4" to 3/4" WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Cable Gland Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 091887803952

Read more less

Alternator 150 AMP 12V 4" Dual Foot Saddle K6 Pulley with Isolated GroundAlternator, 604 Series, 150A, 12V, Saddle Mount (Dual Foot), 4in, K6 Serpentine Pulley, Isolated Ground 4" J-180-Style Mounting;  Typical for Caterpillar, Cummins, Detroit Diesel & John Deere Engines.Replaces: 604-150-SR-IGThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 150A Voltage: 12v Box Dimensions: 9"H x 10"W x 10"L WT: 13.25 lbs UPC: 676205750622 Brochure (pdf)

Read more less

Blue Smart IP22 24VDC 12A 1 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Bluetooth SmartThe Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.High efficiencyWith up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storageThe Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.Storage Mode: less maintenance and aging when the battery is not in useThe storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.Also charges Li-ion batteriesLi-ion batteries are charged with a simple bulk – absorption – float algorithm.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.NIGHT and LOW settingWhen in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.Protected against overheatingOutput current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.Eleven LEDs for status indicationCharge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.Specifications: Input Voltage Range: 100 - 130 VAC Charge Current, Normal Mode: 8/12/16 A Charge Current, NIGHT or LOW: 4 / 6 / 8 A Efficiency: 94% No Load Power Consumption: 0.5 W Frequency: 45 – 65 Hz Number of Outputs: 1 Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V Charge Algorithm: 6-stage adaptive Can Be Used as Power Supply: Yes Protection: Battery reverse polarity (fuse). Output short circuit, Over temperature Operating Temp. Range: -20 to +50°C Humidity (non-condensing): Max 98% Bluetooth: Frequency: - 2402-2480MHz / Power: -4dBm Enclosure Specifications: Material & Color: Aluminium (blue RAL 5012) Battery Connection: Screw terminals 13 mm^2 / AWG6 230 V AC Connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) Protection Category: IP22 Weight: 1,3 kg Dimensions (h x w x d): 235 x 108 x 65 mm Standards: Safety: EN 60335-1, EN 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000 Automotive E4-10R Please contact your dealer for any returns, repairs or support issues related to this product. Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 12a Charger Output Voltage: 24v Charging Banks: 1 Portable: No Box Dimensions: 3"H x 7"W x 11"L WT: 3.25 lbs UPC: 8719076050650 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Blue Smart IP22 24VDC 16A 3 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Bluetooth SmartThe Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.High efficiencyWith up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storageThe Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.Storage Mode: less maintenance and aging when the battery is not in useThe storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.Also charges Li-ion batteriesLi-ion batteries are charged with a simple bulk – absorption – float algorithm.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.NIGHT and LOW settingWhen in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.Protected against overheatingOutput current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.Eleven LEDs for status indicationCharge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.Specifications: Input Voltage Range: 100 - 130 VAC Charge Current, Normal Mode: 8/12/16 A Charge Current, NIGHT or LOW: 4 / 6 / 8 A Efficiency: 94% No Load Power Consumption: 0.5 W Frequency: 45 – 65 Hz Number of Outputs: 1 Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V Charge Algorithm: 6-stage adaptive Can Be Used as Power Supply: Yes Protection: Battery reverse polarity (fuse). Output short circuit, Over temperature Operating Temp. Range: -20 to +50°C Humidity (non-condensing): Max 98% Bluetooth: Frequency: - 2402-2480MHz / Power: -4dBm Enclosure Specifications: Material & Color: Aluminium (blue RAL 5012) Battery Connection: Screw terminals 13 mm^2 / AWG6 230 V AC Connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) Protection Category: IP22 Weight: 1,3 kg Dimensions (h x w x d): 235 x 108 x 65 mm Standards: Safety: EN 60335-1, EN 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000 Automotive E4-10R Please contact your dealer for any returns, repairs or support issues related to this product.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 16a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 3"H x 7"W x 11"L WT: 3.35 lbs UPC: 8719076052548 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Digital Multi Control 200/200A GXThe Digital Multi Control is used to remotely view and adjust AC input currents, and turn on and off the Multi or Quattro. It is designed to integrate cleanly with your boat, vehicle or house system control panel.The Digital Multi Control panel (DMC) is designed to work with all Multi/Quattro. This includes stand alone, parallel and 2-3 phase configurations. Connecting the DMC to your system is simple, in most cases just connecting the DMC with an RJ45 cable is sufficient and no extra set-up handling is required.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

VE. Direct - 3M Cable (1 Side Right Angle Connector)Features: Cable Length: 3M 1 Side Right Angle Connector Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Blue Smart IP22 24VDC 8A 1 Bank 120V Charger - Dry Mount The Blue Smart IP22 Charger is a professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats, and camper-vans.  Bluetooth Smart The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, change settings, and update the charger when new features become available. High efficiency With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 watts, some five to ten times better than the industry standard. Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage The Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used. Storage Mode: less maintenance and aging when the battery is not in use The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure. Also charges Li-ion batteries Li-ion batteries are charged with a simple bulk–absorption–float algorithm. Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with an internal disconnect function. NIGHT and LOW setting When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually. Protected against overheating Output current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail. Eleven LEDs for status indication Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION. Specifications: Input Voltage Range: 100 - 130 VAC Charge Current, Normal Mode: 8/12/16 A Charge Current, NIGHT or LOW: 4 / 6 / 8 A Efficiency: 94% No Load Power Consumption: 0.5 W Frequency: 45 – 65 Hz Number of Outputs: 1 Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V Charge Algorithm: 6-stage adaptive Can Be Used as Power Supply: Yes Protection: Battery reverse polarity (fuse). Output short circuit, Over temperature Operating Temp. Range: -20 to +50°C Humidity (non-condensing): Max 98% Bluetooth: Frequency: - 2402-2480MHz / Power: -4dBm Enclosure Specifications: Material & Color: Aluminium (blue RAL 5012) Battery Connection: Screw terminals 13 mm^2 / AWG6 230 V AC Connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) Protection Category: IP22 Weight: 1,3 kg Dimensions (h x w x d): 235 x 108 x 65 mm Standards: Safety: EN 60335-1, EN 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000 Automotive E4-10R Please contact your dealer for any returns, repairs, or support issues related to this product. Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 8a Charger Output Voltage: 24v Charging Banks: 1 Portable: No Box Dimensions: 3"H x 7"W x 11"L WT: 3.25 lbs UPC: 8719076050643 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

BMV-710H Smart High Voltage Battery Monitor (60-385VDC)The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.The monitor comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.Battery ‘fuel gauge’, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, and temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.Bluetooth SmartUse the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, Macbooks and other devices.Easy to InstallAll electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.Also included are a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.Easy to Program (with your smartphone!)A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.Alternatively, choose the fast and easy solution: Download the smartphone app (Bluetooth Smart Dongle needed)Features: Battery voltage, current, power, ampere-hours consumed, and state of charge Remaining time at the current rate of discharge Programmable visual and audible alarm Programmable relay, to turn off non critical loads or run a generator when needed 500 Amp quick connect shunt and connection kit Shunt selection capability up to 10,000 amps VE.Direct communication port Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health Wide input voltage range: 6.5 – 95V High current measurement resolution: 10 mA (0.01A) Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V BMV-710H Specifications: Supply Voltage Range: 60 – 385 VDC Current Draw, Back Light Off: < 4mA Input Voltage Range, Auxiliary Battery:  n. a. Battery Capacity (Ah): 1 - 9999 Ah Operating Temperature Range: -40 +50°C (-40 - 120°F) Measures Voltage of Second Battery, or Temperature, or Midpoint: No Temperature Measurement Range: n. a. VE.Direct Communication Port: Yes Relay: 60V / 1A normally open (function can be inverted) Resolution & Accuracy (with a 500 A shunt): Current: ± 0.01A Voltage: ± 0.01V Amp Hours: ± 0.1 Ah State of Charge: (0 – 100%) ± 0.1% Time to Go: ± 1 min Temperature: n. a. Accuracy of Current Measurement: ± 0.4% Accuracy of Voltage Measurement: ± 0.3% Installations & Dimensions:  Installation: Flush mount Front: 63mm diameter Front Bezel: 69 x 69 mm (2.7 x 2.7 inch) Shunt Connection Bolts: M10 (0.3937 inch) Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch) Protection Category: IP55 (not intended for outdoor use) Standards: Safety: EN 60335-1 Emission / Immunity: EN 55014-1 / EN 55014-2 Automotive: ECE R10-4 / EN 50498 Accessories: Shunt (included): 500A / 50mV Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection Temperature Sensor: Optional (ASS000100000) Please contact your dealer for any returns, repairs or support issues related to this product. Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

GX Touch 70 Protection CoverThe GX Touch 70 protection cover prevents damage from UV light during prolonged exposure to the sun. Specification:Model (inch): 7"Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Covers Box Dimensions: 1"H x 5"W x 8"L WT: 0.2 lbs UPC: 8719076060109 Quick Guide (pdf)

Read more less

Standard Duplex Cable - Flat 8/2 - 2x8mm² - Red/Black - Sold By The FootFeatures: ANCOR Duplex, Triplex and Multi-Conductor Cables are made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing Outer jacket is made for easy removal and provides the best abrasion resistance available ANCOR's proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105° C dry and 75° C wet Inner conductors are correctly color-coded to ABYC standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black/Red Length (Feet): Sold By The Foot Gauge: 8/2 AWG Box Dimensions: 1"H x 1"W x 12"L WT: 0.2 lbs

Read more less

12-10 AWG Heat Shrink Ring Terminal - #10 Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size: #10 Terminal Pad Width (inch): 0.39” Package Size: Twenty-five included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 25 Post Size: #10 Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206075 Quick Guide (pdf)

Read more less

12-10 AWG Heat Shrink Ring Terminal - 3/8" Stud Size - 100 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size (inch): 3/8" Terminal Pad Width (inch): 0.60” Package Size: One-hundred included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 100 Post Size: 3/8" Type: Ring Terminals Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206129 Quick Guide (pdf)

Read more less

12-10 AWG Heat Shrink Ring Terminal - #8 Stud Size - 100 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size: #8 Terminal Pad Width (inch): 0.39” Package Size: One-hundred included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 100 Post Size: #8 Type: Ring Terminals Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206037 Quick Guide (pdf)

Read more less

22-18 AWG Heat Shrink Ring Terminal - 1/4" Stud Size - 100 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Red Wire AWG: 22-18 AWG Stud Size (inch): 1/4" Terminal Pad Width (inch): 0.48” Package Size: One-hundred included Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Package Qty: 100 Post Size: 1/4" Type: Ring Terminals Box Dimensions: 1"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206396 Quick Guide (pdf)

Read more less

16-14 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Blue Wire AWG: 16-14 AWG Stud Size (inch): 5/16" Terminal Pad Width (inch): 0.48” Package Size: Twenty-five included Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 5/16" Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206310 Quick Guide (pdf)

Read more less

12-10 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size (inch): 5/16" Terminal Pad Width (inch): 0.54” Package Size: Twenty-five included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 5/16" Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206167 Quick Guide (pdf)

Read more less

22-18 AWG Heat Shrink Spade Terminal - #8 Stud Size - 100 PackFork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens.Features: High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits: Environmentally sealed Easy to Install Built for durability Long-lasting Specifications: Color: Red Wire AWG: 22-18 AWG Stud Size: #8 Terminal Pad Width (inch): 0.32” Package Size: One-hundred included Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Package Qty: 100 Post Size: #8 Type: Spade connectors Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206631 Quick Guide (pdf)

Read more less

16-14 AWG Heat Shrink Male Disconnect - 3 PackDisconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.Features: Partially insulated Male disconnect Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Disconnect & reconnectable Creates solid connections Meets multiple compliances Benefits: Environmentally sealed  Built for durability Tinned Copper  Long Lasting Easy to install Characteristics: Insulation Color: Blue Wire AWG: 16-14 AWG Package Size: Three included Disconnect Size (inch): 0.250 Shrink Ratio: Approximately 3:1 at 135 °C Operating Temperature: -55 °C - 125 °C Volume Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Package Qty: 3 Type: Disconnects Box Dimensions: 1"H x 1"W x 4"L WT: 0.1 lbs UPC: 840248207041 Quick Guide (pdf)

Read more less

12-10 AWG Heat Shrink Spade Terminal - #10 Stud Size - 100 PackFork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens.Features: High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits: Environmentally sealed Easy to Install Built for durability Long-lasting Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size: #10 Terminal Pad Width (inch): 0.39” Package Size: One-hundred included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 100 Post Size: #10 Type: Spade connectors Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206518 Quick Guide (pdf)

Read more less

12-10 AWG Heat Shrink Spade Terminal - #8 Stud Size - 100 PackFork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens.Features: High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits: Environmentally sealed Easy to Install Built for durability Long-lasting Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size: #8 Terminal Pad Width (inch): 0.39” Package Size: One-hundred included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 100 Post Size: #8 Type: Spade connectors Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206488 Quick Guide (pdf)

Read more less

22-18 AWG Heat Shrink Ring Terminal - #10 Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Red Wire AWG: 22-18 AWG Stud Size: #10 Terminal Pad Width (inch): 0.32” Package Size: Twenty-five included Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Package Qty: 25 Post Size: #10 Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206372

Read more less

12-10 AWG Heat Shrink Ring Terminal - #10 Stud Size - 100 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size: #10 Terminal Pad Width (inch): 0.39” Package Size: One-hundred included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 100 Post Size: #10 Type: Ring Terminals Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206068 Quick Guide (pdf)

Read more less

22-18 AWG Heat Shrink Male Disconnect - 25 PackDisconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.Features: Partially insulated Male disconnect  Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Disconnect & reconnectable Creates solid connections Meets multiple compliances Benefits: Environmentally sealed  Built for durability Tinned Copper  Long Lasting Easy to install Characteristics: Insulation Color: Red Wire AWG: 22-18 AWG Package Size: Twenty-five included Disconnect Size (inch): 0.250" Shrink Ratio: Approximately 3:1 at 135 °C Operating Temperature: -55 °C - 125 °C Volume Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Package Qty: 25 Type: Disconnects Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 840248207126 Quick Guide (pdf)

Read more less

16-14 AWG Heat Shrink Ring Terminal - 1/4" Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Blue Wire AWG: 16-14 AWG Stud Size (inch): 1/4" Terminal Pad Width (inch): 0.48” Package Size: Twenty-five included Quick Guide (pdf)

Read more less

16-14 AWG Heat Shrink Female Disconnect - 25 PackDisconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.Features: Fully insulated Female disconnect Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Disconnect & reconnectable Creates solid connections Meets multiple compliances Benefits: Environmentally sealed  Built for durability Tinned Copper  Long Lasting Easy to install Characteristics: Insulation Color: Blue Wire AWG: 16-14 AWG Package Size: Twenty-five included Disconnect Size (inch): 0.250 Shrink Ratio: Approximately 3:1 at 135 °C Operating Temperature: -55 °C - 125 °C Volume Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Package Qty: 25 Type: Disconnects Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206976 Quick Guide (pdf)

Read more less

22-18 AWG Heat Shrink Ring Terminal - 1/4" Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Red Wire AWG: 22-18 AWG Stud Size (inch): 1/4" Terminal Pad Width (inch): 0.48” Package Size: Twenty-five included Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 1/4" Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206402 Quick Guide (pdf)

Read more less

16-14 AWG Heat Shrink Female Disconnect - 100 PackDisconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.Features: Fully insulated Female disconnect Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Disconnect & reconnectable Creates solid connections Meets multiple compliances Benefits: Environmentally sealed  Built for durability Tinned Copper  Long Lasting Easy to install Characteristics: Insulation Color: Blue Wire AWG: 16-14 AWG Package Size: One-hundred included Disconnect Size (inch): 0.250 Shrink Ratio: Approximately 3:1 at 135 °C Operating Temperature: -55 °C - 125 °C Volume Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Package Qty: 100 Type: Disconnects Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206969 Quick Guide (pdf)

Read more less

16-14 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 100 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Blue Wire AWG: 16-14 AWG Stud Size (inch): 5/16" Terminal Pad Width (inch): 0.48” Package Size: One-hundred included Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Package Qty: 100 Post Size: 5/16" Type: Ring Terminals Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206303 Quick Guide (pdf)

Read more less

12-10 AWG Heat Shrink Ring Terminal - 1/4" Stud Size - 100 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size (inch): 1/4" Terminal Pad Width (inch): 0.54” Package Size: One-hundred included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 100 Post Size: 1/4" Type: Ring Terminals Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206099 Quick Guide (pdf)

Read more less

16-14 AWG Heat Shrink Male Disconnect - 25 PackDisconnects are a type of terminal intended to be disconnected and reconnected multiple times. This makes them ideal for use where field serviceability is an issue. Disconnects are a great way to protect electrical connections. Whether dealing with mechanical abuse, wire pull-out, or abrasion, they are a solid choice for longevity. Disconnects are sometimes known as quick connects or slip-on connectors.Features: Partially insulated Male disconnect Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Disconnect & reconnectable Creates solid connections Meets multiple compliances Benefits: Environmentally sealed  Built for durability Tinned Copper  Long Lasting Easy to install Characteristics: Insulation Color: Blue Wire AWG: 16-14 AWG Package Size: Twenty-five included Disconnect Size (inch): 0.250 Shrink Ratio: Approximately 3:1 at 135 °C Operating Temperature: -55 °C - 125 °C Volume Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: Gauge: 16-14 AWG Heat Shrink: Yes Package Qty: 25 Type: Disconnects Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248207034 Quick Guide (pdf)
