xSonic Bronze 20° HDI Transducer Thru Hull 50/200 455/800 with 9 pin connector and 10M CableBronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature 20 degree tilt 10M Cable Beam Width: 50kHz @ 45°, 200kHz @ 11° 455kHz- Fore to aft 2.8°, Port to starboard 56°, 800kHz Fore to aft 1.6° Port to starboard 32° Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Temperature: Yes Cable Length (Feet): 33' Box Dimensions: 4"H x 8"W x 10"L WT: 4.7 lbs UPC: 9420024162620

Read more less

Active Imaging HD™ 3-in-1 TransducerStep up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the most precise images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan, and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to identify below the boat. Features: High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure Lowrance® CHIRP with superb clarity and target separation FishReveal™ DownScan view makes fish identification easy Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies Smart transducer design boosts signal clarity Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS Specifications: Cable Length (Feet): 25' Chirp: Medium/High Imagining: Standard/Down/Side Mounting Style: Transom Pins: 9 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 10"W x 14"L WT: 4.4 lbs UPC: 9420064130368

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 12 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 12° tilted version for 8° to 15° hull deadrises.Features:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology 12° tilted version for 8° to 15° hull deadrises Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 30' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.8 lbs UPC: 801769018134

Read more less

RVM-100 Transom Mount Transducer RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.  The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering.  The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP Designed for transom mounting on outboard boats Stainless Steel mounting bracket with an integrated kick-up feature 8M Cable

Read more less

CPT-S In-Hull CHIRP TransducerThe CPT-S In-hull transducer provides a simple-to-install depth only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP sonar operation centered on 200kHz. The CPT-S in-hull directly connects to Element S series units.Will connect to Axiom RV/Axiom Pro RVX and Element HV using the A80490 (Axiom) or A80559 (Element HV) adapters. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise. Specifications: Chirp: High Speed Included: No Mounting Style: In-Hull Imagining: Standard Temperature: No Box Dimensions: 4"H x 7"W x 12"L WT: 1.3 lbs UPC: 723193840610

Read more less

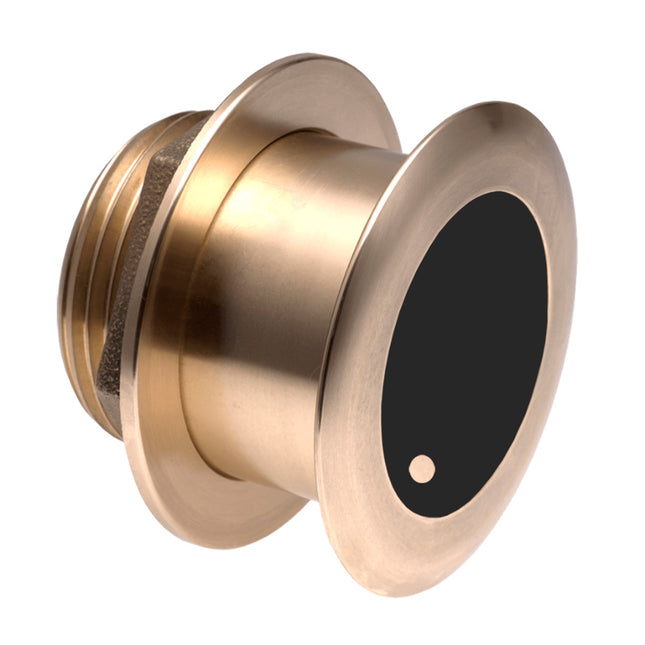

B175L Bronze 12 Degree Thru-Hull 1kW - Requires Mix & Match CableAirmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Features: Requires Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 40 to 60 kHz 32° to 21° beamwidth Maximum depth of 762 m (2500') Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175L) for use with all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Fishing Low Frequency: 40-60 kHz Low Frequency Beamwidth: 32°-21° Max Deadrise: Up to 24° Max Depth: 762 m (2500') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

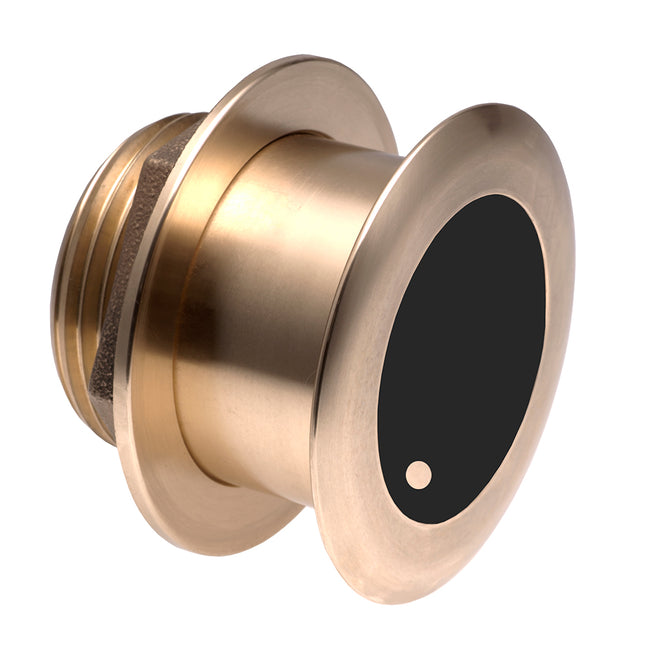

B175M Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: Medium—CHIRPS from 85 kHz to 135 kHz, 24° to 16° beamwidth 12° tilted version 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 8"H x 10"W x 12"L WT: 11.3 lbs UPC: 801769001884

Read more less

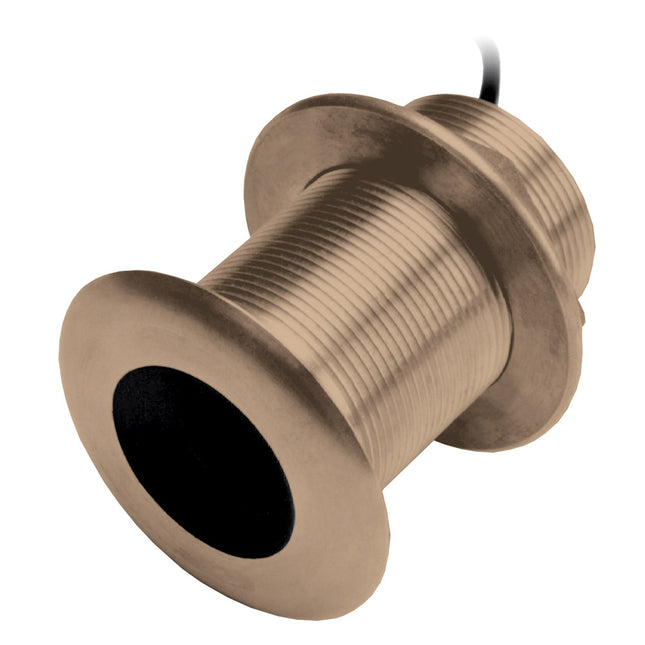

B75M Bronze Chirp Thru Hull 12° Tilt - 600WRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 70 kHz of total bandwidth in just one installation, saving customers time and money.Features: Depth & fast-response water-temperature sensor Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 12° tilted version, 600W 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: Medium Mounting Style: Thru-Hull Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs UPC: 801769001785

Read more less

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer InstallThe B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel. Specifications: Beam: 24 to 16 Degrees Medium-Frequency  Deadrise Angle: 16 to 24 Degree  Frequency: 80-130 kHz Medium Frequency CHIRP  Material: Bronze Maximum Depth: 900' Sonar: CHIRP Sonar, Depth and Temperature Type: Thru-Hull Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Temperature: Yes Speed Included: No Box Dimensions: 5"H x 8"W x 12"L WT: 6.6 lbs UPC: 723193706190

Read more less

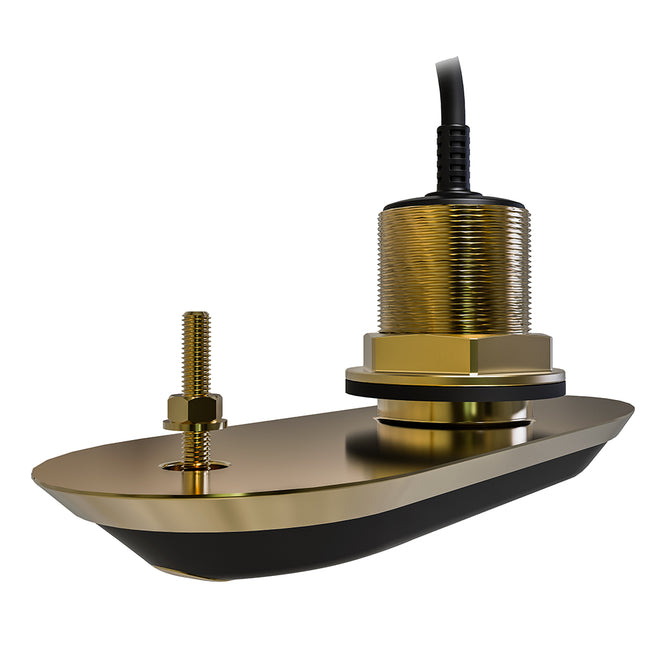

RealVision 3D™ All-In-One Bronze Thru-Hull Transducer - 0° - 8M CableRaymarine’s RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The lowprofile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV- 200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.What’s in the Box? RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions Specifications: Temperature: Yes Speed Included: No Pins: 25 Mounting Style: Thru-Hull Imaging: Standard/Down/Side Chirp: High Cable Length (Feet): 26' Box Dimensions: 7"H x 14"W x 17"L WT: 10.6 lbs UPC: 723193816530

Read more less

Compatible with the following instruments: ST70* ST60+ ST290Compatible hull material: Aluminum and fiberglassCable: 45 ft. cableHole diameter for installation: 2"*Using with ST70 requires purchase of ST70 Depth Pod, sold seperately. Specifications: Temperature: No Speed Included: No Mounting Style: Thru-Hull Chirp: No Cable Length (Feet): 45' Box Dimensions: 4"H x 6"W x 8"L WT: 2.1 lbs UPC: 723193260302

Read more less

Airmar B75Hw/20° Tilt600WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 800'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Chirp: High Cable Length (Feet): 39' Imaging: Standard Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs UPC: 753759971984 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT23M-TH Stainless Steel, TH Mount Transducer, Mid-Band CHIRP/CHIRP DownVü - 260/455kHz, 500W, 8-PinPerfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Chirp: Medium Cable Length (Feet): 30' Imaging: Standard/Down Pins: 8 Box Dimensions: 6"H x 14"W x 17"L WT: 8.65 lbs UPC: 753759148607 Owner's Manual (pdf)

Read more less

SSTH 14 HW MSI+ Stainless Steel Mega Thru-Hull 14-PinMeasures: Depth/Temperature. Frequency: 83/200/455/800kHz and 1.2 MHz. SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP stainless steel thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Read more less

Airmar B150Mw/0° Tilt300WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Entry Level Chirp Solution. Provides good depth capability and good target separation.Max Depth - 1,500'Suppoarted Deadrise/Transom Angles - 0-7° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 4"H x 8"W x 10"L WT: 3.9 lbs UPC: 753759997687 Owner's Manual (pdf)Brochure (pdf)

Read more less

B285M Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing BlockFeatures: Frequency: Chirp 85 - 135 kHz Power Rating: 1 KW Connector: 10 Pin Fairing Block: High Speed Fairing Block Included This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

600W Transom Mount TransducerFeatures: 600 Watts 50/200 kHz 45/11 degree Beam Angles Plastic Transom Mount with Temperature and Removable Speed Assembly 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Pins: 10 Mounting Style: Transom Cable Length (Feet): 30' Speed Included: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.6 lbs UPC: 6116793104468 Quick Guide (pdf)Brochure (pdf)

Read more less

GT15M-THF 12 Degree 600W SS Thru-Hull TransducerDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.Midband Chirp Traditional SonarThis 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.Fits Various Hull TypesConfigurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.Specifications: Transducer Frequency: Medium band chirp (85-165 Khz) Transducer Power: 600 W Transducer Beam Width: 24-16 degrees Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater Transducer Cable Length: 50 ft. Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-Pin Transducer Supported Deadrise/Transom Angles: 12 degrees support hull deadrise angles from 8 degrees to 15 degrees Housing Material: Stainless steel In the Box: GT15M-THF transducer Jam nut Washer Thread isolator Hull isolator Documentation Specifications: Cable Length (Feet): 50' Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 7"H x 7"W x 11"L WT: 7.2 lbs UPC: 753759319939

Read more less

HV-100 HyperVision Transom Mount Transducer - 6M Cable - HV100.02 New VersionThe HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision, and Conical High-Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost clarity and lifelike sonar imaging.

Read more less

XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Specifications: Cable Length (Feet): 20' Temperature: Yes Speed Included: No Pins: 14 Mounting Style: Transom Imaging: Standard/Down/Side Chirp: High Wide Box Dimensions: 4"H x 9"W x 15"L WT: 2.9 lbs UPC: 082324053252 Owner's Manual (pdf)

Read more less

XI-9-1521 Dual Spectrum Ice Transducer Ice Transducer, Dual Spectrum CHIRP, 15/21 Degree, 130-250 kHz. No temperature Compatible with: All HELIX CHIRP units utilizing Ice Fishing mode, except HELIX 12 CHIRP SI GPS , HELIX 12 CHIRP DI GPS , HELIX 12 CHIRP GPS.Cable Length: 8 FeetNot compatible with non-CHIRP ICE models.1-Year Limited Warranty*Not compatible with non-CHIRP Ice products.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 8' Box Dimensions: 4"H x 8"W x 9"L WT: 0.6 lbs UPC: 082324050886 Owner's Manual (pdf)

Read more less

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).Features: Garmin 12-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1KW of power for great deep-water performance from the low frequency Low frequency: 42 to 65 kHz 25° to 16° beamwidth Maximum depth of 914 m (3000') High frequency: 150 to 250 kHz 25° constant beamwidth Maximum depth of 152 m (500') 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper water column Bronze housing with High-performance Fairing for optimal performance at higher speeds Also available as transom (TM275LHW) and pocket (PM275LHW) mounts Patented Xducer ID® technology Specifications Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 10 m (33') Common Use: Fishing, Commercial Fishing Connector: Garmin 12-Pin Country of Origin: USA Cross Reference: 010-12183-20 Deadrise Range: Up to 28° with fairing Display Connector: 12G Frequency Band: Low-High Wide High Frequency: 150-250 kHz High-Wide Beamwidth: 25° Low Frequency: 42-65 kHz Low Frequency Beamwidth: 25°-16° Material: Bronze Max Deadrise: Up to 20° with fairing Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500') Mix and Match Series: 12-Pin Chirp Sensor Connector: MMC Single or Dual Frequency: CHIRP-Ready Dual-Band Tilted Element: No Weight: 7.3 kg (16 lbs.) Power Rating: 1 kW Max Deadrise Angle: 20° Functions: Depth, Temperature Hull Material: Fiberglass or wood Mounting Style: Thru-Hull with Fairing Max Vessel LOA: 8 m (25') and above Hole Size: 30 mm (1-3/16") Usable Shaft Length: 121 mm (4.75") This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Mareton DST110 Smart™ Retractable Depth/Speed/Temperature Transducer The DST110 delivers precise digital depth, accurate speed and exact water temperature even at speeds above 40 knots - all with no programming or calibration necessary.Its patented Smart™ Sensor Technology, retractable and removable sensor, and NMEA 2000® network connectivity make the DST110 easy to interpre, easy to install and connect with other navigation equipment, and easy to maintain.The DST110 measures precise water depth at 0.4m to 100m with a wide beam width and is tolerant to most deadrise angles. It reads water temperature from -10°C to +40°C at ±1.0xC accuracy, and accurate speed from 1 to 50 knots. User customizable calibrations for speed and temperature indications for your installation. At 235kHz it can be used with a fishfinder as an ideal navigation tool for sport or commercial fishing vessels or with sailing vessels of all sizes.The DST110's plastic, bronze, or stainless steel housing choices are compatible with any hull material. It includes a blank plug to replace its sensor unit when the vessel will be docked for extended periods or trailered. This prevents damage to the sensor and reduces fouling growth.Maretron's DST110 is CE compliant (IEC 60945) and is manufactured to the highest quality standards under ISO9K/2K procedures. Its compact, waterproof housing will provide years of reliable performance, making it the Smart™ choice in marine sensing.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: Yes Pins: 5 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 6' Box Dimensions: 5"H x 7"W x 10"L WT: 1.7 lbs UPC: 873804003160 Owner's Manual (pdf)

Read more less

Airmar B150Mw/12° Tilt300WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Entry Level Chirp Solution. Provides good depth capability and good target separation.Max Depth - 1,500'Suppoarted Deadrise/Transom Angles - 8-15° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs UPC: 801769000832 Owner's Manual (pdf)Brochure (pdf)

Read more less

ST300 Thru-hull Shorty™The S300/ST300 speed sensors are our lowest cost and shortest thru-hull speed sensors. As part of our Shorty™ Series, they are designed for boats with low headroom. The plastic P371 low profile outer housing option is nearly flush and minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P398 countersunk outer housing option mounts flush, eliminating turbulence for more accurate speed readings. Specifications: Cable Length (Feet): 30' Mounting Style: Thru-Hull Chirp: No Temperature: Yes Speed Included: Yes Box Dimensions: 4"H x 6"W x 6"L WT: 1.25 lbs UPC: 723193260081

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imaging: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp for SOLIX™ MEGA DIMEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Imaging: Standard/Down Cable Length (Feet): 20' Pins: 14 Chirp: High Wide Box Dimensions: 7"H x 8"W x 10"L WT: 2.45 lbs UPC: 082324053191 Owner's Manual (pdf)

Read more less

P19 20 Degree Tilted Element™ Thru-Hull with 8 pin Connector for GarminMinimize Your DragThe P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echo sounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings.Applications Cruising powerboats and sailboats Sailboats Features Depth and temperature Fixed 20° tilted versions for 16° to 24° hull deadrise Right angle cable exit offers low headroom and protection when transducer is stepped on Included rubber washer allows tightening of the hull nut to irregular hull surfaces Housings are ABYC H-27 compliant Optional temperature sensor Plastic housing Boat Size: Up to 9M (30') WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 30' Temperature: Yes Speed Included: No Pins: 8 Box Dimensions: 4"H x 6"W x 8"L WT: 2.05 lbs UPC: 753759971755 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

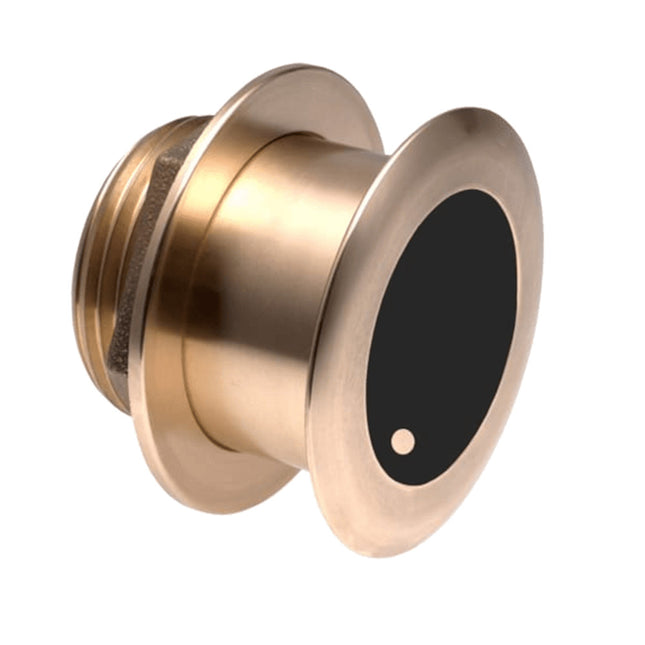

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.Features: Depth and fast-response water-temperature sensing 1 kW of power Dual-frequency elements: 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800') 200 kHz with a 6° beamwidth for depth performance to 244 m (800') Interfaces to any 600 W or 1 kW echo sounder Engineered for center-console and trailered boats Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull No effect on the boat’s running performance Available in a stainless steel housing (SS164) for use in all hull materials Patented Xducer ID® technology Specifications: Acoustic Window: Urethane Cable-Length: 2 M (6.5') Common Use: Leisure/Yachting, Fishing Connector: Airmar 9-Pin (MM1) Conventional Beam: 22°x20°/6° Country of Origin: USA Deadrise Range: 8° to 15° Frequency Band: 50/200 kHz Material: Bronze Max Deadrise: Up to 15° Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800') Mix and Match Series: 9-Pin 1000 Watt Mounting Style: Tilted Element Thru-Hull Retractable housing: No Sensor Connector: MM1 Single or Dual Frequency: Conventional Dual Frequency Tilt Angle: 12° Tilted Element: Yes Weight: 2.7 kg (6 lbs) Power Rating: 1 kW Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Usable Shaft Length: 71 mm (2.80") Display Connector: Cable Required Specifications: Cable Length (Feet): 6.5' Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs Brochure (pdf)

Read more less

B275LH-W Bronze Thru-Hull Transducer - 12-PinGet more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.Features: Depth and fast-response water-temperature sensor 1 kW for great deep water performance from the low frequency Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000') 25° to 16° beamwidth High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Bronze transducer housing with high-performance fairing for optimal performance at higher speeds Recommended boat size: 8 m (25') and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: Low/High Wide Cable Length (Feet): 39' Temperature: Yes Speed Included: No Pins: 12 Box Dimensions: 7"H x 19"W x 26"L WT: 24.15 lbs UPC: 753759123574 Brochure (pdf)

Read more less

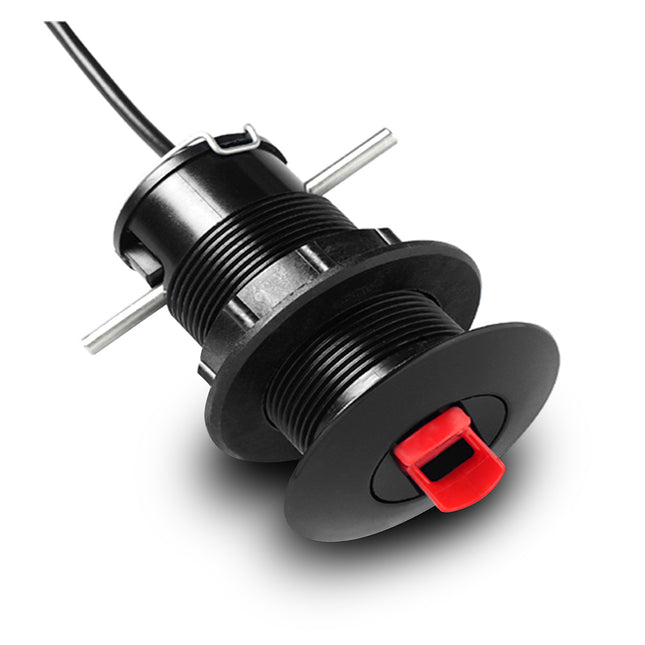

GST™ 43 Thru-Hull Speed/Temperature TransducerThe GST 43 is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43).Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000® network, and the information can be displayed on a compatible Garmin chartplotter or instrument display.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Box Dimensions: 3"H x 6"W x 9"L WT: 1.4 lbs UPC: 753759139872

Read more less

B60 600W Tilted Element 12° - 8-PinThis entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing.An excellent choice for fiberglass and wood hulls, this 600W 8-pin transducer has a depth of 800' to 1,200'; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.*Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 39' Box Dimensions: 5"H x 6"W x 10"L WT: 5 lbs UPC: 753759971830 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT12M Bronze Thru-Hull - 350W - 0 DegreeDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on your display.Midband Chirp Traditional SonarThis 8-pin, 350-watt bronze thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 800’ in saltwater and 1,200’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.Thru-Hull InstallationA durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20° without a fairing block.In the Box: GT12M-THF transducer Jam nut Washer Documentation Specifications: Transducer Frequency: Medium band CHIRP (85-165 kHz) Transducer Power: 350 W Transducer Beamwidth: 24° -16° Transducer Maximum Depth: 800 ft saltwater / 1200 ft freshwater Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-pin Housing Material: Bronze Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° Specifications: Cable Length (Feet): 50 Chirp: Medium Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 11"L WT: 7.25 lbs UPC: 753759319892

Read more less

Plastic Thru-Hull, Low Profile, Transducer, 600w (10-Pin) 600 Watts 50/200 kHz 45/15 degree Beam Angles Low Profile Plastic Thru-hull 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Speed Included: No Mounting Style: Thru-Hull Temperature: No Box Dimensions: 4"H x 6"W x 8"L WT: 1.8 lbs UPC: 6116791010990 Quick Guide (pdf)Brochure (pdf)

Read more less

Plastic Transom Mount Transducer w/ Temp, 600w (10-Pin) 600 Watts 50/200 kHz 40/10 degree Beam Angles Plastic Transom Mount with Temperature 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Box Dimensions: 4"H x 8"W x 10"L WT: 2 lbs UPC: 611679275967

Read more less

RVM-420 Stainless Steel Thru-Hull Pair, 20 Degree Deadrise & 10M CableThe RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 series also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise. The RVM-420 transducer pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.    *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP High-performance Down and SideVision ceramics High-speed housing with isolation plate 10M Cable RVM-420 port and starboard pair accommodates hulls with a deadrise between 15° and 25°

Read more less

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-CableDesigned for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)What’s in the Box? RV-220P Bronze Port Transducer with 2M cable RV-220S Bronze Starboard Transducer with 2M cable RealVision 3D Transducer Y-Cable RealVision 3D 8M (26') Transducer Extension Cable Anti-rotation bolt kit Installation instructions Specifications: Temperature: Yes Speed Included: No Pins: 25 Imaging: Standard/Down/Side Chirp: High Cable Length (Feet): 33' Mounting Style: Thru-Hull Box Dimensions: 14"H x 16"W x 28"L WT: 23.2 lbs UPC: 723193855379

Read more less

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20° Element - 9-PinFeatures: Black 9-Pin Connector Cable Length - 10M (33.0') SS175M - 1-Internal Broadband Ceramic Assembly Depth & fast-response water-temperature sensor Stainless Steel transducer housing Hull Type: Steel or aluminum Boat Size: Up to 11M (36’) Useable shaft length 71mm (2.80”) Medium-Frequency (M) Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency Specifications: Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Cable Length (Feet): 33' Temperature: Yes Speed Included: No Box Dimensions: 8"H x 10"W x 11"L WT: 10.8 lbs UPC: 9420024161906 Brochure (pdf)

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 20° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 16 to 24° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 39' Chirp: High Wide Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 753759123550

Read more less

Airmar B175Lw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Chirp: Low Cable Length (Feet): 39' Pins: 8 Box Dimensions: 8"H x 10"W x 12"L WT: 12 lbs UPC: 753759995737 Owner's Manual (pdf)Brochure (pdf)

Read more less

B285HW Bronze 1kW Wide Beam Chirp Thru-Hull TransducerRequires Mix and Match CableGet more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & temperature 150-250 kHz High frequency Bronze housing 1 kW Wide 25° beam Exclusive Xducer ID® technology Boat Size: Up to 9M (30') Specifications: Hull Deadrise: Up to 24° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Wide Box Dimensions: 7"H x 18"W x 25"L WT: 18.8 lbs UPC: 801769002263 Brochure (pdf)

Read more less

B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & LowranceRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.Features Depth & fast-response water-temperature sensor Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 85 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats Bronze transducer housing with High-Performance Fairing Boat Size: Up to 9 m (30’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology Hull Deadrise: Up to 24° with a fairing Acoustic Window: Urethane Weight: 2.5 kg (5.5 lb) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Pins: Bare Wires Mounting Style: Thru-Hull Imaging: Standard Chirp: Low/Medium Cable Length (Feet): 40' Box Dimensions: 4"H x 12"W x 16"L WT: 7.7 lbs Brochure (pdf)

Read more less

B175H Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableB175H Bronze Thru Hull 20 degree Tilt 1KWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 12° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.8 lbs UPC: 801769001914

Read more less

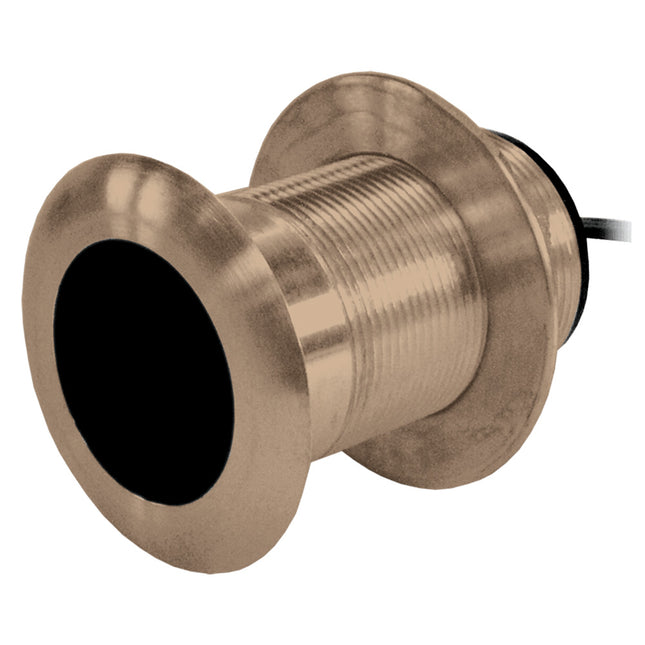

B117 50/200kHz 600W Mix & Match 0° DeadriseAirmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.Features: Depth only or depth and fast-response water-temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Right-angle cable exit saves space and protects the transducer if stepped on The included rubber washer allows tightening of the hull nut to irregular hull surfaces Low-profile, bronze housing has minimal drag Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 12° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 51 mm (2") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Best performance through 7°. Accommodates up to 12° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Low Profile Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Weight: 0.9 kg (2 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: No Imaging: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs UPC: 801769000238

Read more less

XI-9-19 Dual Beam Ice Transducer 455-240kHzFeatures: Operating Frequency: 240 kHz to 455 kHz Beamwidth: 9°, 19° Compatibility: ICE 35 ICE 45 ICE 55 WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - BluetoothDepth, Speed-Through-Water, Water Temperature, Boat AttitudeFor a product to be considered a “breakthrough,” it has to vastly change conventional behavior and enhance abilities. The  DST810 Smart Multisensor, featuring the new Gen2 paddlewheel together with Airmar's CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.Besides water temperature, depth, and upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.Features 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making Integrated attitude sensor for heel and trim benefits sailing and powerboats. Simple attitude calibration to correct for off-center mounting Hull Deadrise: Up to 22° Depth Frequency: 235 kHz Minimum Depth Range: 0.5 m (1.6') Maximum Depth Range: Up to 100 m (330')—NMEA 2000® Speed Range: Up to 45 knots Wireless Protocol: Bluetooth Low Energy (BLE) Wireless Range: Up to 30 feet depending on mount location Standard Cable Length: 6 m (20') DeviceNet—NMEA 2000® Temperature Sensor Accuracy: ±0.5°C (±1.8°F) Temperature Sensor Range: -10°C to 40°C (14°F to 104°F) Supply Voltage: 9 VDC to 16 VDC—per NMEA 2000 Wireless connectivity to Airmar's CAST App has user-friendly benefits: Calibrate the DST810 is a simple, intuitive way regardless of the instrument brand or model that is on board Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software Enable and disable PGN’s and set offset and output rates The Perfect Sensor for Every UseSAILING 5 Hz speed output for visibly smoother speed data. Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data. DST810 stores configurations and delivers data to the NMEA 2000® network. Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor. POWERBOATS 5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument. Simple depth offsets and corrected speed-through-water via Airmar's CAST™ App. Popular depth sensor for shallow-water performance. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 20' Chirp: No Mounting Style: Thru-Hull Pins: 5 Speed Included: Yes Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.1 lbs UPC: 801769018677

Read more less

GT17M-THF SS Mid Band Chirp Transducer - 12° - 1kW - 8-PinDesigned for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.Features: See maximum depth performance to 2,400’ in freshwater Access CHIRP sonar frequency range from 80–165 kHz Search with beamwidths of 9–18 degrees Count on fast-response water temperature sensing The thru-hull design offers flush installation with a 12-degree tilt Auto-ID enables simple plug-and-play operation Midband Chirp Traditional SonarThis 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.In the Box: GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation Specifications: Transducer Frequency: Medium band CHIRP (80-165 kHz) Transducer Power: 1 kW Transducer Beamwidth: 9°-18° Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater RapidReturn™ Sonar Compatible: Yes     Transducer Cable Length: 50 ft Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of PINs: 8-pin Transducer Supported Deadrise/Transom Angles: 12° supports hull deadrise angles from 8° to 15° Housing Material: Stainless steel Specifications: Cable Length (Feet): 50' Chirp: Medium Imaging: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 7"H x 8"W x 13"L WT: 10.95 lbs UPC: 753759338466

Read more less

LiveScope™ Plus LVS34-IF Ice Fishing TransducerThe best of the best just broke new ice with the LiveScope Plus LVS34-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS™ 10 sonar black box to get improved resolution, reduced noise, clearer images, and better target separation in LiveScope™ Forward and LiveScope™ Down modes. With a durable, flexible cold-weather transducer cable, you’re set for a day on the ice.In the Box: LiveScope Plus LVS34-IF 0-degree LiveScope pole mount Documentation Specifications:Sonar Type: LiveScope™ Plus
