XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp for SOLIX™ MEGA DIMEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Imagining: Standard/Down Cable Length (Feet): 20' Pins: 14 Chirp: High Wide Box Dimensions: 7"H x 8"W x 10"L WT: 2.45 lbs UPC: 082324053191 Owner's Manual (pdf)

Read more less

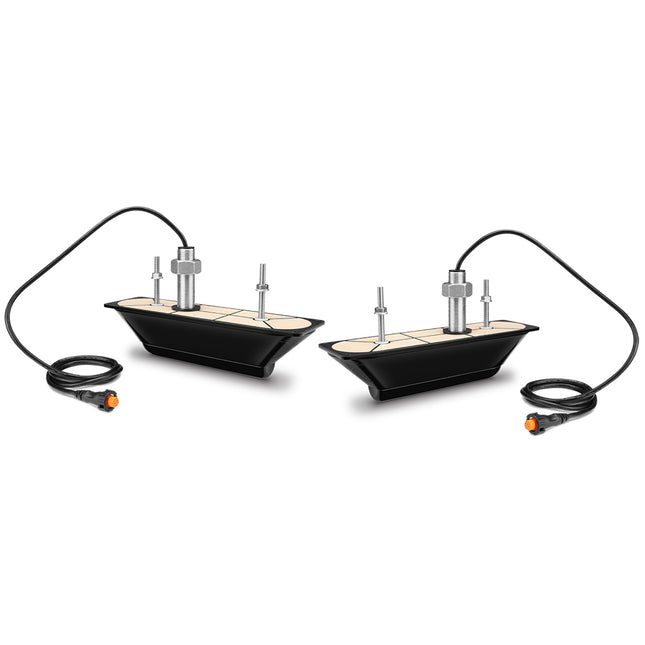

GT34UHD-THP Ultra HD Thru-Hull Transducer - PairUltra High-Definition Sonar System Thru-hull TransducerAdd stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.Ultra High-Definition ClearVü ScanningThis mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.Ultra High-Definition SideVü ScanningThis mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.Specifications:Frequency: Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz Power: 500W Beamwidth: Ultra High-Defintion ClearVü: 0.74° x 46° Ultra High-Defintion SideVü: 0.44° x 55° Maximum depth: Ultra High-Defintion ClearVü: 200' down Ultra High-Defintion SideVü: 125' sides, 250' total Depth/Speed/Temperature: Depth and Temperature Number of pins: 12-pin Cable length: 20' Supported deadrise/Transom angles: Up to 25° deadrise WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Chirp: Non Traditional Cable Length (Feet): 20' Imaging: Down/Side Speed Included: No Pins: 12 Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 5"H x 13"W x 14"L WT: 9.45 lbs UPC: 753759206369

Read more less

TM275LHW Transom Mount CHIRP Transducer with Temp - 12-Pin Connector for TZT3The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the transom mounted TM275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the TM275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.The TM275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.Features: Plastic Transom Mount CHIRP Transducer with Temp Low Freq: 42-65 kHz High Freq: 150-250 kHz This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Puck TransducerDescription: Puck transducer . Single/Dual Beam, 20/60 degree, 200/83 kHz with built in temperatureFor Use With: Legend ID40, Piranha 5, PiranhaMax 10, PiranhaMax 15, PiranhaMax 20, Matrix 15, Matrix 17, Matrix 25, Matrix 27, Matrix 55, Matrix 65, Matrix 67, Matrix 97, FF515, FF535, FF565.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 7 Mounting Style: In-Hull Imaging: Standard Chirp: No Cable Length (Feet): 15' Speed Included: No Temperature: Yes Box Dimensions: 3"H x 6"W x 8"L WT: 1.35 lbs UPC: 082324506086 Owner's Manual (pdf)

Read more less

Airmar R109LHW 2kW 38-75kHz & 150-250kHz Thru-Hull TransducerThis plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 8,000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Chirp: Low/High Wide Cable Length (Feet): 49' Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Pins: Bare Wires Box Dimensions: 14"H x 17"W x 28"L WT: 35 lbs UPC: 753759123567 Owner's Manual (pdf)Brochure (pdf)

Read more less

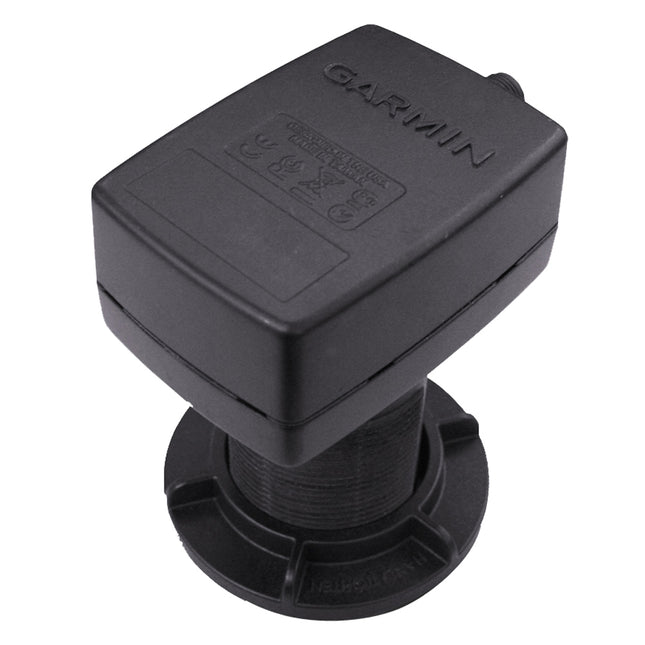

Intelliducer, Thru-Hull, NMEA 200013-24° DeadriseAdd sonar to your boat's marine instrumentation capabilities. This intelligent transducer determines water depth and temperature and sends the data to your NMEA 2000 device. This thru-hull version mounts on a 13-24° deadrise angle. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Temperature: Yes Mounting Style: Thru-Hull Cable Length (Feet): 18' Box Dimensions: 7"H x 7"W x 7"L WT: 2.5 lbs UPC: 753759076108 Owner's Manual (pdf)

Read more less

XNT-9-28-TTransom Mount TransducerMount on the transom (back of the boat)Available on many models, the impact release feature pivots transducer out of the way if struck by an object.Single/Dual Beam 28/16°200/455kHzWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 7 Mounting Style: Transom Imagining: Standard Chirp: No Cable Length (Feet): 20' Temperature: Yes Speed Included: No Box Dimensions: 4"H x 8"W x 9"L WT: 1 lbs UPC: 082324036545 Owner's Manual (pdf)

Read more less

Thru-Hull Multibeam Transducer f/DDF3DThe 165T-B54 is a multi-beam transducer for the DFF3D that affords a 120° port-starboard view of the underwater world. Its compact design allows for easy installation. A built-in motion sensor stabilizes the display to give clear and stable images, even under rough sea conditions.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

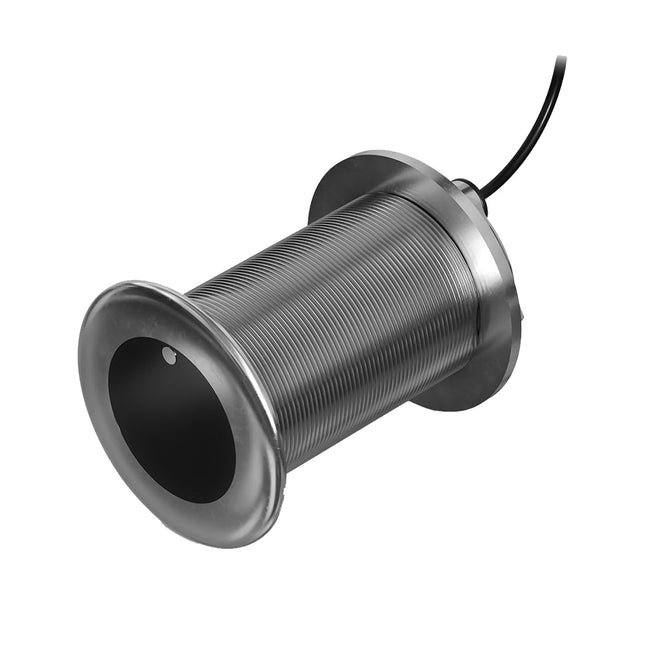

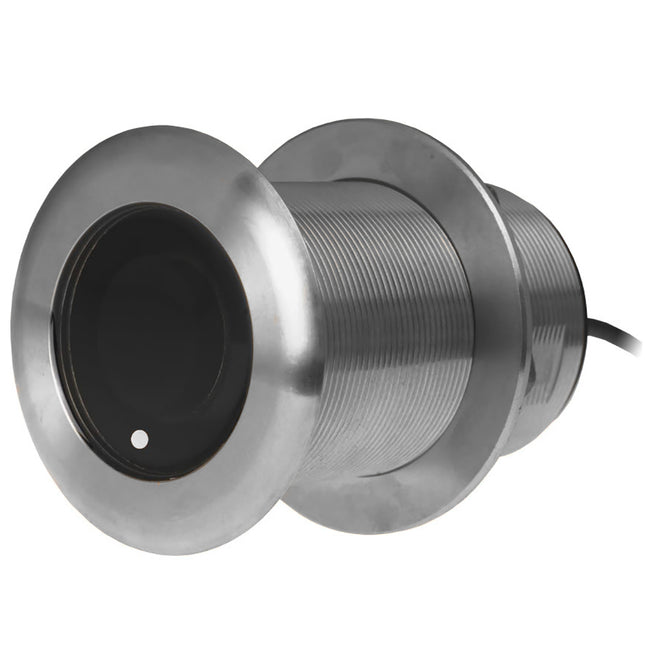

GT15M-THF 0 Degree 600W SS Thru-Hull TransducerDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.Midband Chirp Traditional SonarThis 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.Thru-Hull InstallationA durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.Fits Various Hull TypesConfigurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.Specifications: Transducer Frequency: Medium band chirp (85-165 Khz) Transducer Power: 600 W Transducer Beam Width: 24-16 degrees Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater Transducer Cable Length: 50 ft. Transducer Depth/Speed/Temperature: Depth, temperature Transducer Number of Pins: 8-Pin Transducer Supported Deadrise/Transom Angles: 0 degrees support hull deadrise angles from 0 degrees to 7 degrees Housing Material: Stainless steel In the Box: GT15M-THF transducer Jam nut Washer Thread isolator Hull isolator Documentation Specifications: Cable Length (Feet): 50' Mounting Style: Thru-Hull Temperature: Yes Box Dimensions: 7"H x 8"W x 11"L WT: 7 lbs UPC: 753759319922

Read more less

Current Transducer with CableMaretron's Current Transducer is specifically used with Maretron's ACM100 Alternating Current Monitor.Features:Includes CableWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

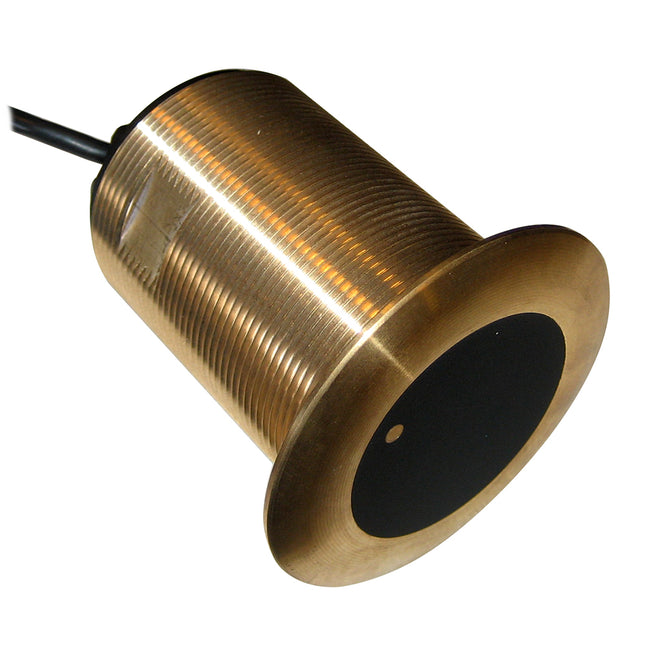

B175H Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Garmin 8-Pin Mix & Match Cable for Chirp Transducers Depth and fast-response water-temperature sensing 1 kW of power with a maximum depth of 304 m (1000') High frequency: 130 to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation Low-profile, thru-hull housing yields good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available in a stainless steel housing (SS175H) for use in all hull materials Patented Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8") Usable Shaft Length: 71 mm (2.80") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing High Frequency: 130-210 kHz High Frequency Beamwidth: 15°-9° Max Deadrise: Up to 24° Max Depth: 304 m (1000') Retractable housing: No Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

B175H Bronze Thru Hull 20° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 20° tilted version, 1KW 80 kHz of total bandwidth from one transducer Depth & fast-response water-temperature sensor Bronze transducer housing Boat Size: Up to 11 m (36’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: High Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs UPC: 801769001921

Read more less

B175M Bronze CHIRP 0° Thru-Hull TransducerFeatures: Depth/Temperature Thru-Hull Hull deadrise = 0º to 7º CP450C Plug on Cable Urethane Frequency: Medium 80-130 kHz Power: 1KW Medium: 24-16 degree beamwidth Hull type: Fiberglass and Wood Note: Requires A80328 Single B75/B175 Operation Cable Specifications: Mounting Style: Thru-Hull Chirp: Medium Imagining: Standard Temperature: Yes Speed Included: No Box Dimensions: 8"H x 11"W x 12"L WT: 11.6 lbs UPC: 723193729069

Read more less

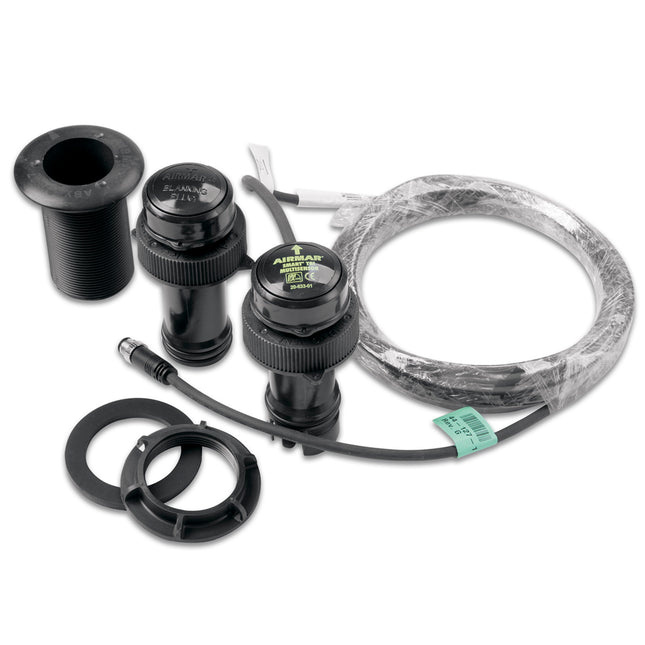

NMEA 2000 Transducer Smart Sensor DTS810This combination transducer gives you accurate information about depth, speed and water temperature. The transducer is supplied with a thru-hull / ground sleeve for installation in the bottom of the vessel. The transducer can be easily pulled out for cleaning and maintenance. The data from the Triducer can be displayed on any radar, chart plotter, or device that accepts NMEA 0183 or NMEA 2000® data. The Airmar type DST810 breakthrough sensor fits into the Airmar type P617V breakthrough sleeve (included with the DST810). Because the widely used airmar thru-hull transducer type DST800 is also supplied with the thru-hull type P617V, an exchange / upgrade of existing transducers of the type DST800 with the type DST810 is possible without much effort. Popular depth sensor for shallow water performance.

Read more less

Open Water Universal Transducer KitThis is a 3-in- 1 transducer mounting kit that comes with a 20 degree transducer that has everything you need to mount it externally for high speed use, with a suction cup mount for portable use or with a special bracket to allow you to attach to an electric trolling motor. Works on all models of Vexilar Flashers except the FLX-28. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Portable Cable Length (Feet): 25' Box Dimensions: 3"H x 5"W x 7"L WT: 1.4 lbs UPC: 052762171009

Read more less

XPTH 14 HW MSI T Plastic Thru Hull TransducerSOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2 MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1" 1-Year Limited Warranty Specifications: Imagining: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 30' Speed Included: No Mounting Style: Thru-Hull Temperature: Yes Pins: 14 Box Dimensions: 4"H x 10"W x 15"L WT: 2.9 lbs UPC: 082324053283

Read more less

SSTH 14 HW MSI+ Stainless Steel Mega Thru-Hull 14-PinMeasures: Depth/Temperature. Frequency: 83/200/455/800kHz and 1.2 MHz. SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP stainless steel thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Read more less

Transom Mount TransducerDual/HD Side Imaging Transom, 20/60/180 cable degree, 200/83/455/800 kHz with built-in temperature. 20' cable.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Mounting Style: Transom Chirp: No Cable Length (Feet): 20' Temperature: Yes Box Dimensions: 6"H x 8"W x 8"L WT: 1.95 lbs UPC: 082324507496 Owner's Manual (pdf)

Read more less

HST-WSUTransom mount, 20 degree skimmer (200Khz) with built-in temperature. Includes power cable.Works with: Cuda 128, Cuda 128 P, Cuda 168, Cuda 168 EX, Cuda 242, Cuda 250 S/Map, FishEasy 240, FishEasy 245 DS, FishEasy 250 DS, FishEasy 320, FishElite 500C, FishElite 502C iGPS, FishElite 640C, FishElite 642C iGPS, FishMark 320, FishMark 500C, FishMark 640C, FishStrike 1000C, FishStrike 2000C, LCF-1440, LST-3800, M56 S/MAP, M68C S/MAP, X47, X47EX, X-50 DS, X67C, X-86 DS, X96 Specifications: Cable Length (Feet): 20' Temperature: Yes Speed Included: No Pins: 6 Mounting Style: Transom Imagining: Standard Chirp: No Box Dimensions: 3"H x 4"W x 10"L WT: 0.9 lbs UPC: 042194521985

Read more less

TotalScan™ Transom Mount transducerAn all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2. The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable. An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector. Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.Features All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging Also supports 83/200kHz Broadband Sounder frequencies Supports Medium and High CHIRP Sonar frequencies Supports 455/800kHz StructureScan HD frequencies Multiple mounting options Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2 Compatible with select legacy displays (Requires xSonic transducer adapter - side-scanning sonar not supported on legacy products) Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imagining: Standard/Down/Side Chirp: Medium/High Cable Length (Feet): 24' Box Dimensions: 3"H x 10"W x 13"L WT: 3.25 lbs UPC: 9420024145265

Read more less

CPT-S Transom Mount - Conical - High ChirpConnects to the CP100 and/or MFD Series that ends in axx8 or esxx8. CPT-S transducers are strictly high chirp sonar transducers and do not include the downvision element.Also connects to Axiom Pro S series Units with optional adapter cable A80490Features: High Chirp Sonar Transom Mount has a trolling motor bracket accessory Max Depth: 900' MFD must have version 16 software or later Specifications: Mounting Style: Transom Chirp: High Temperature: Yes Speed Included: No Imaging: Standard Box Dimensions: 3"H x 8"W x 12"L WT: 1.4 lbs UPC: 723193813102

Read more less

B175M Bronze 1kW CHIRP 20° TiltRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money. A tilted element model in the Chirp Thru-Hull product line, the B175M CHIRP across the following bandwidth:Medium Frequency 85-135 kHz Specifications: Chirp: Medium Imagining: Standard Temperature: Yes Speed Included: No Box Dimensions: 9"H x 10"W x 12"L WT: 11.25 lbs UPC: 723193729120

Read more less

B75H Bronze Chirp Thru Hull 20° Tilt - 600WRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features: Depth & fast-response water-temperature sensor High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth 20° tilted versions, 600W 80 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: High Mounting Style: Thru-Hull Box Dimensions: 5"H x 8"W x 12"L WT: 6.05 lbs UPC: 801769001822

Read more less

HST-DFSBLTransom-mount, dual frequency skimmer with built-in temperature sensor.Works with: LCX-110C, LCX-111C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LMS-335C DF, LMS-337C DF, LMS-339C DF iGPS, LMS-480, X105C DF, X107C DF, X126DF, X136DF, X59DF Specifications: Chirp: No Mounting Style: Transom Imagining: Standard Cable Length (Feet): 20' Temperature: Yes Speed Included: No Pins: 7 Box Dimensions: 4"H x 8"W x 10"L WT: 2.3 lbs UPC: 421945240922

Read more less

Airmar B75Mw/20° Tilt600WFlush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. This broadband transducer is designed to allow both traditional and Spread Spectrum scanning when used with a compatible sonar like the GSD 26. It features a bronze, thru-hull mount design with 20 degree tilt and provides both depth and temperature data to your Garmin Marine NetworkMax Depth - 800'Suppoarted Deadrise/Transom Angles - 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 5"H x 8"W x 12"L WT: 6.15 lbs UPC: 753759972035 Owner's Manual (pdf)Brochure (pdf)

Read more less

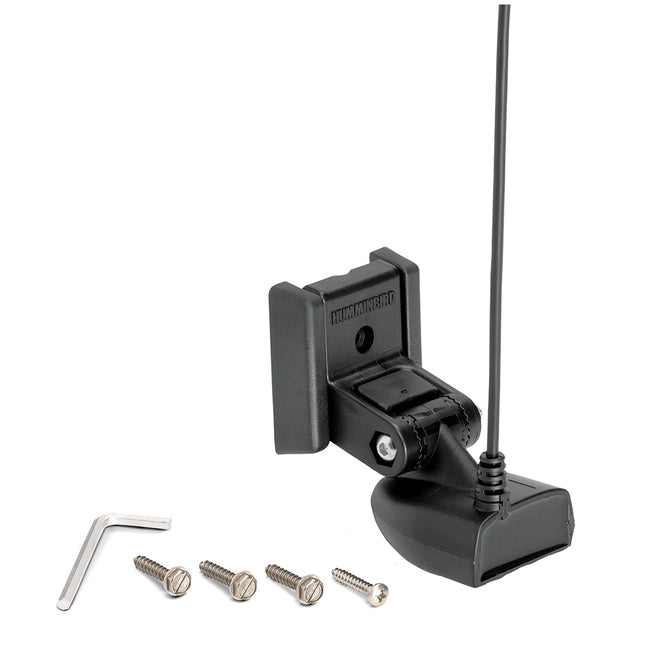

XNT-9-HW-T HELIX® Dual Spectrum CHIRP Transom Mount Transducer with TempTransom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable. Features: This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support the XNT 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging™ or Down Imaging™. Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP- Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Imagining: Standard Chirp: High Wide Cable Length (Feet): 20' Mounting Style: Transom Box Dimensions: 4"H x 8"W x 9"L WT: 1 lbs UPC: 082324053061 Owner's Manual (pdf)

Read more less

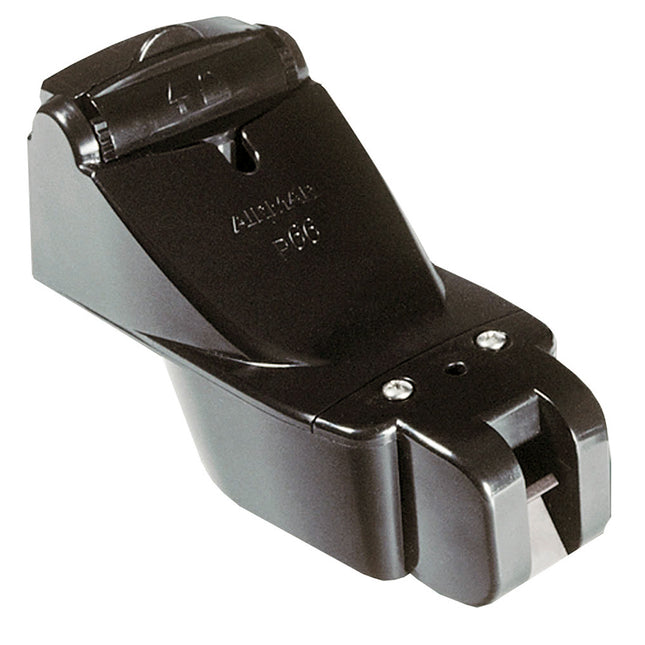

Airmar P66 200/50kHz Plastic Transom Mount Transducer (8-pin)010-10192-21This plastic transducer is the only offshore transom mount to provide depth, speed and temperature in 1 package.The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 11 degrees; and mounts on a 2 to 20 degree transom.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.When using with 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: Yes Pins: 8 Mounting Style: Transom Cable Length (Feet): 25' Chirp: No Imagining: Standard Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.35 lbs UPC: 753759971786 Owner's Manual (pdf)Brochure (pdf)

Read more less

GT56UHD-TM Transom Mount TransducerLess time finding. More time fishing. The GT56 transducer is the ultimate all-in-one sonar solution, featuring Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz, Ultra High-Definition ClearVü scanning sonar and amazingly clear high wide CHIRP traditional sonar. With three scanning sonar frequencies, you’ll get top performances at all depths. High wide CHIRP traditional sonar shows crisp fish arches with minimal noise for incredible clarity. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. This transducer includes transom and trolling motor mounts.Features: Get Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz, Ultra High-Definition ClearVü scanning sonar and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition up to 800’ below your boat 455 kHz SideVü scanning sonar lets you see up to 500’ on each side of your boat Three scanning sonar frequencies — 455 kHz, 800 kHz and 1 MHz — and 500 watts of power deliver top performances at all depths Vivid scanning sonar color palettes make it easy to distinguish targets and structure Easy to install with transom and trolling motor mounts Specifications: Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Transom Imagining: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 25' Box Dimensions: 5"H x 6"W x 12"L WT: 3.1 lbs UPC: 753759269302 Owner's Manual (pdf)Brochure (pdf)

Read more less

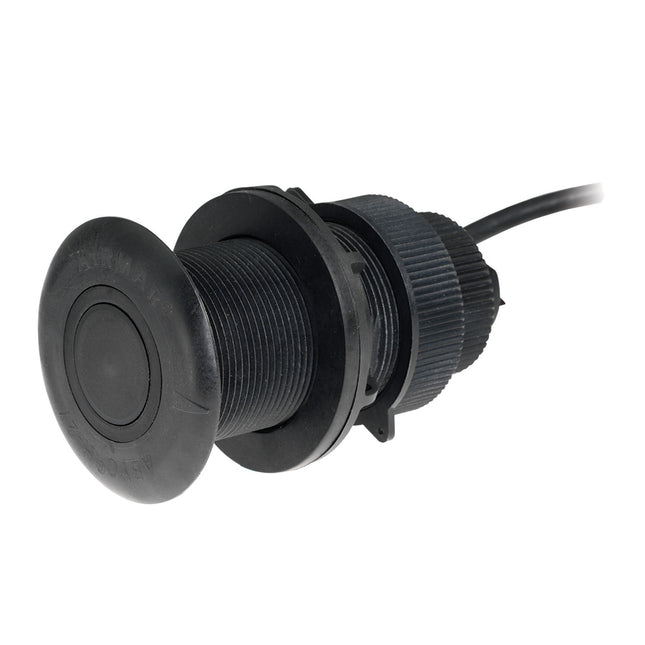

DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12° Tilt - NMEA 2000 - 6M CableAirmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6'). Available in fixed 0°, 12°, or 20° tilt, the DT800 is perfect for power and sailboat applications. It is sold with a choice of rugged housings— plastic, bronze, or stainless steel—to accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will provide accurate readings at high speeds.Airmar's Smart™ Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.Smart™ Sensor Features Broadband ceramic available with 0°, 12° and 20° tilt options Enhanced depth performance Maximum Depth Range: 180M (594’) Minimum range 0.5M (1.6’) Urethane face provides better sensitivity Excellent high-speed performance Fixed 12° tilt for 8° to 15° deadrise NMEA 2000 output 100 W RMS power Frequency: 235 kHz Cone: 12° All models have depth and temperature 235 kHz eliminates interference with fishfinders Retractable insert provides ease of serviceability Usable Shaft Length: 57mm (2.25”) 6M(19.8”) NMEA 2000® devicenet cable and connector 51mm (2”) housing Blanking plug included Accommodates maximum hull thicknesses 54 mm (2 1/8”) Accommodates minimum hull thicknesses 6.3 mm (0.25”) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Plastic transom mount transducer with depth and temperature. Operating frequency of 200 and 50 kHz. Beamwidth of 15 degrees at 200 kHz, 45 degrees at 50 kHz. Transducer kit comes with mounting hardware and installation instructions.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Transom Pins: 6 Temperature: Yes Cable Length (Feet): 30' Speed Included: No Imagining: Standard Chirp: No Box Dimensions: 3"H x 6"W x 8"L WT: 1.43 lbs UPC: 753759028206 Owner's Manual (pdf)

Read more less

P79S Smart™ Sensor with SeaTalkNG Adapter with A80373 & A06045The P79S brings depth intelligence to your boat. Featuring Airmar’s Smart™ Sensor technology, the P79S delivers processed depth data right to the onboard network for multiple displays to use.The P79S includes a plastic mounting base that is aligned to the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam will be shooting straight down for maximum echo returns. The antifreeze provides the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of an in-hull transducer is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 8 m (25') with a solid fiberglass hull.Airmar's Smart Sensors have embedded microelectronics—the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth data is a single cable into a compatible network or display. Available as an analog sensor or a digital Smart Sensor that can output in the NMEA 0183 or NMEA 2000® format.Features: Depth only 60 W 235 kHz frequency prevents mutual interference with other echo sounders on the vessel 7° beamwidth Depth range: NMEA 0183 model has a maximum depth of 100 m (330') NMEA 2000 model has a maximum depth of 150 m (500') Installed with a hand-adjustable base. No cutting is needed. NMEA 2000 certified cable assembly No holes to drill In-hull installation can be done while the boat is in the water Urethane transducer with adjustable, plastic, mounting base Available in NMEA 0183 or NMEA 2000 standard NMEA 2000 certified or NMEA 0183 cable Installed with a hand-adjustable base No cutting is needed

Read more less

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer InstallThe B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel. Specifications: Beam: 24 to 16 Degrees Medium-Frequency  Deadrise Angle: 16 to 24 Degree  Frequency: 80-130 kHz Medium Frequency CHIRP  Material: Bronze Maximum Depth: 900' Sonar: CHIRP Sonar, Depth and Temperature Type: Thru-Hull Specifications: Mounting Style: Thru-Hull Imagining: Standard Chirp: Medium Temperature: Yes Speed Included: No Box Dimensions: 5"H x 8"W x 12"L WT: 6.6 lbs UPC: 723193706190

Read more less

XNT 9 DI T Transom Mount TransducerPart #: 710226-1Features: Down Imaging/DualBeam Plus 75 degrees/ 45 degrees 455/800 kHz (DI) 25 degrees/16 degrees 200/455 kHz with built-in temperature 20' Cable WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Imagining: Standard/Down Cable Length (Feet): 20' Mounting Style: Transom Box Dimensions: 3"H x 7"W x 8"L WT: 1.25 lbs UPC: 082324035227 Quick Guide (pdf)

Read more less

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GPSMAP® 7607xsv GPSMAP® 7608xsv GPSMAP® 7610xsv GPSMAP® 7612xsv GSD™ 25 Premium Sonar Module WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Imagining: Standard/Down/Side Chirp: Medium/Non Traditional Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Mounting Style: Thru-Hull Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs UPC: 753759152932 Owner's Manual (pdf)

Read more less

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 12° Tilt, 8-Pin - Airmar B175HWStep up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600'; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 8 to 15° deadrise.Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imaging: Standard Cable Length (Feet): 39' Chirp: High Wide Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs UPC: 753759123543

Read more less

B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer Requires Mix & Match CableAirmar’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300') Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Power Rating: 1 kW Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 11 m (36') Hole Size: 95 mm (3-3/4") Mounting Style: Tilted Element Thru-Hull Acoustic Window: Urethane Cable-Length: 9 m (30') Common Use: Fishing Max Depth: 400 m (1300') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Power Rating: 1 kW Single or Dual Frequency: CHIRP-Ready Single-Band Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin175MW Med Ultra Wide 20 Degree, 1KW Chirp Thru-hull Transducer with 12 Pin Connector for Garmin Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Fixed 20° tilted version for 16° to 24° hull deadrise 12 Pin Connector for Garmin FishFinders Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300#39;) Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 9 m (30'), 10 m (33') Common Use: Fishing Connector: Garmin 12-Pin Country of Origin: USA Display Connector: 12G Functions: Depth, Temperature Hole Size: 95 mm (3-3/4") Hull Material: Fiberglass or wood Material: Bronze Max Deadrise Angle: 24° Max Depth: 400 m (1300') Max Vessel LOA: Up to 11 m (36') Medium Frequency: 60-100 kHz Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a Mounting Style: Tilted Element Thru-Hull Power Rating: 1 kW Single or Dual Frequency: Single Tilt Angle: 20° Tilted Element: Yes Water Temperature: -10° to 40°C (14° to 104°F) Weight: 2.7 kg (6 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Transom Mount Multi-Beam TransducerThe 165T-TM54 is a multi-beam transducer for the DFF3D that affords a 120 degree port-starboard view of the underwater world. A built-in motion sensor stabilizes the display to give clear and stable images.Features: Transom mount with stainless steel kick-up bracket DFF3D operating frequency: 165 kHz 2 x 10M Cables Bare ended cable for DFF3D sonar 7 pin connector for the motion Built-in motion sensor Built in temp sensor WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

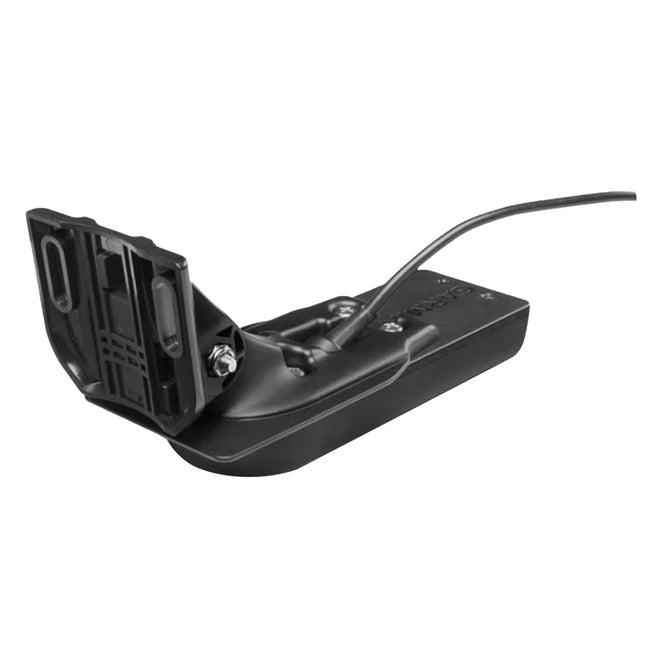

GT52HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü/SideVü - 455/800kHz, 500W, 12-PinGT52HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü and CHIRP SideVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat.The 12-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü and SideVü (455/800 kHz) elements have a power rating of 500 W each (1,500 W total).GT52HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.Features: Frequency: CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) Power: Traditional 250 W; ClearVü/SideVu 350 W Beamwidth: Traditional (24-16); ClearVü/SideVü (2.0x50 @ 455 kHz) & (1.0x30 @ 800 kHz) Maximum depth: Traditional: 800 ft.; ClearVü: 500 ft.; SideVü: 500 ft. Depth/Speed/Temperature: Depth and Temperature Number of pins: 12-pin Cable length: 20 ft. Supported deadrise/Transom angles: 0°-70° degree transom WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Chirp: High Wide/Non Traditional Cable Length (Feet): 20' Pins: 12 Mounting Style: Transom Imaging: Standard/Down/Side Box Dimensions: 4"H x 7"W x 7"L WT: 2.2 lbs UPC: 753759148614 Owner's Manual (pdf)

Read more less

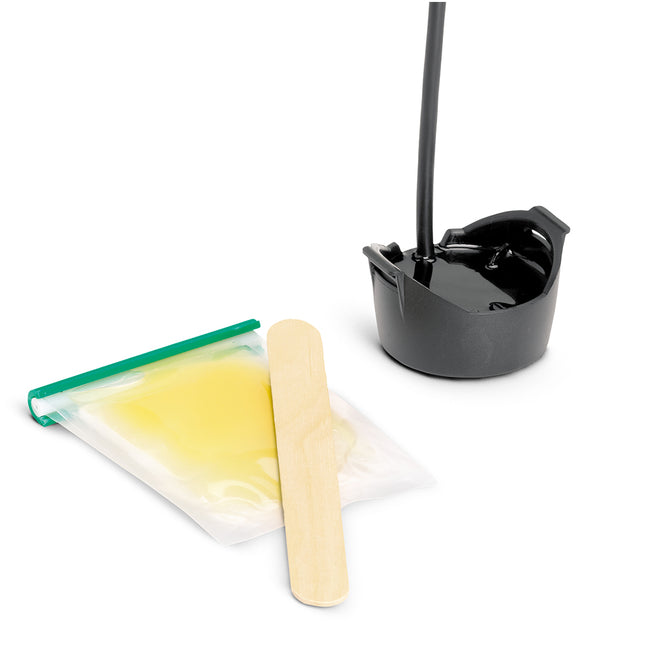

XP 9 HW In-Hull TransducerIn-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes epoxy kit and 20’ cable. Features: This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (In Open Water Mode). Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHRIP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: In-Hull Imagining: Standard Temperature: No Speed Included: No Pins: 7 Chirp: High Wide Cable Length (Feet): 20' Box Dimensions: 4"H x 8"W x 9"L WT: 0.8 lbs UPC: 082324053108 Owner's Manual (pdf)

Read more less

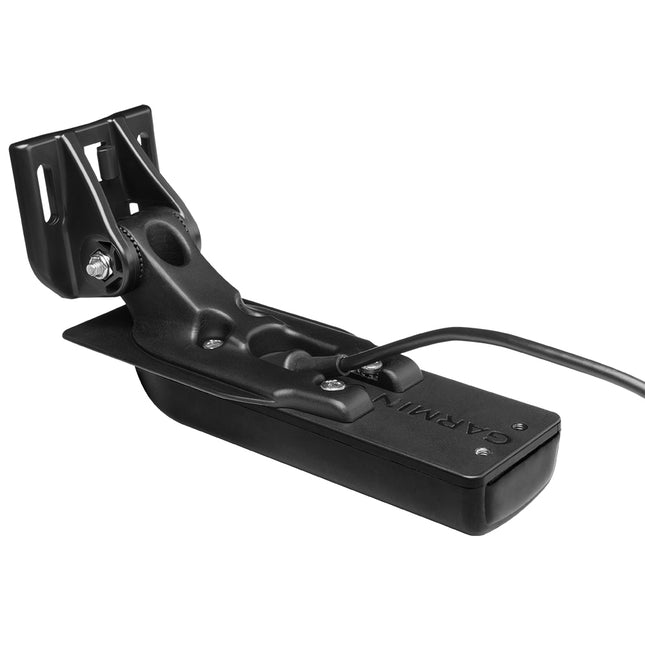

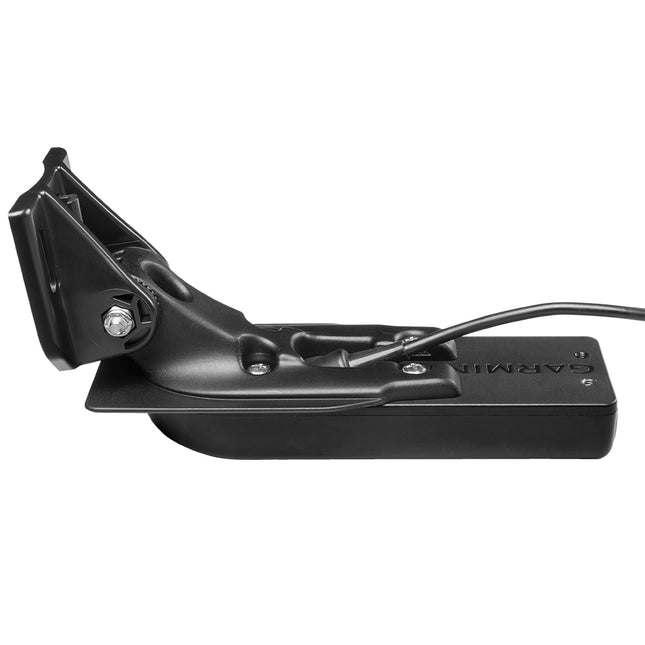

GT54UHD-TM Ultra High-Definition Scanning Sonar All-In-One TransducerAll-In-One Transducer One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar High wide CHIRP traditional sonar provides remarkably clear target separation and definition See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’ Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts Ultra-High Clarity  The GT54 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.Ultra-High PerformanceUltra High-Definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combosWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Temperature: Yes Mounting Style: Transom Imagining: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 20' Pins: 12 Box Dimensions: 4"H x 7"W x 10"L WT: 2.3 lbs UPC: 753759225377

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadriseFeatures:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology Fixed 20° tilted version for 16° to 24° hull deadrise Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 9M Chirp: High Wide Imagining: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.9 lbs UPC: 801769018141

Read more less

B75M Bronze Chirp Thru Hull 20° Tilt - 600WRequires Mix and Match CableRely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 70 kHz of total bandwidth in just one installation, saving customers time and money.Features: Depth & fast-response water-temperature sensor Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth 20° tilted version, 600W 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Bronze transducer housing Boat Size: Up to 8 m (25’) Hull Type: Fiberglass or wood Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Mounting Style: Thru-Hull Chirp: Medium Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs UPC: 801769001792

Read more less

GT21-THPerfect for coastal and offshore fishermen who want traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.The CHIRP ClearVü element has a power rating of 500 W and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees. GT21-TH includes an 8-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Imagining: Standard/Down Cable Length (Feet): 30' Mounting Style: Thru-Hull Chirp: Non Traditional Box Dimensions: 6"H x 14"W x 17"L WT: 8.4 lbs UPC: 753759152833 Owner's Manual (pdf)

Read more less

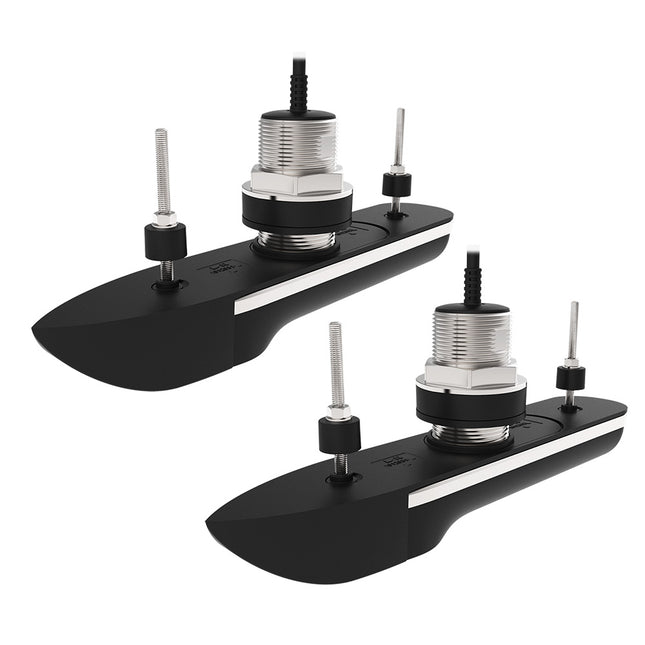

RVM-400 Stainless Steel Thru-Hull 0 Degree Deadrise & 8M CableRVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The RVM-400 is a single, all-in-one transducer suitable for boats with a through-hull transducer mounting position with less than 5° hull deadrise. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP High-performance Down and SideVision ceramics High-speed housing with isolation plate 8M Cable 0° element for hulls with less than a 5° deadrise

Read more less

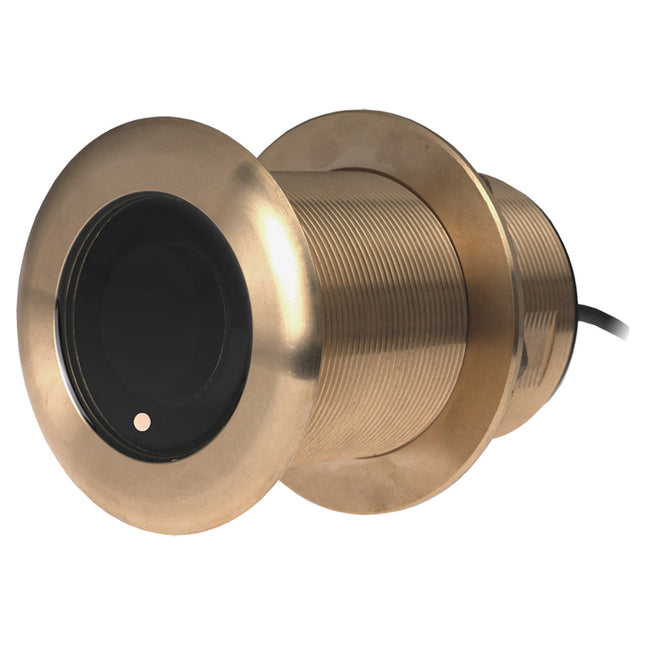

B60 20° Bronze Thru-Hull Mix & Match Cable NeededThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.Features: Depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Also available in a stainless steel housing (SS60) for use with all hull materials Specifications: Power Rating: 600 W Max Deadrise Angle: 24° Housing: Bronze Functions: Depth, Temperature Hull Material: Fiberglass or wood Max Vessel LOA: Up to 8 m (26') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Acoustic Window: Urethane Common Use: Leisure/Yachting, Fishing Conventional Beam: 45°/12° Max Deadrise: Up to 24° Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700') Mounting Style: Tilted Element Thru-Hull Retractable housing: No Single or Dual Frequency: Conventional Dual Frequency Tilted Element: Yes Weight: 1.4 kg (3 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chirp: No Imagining: Standard Mounting Style: Thru-Hull Speed Included: No Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 4.5 lbs UPC: 801769000399 Brochure (pdf)

Read more less

B75HW High Wide Tilted Element Chirp Transducer - 12 Degree Deadrise, 600W Thru HullRequires Mix and Match Cable for the appropriate Fishfinder it will be connected to.Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').B75HW transmits across the following bandwidth: High frequency 150 to 250 kHzThe transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 12° tilted version for 8° to 15° hull deadrises.Features:  Depth and fast-response water-temperature sensor 600 W with a maximum depth performance of 106 m (350') High frequency: 150 to 250 kHz 30° beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing, or displacement hull Exclusive Xducer ID® technology 12° tilted version for 8° to 15° hull deadrises Hole Size: 70 mm (2-13/16") CHIRP-Ready Single-Band This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Cable Length (Feet): 9M Chirp: High Wide Imagining: Standard Mounting Style: Thru-Hull Pins: 12 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 12"L WT: 5.8 lbs UPC: 801769018134

Read more less

CPT-S High CHIRP Plastic Thru-Hull Flush Mount Transducer - 20° AngleThe CPT-S High CHIRP transducer provides high resolution sonar imagery in a small and inexpensive package.  With a simple design, the CPT-S is easy to install, while still offering excellent performance at speed. This CPT-S is a low profile, flush-mounted plastic Thru Hull High CHIRP transducer  compatible with Raymarine's CP100 sonar module and embedded CHIRP MFD's. This single element conical CHIRP transducer provides a 25 degree fish targeting beam with a maximum depth of 900 feet. This model CPT-S accommodates hulls with a deadrise between 15-25 degrees.Also connects to Axiom Pro S series Units with optional adapter cable A80490.Features: High Chirp Sonar Max Depth: 900' 20 Degree Deadrise

Read more less
