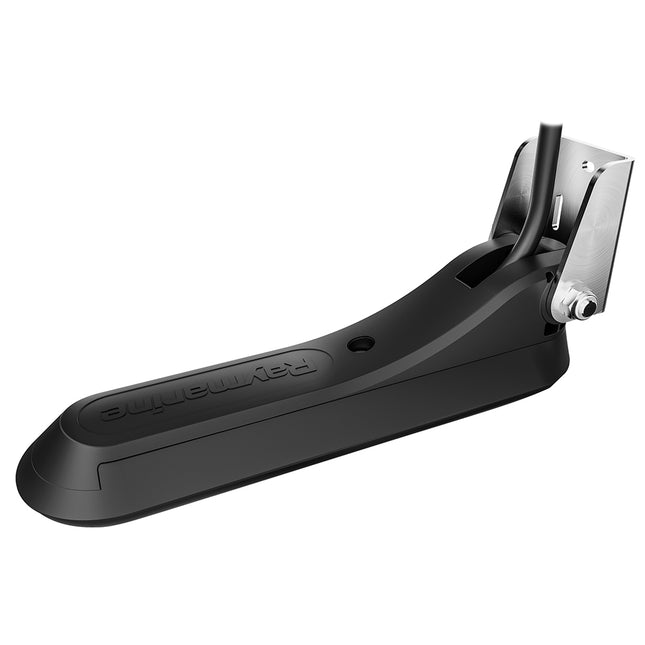

RealVision 3D™ All-In-One Transom Mount TransducerRaymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)What’s in the Box? RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable Transom bracket Mounting hardware Installation instructions Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Imaging: Standard/Down/Side Chirp: High Cable Length (Feet): 26' Pins: 25 Box Dimensions: 5"H x 11"W x 14"L WT: 5.3 lbs UPC: 723193816523

Read more less

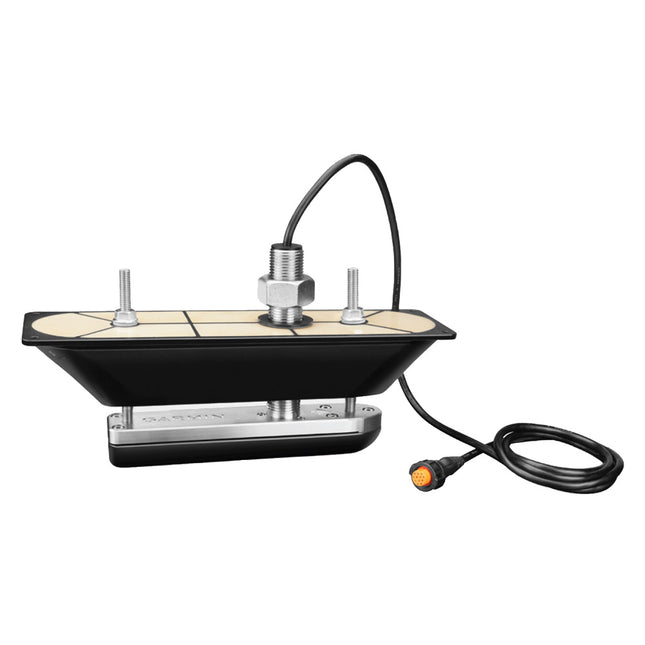

Garmin GT30-TH - Stainless Steel Thru-hull DownVü/SideVü 500W (CHIRP 455/800 kHz) Scanning Transducer with Temp, for Hull Deadrises Less Than 5° (12-pin)Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with this 12-pin thru-hull transducer with stainless steel stem.This transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (DownVü) and 500 ft left and right (SideVü) an operating frequency of CHIRP 455/800 kHz; for hull deadrises less than 5 degrees. Pair it with your GCV™ 10 scanning sonar module.Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Compatible Devices: GCV™ 10 Scanning Sonar ModuleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imagining: Down/Side Chirp: Non Traditional Pins: 12 Box Dimensions: 5"H x 12"W x 14"L WT: 6.2 lbs UPC: 753759152802 Owner's Manual (pdf)

Read more less

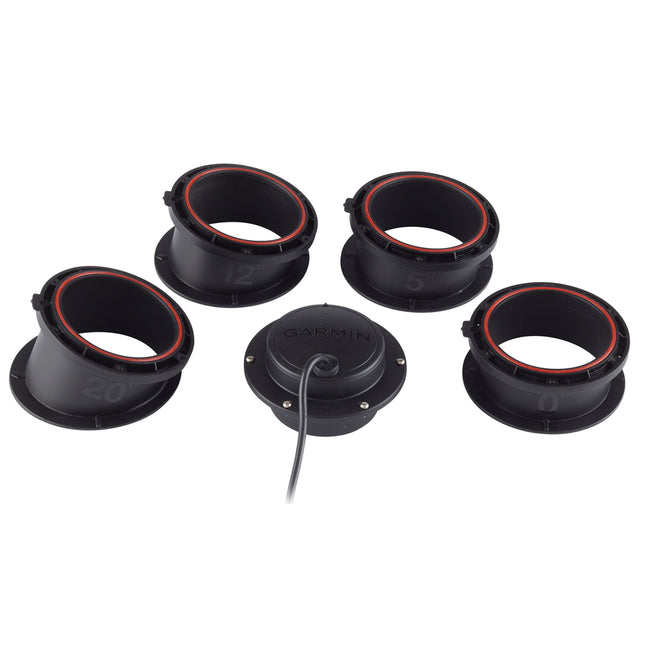

GT15M-IH Plastic, In-Hull, Mid-Band CHIRP Transducer - 85-165kHz, 600W, 8-PinGT15M-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It can be used with a hull deadrise angle between 0 and 25 degrees and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.The 8-pin transducer with 4 plastic tanks features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.For installation, follow the included instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: No Speed Included: No Pins: 8 Mounting Style: In-Hull Cable Length (Feet): 20' Chirp: Medium Imagining: Standard Box Dimensions: 7"H x 7"W x 7"L WT: 1.8 lbs UPC: 753759148577

Read more less

xSonic TM185HW Wide-Beam Chirp Tramsom Mount Transducer - 9-PinGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Features: Depth & temperature 150-250 kHz H frequency Urethane Housing 1 kW Wide 25° beam Weight: 0.45 kg (1.1 lb) Hull Deadrise: 2° to 20° Acoustic Window: Urethane Specifications: Chirp: High Wide Cable Length (Feet): 33' Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Standard Temperature: Yes Box Dimensions: 8"H x 11"W x 12"L WT: 8.15 lbs UPC: 9420024165911 Quick Guide (pdf)Brochure (pdf)

Read more less

xSonic TM185M Transom Mount TransducerAs Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The TM185M, an economical Chirp transducer, is designed for offshore fishing and freshwater anglers. Operating at a frequency range of 85-135 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 1,500 feet*) along with ultra-clear target resolution.Designed for smaller boats up to 25’, the TM185M is available as a transom-mount transducer.Features: Depth & Temperature Chirp Technology 1 kW High-Performance Urethane Housing Exclusive Transducer ID® Weight: 0.45 kg (1.1 lb) Hull Deadrise: 2° to 20° Acoustic Window: Urethane Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Transom Imaging: Standard Cable Length (Feet): 33' Chirp: Medium Box Dimensions: 8"H x 10"W x 11"L WT: 8.2 lbs UPC: 9420024165928 Quick Guide (pdf)

Read more less

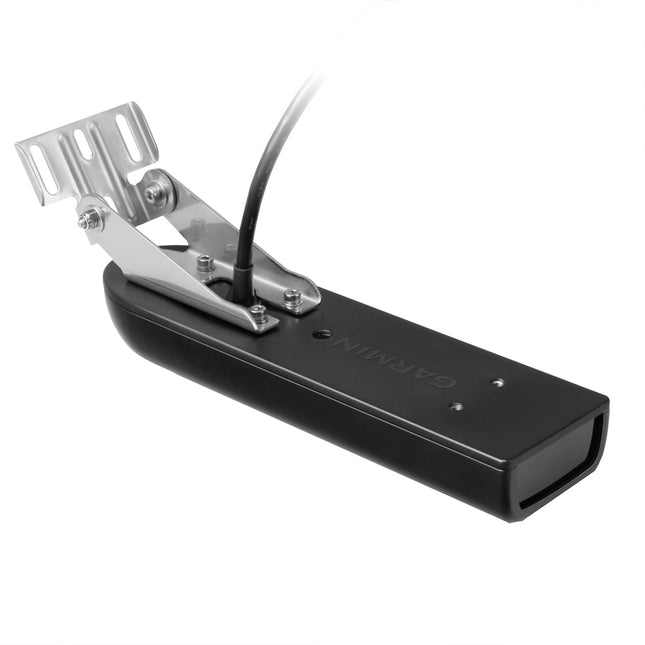

GT51M-TM Transom Mount DownVü/SideVü 500W (CHIRP 260/455 kHz) Traditional 600W Mid-Band CHIRP 80-160 kHz Transducer with Temp - 12-PinThe GT51M-TM transom mount transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP and CHIRP DownVü/SideVü transducer is optimized for depth performance and rough condidtions.The CHIRP DownVü/SideVü elements have a power rating of 500W per element (1,500W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor.GT51M-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 12 Imagining: Standard/Down/Side Chirp: Medium/Non Traditional Mounting Style: Transom Cable Length (Feet): 30' Box Dimensions: 5"H x 6"W x 12"L WT: 3.5 lbs UPC: 753759152918

Read more less

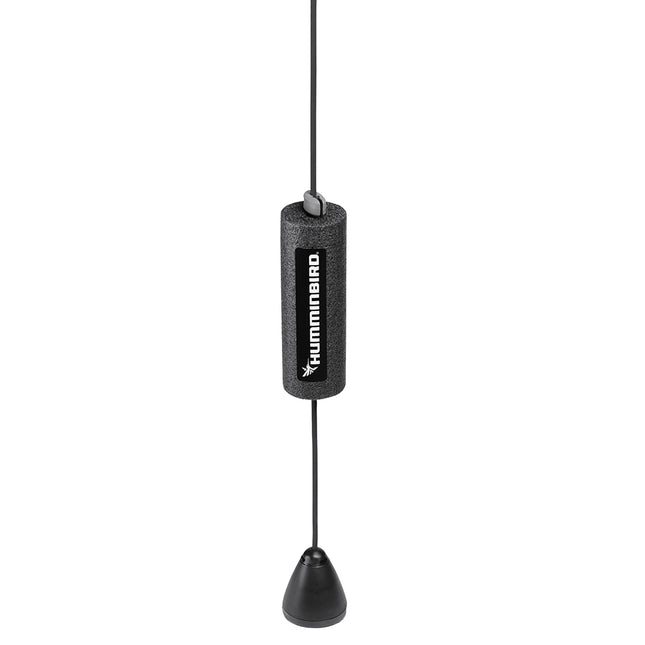

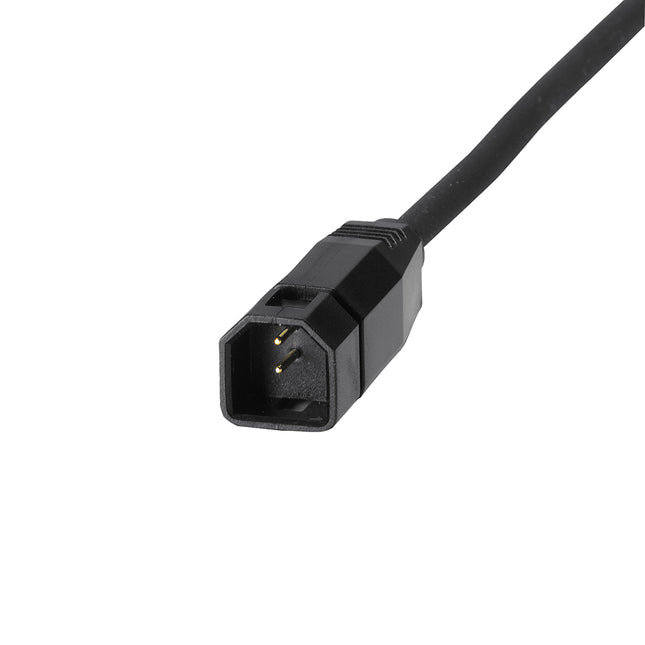

XI 9 20 Dual Beam ICE TransducerFeatures: Single/Dual Beam 20/60 Degree 200/83 kHz 8' cable WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

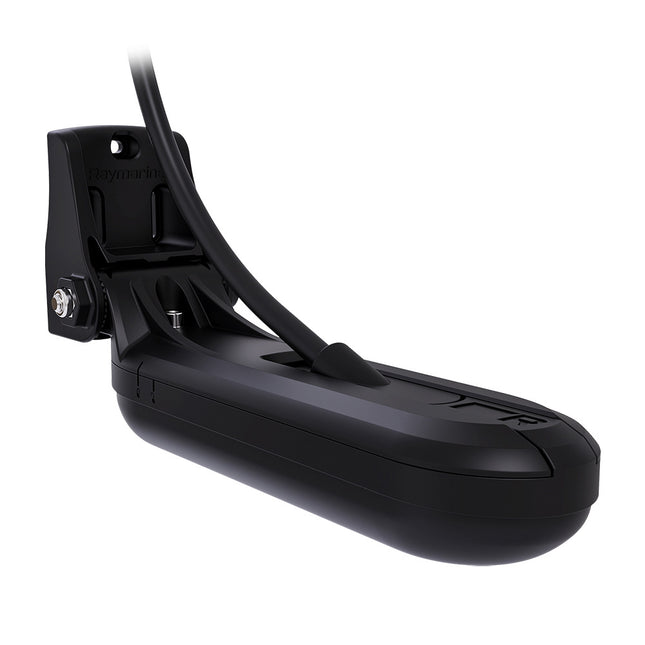

HV-100 HyperVision Transom Mount Transducer - 6M Cable - HV100.02 New VersionThe HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision, and Conical High-Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost clarity and lifelike sonar imaging.

Read more less

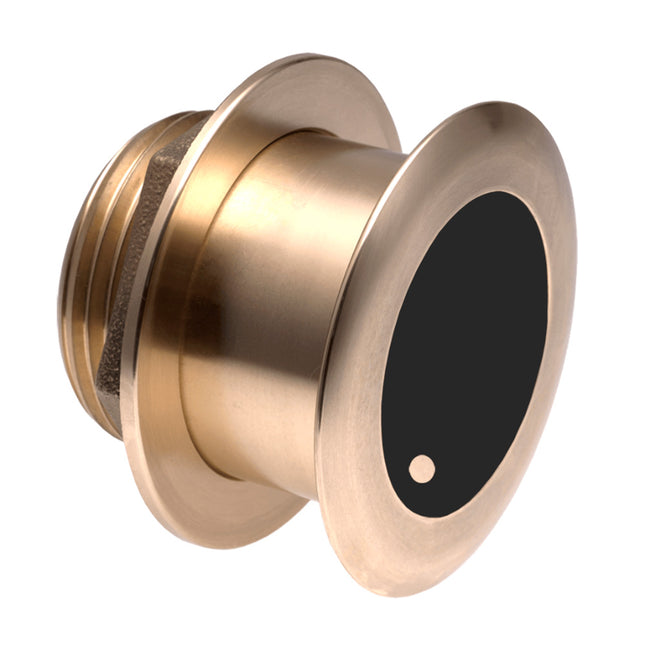

B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector for GarminAirmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features: Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300') Medium frequency: 60-100 kHz 57° to 73° beamwidth (port/starboard) 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing, or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Pins: 12-Pin Box Dimensions: 8"H x 10"W x 12"L WT: 9.9 lbs

Read more less

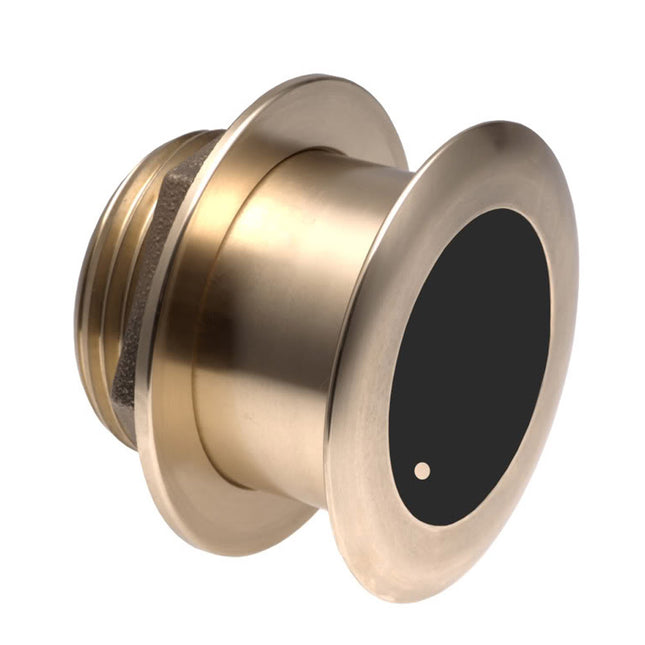

Airmar B175Mw/12° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth - 3,000'Suppoarted Deadrise/Transom Angles - 8-15° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 8 Mounting Style: Thru-Hull Imagining: Standard Chirp: Medium Cable Length (Feet): 39' Box Dimensions: 8"H x 11"W x 12"L WT: 11.35 lbs UPC: 753759995751 Owner's Manual (pdf)Brochure (pdf)

Read more less

xSonic B275LH-W Wide Beam CHIRP, 1 kW, 9 Pin ConnectorGet more coverage under the boat with Airmar's wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers.A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display. We've got you covered.Features Depth & Temperature 42-65 kHz Low Frequency 150-250 kHz High Frequency Bronze 1 kW 9 Pin Connector Fairing Block Included Wide 25° Beam Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Temperature: Yes Cable Length (Feet): 33' Chirp: Low/High Wide Box Dimensions: 7"H x 18"W x 26"L WT: 23.7 lbs UPC: 9420024161821

Read more less

Plastic Transom Mount Transducer w/ Temp, 600w (10-Pin) 600 Watts 50/200 kHz 40/10 degree Beam Angles Plastic Transom Mount with Temperature 30 Foot Cable with 10-Pin Connector WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Box Dimensions: 4"H x 8"W x 10"L WT: 2 lbs UPC: 611679275967

Read more less

SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med FrequencyFeatures: Frequency: Chirp 80 - 130 kHz Power Rating: 600 Watts Connector: 10 Pin Tilt: 20 Degree Deadrise of Hull: 16-24 Degrees This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

RVM-100 Transom Mount Transducer RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.  The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering.  The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP Designed for transom mounting on outboard boats Stainless Steel mounting bracket with an integrated kick-up feature 8M Cable

Read more less

CPT-S In-Hull CHIRP TransducerThe CPT-S In-hull transducer provides a simple-to-install depth only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP sonar operation centered on 200kHz. The CPT-S in-hull directly connects to Element S series units.Will connect to Axiom RV/Axiom Pro RVX and Element HV using the A80490 (Axiom) or A80559 (Element HV) adapters. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise. Specifications: Chirp: High Speed Included: No Mounting Style: In-Hull Imagining: Standard Temperature: No Box Dimensions: 4"H x 7"W x 12"L WT: 1.3 lbs UPC: 723193840610

Read more less

SI-TEX 492/50/200 In-Hull Transducer f/ES502 Dual Frequency 50/200 kHz Max Power: 500W Beam Angle: 42 deg. @ 50 kHz, 12 deg. @ 200 kHz Housing: Plastic Mount: In-Hull Plug: 8 pin Cable: 30' Temp: No Speed: No For SI-TEX model: ES502 Specifications: Temperature: No Cable Length (Feet): 30' Mounting Style: In-Hull Imaging: Standard Chirp: No Speed Included: No Pins: 8 Box Dimensions: 4"H x 7"W x 8"L WT: 2 lbs UPC: 010407310732

Read more less

CPT-S Thru-Hull - High Chirp - Bronze - 20°Connects to the CP100 and/or MFD Series that ends in axx8 or esxx8. CPT-S transducers are strictly high chirp sonar transducers and do not include the downvision element.Also connects to Axiom Pro S series Units with optional adapter cable A80490Features: High Chirp Sonar Max Depth: 900' 20 Degree Deadrise MFD must have version 16 software or later Specifications: Speed Included: No Mounting Style: Thru-Hull Imagining: Standard Chirp: High Box Dimensions: 5"H x 7"W x 12"L WT: 4 lbs UPC: 723193813058

Read more less

CPT-100 DVS Transom Mount CHIRP Transducer Installation: Transom Mount Material: Urethane Max Depth (Ft): DV=600 | FF=900 Frequency (KHz): CHIRP DownVision | CHIRP DownVision / Fishfinder Beam Width (L/H) 25°/60° Records: Depth / Temperature Approved Hull Material: Fibreglass / Wood / Metal Cable Length (Ft/M): 33'/10M Deadrise: 0-90° Transom Specifications: Mounting Style: Transom Imagining: Standard/Down Cable Length (Feet): 33' Temperature: Yes Box Dimensions: 5"H x 6"W x 9"L WT: 1.6 lbs UPC: 723193799246

Read more less

Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 1kW, 18° Tilt, 85-135kHzEchonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money. Technical Specifications: Frequency - 85-135kHz 1kW Mounting Style - Thru-Hull Material - Bronze 18° Tilt Specifications: Cable Length (Feet): 26' Chirp: Medium Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 6"H x 8"W x 9"L WT: 6.4 lbs UPC: 010407340272

Read more less

GT51M-TH - Stainless Steel Thru-Hull DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-Pin)Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this thru-hull mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor.  For hull deadrises less than 5 degrees.GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Thru-Hull Imagining: Standard/Down/Side Cable Length (Feet): 5' + 30' y-extension Temperature: Yes Speed Included: No Pins: 12 Chirp: Medium/Non Traditional Box Dimensions: 6"H x 14"W x 17"L WT: 9.6 lbs UPC: 753759152925 Owner's Manual (pdf)

Read more less

Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 600W, 12° Tilt, 80-130kHzEchonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money. Technical Specifications: Frequency - 80-130kHz 600W Mounting Style - Thru-Hull Material - Bronze 12° Tilt Specifications: Cable Length (Feet): 26' Chirp: Medium Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 8"W x 8"L WT: 3.3 lbs UPC: 010407340203 Brochure (pdf)

Read more less

Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 600W, 18° Tilt, 80-130kHzEchonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money. Technical Specifications: Frequency - 80-130kHz 600W Mounting Style - Thru-Hull Material - Bronze 18° Tilt Specifications: Cable Length (Feet): 26' Chirp: Medium Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 5"H x 8"W x 8"L WT: 3.4 lbs UPC: 010407340210 Brochure (pdf)

Read more less

Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 12° Tilt, 130-210kHzEchonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money. Technical Specifications: Frequency - 130-210kHz 600W Mounting Style - Thru-Hull Material - Bronze 12° Tilt Specifications: Cable Length (Feet): 26' Chirp: High Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 8"W x 8"L WT: 3.4 lbs UPC: 010407340227

Read more less

Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 18° Tilt, 130-210kHzEchonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money. Technical Specifications: Frequency - 130-210kHz 600W Mounting Style - Thru-Hull Material - Bronze 18° Tilt Specifications: Cable Length (Feet): 26' Chirp: High Imagining: Standard Mounting Style: Thru-Hull Pins: 8 Speed Included: No Temperature: Yes Box Dimensions: 4"H x 8"W x 8"L WT: 3.4 lbs UPC: 010407340234

Read more less

165T/275LHW-12P Pocket Mount Combo Transducer for DFF3D & TZT3 DisplaysPocket Mount Combination TransducerThis is a new size housing (12 LX 5 W X 3.5 H) that contains DFF3D elements along with CHIRP elements.Standard Features DFF3D operating frequency 165 kHz Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16° High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25° 12M Cables Recommended for a TZT3 and DFF3D installation Built-in motion sensor Built in temp sensor This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Bronze 20 degrees tilt-element thru-hull w/temp for 16 degrees to 24 degrees hull deadrise (Beam angle:45 degrees @50kHz,12 degrees @200kHz) Specifications: Pins: 8 Mounting Style: Thru-Hull Imagining: Down Chirp: No Cable Length (Feet): 30' Temperature: Yes Speed Included: No Box Dimensions: 4"H x 8"W x 11"L WT: 4.9 lbs UPC: 010407320687 Owner's Manual (pdf)

Read more less

XI-9-19 Dual Beam Ice Transducer 455-240kHzFeatures: Operating Frequency: 240 kHz to 455 kHz Beamwidth: 9°, 19° Compatibility: ICE 35 ICE 45 ICE 55 WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
