5022 Panel Mount AGC/MDL Fuse Holder Replacement CapReplaces cap for 5021 Specifications: Fuse Type: AGC/MDL Type: Fuse Holders Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 632085050221

Read more less

5005 ANL 35-300AMP Fuse Block with CoverFeatures: Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow access in any direction For use on systems up to 32V DC Large 5/16" - 18 studs accept 5/16" (M8) ring terminals, 14 AWG to 2/0 AWG wire WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 8"L WT: 0.4 lbs UPC: 632085050054

Read more less

Fuse Holder ANL 300AProviding high-capacity fusing, fast response and very high interrupt ratings (ANL up to 6,000 Amps, Class-T up to 20,000 Amps), these fuse holders are ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. They also protect wiring from short circuits. Pro Installer fuse holders' durable construction allow fuses to run at maximum load. Radiused ends improve cable routing options ANL: for use with 5/16" (8mm) or 3/8" (10mm) ANL fuses WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 7"L WT: 0.4 lbs UPC: 843687006800 Brochure (pdf)

Read more less

MEGA Fuse 100A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 80 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 100 AMP Max Voltage Rating: 80V

Read more less

5164ANL Fuse35A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 35a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051648

Read more less

5056100 - Water Resistant ST-Blade Fuse Block with CoverThis Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.  Now with wing screws for toolless access.Features: Water-resistant design with a standard ring or spade-type terminals Allows for simple wiring with standard tools Accepts a wide range of wire sizes Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required Accepts ATO and ATC fast acting blade fuses Accepts ATO/ATC-Style Low Profile Circuit Breakers Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire 5056100 meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four write-on circuit labels Spare fuse and fastener storage in cover Wing screws designed for tool-free installation of cover to meet ABYC compliance Technical Specifications:Cover - yes Maximum Voltage - 32V DC Bus Material - Tin-plated Copper Mounting Holes - Accepts 1/4" (6mm) screws Terminal Screws - 4 x # 8-32 with captive star lock washer Wire Size - Input - (1) 8 AWG to 4 AWG  Wire Size - Load - (4) 16 AWG to 10 AWG  In the Box: 5056100 Busbar Instruction Manual *Sold as an Individual Quick Guide (pdf)

Read more less

6-Way Mega Fuse Holder with Busbar - 250ASix-way fuse holder for mega-style fuses with busbar (250A)Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Fuse Blocks Fuse Type: MEGA/AMG Amperage: 250a Box Dimensions: 2"H x 6"W x 8"L WT: 1.2 lbs UPC: 8719076051350 Quick Guide (pdf)Brochure (pdf)

Read more less

MIDI-Fuse 30A/58V-M6 (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses, which are known for their low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 30 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 65 mV Cold Resistance: 2 mΩ

Read more less

Replacement Shunt for BMV Monitors - *PCB is NOT Included*Replacement 500A/50MV shunt for BMV Monitors*BMV PCB is NOT included and must be purchased separately*Warranty InfoPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Class T Fuse Block 225-400 A - SealedApplications/Problems This Solves: Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself. Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats. Features: Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop. Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability. Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.  4 Year Warranty Specifications: Maximum Amperage: 225-400A Max Voltage: 80 VDC Ingress Protection Ratings: IP66, IP67, IP6K9K Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6) Mounting Screw Max Torque: 50 in-lbs (5.5 N-m) Busbar Material: Tin-Plated Copper

Read more less

MIDI 5x Fuse Block with Sealed Cover Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions Features: Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks. Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.  Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely. Specifications: Total Continuous Current Amps: 500 Max MIDI?AMI Fuse Value (Amps): 200 Ingress Protection Rating: IP67 Ignition Protected (SEA J1171)? Yes Output Stud Size: M6 Input Stud Size: M8 Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 8"L WT: 1.25 lbs UPC: 850067590064 Brochure (pdf)

Read more less

RT Fuse Block - 8 Circuit with CoverThe Egis RT Fuse Block is designed for optimal organization and protection of your electrical circuits. This 8-circuit fuse block comes with a durable cover, ensuring safety and reliability for your electrical systems. Ideal for automotive, marine, and various other applications, it simplifies the management of your fuses, making maintenance easier than ever.Each circuit is marked, allowing for quick identification and troubleshooting. The robust construction of the EGIS MOBILE RT Fuse Block ensures it can withstand the rigors of daily use while providing secure connections. Whether you're an enthusiast or a professional, this fuse block is an essential addition to your toolkit, offering peace of mind and superior performance.Features: 8 Circuits: Provides ample space for managing multiple electrical connections. Durable Cover: Offers protection against dust and accidental contact. Clear Markings: Facilitates easy identification and maintenance of circuits. Robust Construction: Built to withstand rigorous use in various environments. Specifications: Amps: 40 Circuit Positions: 8 Cover Included

Read more less

MRBF Dual Output Terminal Block - 30-300 AmpFeatures: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Ignition Protected When Used With Egis Mobile Electric MRBF Fuses safe for installation in closed compartments with potential explosive gases. Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  58 Vdc Rating: easily supports 12 to 48V nominal applications. 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 30-300A Stud Size: M8 (5/16") Mounting Hole Size: M10 (3/8") Interrupt Rating @ 48 Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 30-300 Fuse Type: Terminal Type: Fuse Blocks Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850053879531 Brochure (pdf)

Read more less

MRBF Terminal Fuse - 60 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 60 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 60a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879579

Read more less

RT Fuse Block 6 Position with Ground & LED IndicationThis 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 100 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 6 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Ground Block IncludedIncludes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.Ground Block SeparatesThe ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ATO/ATC/ATF Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 8"L WT: 0.6 lbs UPC: 850035199718 Quick Guide (pdf)

Read more less

RT Fuse Block 6 Position with LED IndicationThis 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 100 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 6 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Specifications: Amperage: 100a Fuse Type: ATO/ATC/ATF Type: Fuse Blocks Box Dimensions: 3"H x 3"W x 5"L WT: 0.5 lbs UPC: 850035199732 Quick Guide (pdf)

Read more less

5116 200A Class T FuseFeatures: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 200a Fuse Type: Class T Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.15 lbs UPC: 632085051167

Read more less

5101 MEGA®/AMG® Fuse - 100AMPFeatures: Most economical fuse for 100-300 Ampere circuit protection For use with Blue Sea Systems' MEGA®/AMG® Fuse Block WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: MEGA/AMG Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051013

Read more less

SafetyHub 150 Fuse BlockThe SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates upt to ten fused circuits. It can be used for Main or Branch DC power distribution. Four 30A-200A MIDI/AMI fuses ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers Six 1A-30A ATO/ATC fuses ideal for low-amp circuits including bilge pumps, electronics, and lights Sealed cover protects fuses from the harsh marine environment: IP66 rating - protected against powerful water jets Negative bus provides common location for negative collection Circuit identification label with write-on capability Fuse puller easily removes ATO/ATC fuses Cover provides storage space for two spare ATO/ATC fuses and two spare MIDI/AMI fuses NYPATCH coated MIDI/AMI fuse screws resist loosening over time Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats Fuses sold separatelyWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 3"H x 9"W x 12"L WT: 2 lbs UPC: 632085077488 Brochure (pdf)

Read more less

Terminal FuseColor: BrownAmperage: 75A Interrupt Rating satisfies ABYC requirements for DC Main circuit protection on large battery banks Ignition protected-safe for installation aboard gasoline powered boats Clear window-visual indication of blown condition Must be used with terminal fuse block WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 75a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 632085051808

Read more less

Communication Cable SG2320 (N2K) & SG240 (RB-C) M12 - 12"Com Cable connecting to an RV-C CANbus Network via an M12 DeviceNet Connector.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

5120 350AMP Class T FuseFeatures: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 350a Fuse Type: Class T Type: Fuses Box Dimensions: 2"H x 4"W x 6"L WT: 0.3 lbs UPC: 632085051204

Read more less

325A/80V CNN Fuse for Lynx ShuntVictron's 325A/80V fuse is designed to fit the Lynx Shunt VE. CanSpecifications: Rated Amperage: 325A Rated Voltage: 80V Terminal Size: 10mm Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 325a Type: Fuses Box Dimensions: 1"H x 4"W x 6"L WT: 0.1 lbs UPC: 8719076021940

Read more less

V8 Series 30 AMP Mini-ANL Fuse - 2 PackT-Spec high-current fuse protects your equipment and you in the event of an electrical short circuit.  Each of these heavy-duty fuses features a little window through which you can visually check the fuse's status.Features: Nickel plated Status window *Sold as a 2 PackWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Fuse Type: ANL Mini Type: Fuses Box Dimensions: 4"H x 4"W x 7"L WT: 0.5 lbs UPC: 086429272204

Read more less

MIDI 5 Circuit Fuse Block with Sealed Cover - M8 Inputs - M6 OutputsFeatures: Sealed marine-grade construction fuse block compatible with 5 MIDI/AMI BF type fused outputs Protects add-on circuits from accidental short circuits to the frame ground or battery negative, or from overload events Expandable with dual, triple, and quad link busbars for plug and play install and complete switching/protection solutions Specifications: Type: Fuse Blocks Box Dimensions: 4"H x 5"W x 7"L WT: 1.2 lbs UPC: 850067590095 Brochure (pdf)

Read more less

RT Fuse Block 12 Position with Ground & LED IndicationThis 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 10 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 12 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Ground Block IncludedIncludes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.Ground Block SeparatesThe ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ATO/ATC/ATF Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 8"L WT: 1 lbs UPC: 850035199725 Quick Guide (pdf)

Read more less

MT Series 9+3 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 9+3 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

MT Series 6+6 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 6+6 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

MT Series 3+9 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 3+9 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

Waterproof In-Line Fuse Holder Accepts 12-18 AWG wire 30A maximum fuse amperage Fuse sold seperatelyWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: AGC/MDL Type: Fuse Holders Box Dimensions: 1"H x 2"W x 4"L WT: 0.05 lbs UPC: 632085050610

Read more less

12 Position Fuse Block with LEDsThis 12-position led fuse block is built to simplify circuit protection and troubleshooting in 48V DC systems. Each circuit supports up to 30A, and an integrated LED indicator alerts you the moment a fuse blows—so you can identify and address issues at a glance.Designed for clean, centralized wiring in marine or mobile environments, this led fuse block handles up to 100A of input current through M5 threaded studs, with M4 output studs rated for 25A max per circuit. It’s compatible with 88 Series breakers.The housing is made from stainless steel, nickel-plated copper, and polycarbonate, ensuring long-term durability and corrosion resistance. Mounting is simple with 0.1695” holes, spaced 4.725” H x 2.725” W for the 12-position block.Whether you’re upgrading or building new, this LED fuse block delivers a clean, professional, and easy-to-maintain solution.Specifications: Max Voltage: 48V DC Input Current: 100A Breaker Type: 88 Series/BW 38 Series Input Terminal Rating: M5 Threaded Studs (100A max) Output Terminal Rating: M4 Threaded Studs (25A max) Material: Stainless Steel/Nickel-plated Copper/Polycarbonate Specifications: Amperage: 100 Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 6"W x 9"L WT: 0.55 lbs UPC: 810196332256

Read more less

MT Series 12-Position Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors 250A Total Output Current Integral 250A Ground Return Bus Sealed to IP66 & IP6K9K Supports ATM/MINI Fuses and Type 1 or Type 3 Circuit Breakers 5 Year Warranty *Fuses and Circuit Breakers Sold Separately Specifications: Amperage: 250 Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 1.45 lbs UPC: 850067590057 Brochure (pdf)

Read more less

ANL Fuse Block up to 4/0 Cable 35-750A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height Compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.03 lbs UPC: 850067590682

Read more less

MIDI Fuse Block with Black CoverFeatures: Designed for Harsh Environments with a high-temperature composite base and stainless-steel stud and nut hardware for maximum protection from corrosion. 58 Max Vdc Rating easily supports 12, 24, 36, and 48 nominal Vdc systems. Flexible Protective Cover ensures full 360-degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits. Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments. Stackable Side by Side design via interlocking dovetail features in the composite base. Supports Common Input Busbars when stacked side-by-side due to longer input stud lengths. Wire Tie Slots in Base allow optional secure tie-wrap mounting. Specifications: Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 4"L WT: 0.1 lbs UPC: 850053879951 Brochure (pdf)

Read more less

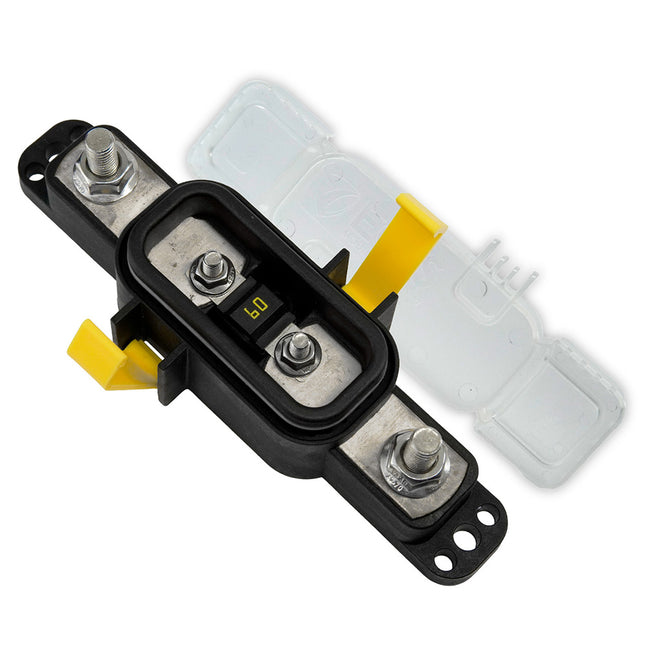

AMI/MIDI Fuse Block 30-200A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 0.65 lbs UPC: 850067590644

Read more less

Compact Med Amp AMI/MIDI Fuse BlockFeatures: Splash Resistant Protects against water splashes (IP54) when mounted properly. Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself. Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats. Stainless-Steel Self-Locking Hardware ensures long-term reliability and ease of installation. Tin-Plated Copper Busbars deliver superior electrical performance with minimal voltage drop. Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 4"L WT: 0.25 lbs UPC: 850067590651 Brochure (pdf)

Read more less

Compact ANL Fuse Block Up To 2/0 Cable 35-300AFeatures: Insulating Cover satisfies ABYC/USCG requirements. Swing Out Design allows replacement of the fuse without removing fasteners. Cover Breakouts allow wire access in any direction. Stainless-Steel Self-Locking Hardware ensures long-term reliability and ease of installation. Tin-Plated Copper Busbars deliver superior electrical performance with minimal voltage drop. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 4"H x 5"W x 7"L WT: 0.4 lbs UPC: 850067590699

Read more less

Split Buss Fuse Block 13 Circuit + Ground 200AFeatures: Compact Solution Combines Circuit Protection And Ground Return Buss Into One Installer-Friendly Device. 200A Continuous Current, 100A Maximum Per Input Three (3) Fused High-Amp (1-50A) Outputs Allow Protection Of All Circuits with One Solution. Two (2) Fused Output Groups Stainless Steel Self-Locking Hardware Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks Specifications: Amperage: 200 Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 7"L WT: 0.85 lbs UPC: 850074331773 Brochure (pdf)

Read more less

RT Fuse Block with 6 Independent Circuits with CoverFeatures: Ignition Protected when the latching cover is secure for use in engine bay / combustible environments Harsh Environment Design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options Includes Latching Protective Cover with integrated label recesses Specifications: Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 10"L WT: 0.5 lbs UPC: 850067590019

Read more less

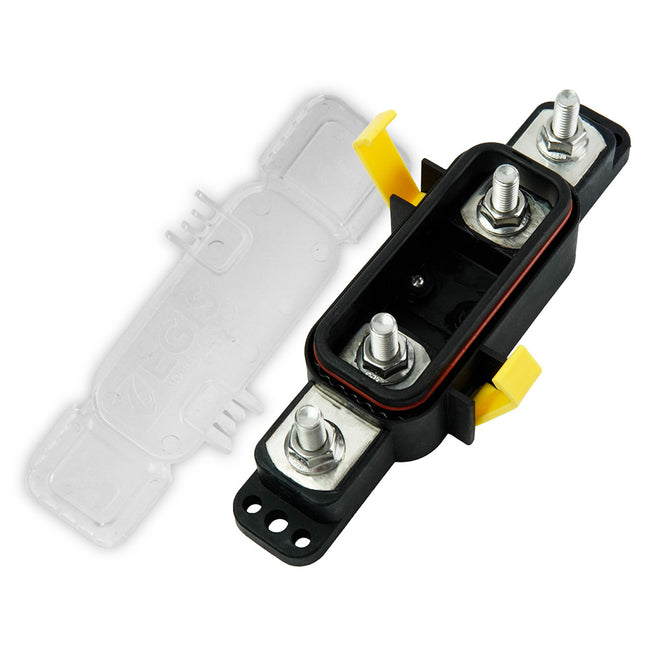

Class T Fuse Block 70-100A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 0.7 lbs UPC: 850067590705

Read more less

Fuse Block 13 Circuit + Ground 200A PDM-14Features: Compact Solution Combines Circuit Protection And Ground Return Buss Into One Installer-Friendly Device. 200A Maximum Continuous Current Three (3) Fused High-Amp (1-50A) Outputs Allow Protection Of All Circuits with One Solution. Stainless Steel Self-Locking Hardware Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks Integrated LED blown fuse indicators Specifications: Amperage: 200 Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 6"L WT: 0.9 lbs UPC: 850074331780 Brochure (pdf)

Read more less

RT Battery Terminal Mount Fuse Block 4 CircuitFeatures: Compact inline 4-position fuse block has single side wire entry for tight installation spaces. Ignition Protected when the latching cover is secure for use in engine bay / combustible environments. Harsh Environment Design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification Specifications: Type: Fuse Blocks Box Dimensions: 3"H x 5"W x 6"L WT: 0.3 lbs UPC: 850067590002 Brochure (pdf)

Read more less

AMG/Mega Fuse Block SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: MEGA/AMG Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.1 lbs UPC: 850067590668

Read more less

Mega Fuse Block M8 Stainless Self-Locking Hardware with Black CoverFeatures: Designed for Harsh Environments with a high-temperature composite base and stainless-steel stud and nut hardware for maximum protection from corrosion. 58 Max Vdc Rating easily supports 12, 24, 36, and 48 nominal Vdc systems. Flexible Protective Cover ensures full 360-degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits. Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments. Stackable Side by Side design via interlocking dovetail features in the composite base. Supports Common Input Busbars when stacked side-by-side due to longer input stud lengths. Wire Tie Slots in Base allow optional secure tie-wrap mounting. Specifications: Type: Fuse Blocks Box Dimensions: 4"H x 5"W x 7"L WT: 0.4 lbs UPC: 850053879968 Brochure (pdf)

Read more less

MRBF Terminal Fuse - 300AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Specifications: Amperage: 300 Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 850053879678 Brochure (pdf)

Read more less

MRBF Terminal Fuse - 175AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Specifications: Amperage: 175 Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 850053879647 Brochure (pdf)

Read more less

MRBF Terminal Fuse - 90AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Specifications: Amperage: 90 Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 850053879609 Brochure (pdf)

Read more less

Class T Fuse Block 450-600A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.3 lbs UPC: 850067590736

Read more less
