Micro Bulkhead Feed-ThruThe Bulkhead Feed-Thru allows ease of installation through panels or bulkheads and establishes future connection points in a network installation. The bulkhead feed-thru also maintains the integrity of watertight bulkheads by providing a waterproof seal and connectionFeatures rugged keyways for positive alignment of connections Waterproof rated to IP67

Read more less

OneFix Precision L1/L5 GNSS SystemFeatures: Transform any nav system with the ultimate and affordable positioning solution L1/L5 hi-precision GNSS receiver with QuadNav positioning GPS, Galileo, Beidou, and NavIC compatibility with optional Glonass sensor.  Gives sub 1m accuracy and fast 10Hz updates Advanced anti-spoofing algorithms and resistance to interference Multiple outputs:  NMEA 2000, NMEA 0183, wireless, SD card (for voyage recording,) and timing pulse Integrated web interface with satellite analytics plus nav, event & tracking features Supplied with high-performance dual band external antenna and 10 cable

Read more less

Maretron Mid Double-Ended Cordset - 0.5 M BlueMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.5m Box Dimensions: 1"H x 5"W x 6"L WT: 0.2 lbs UPC: 873804001890

Read more less

Maretron Mid Double-Ended Cordset - 0.5M GrayMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.5m Box Dimensions: 1"H x 5"W x 7"L WT: 0.15 lbs UPC: 873804001760

Read more less

Raymarine In-Line TerminatorIn-Line SeaTalkng Terminator f/Long Cable Runsold part number a80001 , now its a06074 Specifications: NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 723193783795

Read more less

Micro Termination ResistorsTermination Resistors are required on a NMEA 2000® network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.Screw terminal connector for positive connections Termination resistors are used to terminate both ends of the trunk line Specifications: Connection Gender: Male NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.05 lbs UPC: 873804001654

Read more less

SeaTalkngT-Piece Connector. Used for connecting white SeaTalkng Spur Cables to Blue SeaTalkng Backbone Cables.

Read more less

Blanking Plug f/SeaTalk ngThis blanking plug is a blanking plug for the SeaTalkng. Place blanking plug in unused SeaTalkNG Spur sockets to protect them.

Read more less

SeaTalkng Terminators attach at each end of SeaTalk backbone. Two are required per system.

Read more less

Micro Double-Ended Cordset - 1MMechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs UPC: 873804001517

Read more less

NMEA 2000 Blanking Cap - MaleCovers unused couplers. Protects unused tee connectors from dust and water. Comes in a 2-Pack.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887982374

Read more less

Fuel Flow Sensor - 2-100 LPHFeatures: Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH) All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal) Cable Length: 1m (3.28') Strainer Size: 200 Mesh (If not already installed after fuel filter) Port Size: 1/4" NPT Female Maximum Viscosity: 1000 cPs Maximum Operating Pressure: 68.95 Bar (1000 PSI) Weight: 775g (1.71 lb) Construction: Aluminum Housing Material Rotors: PPS (Ryton) Shafts: 316/304 Stainless Steel Magnets: Samarium Cobalt O-Ring: FKM (Viton™) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

4-Pin Female to 5-Pin Male NMEA 2000® Adapter Cable for echoMAP™ CHIRP 5XdvConnect your compatible 5-inch echoMAP™ CHIRP chartplotter/sounder combo to a NMEA 2000 network with this 6 foot (2 meters) adapter cable.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Female-Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 6"L WT: 0.5 lbs UPC: 753759151775

Read more less

Protective Screw Cover for NMEA2000 Male Micro Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 7"L WT: 0.05 lbs UPC: 5060998710652

Read more less

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power FeedInstalling small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.Features: Self-contained NMEA 2000 Network Integrated Termination Resistors 8x NMEA 2000 drops Ruggedized, flame retardant over-molded housing Metal coupling nuts Integrated EMI Shield Orange, UL Rated, 3-meter power cable Color coded wires, stripped and tinned Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices Simple installation, fewer components, more reliable, lower cost Accommodates the vast majority of compact NMEA 2000 networks Suitable for wet and harsh conditions- highly desirable in marine environments Reliable, long lasting connections Less likely to be susceptible to interference UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables Quick installation, no special tools required Technical Specifications:Electrical Rated Current - 3A Rated Voltage - 60 V (AC/DC) Internal Termination Resistors - 2 x 120Ω 250mW Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 – “A” – polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - TPU (Halogen Free) over Epoxy filled PBT housing Flammability rating - UL94 V-0 Internal Housing Shield - Copper foil Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.8mm Cable Length - 3m Wire Length - 150mm (10mm stripped and tinned) Wire Jacket - PVC, Red & Black Wires - 16 AWG (stripped and tinned) Drain - 18 AWG (34 strand tinned copper) Cable Shield - Al-mylar Weight - 410g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 6"W x 8"L WT: 0.9 lbs UPC: 5060998710188 Owner's Manual (pdf)Brochure (pdf)

Read more less

N2K Micro Gender Changer - Female to Female - .25MUse between two cable connectors of the same type and gender of connector on an NMEA 2000® backbone.Manufactured using Actisense designed connectors with 0.25m UL certified cable, the gender changers offer easy and secure connections.The gender changers are available in male and female versions.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.25m Box Dimensions: 1"H x 6"W x 6"L WT: 0.1 lbs UPC: 5060998710072

Read more less

NMEA 2000® Multi-Port T-Connector - *Case of 5*Make NMEA 2000 installations easier with our multi-port T-connector. This solution creates a more robust NMEA 2000 backbone by reducing issues with breaking points as well as stress induced by long back bones. The rigid construction is less prone to failure and decreases installation time.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 3"W x 4"L WT: 2.5 lbs

Read more less

NMEA 2000® Multi-Port T-ConnectorMake NMEA 2000 installations easier with our multi-port T-connector. This solution creates a more robust NMEA 2000 backbone by reducing issues with breaking points as well as stress induced by long back bones. The rigid construction is less prone to failure and decreases installation time.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 4"L WT: 0.5 lbs UPC: 753759182311

Read more less

NMEA 2000 field installable connector - maleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 1"W x 1"L WT: 0.09 lbs UPC: 753759078362

Read more less

NMEA 2000® Backbone/Drop Cables (Right Angle) - 1'Extend your NMEA 2000 backbone with our 1 foot (0.3 m) or 6 foot (1.82 m) right angle backbone cable.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.3m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 6"L WT: 0.3 lbs UPC: 753759138264

Read more less

Fuel Flow Sensor - 25-500 LPH/6.6-132 GPHFeatures: Operating Temperature: -40°C to 80°C (-40°F to 176°F) Storage Temperature: -65°C to 170°C (-85°F to 338°F) Port Size: 1/4" NPT Female Cable Length: 1M (3.28 ft) Maximum Viscosity: 1000 cPs Pressure: 68.95 Bar (1000 PSI) Strainer Size: 200 Mesh (If not already installed after fuel filter) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

The TLM100 is used to sense levels of liquid tanks using ultrasonic technology and transmit the liquid levels over the NMEA 2000 network. This allows you to observe tank levels anywhere on the vessel where there is an NMEA 2000 compatible display such as the Maretron DSM250. The TLM100 is capable of sensing tanks up to 40" (1.02m) in depth. It can be used for diesel, fresh water, grey water, black water, and oil tanks. Unlike most tank senders that only work with rectangular tanks, the TLM100 can be calibrated for irregular tank shapes so you know the true level of your tanks. The TLM100 can be mounted on tanks with a SAE J1810 5-hole mounting pattern, or to tanks using 1.5" NPT or 1.25" BSP threaded openings via available adapters. The TLM100 has an optional airlock for black water applications to keep the face of the ultrasonic transmitter from fouling, and an optional focus tube to allow use on boats with planing hulls when the vessel spends a significant amount of time with the bow pitched up. Best of all, the TLM100 is NMEA 2000 certified so you can view any and all tank levels anywhere on the vessel using a compatible NMEA 2000 display. The TLM100 is a key component of Maretron's N2KView vessel monitoring and control system. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge. Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly Screw connector for positive connnection Termination resistors are used to terminate both ends of the trunk line Specifications: Data Interface: NMEA 2000 Connection Gender: Female NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804002354

Read more less

Micro Termination ResistorsTermination Resistors are required on a NMEA 2000® network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.Screw terminal connector for positive connections Termination resistors are used to terminate both ends of the trunk line Specifications: Connection Gender: Female NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804001661

Read more less

Micro Field-Attachable ConnectorField-attachable connectors allows you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.Color-coded screw terminals make for error-free field installation Rugged housing material designed to withstand harsh marine environments Specifications: Connection Gender: Female NMEA 2000 Connectors: Field Connectors Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804001685

Read more less

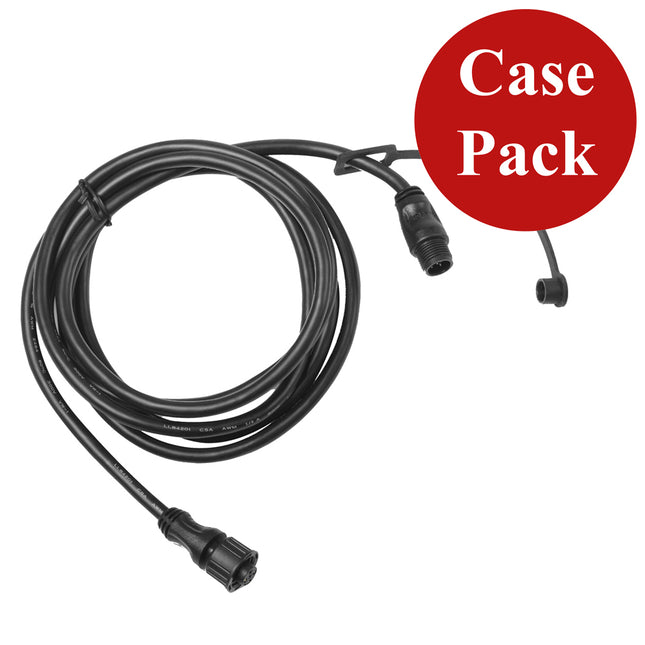

NMEA 2000® Backbone/Drop Cable - 6' (2M) - *Case of 10*Extend your NMEA 2000® backbone with Garmin's 1' (0.3M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 5"L WT: 2 lbs

Read more less

GFS™ 10 Fuel SensorAdd fuel tracking capabilities to your Garmin chartplotter and optimize your boat's fuel economy. The GFS 10 tracks fuel flow use and sends the data to your chartplotter via the Garmin CANet or NMEA 2000.Unlike other fuel flow sensors, the GFS 10 will include fuel level sensing capability when connected to an existing analog fuel gauge or resistive fuel tank sensor. Maximum fuel flow rate for the GFS 10 is 50 gallons per hour, and the minimum flow rate is two gallons per hour. Note: GPSMAP 4xx and 5xx series CANet compatible units require a CANet kit to complete the connection. The GFS 10 does not work with diesel engines. The GFS 10 does not work with fuel injected gas engines with a fuel return line. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 3"H x 8"W x 10"L WT: 2.13 lbs UPC: 753759076337 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NMEA 2000 Inline TerminatorFor proper termination of a network in a single piece, space saving design. The inline terminator connects between a backbone cable and a drop cable, while still maintaining proper termination for the end of the network.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887991345

Read more less

NMEA 2000 Single Tee ConnectorAncor's NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887982268 Brochure (pdf)

Read more less

NMEA 2000 Backbone Cable - 2MAncor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The backbone cables are available in four lengths from 0.5 meter (1.6 feet) to 10 meters (32.8 feet) to cover a wide variety of applications.Features: Color coded for easy installation and component identification Large 18 AWG power conductors to reduce voltage drop and provide better reliability for critical backbone cables NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m Box Dimensions: 3"H x 5"W x 8"L WT: 0.6 lbs UPC: 091887982237 Brochure (pdf)

Read more less

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - MalePanel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 6"L WT: 0.05 lbs UPC: 5060998710164 Owner's Manual (pdf)Brochure (pdf)

Read more less

Protective Screw Cover for N2K Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 5"L WT: 0.01 lbs UPC: 5060998710805

Read more less

NMEA 2000 Engine Monitoring Unit - Analog to NMEA2000 Engine GatewayShare engine information on the NMEA 2000 bus.The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway which converts data from analogue engine gauges/senders into NMEA 2000 data. The EMU-1 enables the sharing of engine data throughout the NMEA 2000 bus. It digitizes analogue engine sensors, enabling NMEA 2000 display devices to monitor the connected engine(s) on a vessel.The EMU-1 can monitor vital engine parameters such as temperature, pressure RPM and fluid levels from up to two engines.The EMU-1 has a PC-based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.An Actisense PC to NMEA 2000 Gateway (NGX-1/NGT-1) is required to configure the EMU-1.The NGX-1 or NGT-1 must be used to update the firmware, connect the Toolkit and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGX-1 page and/or NGT-1 page for product details.Features: Enables analogue signals to be converted to NMEA 2000 messages Convert signals from up to two engines (that share a common ground) with a single EMU-1 6 gauge / parameter inputs 4 alarm inputs 2 additional auxiliary inputs 2 Tacho inputs Customized IP65 case Diagnostic LED’s Wide power compatibility of 9 to 35VDC No need to change an existing engine Easy installation Easy to configure to suit the connected engine Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000® Optional DIN rail mounting kit available Total engine hours are logged by the monitoring of engine Tach (RPM) input Technical Specifications:Power Supply Supply Voltage - 9 to 35VDC Supply Current - Typically < 25mA @ 12VDC Supply Protection - Continuous reverse polarity protection and load dump protection (meets SAE J1113) Supply Connector - Pluggable 2-way screw terminal, 3.5mm pitch Supply Voltage (NMEA 2000 Port) - 9 to 29VDC Supply Current (NMEA 2000 Port) - < 20mA @ 12VDC from NMEA 2000 bus Load Equivalent Number (LEN) - 1 Supply Protection (NMEA 2000 Port) - Continuous reverse polarity protection and overvoltage protection to 40V NMEA 2000 Port – In/Out Compatibility - Fully NMEA 2000 certified Galvanic Isolation - 2500V input to ground, 1500V output to ground using ISO-Drive Speed / Baud Rate - 250kbps NMEA 2000 Connector - M12 male (A coded) connector Gauge Inputs Voltage Range - 0 to 35VDC Input Impedance - > 50kΩ Sender Feed - 0, 4 or 18mA Accuracy - <= 2% Input Connector - Pluggable 6-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Alarm Inputs Voltage Range - 0 to 37VDC Input Impedance - > 50kΩ Threshold Voltage - Configurable, default is 5V Alarm Polarity - Configurable, default is alarm on low input Accuracy - <= 2% Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Overvoltage protection to ±40V Tacho Inputs Voltage Range - ±3 to ±60V Input Impedance - > 100kΩ to ground Input Pulse Range - 4 to 50,000Hz Accuracy - <= 1% Sender Compatibility - Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender Threshold - Automatically adjusts to signal level Input Connector - Pluggable 4-way screw terminal, 3.5mm pitch Input Protection - Can withstand an ignition pulse to ±500V Engine LogEngine Hours - 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memoryMechanical Housing Material - Polycarbonate Protective Lid Material - Polycarbonate Sealing Materials - Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent Dimensions - 127mm (L) x 112mm (W) x 48mm (H) Weight - 250g Mounting - 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request Approvals and Certifications EMC - EN 60945 (sections 9 & 10) Environmental Protection - IP66 (PCB housing) Operating Temperature - -20°C to +55°C Storage Temperature - -30°C to +70°C Recommended Humidity - 0 – 93% RH Guarantee - 3 years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 3"H x 6"W x 9"L WT: 1 lbs UPC: 5060998710331 Owner's Manual (pdf)Brochure (pdf)

Read more less

Ambient Air Temperature Probe (-20°C to 80°C or -4°F to 176°F)WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

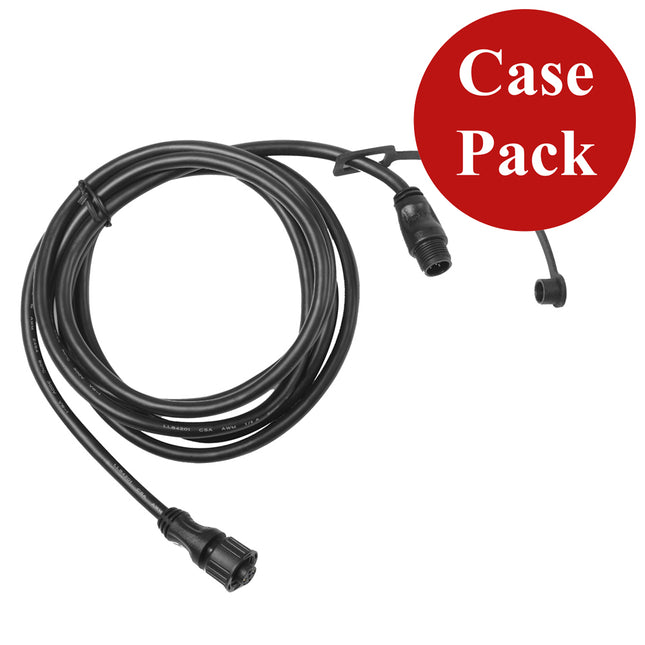

NMEA 2000® Backbone/Drop Cable - 12' (4M) - *Case of 5*Extend your NMEA 2000® backbone with Garmin's 1' (0.3M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 4m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 5"W x 6"L WT: 2 lbs

Read more less

NMEA 2000® Backbone/Drop CableExtend your NMEA 2000® backbone with Garmin's 30' (10M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 10m Box Dimensions: 1"H x 4"W x 5"L WT: 1.3 lbs UPC: 753759078126

Read more less

WLN10 Smart NMEA to WiFi Converter - 4800 BaudDigital Yacht’s WLN10 Smart NMEA to WiFi gateway takes iPad and tablet integration afloat even further with the ability to connect to existing on board GPS, AIS and instrument systems and transfer data wirelessly to an iPad or tablet – allowing compatible apps to display and compute with real time information. The WLN10 creates a secure, password protected wifi network on board to footprint the boat with data.When connected to, for example, an AIS system, real time AIS target positions and identity data will be displayed on detailed electronic charting through compatible apps including NavLink, TimeZero, iAIS, iSailor, Seapilot and hundreds more. The tablet becomes a full function navigation display.This version of the WLN10 can now be programmed through its simple browser interface for NMEA 0183 data at 4800 or 38400 baud and for initial programming: Just logon to the IP address and you can set baud rate, SSID and password.  No complicated programming! Through the web interface, you can also view NMEA data received for easy fault finding of issues.The WLN10 Smart supports both UDP (for multiple connections) and TCP/IP interfaces for maximum compatibility with apps so you can be using a PC at the chart table with an iPad on deck. It’s also bidirectional so apps can control an autopilot if this function is enabled.The Smart WLN10 has one NMEA0183 input which can be configured through the web interface. You can also utilise our SeaTalk to NMEA adaptor to allow SeaTalk instrument data to be interfaced directly to the WLN10 Smart.Features: NMEA 0183 to WiFi server (4800 baud or 38400 baud) Web interface for setup and initial programming Set baud rate, SSID and password through web interface Supports both UDP (for multiple connections) and TCP/IP interfaces View NMEA data received for easy fault finding of issues. Supports a bi directional Wi-Fi interface Fully compatible with popular navigation apps and software Easy to install IPX4 black box solution Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 8"L WT: 0.35 lbs UPC: 081159830885

Read more less

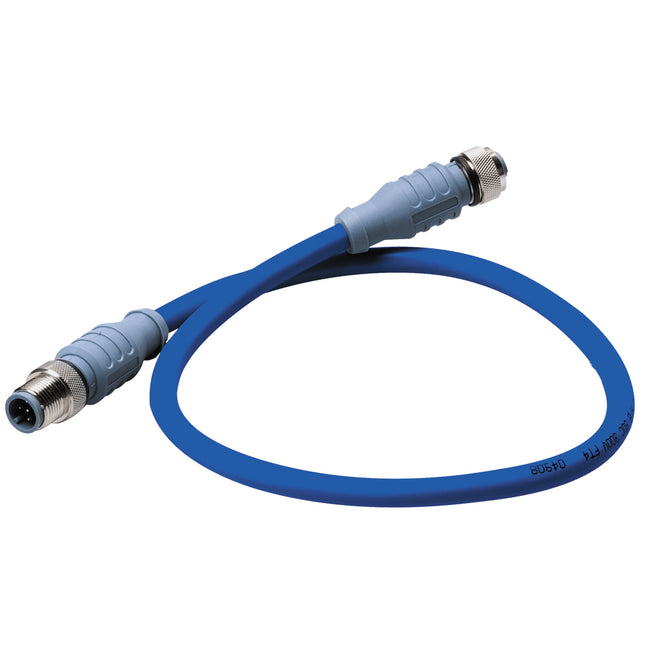

Maretron Mid Double-Ended Cordset - 2 M BlueMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m Box Dimensions: 1"H x 4"W x 6"L WT: 0.6 lbs UPC: 873804001913

Read more less

Lowrance TR-120-KITSet of 1 male and 1 female NMEA 2000r7reg; terminators Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 042194533575

Read more less

FI5002 NMEA2000 Junction BoxThe FI5002 is an NMEA2000 Certified, 6-Port Junction Box for use with for use with any NMEA2000 network. The FI5002 features 2 NMEA2000 backbone ports, as well as 6 NMEA2000 ports. It will support up to 2A or 40 (LEN) on a 12VDC network.The FI5002 will also support 24VDC networks. Features 2 NMEA2000 backbone ports 6 NMEA2000 ports Less than 2A power requirement on a 12VDC system WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 7"W x 9"L WT: 1.2 lbs UPC: 611679314697 Quick Guide (pdf)

Read more less

IF-NMEA2K2The IF-NMEA2K2 is an interface to convert data from NMEA0183 format to NMEA2000 / CAN bus format and vice versa. In addition to the normal conversion mode, the High Speed mode to convert sensor data for Autopilot as well as an AIS mode dedicated to AIS data are available in one compact unit. With these three modes, you can optimize the conversion speed depending on the situational requirements. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 8"W x 11"L WT: 1 lbs UPC: 611679345332 Owner's Manual (pdf)

Read more less

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - FemalePanel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 7"L WT: 0.05 lbs UPC: 5060998710157 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 2000 terminator - maleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 753759078164

Read more less

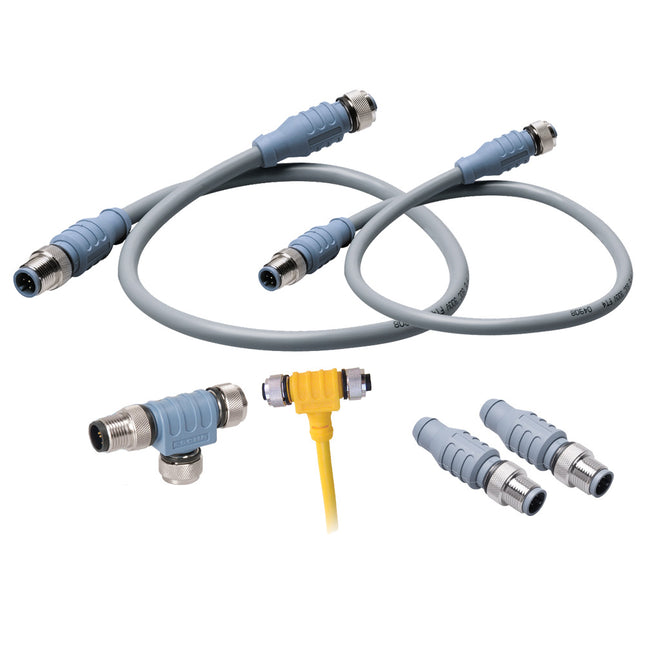

NMEA 2000 starter kit includes:Do you need to build a basic NMEA 2000 network? Look no further than our NMEA 2000 starter kit. This kit includes an NMEA 2000 drop cable (2 m), NMEA 2000 backbone cable (6 m), NMEA 2000 power cable (2 m), two NMEA 2000 T-connectors, NMEA 2000 male terminator and NMEA 2000 female terminator.Features: NMEA 2000 drop cable (2M) NMEA 2000 backbone cable (6M) NMEA 2000 T-connector and terminator kit NMEA 2000 power cable with T-connector kit WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Starter Kits Box Dimensions: 2"H x 6"W x 8"L WT: 2.2 lbs UPC: 753759100766

Read more less

NMEA 2000® Backbone/Drop CableExtend your NMEA 2000® backbone with Garmin's 6' (2M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs UPC: 753759078102

Read more less

NMEA 2000 T-Connector - 6 PortsAs the NMEA 2000 network expands beyond the 3-device limit of Digital Yacht’s NMEA 2000 Starter Kit, users can use this 4-way T-piece to add another four additional devices. With male > female > female connectors, multiple T-pieces can be plugged together or added to the 4-way T-piece included in the starter kit. Also, The 4x lower “drop cable” connector is female so that there are no exposed pins when the drop cable is removed.*Digital Yacht can supply NMEA 2000 cables and connectors to expand the NMEA 2000 to whatever size is needed (up to the maximum 50 NMEA 2000 device limit).Features: NMEA 2000 4 x T-pieces Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating of IP68 Quick Guide (pdf)

Read more less

NMEA 2000 T-Connector - 1-Way Extension BlockAs the NMEA 2000 network expands beyond the 3-device limit of Digital Yacht’s NMEA 2000 Starter Kit, users can use one of these single T-pieces to add devices. With male > female > female connectors, multiple T-pieces can be plugged together or added to the 4-way T-piece included in the starter kit. The lower “drop cable” connector is female so that there are no exposed pins when the drop cable is removed.*Digital Yacht can supply NMEA 2000 cables and connectors to expand the NMEA 2000 to whatever size is needed (up to the maximum 50 NMEA 2000 device limit).Features: NMEA 2000 Single T-Piece Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating of IP68 Quick Guide (pdf)

Read more less

NMEA 0183 with Audio CableNetwork your compatible GPSMAP® chartplotter with this NMEA 0183 data communication cable. Includes bare wires and an RCA connector for audio connection to any stereo setup, including FUSION. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 0183 Box Dimensions: 1"H x 5"W x 5"L WT: 0.4 lbs UPC: 753759218690

Read more less
