NMEA 2000 T-ConnectorOur NMEA 2000 T-Connector makes it easy to expand your marine electronics network by providing secure connection points between backbone cables and connected devices. Built to NMEA 2000 standards, each NMEA T-connector features rugged, waterproof 5-pin connectors for reliable data transmission in harsh marine environments.These t-connectors give you flexible installation options for both small and complex NMEA 2000 networks. Whether you’re adding a single display, integrating multiple sensors, or connecting additional power feeds, these compact, durable t-connectors help keep wiring organized, improve accessibility, and ensure your network remains dependable and efficient over time. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 7"L WT: 0.05 lbs UPC: 810196330344 Brochure (pdf)

Read more less

NMEA 2000® Backbone/Drop Cable - 1' (0.3M) - *Case of 10*Extend your NMEA 2000® backbone with Garmin's 1' (0.3M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.3m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 5"W x 7"L WT: 0.9 lbs

Read more less

PRO NMEA Buffer - 1 OPTO Input, 6 ISO-Drive Outputs, Serial Port, Pluggable Screw TerminalsSafely connect one Talker to six Listeners with full isolation.The Type-approved NMEA Buffer PRO-NBF-1 Buffer isolates and buffers NMEA 0183 data, with the power to drive multiple devices.Able to distribute up to six identical, amplified streams of data from one source, the NMEA signals are buffered to ensure that each Listener receives the data at the required voltage levels, providing consistent data quality.Isolation of the input and outputs ensures the protection of the source Talker device and Listener devices.The NMEA Buffer has ISO-Drive™ technology on the outputs and OPTO-isolation on the input, which enables you to connect the NMEA 0183 Buffer with complete peace of mind.The stainless steel housing makes the device rugged, sturdy, and gives it increased durability. The metal case also acts as an RF Shield, making the device an ideal addition to commercial installations.To make installation quick and simple, the PRO-NBF-1 features 2-part pluggable connectors that allow use of screw terminals*, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead.The optional strain relief brackets can be provided to ensure reliable professional cable management.Helpful LEDs indicate power, input, and output operation.Features: One Opto-Isolated Input Six ISO-Drive™ outputs Outputs automatically track the input baud rate RS-232, RS-422 and RS-485 Listener compatible ISO-Drive separates the Listener from the Talker to protect both the PRO-NBF-1 and each connected device Wide compatibility means simplified installation Simple installation saves time and money and provides peace of mind Type Approved (RINA) Technical Specifications:Power Supply Input Supply Voltage - 9 to 35V DC Input Supply Current - 150mA max @ 12V DC (all outputs @ full drive into 100Ω loads) Input Protection - Continuous reverse polarity and ESD protection Power Indicator - LED, Blue – Indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch NMEA 0183 Port – Listener & Talkers Number of Listener / Input Ports - One isolated NMEA 0183 Listener Number of Talker / Output Ports - Six isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible Speed/baud rate - 4800 to 115200 bps Talker Output Voltage drive - >= 2.2V (differential) into 100Ω Talker Output Current drive - 20mA max. Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15V to +15V continuous, -35V to +35V short term (<1 second) Listener Input Protection - Current limited, overdrive protection to 40V DC, and ESD protection Listener Data Indicator - LED, green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V Mechanical Housing Material - 316 Stainless Steel Dimensions - 139mm (L) x 128mm (W) x 27mm (H) Weight - 335g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications EMC - EN 60945:2002 (Fourth Edition – 2002), DNVGL-CG-0339:2019 Compass safe distance - 600mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Maximum Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 10"L WT: 1 lbs UPC: 5060998710546 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

N2KEXT-15RD 15' NMEA 2000 Cable15' NMEA 2000 Cable Specifications: Data Interface: NMEA 2000 Connection Gender: Male-Female Cable Length (Meters): 4.5m Box Dimensions: 3"H x 4"W x 7"L WT: 0.5 lbs UPC: 042194529745

Read more less

SeaTalkng Backbone Extender for extending blue SeaTalkng Backbone Cables.

Read more less

Spur CableRaymarine 400MM elbow Spur Cable for SeaTalkng Specifications: Cable Length (Meters): 400mm Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 723193060421

Read more less

NMEA 2000 Starter Kit - Dual UnitFrom boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking on your Humminbird control head. The NMEA 2000 Starter Kit - Dual provides the essential components to build a dual device NMEA 2000 network.Features: Compatible with: HELIX G4N models and all SOLIX models Compatible Humminbird Legacy models (must also use (1) AS ETH NMEA2K and (1) AS EC QDE) : HELIX 7 G2N/G3N, all HELIX 8, all HELIX 9, all HELIX 10, all HELIX 12 Kit includes: (1) 1 meter power cable and T-connector, (1) male terminator, (1) female terminator, (1) T-connector, (2) 2 meter (6.5ft) drop cables 1-Year Limited Warranty

Read more less

NMEA 2000 Male Terminator - 120 ohmNMEA 2000 terminators are essential components for completing and stabilizing your marine electronics network. Installed at each end of the backbone, these 120-ohm resistive terminators ensure proper signal integrity, reduce interference, and prevent data loss across all connected NMEA 2000 devices.Our terminators are engineered from marine-grade materials to resist corrosion, moisture, and vibration. They maintain full compliance with NMEA 2000 standards and are easy to install in both new builds and retrofit projects.Whether you’re expanding your system or troubleshooting, NMEA terminators are critical for dependable network performance in any environment. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 7"L WT: 0.01 lbs UPC: 810196330412 Brochure (pdf)

Read more less

The new NMEA 2000 analog adapters are the perfect accessories to bring any helm into the digital age. Simple to install and easy to set up, the NMEA 2000 adapters take signals generated by traditional analog gauges and sensors and convert that data into NMEA 2000 format. The data can then be broadcast over NMEA 2000 protocol to the Garmin GMI 10 multifunction instrument display. The combination of these adapters with a Garmin GMI 10 will transform even the most out-of-date dashboard into a glass, digital helm.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 6"W x 6"L WT: 0.99 lbs UPC: 753759098483 Owner's Manual (pdf)

Read more less

GA200 GPS Sensor for AIS700The GA200 is an external antenna, suitable for improving the reception of the internal GNSS (GPS / GLONASS) receivers of compatible MFDs, AIS devices, and VHF radios. The GNSS antenna is supplied with a fitted 10 m (33 ft.) cable. The length of the antenna cable can be extended if required. The antenna cable length can be extended by up to 10 m (33 ft.), giving a total maximum cable length of 20 m (66 ft.)

Read more less

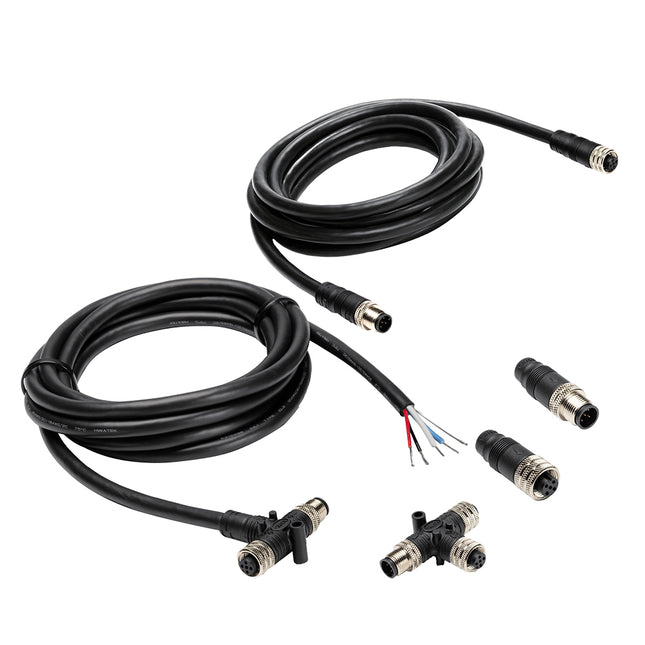

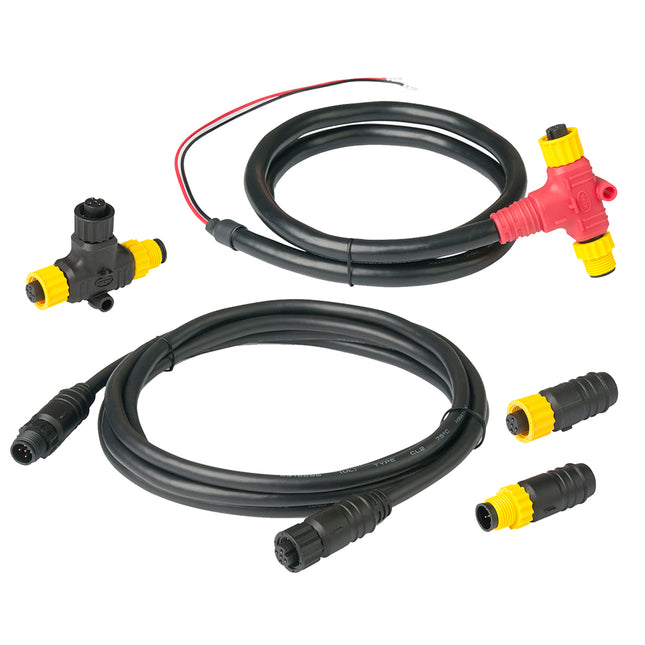

NMEA 2000 Starter Kit - Single UnitFrom boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking on your Humminbird control head. The NMEA 2000 Starter Kit - Single provides the essential components to build a single device NMEA 2000 network. Features: Compatible with: HELIX G4N models and all SOLIX models. Compatible Humminbird Legacy models (must also use (1) AS ETH NMEA2K and (1) AS EC QDE) : HELIX 7 G2N/G3N, all HELIX 8, all HELIX 9, all HELIX 10, all HELIX 12 Update bullet #3 : Kit includes: (1) 1 meter power cable and T -connector, (1) male terminator, (1) female terminator, (1) T-connector, (1) 2 meter (6.5ft) drop cable 1-Year Limited Warranty

Read more less

N2KEXT-2RD 2' NMEA 2000 Cable2' NMEA 2000 Cable Specifications: Data Interface: NMEA 2000 Connection Gender: Male-Female Cable Length (Meters): 0.6m Box Dimensions: 2"H x 4"W x 7"L WT: 0.15 lbs UPC: 042194529769

Read more less

NMEA 2000® T-Connector - 10-PackAdd components to your NMEA 2000 network by installing our T-connector on your backbone cable. The revised version of this T-connector is offset by 45 degrees compared to the previous version. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 2"W x 3"L WT: 0.4 lbs

Read more less

T-ConnectorFor use with red NMEA network Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 2"H x 3"W x 5"L WT: 0.1 lbs UPC: 042194529677

Read more less

NMEA 2000 Female Terminator - 120 ohmNMEA 2000 terminators are essential components for completing and stabilizing your marine electronics network. Installed at each end of the backbone, these 120-ohm resistive terminators ensure proper signal integrity, reduce interference, and prevent data loss across all connected NMEA 2000 devices.Our terminators are engineered from marine-grade materials to resist corrosion, moisture, and vibration. They maintain full compliance with NMEA 2000 standards and are easy to install in both new builds and retrofit projects.Whether you’re expanding your system or troubleshooting, NMEA terminators are critical for dependable network performance in any environment. Specifications: Connection Gender: Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 7"L WT: 0.01 lbs UPC: 810196330429 Brochure (pdf)

Read more less

Mid Double-Ended Cordset - 1 Meter - BlueDouble-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.Features: Rugged, IP68 rated connectors for continued connection integrity in marine environments Various cable lengths to match installatin requirements Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable Color: Blue Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1m Box Dimensions: 1"H x 6"W x 6"L WT: 0.3 lbs UPC: 873804001906

Read more less

MS-1085-N Rectangular Magnetic Switch for OutdoorsApplications: Convenient surface mounting Mounting screws included Specifications: ABS Plastic Enclosure IP67 Hermetically sealed reed switch encapsulated in polyurethane WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NMEA 2000 T ConnectorWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Tee Connectors Box Dimensions: 1"H x 2"W x 3"L WT: 0.04 lbs UPC: 753759076740

Read more less

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge. Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly Screw connector for positive connnection Termination resistors are used to terminate both ends of the trunk line Specifications: Connection Gender: Male Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.15 lbs UPC: 873804002361

Read more less

Mini PowertapA powertap is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide "bus" power. Typically a Powertap is placed as central as possible between total devices on backbone. Maretron Powertap uniquely provides two power inputs permitting doubled power provision for devices. Connects power supply to NMEA 2000® Trunk Line in convenient plug/play fashion Replaceable fuses to protect bus and connected components from excessive current Provides LED status indication of power and correct polarity connection for simple diagnostics. Power cord not included    Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Power Box Dimensions: 3"H x 4"W x 7"L WT: 1.1 lbs UPC: 873804002415

Read more less

Maretron's TMP100 measures the temperature for up to 6 temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high temperature thermocouple probes. Optional thermistor probes (-20 deg. C to 80 deg. C or -4 deg. F to 176 deg. F) cover a wide range of applications including cabin air temperature, engine room air temperature, refrigerator/freezer temperature, under bolt temperature (inverters, charges, pumps, motors, etc), tank temperatures (live well bait, hot water, etc) and air duct temperatures. The optimal thermocouple probes (0 deg. C to 900 deg. C or 32 deg. F to 1652 deg. F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NMEA 2000 T-Connector - MaleThis NMEA 2000 T-connector offers connection between NMEA 2000 drop cables and backbone cables. The couplers connect to the corresponding T-connectors and backbone cables, creating a simplified installation. Features: Includes (1) NMEA 2000 T-connector 1-Year Limited Warranty

Read more less

IPG100 (Internet Protocol Gateway) lets you connect Maretron black boxes (MBB100's), Maretron touch screens (DSM800's), PC's, Mac's, tablets, or smartphones to an NMEA 2000 network so you can monitor and control your vessel using Maretron's N2KViewr software. The conventional way of viewing NMEA 2000 information is with a display on the vessel that is directly connected to an NMEA 2000 network, but with the IPG100, you are not limited to direct connected displays. With the IPG100, you can use any device running N2KViewr software to monitor and control your vessel from onboard or ashore.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Maretron Mid Double-Ended Cordset - 0.5M GrayMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.5m Box Dimensions: 1"H x 5"W x 7"L WT: 0.15 lbs UPC: 873804001760

Read more less

Raymarine In-Line TerminatorIn-Line SeaTalkng Terminator f/Long Cable Runsold part number a80001 , now its a06074 Specifications: NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 723193783795

Read more less

Micro Termination ResistorsTermination Resistors are required on a NMEA 2000® network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.Screw terminal connector for positive connections Termination resistors are used to terminate both ends of the trunk line Specifications: Connection Gender: Male NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 2"L WT: 0.05 lbs UPC: 873804001654

Read more less

SeaTalkngT-Piece Connector. Used for connecting white SeaTalkng Spur Cables to Blue SeaTalkng Backbone Cables.

Read more less

SeaTalkng Terminators attach at each end of SeaTalk backbone. Two are required per system.

Read more less

Micro Double-Ended Cordset - 1MMechanical Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 1m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs UPC: 873804001517

Read more less

NMEA 2000 Blanking Cap - MaleCovers unused couplers. Protects unused tee connectors from dust and water. Comes in a 2-Pack.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 5"L WT: 0.03 lbs UPC: 091887982374

Read more less

Fuel Flow Sensor - 2-100 LPHFeatures: Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH) All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal) Cable Length: 1m (3.28') Strainer Size: 200 Mesh (If not already installed after fuel filter) Port Size: 1/4" NPT Female Maximum Viscosity: 1000 cPs Maximum Operating Pressure: 68.95 Bar (1000 PSI) Weight: 775g (1.71 lb) Construction: Aluminum Housing Material Rotors: PPS (Ryton) Shafts: 316/304 Stainless Steel Magnets: Samarium Cobalt O-Ring: FKM (Viton™) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

Protective Screw Cover for NMEA2000 Male Micro Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 7"L WT: 0.05 lbs UPC: 5060998710652

Read more less

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators & Power FeedInstalling small NMEA 2000® networks is quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking ‘plug & play’ to the next level.Features: Self-contained NMEA 2000 Network Integrated Termination Resistors 8x NMEA 2000 drops Ruggedized, flame retardant over-molded housing Metal coupling nuts Integrated EMI Shield Orange, UL Rated, 3-meter power cable Color coded wires, stripped and tinned Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices Simple installation, fewer components, more reliable, lower cost Accommodates the vast majority of compact NMEA 2000 networks Suitable for wet and harsh conditions- highly desirable in marine environments Reliable, long lasting connections Less likely to be susceptible to interference UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables Quick installation, no special tools required Technical Specifications:Electrical Rated Current - 3A Rated Voltage - 60 V (AC/DC) Internal Termination Resistors - 2 x 120Ω 250mW Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass filled), black Contact Polarization - Standard M12 – “A” – polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - TPU (Halogen Free) over Epoxy filled PBT housing Flammability rating - UL94 V-0 Internal Housing Shield - Copper foil Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.8mm Cable Length - 3m Wire Length - 150mm (10mm stripped and tinned) Wire Jacket - PVC, Red & Black Wires - 16 AWG (stripped and tinned) Drain - 18 AWG (34 strand tinned copper) Cable Shield - Al-mylar Weight - 410g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Cable Length (Meters): 3m Box Dimensions: 1"H x 6"W x 8"L WT: 0.9 lbs UPC: 5060998710188 Owner's Manual (pdf)Brochure (pdf)

Read more less

N2K Micro Gender Changer - Female to Female - .25MUse between two cable connectors of the same type and gender of connector on an NMEA 2000® backbone.Manufactured using Actisense designed connectors with 0.25m UL certified cable, the gender changers offer easy and secure connections.The gender changers are available in male and female versions.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female-Female Data Interface: NMEA 2000 Cable Length (Meters): 0.25m Box Dimensions: 1"H x 6"W x 6"L WT: 0.1 lbs UPC: 5060998710072

Read more less

NMEA 2000® Multi-Port T-ConnectorMake NMEA 2000 installations easier with our multi-port T-connector. This solution creates a more robust NMEA 2000 backbone by reducing issues with breaking points as well as stress induced by long back bones. The rigid construction is less prone to failure and decreases installation time.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 4"L WT: 0.5 lbs UPC: 753759182311

Read more less

The TLM100 is used to sense levels of liquid tanks using ultrasonic technology and transmit the liquid levels over the NMEA 2000 network. This allows you to observe tank levels anywhere on the vessel where there is an NMEA 2000 compatible display such as the Maretron DSM250. The TLM100 is capable of sensing tanks up to 40" (1.02m) in depth. It can be used for diesel, fresh water, grey water, black water, and oil tanks. Unlike most tank senders that only work with rectangular tanks, the TLM100 can be calibrated for irregular tank shapes so you know the true level of your tanks. The TLM100 can be mounted on tanks with a SAE J1810 5-hole mounting pattern, or to tanks using 1.5" NPT or 1.25" BSP threaded openings via available adapters. The TLM100 has an optional airlock for black water applications to keep the face of the ultrasonic transmitter from fouling, and an optional focus tube to allow use on boats with planing hulls when the vessel spends a significant amount of time with the bow pitched up. Best of all, the TLM100 is NMEA 2000 certified so you can view any and all tank levels anywhere on the vessel using a compatible NMEA 2000 display. The TLM100 is a key component of Maretron's N2KView vessel monitoring and control system. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge. Diagnostic versions indicate correct polarity at a glance to ensure power connections have been made properly Screw connector for positive connnection Termination resistors are used to terminate both ends of the trunk line Specifications: Data Interface: NMEA 2000 Connection Gender: Female NMEA 2000 Connectors: Terminators Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 873804002354

Read more less

GFS™ 10 Fuel SensorAdd fuel tracking capabilities to your Garmin chartplotter and optimize your boat's fuel economy. The GFS 10 tracks fuel flow use and sends the data to your chartplotter via the Garmin CANet or NMEA 2000.Unlike other fuel flow sensors, the GFS 10 will include fuel level sensing capability when connected to an existing analog fuel gauge or resistive fuel tank sensor. Maximum fuel flow rate for the GFS 10 is 50 gallons per hour, and the minimum flow rate is two gallons per hour. Note: GPSMAP 4xx and 5xx series CANet compatible units require a CANet kit to complete the connection. The GFS 10 does not work with diesel engines. The GFS 10 does not work with fuel injected gas engines with a fuel return line. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 3"H x 8"W x 10"L WT: 2.13 lbs UPC: 753759076337 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

NMEA 2000 Inline TerminatorFor proper termination of a network in a single piece, space saving design. The inline terminator connects between a backbone cable and a drop cable, while still maintaining proper termination for the end of the network.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 NMEA 2000 Connectors: Terminators Box Dimensions: 2"H x 3"W x 5"L WT: 0.06 lbs UPC: 091887991345

Read more less

NMEA 2000 Backbone Cable - 2MAncor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The backbone cables are available in four lengths from 0.5 meter (1.6 feet) to 10 meters (32.8 feet) to cover a wide variety of applications.Features: Color coded for easy installation and component identification Large 18 AWG power conductors to reduce voltage drop and provide better reliability for critical backbone cables NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 3"H x 5"W x 8"L WT: 0.6 lbs UPC: 091887982237 Brochure (pdf)

Read more less

Protective Screw Cover for N2K Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 5"L WT: 0.01 lbs UPC: 5060998710805

Read more less

NMEA 2000® Backbone/Drop Cable - 12' (4M) - *Case of 5*Extend your NMEA 2000® backbone with Garmin's 1' (0.3M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 4m NMEA 2000 Connectors: Backbone/Drop Cables Box Dimensions: 1"H x 5"W x 6"L WT: 2 lbs

Read more less

NMEA 2000® Backbone/Drop CableExtend your NMEA 2000® backbone with Garmin's 30' (10M) backbone/drop cable.Compatible Devices: AIS™ 300/600 Blackbox Transceiver GBT™ 10 GCL™ 20 Low-light Imaging Camera GDL™ 40 GET™ 10 GFL™ 10 GFS™ 10 GHP™ 12 Autopilot System GHP™ 20 Marine Autopilot System for Steer-by-Wire, Viking® and Yamaha® Helm Master™ GHP™ 20 Marine Autopilot System with SmartPump GMI™ 10/20 Marine Instrument GPS 19x NMEA 2000® GPSMAP® Series VHF 200/300 Marine Radio VHF 300 AIS WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 10m Box Dimensions: 1"H x 4"W x 5"L WT: 1.3 lbs UPC: 753759078126

Read more less

WLN10 Smart NMEA to WiFi Converter - 4800 BaudDigital Yacht’s WLN10 Smart NMEA to WiFi gateway takes iPad and tablet integration afloat even further with the ability to connect to existing on board GPS, AIS and instrument systems and transfer data wirelessly to an iPad or tablet – allowing compatible apps to display and compute with real time information. The WLN10 creates a secure, password protected wifi network on board to footprint the boat with data.When connected to, for example, an AIS system, real time AIS target positions and identity data will be displayed on detailed electronic charting through compatible apps including NavLink, TimeZero, iAIS, iSailor, Seapilot and hundreds more. The tablet becomes a full function navigation display.This version of the WLN10 can now be programmed through its simple browser interface for NMEA 0183 data at 4800 or 38400 baud and for initial programming: Just logon to the IP address and you can set baud rate, SSID and password.  No complicated programming! Through the web interface, you can also view NMEA data received for easy fault finding of issues.The WLN10 Smart supports both UDP (for multiple connections) and TCP/IP interfaces for maximum compatibility with apps so you can be using a PC at the chart table with an iPad on deck. It’s also bidirectional so apps can control an autopilot if this function is enabled.The Smart WLN10 has one NMEA0183 input which can be configured through the web interface. You can also utilise our SeaTalk to NMEA adaptor to allow SeaTalk instrument data to be interfaced directly to the WLN10 Smart.Features: NMEA 0183 to WiFi server (4800 baud or 38400 baud) Web interface for setup and initial programming Set baud rate, SSID and password through web interface Supports both UDP (for multiple connections) and TCP/IP interfaces View NMEA data received for easy fault finding of issues. Supports a bi directional Wi-Fi interface Fully compatible with popular navigation apps and software Easy to install IPX4 black box solution Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 6"W x 8"L WT: 0.35 lbs UPC: 081159830885

Read more less

Maretron Mid Double-Ended Cordset - 2 M BlueMechanical: Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical Current Rating: 4.0 Amps Voltage Rating: 250 VCable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: PE (data pair), PVC (power pair) Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)ENVIRONMENTAL Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)APPROVALS (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC 61162-3 Specifications: Connection Gender: Male-Female Data Interface: NMEA 2000 Cable Length (Meters): 2m Box Dimensions: 1"H x 4"W x 6"L WT: 0.6 lbs UPC: 873804001913

Read more less

IF-NMEA2K2The IF-NMEA2K2 is an interface to convert data from NMEA0183 format to NMEA2000 / CAN bus format and vice versa. In addition to the normal conversion mode, the High Speed mode to convert sensor data for Autopilot as well as an AIS mode dedicated to AIS data are available in one compact unit. With these three modes, you can optimize the conversion speed depending on the situational requirements. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 8"W x 11"L WT: 1 lbs UPC: 611679345332 Owner's Manual (pdf)

Read more less

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - FemalePanel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Connection Gender: Female Data Interface: NMEA 2000 Box Dimensions: 1"H x 5"W x 7"L WT: 0.05 lbs UPC: 5060998710157 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 2000 terminator - maleWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 753759078164
