Raymarine Yachtsense Link Marine Mobile RouterModel: E70640 REMOTE MONITORING ALWAYS CONNECTED STAY INFORMED YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom(R) displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.Specifications Power Specifications Nominal supply voltage: 12 Vdc / 24 Vdc Operating voltage range: 8 Vdc to 32 Vdc Environmental Specification Operating temperature range: -25 degC (-13 degF) to + 55 degC (131 degF) Storage temperature range: -30 degC (-22 degF) to + 70 degC (158 degF) Humidity: up to 93% @ 40 degC (104 degF) Water ingress protection: IPx6 Physical Specification Dimensions (w x h x d): 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in) Weight 1.03 Kg (2.26 lb) Wireless Network Specification Boat Wi-Fi: Wi-Fi access point mode frequencies: 2.4 GHz (2412 MHz to 2472 MHz 2422 MHz to 2462 MHz): 13.28 dBm Dock WLAN: Wi-Fi station mode frequencie 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm Cellular / Diversity: 2G/3G/4G frequencie LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 What's in the Box: YachtSenseTM Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted). x4 mounting fixings (PA 4 x 25 mm self tapping screws). Documentation pack 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket. x2 Dipole antenna (BOAT Wi-Fi). RayNet to RJ45 cable 1 m (3.3 ft). SeaTalkng(R) spur cable 1 m (3.3 ft). 8Power cable with 8 A fitted fuse 1.5 m (4.9 ft). x2 Input/Output (I/O) cables 0.5 m (1.64 ft).

Read more less

RNS-8 Network Switch - 8 Port Raynet Network SwitchThe RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.Features: 8 RayNet Ethernet gigabit ports for fast and reliable connectivity 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes Rugged IPX6/IPX7 construction Reliable, waterproof RayNet connector Ethernet cable ports Designed for simple bulkhead mounting LED power and network port status indicators Unmanaged- simply plug and play with Raymarine devices. Remote diagnostics and performance monitoring via web browser For extended networks, up to 8 RNS-8 switches can be daisy-chained together

Read more less

Reversing hydraulic pump for use with steering systems equipped with 9.8-21 cubic inch (160-350cc) hydraulic steering rams. Compatible with S3 Series corepacks.

Read more less

CP370 Digital Sonar ModuleHigh-Performance Sonar Module for Offshore & Coastal FishingDigital Sonar ModuleThe CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulse™ digital sonar processing.The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.Sharper, Clutter Free TargetsSpend less time looking for fish and more time fishing Smarter target intensity controls reveal bait and game fish with exceptional clarity Enhanced digital filtering reveals fish targets through the entire water column Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display Go DeeperNext generation ClearPulse™ sonar Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m) High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing Accurate Bottom TrackingImproved bottom tracking Track the bottom in extreme conditions with advance ClearPulse™ signal processing Improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons Features: Recommended for Coastal Fishing Sonar Type: Digital Power: 600W/1000W depending on transducer Frequency & Channels: Fixed frequency 50kHz and 200kHz channels Depth Range: 5000 ft. (1,500m) Features ClearPulse™ automatic noise filtering and auto sensitivity control Standard Zoom IPX6 waterproof 12/24VDC 30.6W Maximum

Read more less

i60 SeaTalkng Instruments - Wind w/Wind Vane TransducerThe all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i60 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i60 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i60 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i60 Wind Instrument w/Windvane TransducerFull featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting and high-contrast text and graphics. Short arm vane supplied with 30m (97.5') cable Compatible with Raymarine's masthead transducer (recommend for sailboats) Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed. Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument i60 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Transducer Type: Vane Shape: Square Instrument Function: Wind Box Dimensions: 5"H x 12"W x 27"L WT: 8 lbs UPC: 723193854228 Owner's Manual (pdf)

Read more less

Type 1 Pump 12voltReversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepackCorepack Used S1 or S1GRam Capacity 4.9in - 10.5in (80CC-172CC)Maximum Stall Pressure at 12V 750psi (50bar) (no load) 67in/min (1000cc/min)Corepack Used S2 or S2GRam Capacity 4.9in - 14in (80cc - 230cc)Maximum StallPressure at 12V 750psi (50bar)Peak Flow Rate(no load) 67in/min (1000CC/min) Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 5"W x 10"L WT: 5.6 lbs UPC: 023193811208 Owner's Manual (pdf)

Read more less

Raymarine AIS700 Class B AIS with SplitterModel: E70476 Full transmit and receive AIS for enhanced situational awareness and safety Latest SO-TDMA networking for longer range and faster performance Built-in antenna splitter simplifies installation with existing VHF radio antenna NMEA2000, NMEA0183, PC and SeaTalkng Compatible Software or hardware switchable Silent Mode for enhanced security when needed The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat's information too helping you to be seen on other vessels' systems.Specifications Evironmental Operating temperature -15 degC to +55 degC Storage temperature -20 degC to +75 degC Water ingress IPX6 and IPX7 Humidity Up to 93% @ 40 degC Power Power Supply 12v and 24 nominal Power Consumption <3W <3W 3A Load Equivalency Number 1 LEN RF Specifications DSC Receiver Implemented by time sharing with one TDMA receiver Receiver 1 band 156.025 MHz to 162.025 MHz (in 25KHz steps) Receiver 2 band 156.025 MHz to 162.025 MHz (in 25KHz steps) Transmitter band 156.025 MHz to 162.025 MHz (in 25KHz steps) Transmitter specification To meet IEC 62287-2 relevant sections Receiver specification To meet IEC 62287-2 relevant sections Transceiver specification To meet IEC 62287-2 relevant sections GPS receiver u-blox MAX-M8W GPS receiver channels 72 channels GPS Cold start acquisition time 26s nominal Positional source GPS & GLONASS AIS performance 5W SOTDMA External Connection VHF antenna connector type SO-239 co-axial VHF radio connector type SO-239 co-axial GNSS antenna connector 50 Ohm TNC co-axial NMEA2000 DeviceNet male USB Micro-B External interface isolation NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification. NMEA0183 interface 1 (MFD connection) NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS. NMEA0183 interface 2 (NMEA0183 instrument connection) NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate USB interface (PC connection) Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud What's in the Box: AIS700 Class B AIS Transceiver with built-in VHF antenna splitter GNSS (GPS) Antenna Power / data cable 2m (6.56 ft) VHF Radio cable 1m (3.28 ft) DeviceNet to SeaTalkng(R) adaptor cable 1m (3.28 ft) GNSS antenna gasket GNSS antenna pole mount Unit fixings (4 x No.8x19 self tapping screws) M5 nut and washer (grounding) Documentation kit GNSS antenna fixings (3 x M3x40 stud and thumb nut) Software CD

Read more less

Raymarine RAY91 Modular Dual-Station VHF Radio with AISModel: E70493 Black box, dual-station capable VHF radio Built-in Automatic Identification System (AIS) Class B Receiver NEW - Optional Wireless handset and active speaker available Wired handset and passive speaker included Expandable to 2 RayMic handsets Built-in loudhailer and fog signal generator Optional external GPS receiver and Class D Digital Selective Calling Simple NMEA2000 and NMEA0183 Networking The Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.The Ray91 is also equipped with an integrated Automatic Identification System (AIS) receiver. Us the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs. AIS equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information.Ray91 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel's MMSI number during setup and you're ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Use Ray91's position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterways.Ray91's built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Ray91's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.Specifications ENVIRONMENTAL Water Integrity Complies with IPX6 & IPX7 Complies with EN60945 Operating Temperature Range -25 degC to 55 degC Storage Temperature Range -25 degC to 70 degC Humidity up to 95% Electrical Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101) Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected Operating Voltage Range 9V DC to 16V DC Current Consumption Less than 6A at High Power (13.6V) Standby: 600 mA Receive: 2 Amps Transmitter Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Frequency Stability + / - 1.5 ppm Channel Spacing 12.5 kHz Power Output High Power = 25 Watt, Low Power = 1 Watt Spurious emmission Better than -36 dBm at 25W (Less than 0.25 μW) Maximum Deviation +/- 5kHz Antenna port impedance 50 ohms typical Receiver Receiver Type Double Conversion Super Heterodyne Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 - 157.425 MHz 155.500 to 161.425 MHz Private channels Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD Hum & Noise Better than -40 dB Audio Distortion Less than 10% Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD Typical Local -110 dBm (0.7uV)@12 dB SINAD Typical Adjacent Channel Selectivity More than 70 dB Spurious Response Rejection More than 70 dB Inter Modulation Rejection More than 70 dB GPS Number of channels 72 Cold Start 29s Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition) GNSS Compatibility GPS GLONASS *BeiDou SBAS Compatibility WAAS EGNOS MSAS Special Features Active jamming and interference reduction Operating frequencies GPS L1 C/A GLONASS L10F Beidou B1 Signal Acquisition Automatic Almanac Update Automatic Geodetic Datum WGS-84 (alternatives available through Raymarine MFD) Refresh Rate 20 Hz (20 times per second concurrent GNSS) Positional Accuracy Without SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the time AIS Class type Receive Only Dimensions 2.48 H x 9.25 in W x 6.3 in W What's in the Box: Ray91 VHF DSC Radio (including fitted power and data cable) Raymic handset cradle Raymic handset Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio) Passive speaker Passive speaker mounting gasket Passive speaker mounting screws x 4 Documentation VHF radio mounting screws x 4 Handset cradle mounting screws x 4 DeviceNet to SeaTalkng(R) adaptor "

Read more less

B75M 600W Medium Frequency CHIRP Transducer 20° Tilt Single Operation Cable for 1 Transducer InstallThe B75's offer high resolution benefits of CHIRP technology at an affordable price. Available in a number of low-profile, tilted element configurations these transducers are great options for small and medium sized trailerable boats. They also offer wider beam angles than some more expensive transducers, providing greater coverage below the vessel. Specifications: Beam: 24 to 16 Degrees Medium-Frequency  Deadrise Angle: 16 to 24 Degree  Frequency: 80-130 kHz Medium Frequency CHIRP  Material: Bronze Maximum Depth: 900' Sonar: CHIRP Sonar, Depth and Temperature Type: Thru-Hull Specifications: Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Temperature: Yes Speed Included: No Box Dimensions: 5"H x 8"W x 12"L WT: 6.6 lbs UPC: 723193706190

Read more less

CAM210 Day & Night IP Marine Bullet CameraRuggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat. Plug and play integration with Raymarine MFD's running Lighthouse II Power over Ethernet (PoE) or direct 12V DC power supply High bright IR LEDs for operation in total darkness Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke) Intelligent IR technology for clear video images at night in all conditions Specifications: CPU: 32-bit ARM9 RISC CPU up to 432MHz Flash / SDRAM: 128MB / 128MB Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor) Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel S/N Ratio: More than 50dB Minimum Illumination: 0Lux (IR On) IR Distance: 20M Day & Night: ICR Lens: 6.0mm Megapixel Board Lens Field of View:Diagonal = 63.6° +/- 3°Horizontal = 53.3° +/- 3°Vertical = 33.1° +/- 3° Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps Resolution: Up to 1920 x 1080 (Full HD) Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution Video Streaming:Support multi stream with H.264, MJPEGAdjustable frame rateCVBR/CBR in H.264 Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom Image Setting:Day & NightAuto White BalanceAuto ExposurePrivacy MaskEffects - Color, Sharpness, Mirror / V-Flip Security: Password protection, User access log, HTTPS encryption Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af Power Consumption: Max. 3.3W, Max. 5.3W with IR Net Weight: 900g LED's: Power, Network Connection Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket General Operation Temperature: 0°40° Celsius(32F104F) Storage Temperature: -10°50° Celsius(14F122F)

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 15 Amps at supply voltageDrive Clutch OutputUp to 2.0 A continuous, selectable between 12 /24 VConnections Includes the M81105 Rotary Rudder Reference Sleep switch Power Drive motor Drive clutch Ground Nominal supply voltage12 V or 24 VOperating voltage range10.8V to 31.2V dcPower Consumption (standby) - Main Power Supply300 mA (12/24V)Power Consumption (standby) - SeaTalkng Power Supply20 mA (12V)SeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power Out3 Amp at 12V (fuse protected at 3 Amp)Data ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof ratingDrip resistantDimensions (W x H x D)285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)Weight2.2kg (4.84lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 7"H x 11"W x 17"L WT: 6.8 lbs UPC: 723193768914

Read more less

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M CableThe RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.Install & Go!Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up. Finely TunedThrough rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.Sail SmarterTrusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.Specifications:Length     Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in) Width     Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in) Height     Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in) Power Nominal supply voltage: 12 V dc (via SeaTalk NG) Operating voltage range: 9 V to 16 V dc Power Consumption: < 100 mW Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1 Environmental Operating temperature range: -25°C to +55°C (-13°F to +131°F) Storage temperature range: -30°C to +70°C (-22°F to +158°F) Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3 Wind: 115 mph (185 kph) Vibration: EN 60945:2002 (exposed) What's In The Box? No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer) No.7 x 3/4" self tapping screws x 2 (for mounting the gateway) 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) Mast cable, 30 m (98.43 ft) reel Documentation Wind transducer Smart wind-wired gateway SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)

Read more less

Ray90 Modular Dual-Station VHF Black Box Radio SystemRaymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Features: Black box, multi-station capable VHF radio Wired handset and passive speaker included Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Position TrackingUse Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.LoudhailerRay90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Waterproof & RuggedizedRay90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.Expand Your SystemThe Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water. Specifications: NMEA 2000: Yes Built-In GPS: No AIS: No Hailer: Yes Remote Mic Capable: Yes Scrambler Capable: No Color: Black Intercom Capability: Yes Listen-Back: No Box Dimensions: 9"H x 11"W x 11"L WT: 8.2 lbs UPC: 723193823187

Read more less

Reversing hydraulic pump for use with steering systems equipped with 4.9-14 cubic inch (80cc - 230cc) hydraulic steering rams.

Read more less

i50 SeaTalkng Instruments - Tridata with Thru-Hull TransducerThe i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.For the ultimate in flexibility, the i50 Instruments support SeaTalkng CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.The ultra-sleek design of the i50 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument has a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i50 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.i50 Tridata Instrument The i50 Tridata is a convenient 3-line instrument that combines the Speed and Depth Instruments functions into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium or as a depth and speed repeater solution for other locations on the boat. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Use a primary display or as a repeater of i50 depth and speed instruments Built-in depth and speed transducer connections M78713-PZ Nylon Depth Transducer with 45ft cable E70673 ST900/P120 S/T Thru Hull - 13.7m Cable The i50 Tridata's 3-line LCD can show current depth, current speed, distance log, trip log, and water temperature. Additional display modes include maximum speed, average speed, and VMG to windward. Tridats have a count-up timer and 2 race start timers for racers. Tridata's robust alarm functions include a shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm.Features: Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems. Large, crisp LCDs with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70, and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Read more less

Raymarine CP370 Digital Sonar Module Model: E70297 UPC: 723193792995 Sharper Fish Targets Enhanced Automatic Sensitivity Control Better Noise Reduction Enhanced Bottom Tracking ClearPulseTM automatic noise filtering and auto sensitivity control Standard Zoom Digital Sonar Module The CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulseTM digital sonar processing. The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing. ClearPulseTM signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar. Sharper, Clutter Free Targets Spend less time looking for fish and more time fishing Smarter target intensity controls reveal bait and game fish with exceptional clarity Enhanced digital filtering reveals fish targets through the entire water column Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display. Go Deeper Next generation ClearPulseTM sonar Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m) High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing Accurate Bottom Tracking New and improved bottom tracking Track the bottom in extreme conditions with advanced ClearPulseTM signal processing New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons. Specifications Recommended for Coastal fishing Sonar type Digital Power 600W / 1000W Depending on transducer Frequency & Channels Fixed frequency 50KHz and 200KHz channels Depth range 5000 feet Waterproofing standard IPX6 Compatibility aSeries, cSeries, eSeries, gS Series, C-Widescreen, E-Classic, E-Widescreen Connections Power connection, Network connection (RayNet connector) 10/100 Mb/s, Transducer connection Input Voltage 12/24 V DC Input Draw 30.6 watts max Dimensions 11.79 in W x 7.9"D x 3.3 in H What's in the Box: CP370 Module 1.5m power cord #8 screws qty 4 2m Raynet Female to Female network cable Documentation pack

Read more less

The EV Sensor Core At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options. Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 12"L WT: 1 lbs UPC: 723193768884 Brochure (pdf)

Read more less

ST4000MK2/ST4000+ Wheel Drive Only *Not A Complete PilotThe Raymarine ST4000MK2 is a SeaTalk compatible autopilot that will steer your boat to a heading automatically, accurately, and reliably.*Package contains wheel drive only - not a complete autopilot. Specifications: Type: Parts Box Dimensions: 8"H x 15"W x 16"L WT: 7.1 lbs UPC: 723193120934

Read more less

Model: A80615Raymarine's RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-400 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, conical CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-400 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-400 features a rugged stainless steel through hull body suitable for fiberglass, wood or metal hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 works even works great on trailered boats and with no fairing block to cut, installation is a breeze.What's in the Box: RV-400 stainless steel all-in-one through hull transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Transducer locknut Installation instructions

Read more less

Raymarine RV-200 Bronze All-In-One Through Hull Transducer (with 0 deg deadrise compensation) Model: A80465 Raymarine's RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze. What's in the Box: RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions

Read more less

Raymarine RV-300 Plastic All-In-One 0 deg Through Hull Transducer (with 0 deg deadrise compensation) Model: A80470 Raymarine's RV-300 Plastic All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar. The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves, swells, and when maneuvering. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-300 features a rugged plastic through hull body suitable for fiberglass, steel or aluminum hulls. The RealVision 3DTM transducer elements are arranged with a 0 deg offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze. What's in the Box: RV-300 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable) Anti-rotation bolt kit Installation instructions

Read more less

Ray73 VHF Radio with AIS ReceiverRaymarine’s Ray73 radiois communications central for your boat with built-in VHF, AIS andpublic-address capabilities.  Built on our full-sized marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore.    Ray73 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver.  Simply program your boat’s MMSI number into the Ray73 and immediately benefit from the enhanced calling and safety features of DSC.  The Ray73 supports both NMEA2000 and legacy NMEA0183 networking which enables it to connect with other onboard electronics.  Ray63 also supports the connectionof an optional remotespeaker (A80542) to provide audio at a second location.Ray73 also comes with a built-in loudhailer output.  Add the optional hailing horn (M95435) and use your Ray73 tocommunicate with crewmembers on deck, on the dock, or on another boat.  The Ray73 can also generate manual or automatic fog signals with built-intone and gong sounds that comply with all international regulations.Ray73 also supports dual control stationswith the addition of the optional RayMic second station kit.  With an oversized LCD and simple controls, the RayMic is a compact all-in-one handset that fits easily on any secondary helm, tower or navigation station.  Use RayMic for station-to-station intercom capability too. Ray73 was designed to comply with the latest international regulations and includes a connection point for an optional GPS/GNSS antenna system.  The optional antenna improves the GPS reception when the radio is mountedbelow deck, inan enclosed pilothouse, or inside a metal enclosure.  Features: Full-sized marine VHF with Digital Selective Calling Built-in Automatic Identification System (AIS) receiver Loudhailer output for public address and fog signaling Optional RayMic second station kit for full remote control Built-in GPS/GNSS receiver withan optionalexternal antenna connection Comaptible with Raymarine wireless hub and wireless handset Surface and trunnion mount kits included Complements the style and design of Axiom multifunction displays Specifications: AIS: Yes Built-In GPS: Yes Hailer: Yes NMEA 2000: Yes Remote Mic Capable: Yes Scrambler Capable: No Box Dimensions: 7"H x 9"W x 10"L WT: 6.1 lbs UPC: 723193826485 Owner's Manual (pdf)Brochure (pdf)

Read more less

Raymarine CAM210 Day and Night IP Bullet Camera Model: E70346 UPC: 723193813263 Plug and play integration with Raymarine MFD's running Lighthouse II or later Power over Ethernet (PoE) or direct 12v DC power supply High bright IR LEDs for operation in total darkness Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke) Intelligent IR technology for clear video images at night in all conditions Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat. Specifications System CPU 32-bit ARM9 RISC CPU up to 432MHz Flash/SDRAM 128MB / 128MB Camera Image sensor 2.0 Megapixel 1/2.8 SONY progressive scan CMOS(Exmor)

Read more less

Raymarine A80532 Follow OnSteer LeverModel: A80532

Read more less

Raymarine Evolution ACU Specifications Model ACU-100 ACU-200 ACU-300 ACU-400 E70098 E70099 E70139 E70100 Drive Current Output Maximum continuous 7 A at supply voltage Maximum continuous 15 A at supply voltage Maximum continuous 5 A at supply voltage Maximum continuous 30 A at supply voltage Drive Clutch Output No clutch connection Up to 2.0 A continuous, selectable between 12 /24 V No clutch connection Up to 4 A continuous at 12 V on 12 V systems, Up to 4 A continuous at 24 V on 24 V systems, Up to 4 A continuous at 12 V on 24 V systems Connections Rudder reference sensor Power Drive motor Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch Ground Rudder reference sensor Sleep switch Power Solenoid drive out / return Ground Rudder reference sensor Sleep switch Power Drive motor Drive clutch 723193767962 Ground Digital Input / Output (DIO) Nominal supply voltage 12 V 12 V or 24 V Operating voltage range 10.8 V to 15.6 V dc 10.8 V to 31.2 V dc Power consumption (standby) - main power supply 300 mA (12V) 300 mA (12/24 V) Power consumption (standby) - SeaTalkng power supply No power supply to SeaTalkng&nbs p; 20 mA (12V) SeaTalkng LEN (Load Equivalency Number) 1 SeaTalkng Power out No power supply to SeaTalkng 3 A at 12 V (fuse protected at 3 A) Data connections SeaTalkng Installation environment Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF) Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity: max 93% Waterproof rating Connector panel: IPX2 Drive electronics: IPX6 Drip resistant Dimensions (W x H x D) 180 mm x 140 mm x 52 mm (7.1 in x 5.5 in x 2.0 in) 285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in) Weight 0.6 kg (1.32 lbs) 2.2kg (4.84 lbs) Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2

Read more less

Raymarine i50 Tridata with ST900/P120 & P319 Thru-Hull TransducersModel: T70582 3-line viewing of Depth, Speed, and Log/Temperature data Red backlighting enhances night visibility SeaTalkNG, NMEA2000 and SeaTalk network compatible Built-in depth and speed/temperature transducer interface Compact footprint Low power consumption Surface mount or optional trunnion mount kit The i50 Tridata Display neatly combines depth and speed on an easy-to-read 3-line display. Trip and log data, surface sea temperature and speed over ground are also easily at your finger tips.Combining both speed and depth data, the i50 Tridata instrument display is a multifunctional solution for displaying depth, speed, log, and water temperature information. The i50 Tridata display combines the features of its Depth and Speed siblings into a single, powerful, space-saving instrument. Tridata' s 3-line display is simple to read at a distance, with oversized readouts for critical depth and speed values. Its high-contrast LCD, large digits, and red backlighting combine to deliver superior visibility under all conditions. i50 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. i50 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability.All i50 instruments are designed to fully integrate with Raymarine's autopilots and other navigation equipment, including the i60. Each i50 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. i50 instruments are SeaTalkNG network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.Specifications PHYSICAL Dimensions Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in) Connections 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections ENVIRONMENTAL Relative humidity Max. 93% Waterproof rating IPx6 Storage temperature -30 degC to +70 degC (-22 degF to 158 degF) Operating temperature -20 degC to +55 degC (-13 degF to 131 degF) POWER Current (typical / max) 45-65 mA (display only) / 200 mA maximum (transducer connected) Nominal supply voltage 12 V dc Operating voltage range 10 V dc to 16 V dc Power consumption < 1 W typical (display only), 2.4 W maximum (transducer connected) LEN (NMEA 2000 Load Equivalency Number) 4 What's in the Box: i50 Instrument display Suncover (to match i70s, p70s, p70Rs, eS Series) Front bezel (to match i70s, p70s, p70Rs, eS Series) Gasket Suncover (to match a, c, e Series) Front bezel (to match a, c, e Series) 400mm (15.7 in) SeaTalkng spur cable SeaTalkng blanking plug Fixing screws x4 Documentation

Read more less

Raymarine RSW Wired, Smart Wind transducer with 30m CableModel: E70670 Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up. Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent. Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter. The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.Specifications Length Wind transducer (including cable): 657.762 mm (25.90 in) Width Wind transducer: 46.96 mm (1.85 in) Height Wind transducer: 305.86 mm (12.04 in) Power Nominal supply voltage 12 V dc (via SeaTalk NG) Operating voltage range 9 V to 16 V dc Power Consumption < 100 mW Fuse rating Ensure that the SeaTalk NG backbone is protected by a 5 A fuse NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1 Environmental Operating temperature range -25 degC to +55 degC (-13 degF to +131 degF) Storage temperature range -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity Masthead: 100% Waterproof rating Wind transducer: IPx6/IPx7 Wind 115 mph (185 kph) Vibration EN 60945:2002 (exposed) What's in the Box: No.10 x 3/4 self tapping screws x 4 (for mounting the wind transducer) No.7 x 3/4 in self tapping screws x 2 (for mounting the gateway) 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable) Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface) Mast cable

Read more less

Raymarine T070 Race MasterModel: T070You need instant access to accurate data and displays that are absolutely reliable. Raymarine Wireless instruments display all the data you'll need and there are no wires running through your hull or down your mast.Besides giving you versatility, Raymarine Wireless displays are unique. They are wireless, solar powered and use Micronet technology.A typical installation can be done in just a few hours, with your rig in place and your boat still in the water. And there's no need for holes in the bulkhead or wires down the mast.Raymarine Wireless displays are solar powered with integrated lithium batteries that power the unit for life. Power consumption is so efficient that units can run autonomously for up to 300 hours.The elimination of wires in the mast not only reduces spar weight but also lowers the boat's centre of gravity, giving significant and immediate performance advantage.Using clip-in cradles, your display can be placed anywhere on your boat, allowing you to view the information where and when you need it.All Raymarine Wireless products are sealed for life and completely waterproof (submersible to 10m). This also means no condensation.The ultimate tactical race compass and wind shift indicator. Its two-tier display shows your heading, how far you're above or below the mean course, and how much you're being headed or lifted. It will enable you to quickly and easily establish the favoured end of the start line, and will help you sail the shortest distance to the windward mark.Downwind, you can see how far off dead downwind you are and when you should gybe for optimal VMG.

Read more less

Replacement wheel drive unit for ST4000+ and newer versions of Raymarine's wheel pilot systems. The fully enclosed wheel-drive fits most types of wheel and makes for a simple installation and superb autopilot performance. Maximum recommended laded boat displacement is 16,500lbs

Read more less

Ray90 Wireless First Station Kit with Passive Speaker, Wireless Handset & Wireless HubModular Dual-Station VHF Radio SystemRaymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio. Features: Black box, multi-station capable VHF radio Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Position TrackingUse Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.LoudhailerRay90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Waterproof & RuggedizedRay90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.Expand Your SystemThe Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water. Specifications: Type: Misc Box Dimensions: 7"H x 13"W x 19"L WT: 5.15 lbs UPC: 723193826768

Read more less

Raymarine HV-300THP HyperVisioThru-Hull Transducer PairModel: T70448

Read more less

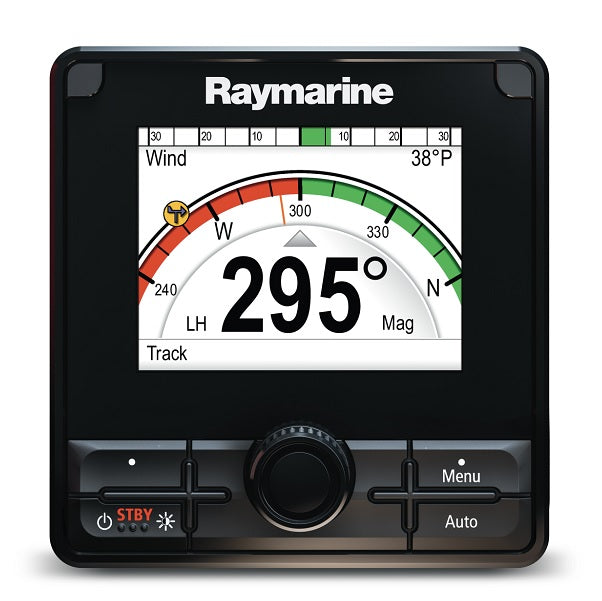

p70Rs Autopilot Control Head with Rotary KnobRaymarine's p70Rs Autopilot Controller keeps you in command of your SmartPilot autopilot system no matter whether you are cruising, fishing or sailing! Built on Raymarine's ultra-sleek platform, the p70Rs autopilot controller offer boaters an attractive, high-visibility, and simple to operate interface to their Raymarine SmartPilot X-Series and Evolution autopilot systems.The p70Rs offers a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter. Exclusive to the p70Rs is a convenient Power Steer mode, which enables you to use the p70R's rotary knob like a miniature steering wheel. P70Rs brings convenient, compact steering control to wherever you need it like auxiliary steering stations, flybridges, wing control stations and more. P70Rs features standard SeaTalkng connectivity for simple interfacing with Raymarine SmartPilot X-Series and Evolution autopilot corepacks. The p70Rs features a 3.5" sunlight viewable Liquid Crystal Display. LED backlighting delivers superior visibility day or night and ultra-low power consumption. Like the i70s instrument, the p70Rs feature a clean, modern glass-bridge styling that coordinates with eS and gS-Series multifuction diplays. They also feature all-weather optically bonded displays that deliver brighter colors and sharper contrast. Features: LightHouse user interface is simple and quick to use.Wide 160 viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination. Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) Each p70s and p70Rs include both black and gunmetal bezels as well as a fitted soft silicone rubber sun cover, 400mm Seatalkng spur cable, panel gasket, mounting kit and document pack. Specifications: Type: Parts Box Dimensions: 3"H x 7"W x 9"L WT: 1.7 lbs UPC: 723193812310

Read more less

p70s Autopilot Control HeadsThe p70s is a push-button operation controller designed primarily for sailboats.Superior ViewingAdvanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.Features: LightHouse user interface is simple and quick to use. Wide 160 viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) Specifications: Type: Parts Box Dimensions: 3"H x 7"W x 9"L WT: 1.6 lbs UPC: 723193812303

Read more less

ST2000 Plus Tiller PilotST2000 Plus tiller autopilot for tiller steered sailing vessels to 10,000 lbs (4,500 kg)*Note: Always take the fully laden displacement weight of the vessel into account; this is often 20% above the designed displacement.Includes: Instruction Manual Plus Tiller Pilot 12V Socket Tiller Pin (sold in packages of 5) Mounting Socket (sold in packages of 5) Specifications: Steering Type: Tiller Box Dimensions: 5"H x 8"W x 21"L WT: 5 lbs UPC: 023193100104 Owner's Manual (pdf)

Read more less

Raymarine ACU150 Actuator Control Unit Model: E70430 The Raymarine ACU-150 is a component of the EvolutionTM Autopilot system and is designed to provide power and control to a Raymarine Type-1 Hydraulic Drive Unit (M81120.) The ACU-150 connects to the SeaTalkng network for communication with its other peripherals. It also has connections for an optional Rudder Reference Unit (sold separately.) The ACU-150 works on 12-volt DC systems only.

Read more less

Raymarine Type 0.5 hydraulic 12V Model: E12139 UPC: 091975000751 Use this pump to as a replacement for the EV100 Powerpilot Type 0.5 suitable for Volvo D4/D6 Sterndrive applications. Specifications Ram Capacity 50cc-150cc3.1cui - 9cui Maximum stall pressure at 12v 50bar (750psi) peak flow rate (no load) 1000cc/min (67in3/min) ACU used ACU-100 Input Voltage 12v

Read more less

Model E70096: EV-1 Nominal supply voltage 12 V (powered by SeaTalkng system) Operating voltage range 10.8 V to 15.6 V dc Power consumption (taken from SeaTalkng system) 30 mA SeaTalkng LEN(Load Equivalency Number) 1 Sensors 3-axis digital accelerometer 3-axis digital compass 3-axis gyro digital angular rate sensor Data connections SeaTalkng NMEA 2000 DeviceNet (EV-2 only) Installation environmental Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF) Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity: max 93% Waterprrof rating: IPX 6 Dimensions Diameter: 140 mm (5.5 in) Depth (including mounting enclosure): 35 mm (1.4 in) Depth (including wall bracket): 95 mm (3.8 in) Weight 0.29 kg (0.64 lbs) EMC compliance Europe: 2004/108/EC Australia and New Zealand

Read more less

RVM-100 Transom Mount Transducer RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.  The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering.  The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. *Works with Axiom 2 Pro RVM series, and RVM1600 Sounder ModuleFeatures: 600-Watt traditional CHIRP Designed for transom mounting on outboard boats Stainless Steel mounting bracket with an integrated kick-up feature 8M Cable

Read more less

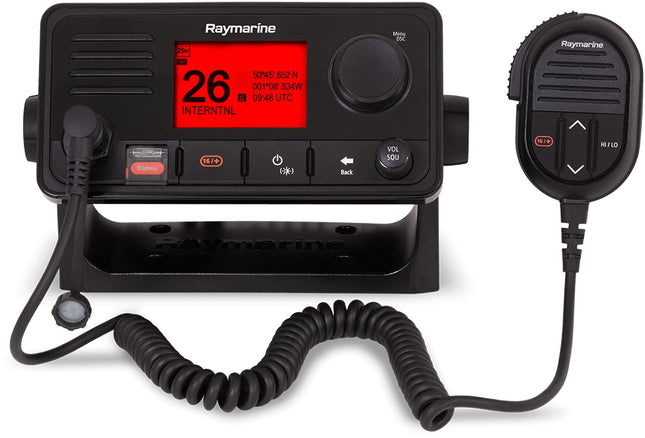

Raymarine RAY73 VHF RadioModel: E70517 Full-sized marine VHF with Digital Selective Calling Built-in AIS receiver provides target data for chartplotter, radar, and instruments Fog signaling and public address functions with optional hailing horn (M95435) Wired or wireless expansion with optional RayMic handset stations Built-in GPS/GNSS receiver with a connection point for an optional external antenna NMEA2000 and NMEA0183 networking for integration with onboard systems Audio output connection for optional passive remote speaker (A80542) Surface and trunnion mount kits included Styled to compliment the Axiom family of multifunction displays Raymarine's Ray73 radio is communications central for your boat with built-in VHF, AIS receiver and loudhailer capabilities. Built on our full-sized marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability. When connected to an optional hailing horn, the Ray73 can generate automatic fog signals and work as a public address announcement system.Specifications Eviromental Specifications Operating Temperature -20oC (-4oF) to +60oC (140oF) Storage Temperature -25oC (-13oF) to +70oC (158oF) Relative Humidity 95% Water Proofing IPx6 & IPx7 Connections 1x NMEA 0183, 1x SeaTalkng (R) / NMEA 2000, 1x Front Fistmic connection, 1x Rear connection for 2nd station, 1x Audio (RCA), 1x GNSS (GPS) antenna (TNC) Channels All available US, International and Canadian VHF marine bands Power Nominal Supply Voltage 12 V dc (Reverse polarity and over voltage protection) Operating Voltage Range 9 Vdc to 16 Vdc Current Consumption Less than 6 A at high power (13.6 V) Standby: 600 mA Receive: 2 A Loud hailer: 3A (8 Ohms) / 6A(4 Ohms) Transmitter Channels All available US, International and Canadian VHF marine bands Frequency Range 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) Frequency Stability +/- 1.5 ppm Channel Spacing 12.5 kHz Power Output Low power setting - 1 W High power setting - 25 W Antenna Impedance 50 Ohms (typical) Receiver Receiver Type Double conversion super heterodyne Channels All available US, International and Canadian VHF marine bands Sensitivity Better than 1 microvolt EMF @20dB SINAD Squelch Sensitivity Less than -2 dBμ EMF Hum and Noise Better than -40 dB Audio Distortion Less than 10% Speaker Base Station Speaker Power Output 2.5W (8 Ohms) Fistmic Speaker Power 1W (16 Ohms) External Speaker Power 5W (8 Ohms) Handset Speaker Power Output 1W (16 Ohms) Hailer Speaker Power Output 25W (4 Ohms) / 12W (8 Ohms) GNSS (GPS) Channels 72 Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBm (Acquisition) SBAS Compatibility WAAS, EGNOS, MSAS Special Features Active Jamming and Interference Reduction Signal Acquisition Automatic Almanac Update Automatic Geodetic Datum WGS-84 (alternatives available through Raymarine MFD) Refresh Rate 10 Hz (10 times per second Concurrent GNSS) Position Accuracy Without SBAS: <= 15 metres 95% of the time, With SBAS: <= 5 metres 95% of the time AIS Class Type AIS receiver only Other Dimensions 7.83W x 3.88"H x 5.63"D What's in the Box: Ray73 VHF DSC Radio Sun cover Panel mount gasket Fistmic Mounting bracket (Trunnion) Mounting bracket knobs Fistmic hook plate Documentation Protective antenna boot SeaTalkng (R) blanking plug SeaTalkng (R) 400 mm (15.7 in.) spur cable 4x M4 nuts

Read more less

CAM400 Marine Day/Night IP Camera - WhiteThe CAM400 is a rugged fixed-mount marine IP camera for above-deck and below-deck monitoring applications, designed for seamless integration with Raymarine Axiom or Axiom 2 chartplotters. It can be deployed as a standalone camera or as part of a multi-camera system, supporting flexible monitoring and viewing across connected displays and networked devices.Use CAM400 to assist with close-quarters maneuvering, monitor blind spots, check on crew and passengers, or enhance onboard security. With integrated infrared illumination, CAM400 provides dependable image performance in daylight, low light, and nighttime.Features: High-definition marine IP camera for Raymarine Axiom systems. Full HD 1080p video.•    Wide-angle 129° horizontal field of view. Optimized for docking, onboard monitoring, and security applications. Enhanced situational awareness;* pair with a Raymarine AR200 sensor to unlock augmented reality on your Axiom display. Overlay AIS targets, waypoints, and chart details directly onto the live video image. Integrated infrared illumination for low-light and nighttime awareness. Flexible installation options with Power over Ethernet (PoE) or 12 V DC. Multi-stream video support for integration with onboard systems. Image flip and invert functions for ball-up and ball-down mounting. Compact, low-profile design for discreet installation. Rugged, marine-grade construction for above-deck environments. Factory-installed RayNet® Ethernet pigtail with no waterproof RJ-45 coupler required. Optional on-screen distance lines when integrated with LightHouse 5 on Axiom 2 systems In the Box: CAM400 - includes a 1.4 m (4.8 ft) integrated pigtail with PoE (RayNet) male, factory reset switch, and direct-power breakout Camera collar Documentation Camera base Mounting gasket (pre-fitted to the camera base) Hex wrench (Allen key) Bushings (3 x) Silicone rings (3 x) Flat washers (3 x) Grub screws (3 x) M4 x 30 mm self-tapping mounting screws (3 x) Brochure (pdf)

Read more less

AR200 IP Camera Stabilization ModuleThe AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.”Features: 9-axis AHRS (attitude and heading reference system) sensor 28-channel GPS receiver Fast 10Hz position updates Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays NMEA 2000 compliant IPX6 / IPX7 waterproof rating In the Box: Mounting trim (top) Small sealing ring AR200 x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel) Mounting tray (bottom) x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel) Bulkhead (wall) bracket Large sealing ring Documentation 6m (19.7ft) SeaTalkNG white cable

Read more less

Standard Forward Wind TransducerCompatible with: ST70* ST60+ ST290 i70 Standard Length: 14 1/2"Includes 100ft. Cable.*Using with ST70 requires purchase of ST70 Wind Pod, sold seperately. Specifications: Instrument Function: Wind Box Dimensions: 4"H x 11"W x 20"L WT: 5 lbs UPC: 723193220788

Read more less

i70s Multifunction Instrument DisplayMaximum Visibility and Maximum VersatilityThe i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1_ display, the i70s is easy-to-customize with digital, analogue and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.Features: 4.1" super bright oversized LCD for maximum visibility All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle Glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays Simple user interface with sculpted rubber keypad for precise operation in all conditions Customizable data displays of depth, speed, wind and more SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks NMEA2000 connectivity* for engine, environment fuel and navigation data Convenient AIS repeater mode allows you to visually track nearby AIS targets Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover *NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is required for connecting the i70s to NMEA2000 backbone.Intuitive LightHouse User InterfaceThe i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.NetworkingRaymarine i70s allows for connectivity to the following on board networks: First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable Current generation SeaTalkng networks NMEA2000 networks using a SeaTalkng to DeviceNet adaptor In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks. AIS RepeaterDisplay AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.Transducer ConnectivityPair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analogue depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.CustomizationThe Raymarine i70s instrument is easily customised to suit your personal boating requirements. From traditional analogue dials to engine information and tank levels, i70s has the capabilities to show it all. Specifications: Screen Size: 4.1" Shape: Square Instrument Function: Multifunction Box Dimensions: 3"H x 6"W x 9"L WT: 1.6 lbs UPC: 723193812297 Owner's Manual (pdf)

Read more less

Autopilot Control Unit (ACU) The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Drive Current OutputMaximum continuous 7 Amps at supply voltageDrive Clutch OutputNo clutch connectionConnections Rudder reference sensor Power Drive motor Ground Nominal supply voltage12 VOperating voltage range10.8V to 15.6V dcPower Consumption (standby) - Main Power Supply300 mA (12V)Power Consumption (standby) - SeaTalkng Power Supply No power supply to SeaTalkngSeaTalkng LEN (Load Equivalency Number)1SeaTalkng Power OutNo power supply to SeaTalkngData ConnectionsSeaTalkngInstallation Environment Operating Temperature: -20°C to +55°C (-4°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: MAX 93% Waterproof rating Connector Panel: IPX2 Drive Electronics: IPX6 Dimensions (W x H x D)180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)Weight0.6 kg (1.32lbs)Conformance Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2 Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 12"L WT: 2 lbs UPC: 723193768907

Read more less

Ray63 Dual Station VHF Radio with GPSRaymarine’s Ray63 radio comes with oversized controls and a big screen for easy operation offshore.  Ray63 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver.  Simply program your boat’s MMSI number into the Ray63 and immediately benefit from the enhanced calling and safety features of DSC.  The Ray63 supports both NMEA2000 and legacy NMEA0183 networking which enables it to connect with other onboard electronics.  Ray63 also supports the connection of an optional remote speaker (A80542) to provide audio at a second location.Ray63 also supports dual control stations with the addition of the optional RayMic second station kit.  With an oversized LCD and simple controls, the RayMic is a compact all-in-one handset that fits easily on any secondary helm, tower or navigation station. Use RayMic for station-to-station intercom capability too. Ray63 was designed to comply with the latest international regulations and includes a connection point for an optional GPS/GNSS antenna.  The optional antenna improves the GPS reception when the radio is mounted below deck, in an enclosed pilothouse, or inside a metal enclosure.Ray63 features an attractive industrial design that complements Raymarine’s Axiom family multifunction displays.  The radio includes both a standard trunnion mounting kit as well as surface mounting hardware.Features: Full-sized marine VHF with Digital Selective Calling Optional RayMic second station kit for full remote control Built-in GPS/GNSS receiver with an optional external antenna connection Surface and trunnion mount kits included Compliments the style and design of Axiom multifunction displays Specifications: AIS: No Built-In GPS: Yes NMEA 2000: Yes Remote Mic Capable: Yes Scrambler Capable: No Box Dimensions: 7"H x 9"W x 11"L WT: 6.1 lbs UPC: 723193826478 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

i60 SeaTalkng Instruments - WindThe all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i60 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i60 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i60 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i60 Wind Instrument Full featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting and high-contrast text and graphics. Compatible with Raymarine's masthead transducer (recommend for sailboats) or the Rotavecta transducer (recommended for powerboats) Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed. Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument i60 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Shape: Square Instrument Function: Wind Box Dimensions: 4"H x 7"W x 10"L WT: 1.8 lbs UPC: 723193762851 Owner's Manual (pdf)

Read more less

i50 SeaTalkng Instruments - Tridata The i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i50 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i50 Tridata Instrument The i50 Tridata is a convenient 3-line instrument that combines the functions of the Speed and Depth Instruments into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium, or as a depth and speed repeater solution for other locations on the boat. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Use a primary display or as repeater of i50 depth and speed instruments Built-in depth and speed transducer connections The i50 Tridata's 3-line LCD display can show current depth, current speed, distance log, trip log and water temperature. Additional display modes include maximum speed, average speed, and VMG to windward. For racers, Tridats has a count-up timer, and 2 race start timers. Tridata's robust alarm functions include a shallow depth alarm, deep depth alarm, shallow anchor alarm and deep anchor alarm. i50 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Shape: Square Instrument Function: Multifunction Digital/Analog: Digital Box Dimensions: 4"H x 7"W x 10"L WT: 2 lbs UPC: 723193730737 Owner's Manual (pdf)

Read more less

Raymarine Wireless 1st StationKit for Ray90Model: T70433 Black box, multi-station capable VHF radio Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking Modular Dual-Station VHF Radio SystemRaymarine's fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel's MMSI number during setup and you're ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Use Ray90's position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.Ray90's built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Ray90's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water. Dimensions 7H x 13"W x 18"L WT: 5.15 lbs "
